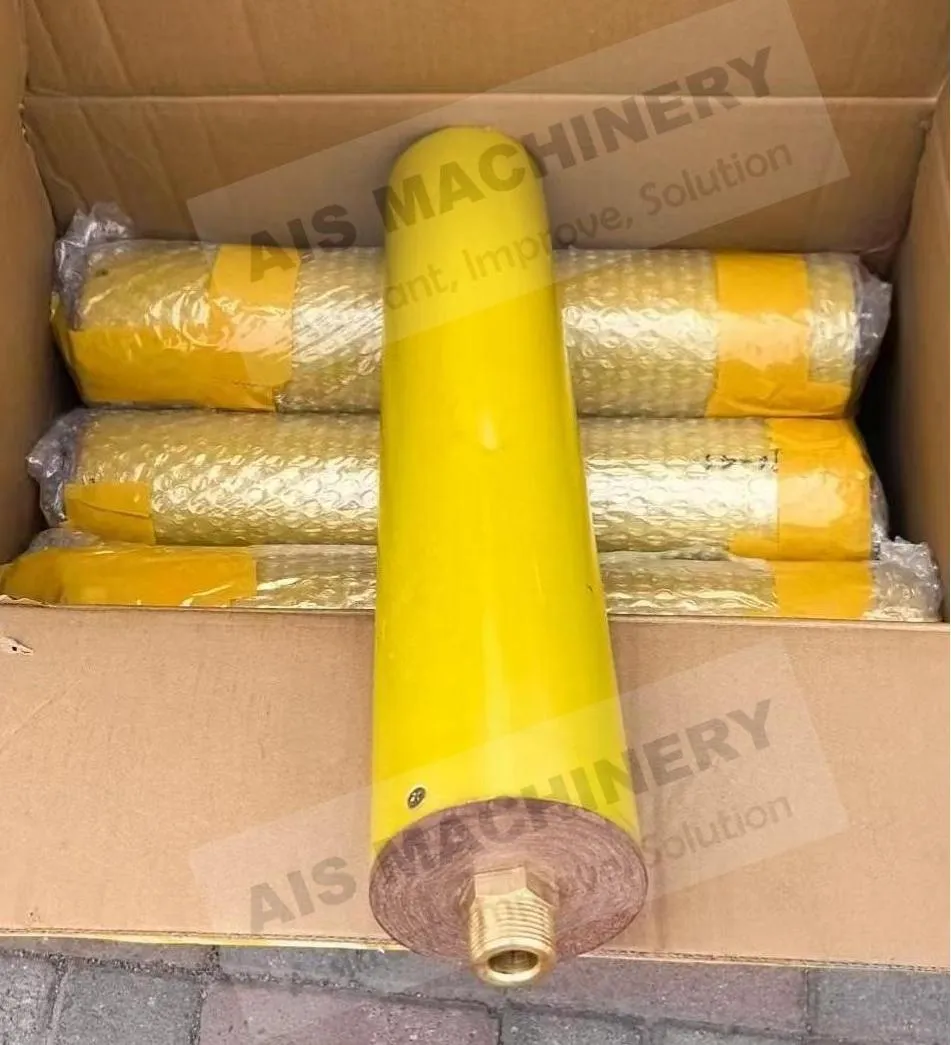

Impeder for ERW Tube and Pipe Welding

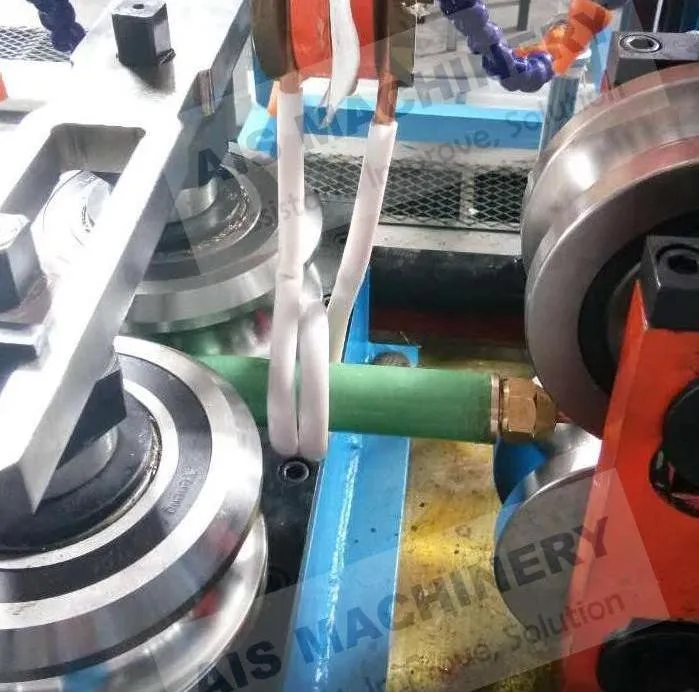

An impeder is essential for producing durable, corrosion-resistant steel tubes. Installed inside the pipe during high-frequency welding, it directs magnetic flux for precise heating. This reduces energy consumption, extends tool life, and guarantees reliable weld seams, giving pipe manufacturers both performance and cost advantages.

Detail Produk

Hubungi Sekarang

Detail Produk

Video

Deskripsi Produk

1. Introduction

2. Key Functions and Benefits

• Focuses Welding Energy – Guides high-frequency current directly to pipe edges.
• Improves Weld Quality – Produces strong, smooth, and defect-free weld seams.
• Reduces Energy Costs – Lowers power consumption by up to 25–30%.
• Prevents Overheating – Water-cooled casing protects ferrite and extends service life.
• Supports Different Pipe Shapes – Suitable for round, square, and rectangular tubes.

3.Product Parameters

Parameter	Typical Range	Catatan
Tube Outer Diameter (OD)	10mm – 273mm	Customizable based on mill design
Tube Wall Thickness	0.5mm – 16mm	Varies with tube type
Impeder Length	200mm – 500mm	Can be customized for specific applications
Bahan	Ferrite (YYKCB or equivalent)	High magnetic permeability
Operating Temperature	≤ 250°C	Standard for HF welding
Surface Finish	Smooth and precise	Reduces friction and ensures stability
Application Type	Single-pass / Multi-pass ERW mills	Suitable for various welding setups

Note: All parameters can be tailored to match specific ERW mill requirements.

4. Applications

• ERW Pipe & Tube Production Lines – Carbon steel, galvanized steel, stainless steel.
• Automotive Tubing – Exhaust pipes, structural tubes.
• Construction Industry – Scaffolding, square & rectangular pipes.
• Oil & Gas Industry – High-strength pipelines.
• Mechanical Tubing – Precision welded tubes for machinery.

5. Why Impeders Are Essential in ERW Welding

With Impeder	Without Impeder
Concentrated heating at weld edges	Energy spreads across pipe wall
Strong, smooth weld seam	Weak, inconsistent weld seam
Lower power consumption	Higher energy costs
Longer equipment life	Overheating & damage to parts
Higher production efficiency	Lower welding speed & output

6. Frequently Asked Questions About Impeders❓

Q1: What is an Impeder in ERW tube welding?
An impeder is a device used in ERW pipe mills to concentrate high-frequency current at the weld edges, ensuring efficient heating and strong welds.

Q2: Why is an impeder important for welding quality?
Without an impeder, welding energy is wasted across the pipe wall, leading to weak seams, higher power consumption, and reduced efficiency.

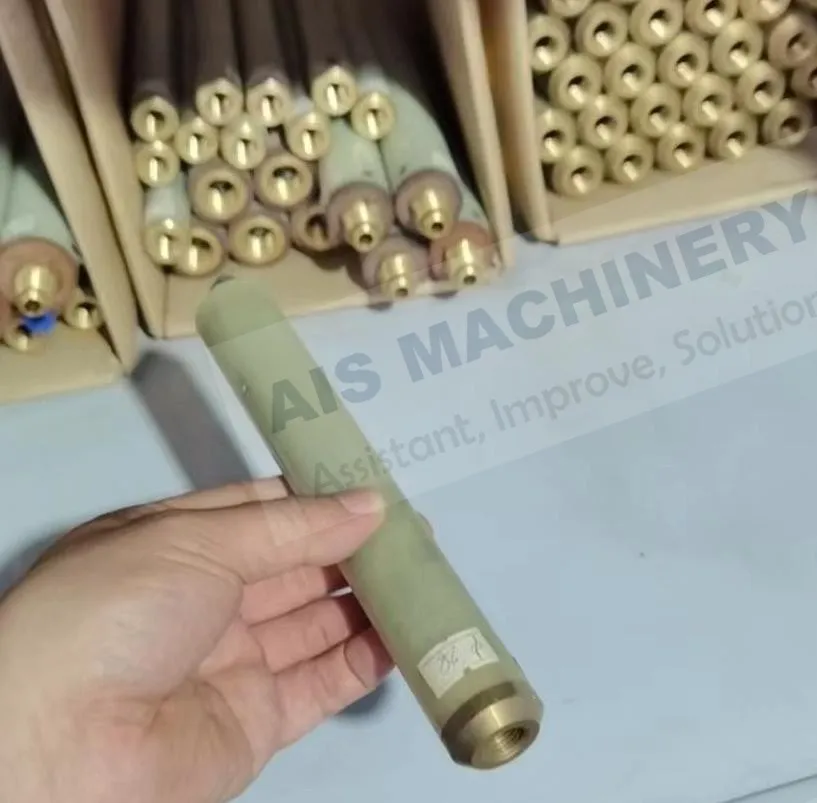

Q3: What sizes of impeders are available?
Impeders can be customized for pipe diameters from 10 mm up to 630 mm, with different lengths, casings, and ferrite grades.

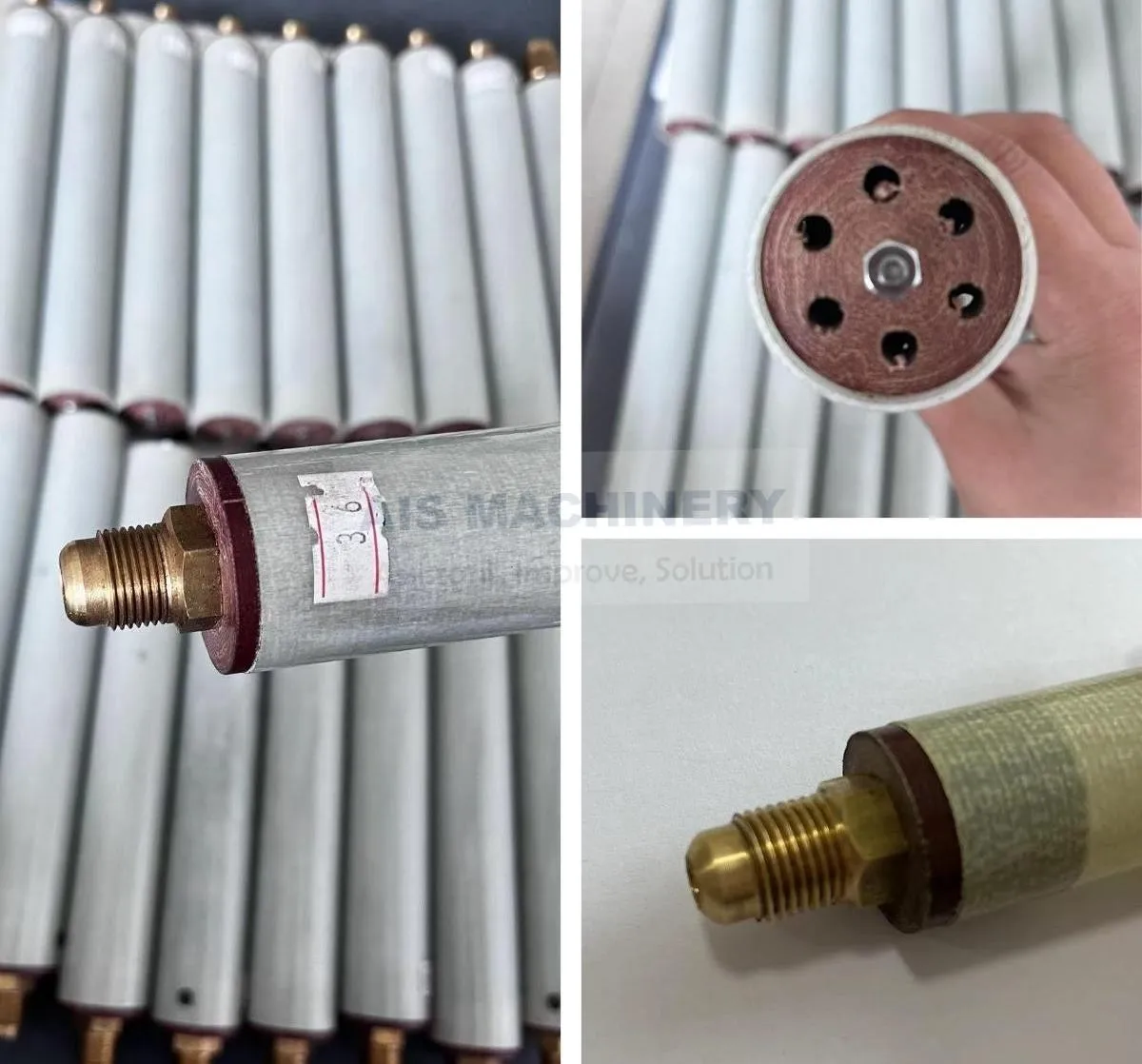

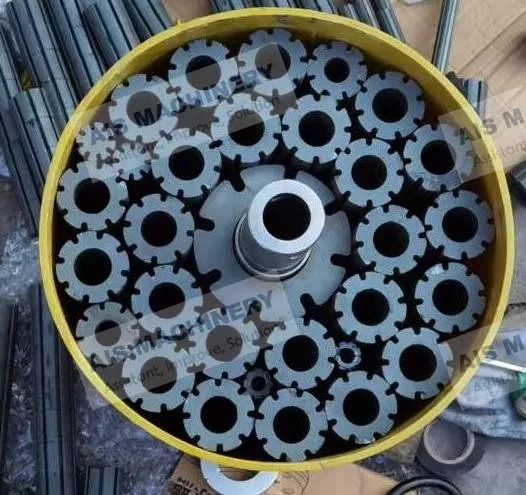

Q4: What is the impeder made of?
The core is made of ferrite rods, and the casing is usually stainless steel, brass, or fiberglass. Most designs include water cooling to prevent overheating.

Q5: Can one impeder be used for all pipe sizes?
No. The impeder must be matched to the pipe size, frequency, and production speed to achieve the best performance.

✅OUR SERVICE

Mengapa Memilih Kami?

Teknologi Terkemuka, Kualitas Andal, Layanan Luar Biasa!

Desain yang dioptimalkan, Pilihan material berkualitas tinggi!

Jaminan proses perlakuan panas!

Roda gigi spiral bevel, kopling roda gigi drum dan karburisasi.

Pendinginan gigi roda gigi.

Sistem penggerak stabil, efisien, dan dapat dipakai dengan tingkat kebisingan lebih rendah.

Ketahanan aus dengan presisi tinggi dan umur rol yang panjang.

Semua mesin Bubut, Alur Kunci diposisikan dan digiling oleh CNC.

Layanan Kami

Layanan pra-penjualan

1. We can provide machine running videos for reference

2. We will recommend the most suitable equipment according to the needs of customers

3. We can provide the layout of the factory

4. We welcome customers to visit our factory

Layanan purna jual

1. Kami akan mengirimkan mesin dan memberikan dokumen tepat waktu untuk memastikan Anda bisa mendapatkan mesin dengan cepat

2. Setelah Anda menyelesaikan kondisi Persiapan, tim teknisi layanan purna jual kami yang cepat dan profesional akan pergi ke pabrik Anda untuk memasang mesin, memberi Anda manual pengoperasian, dan melatih karyawan Anda hingga mereka dapat mengoperasikan mesin dengan baik.

3. Kami menyediakan garansi satu tahun dan dukungan teknis seumur hidup.

4. Staf yang terlatih & berpengalaman akan menjawab semua pertanyaan Anda dalam bahasa Inggris dan Mandarin

5,24 jam untuk respon teknisi.

6.Hubungan bisnis Anda dengan kami akan dirahasiakan dari pihak ketiga mana pun.

Kontrol Kualitas

Kami memiliki departemen kualitas tunggal, yang memastikan bahan bakunya bagus, dan memastikan mesin berjalan lancar.

Hubungi Kami

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Nama

* E-mail

Telepon

*Pesan

Frequently Asked Questions About Impeders

What is an Impeder in ERW tube welding?

An impeder is a device used in ERW pipe mills to concentrate high-frequency current at the weld edges, ensuring efficient heating and strong welds.

Why is an impeder important for welding quality?

Without an impeder, welding energy is wasted across the pipe wall, leading to weak seams, higher power consumption, and reduced efficiency.

What sizes of impeders are available?

Impeders can be customized for pipe diameters from 10 mm up to 630 mm, with different lengths, casings, and ferrite grades.

What is the impeder made of?

The core is made of ferrite rods, and the casing is usually stainless steel, brass, or fiberglass. Most designs include water cooling to prevent overheating.

Can one impeder be used for all pipe sizes?

No. The impeder must be matched to the pipe size, frequency, and production speed to achieve the best performance.
