Impeder Casing for HF Tube Welding Lines

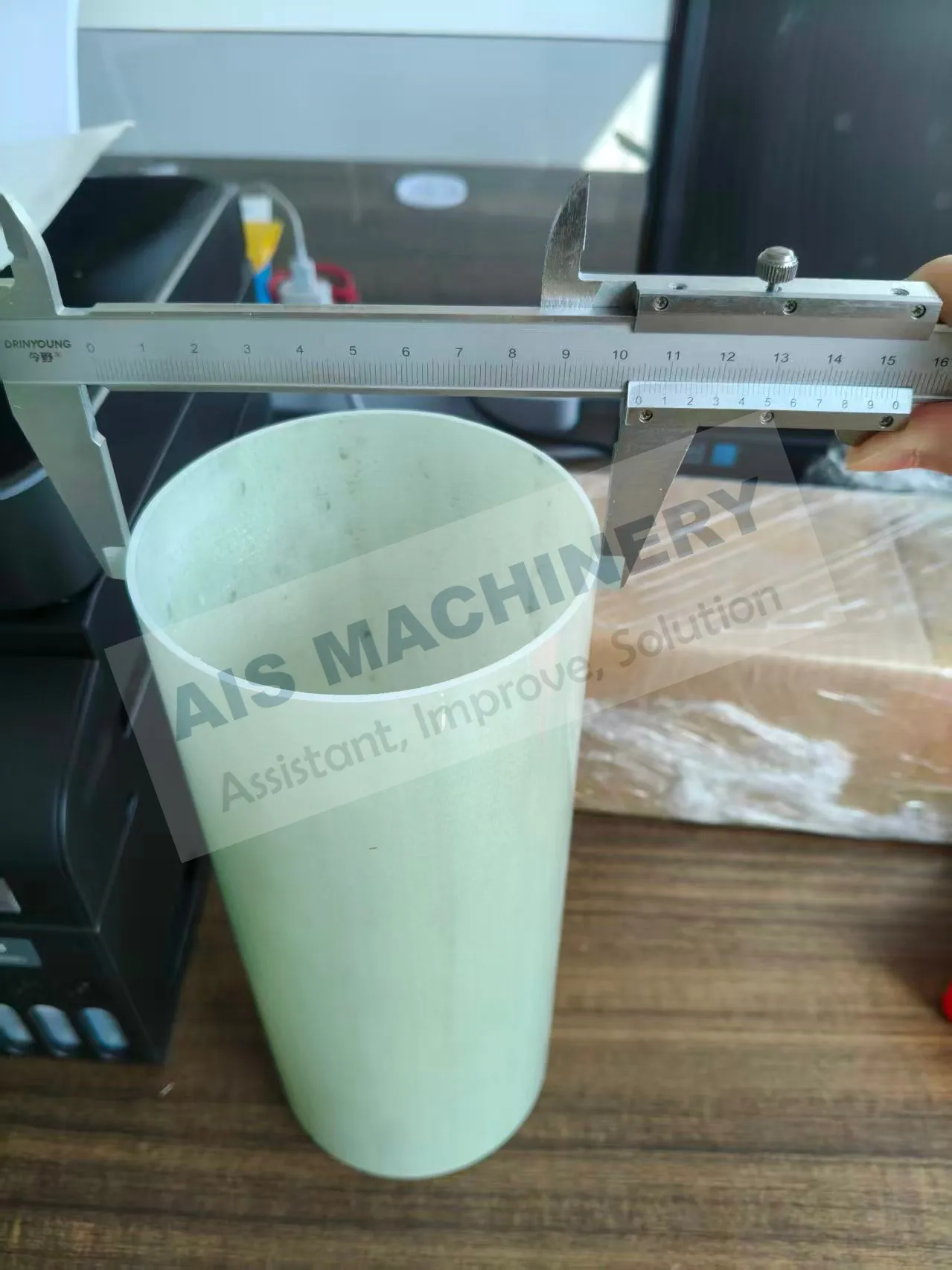

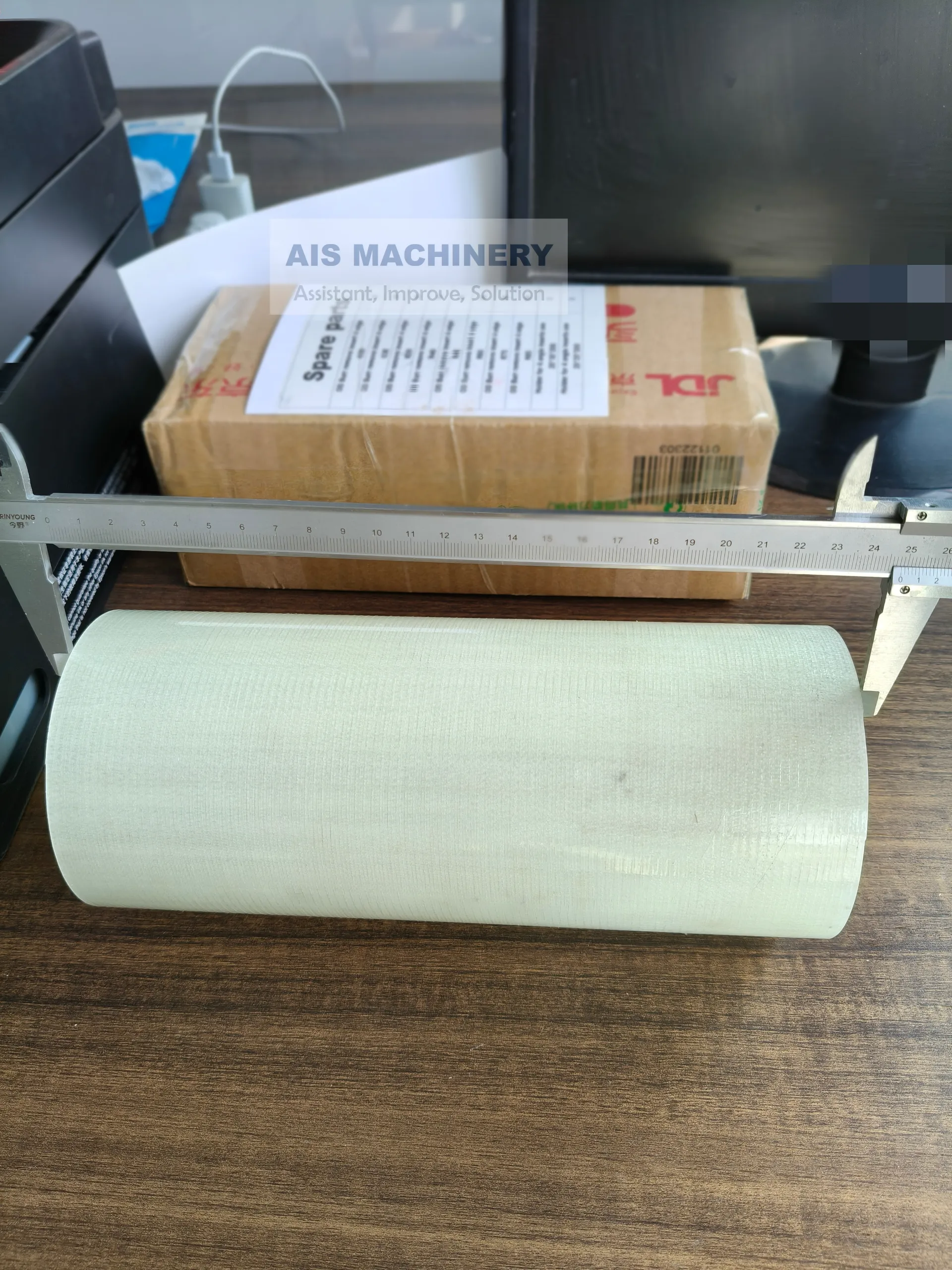

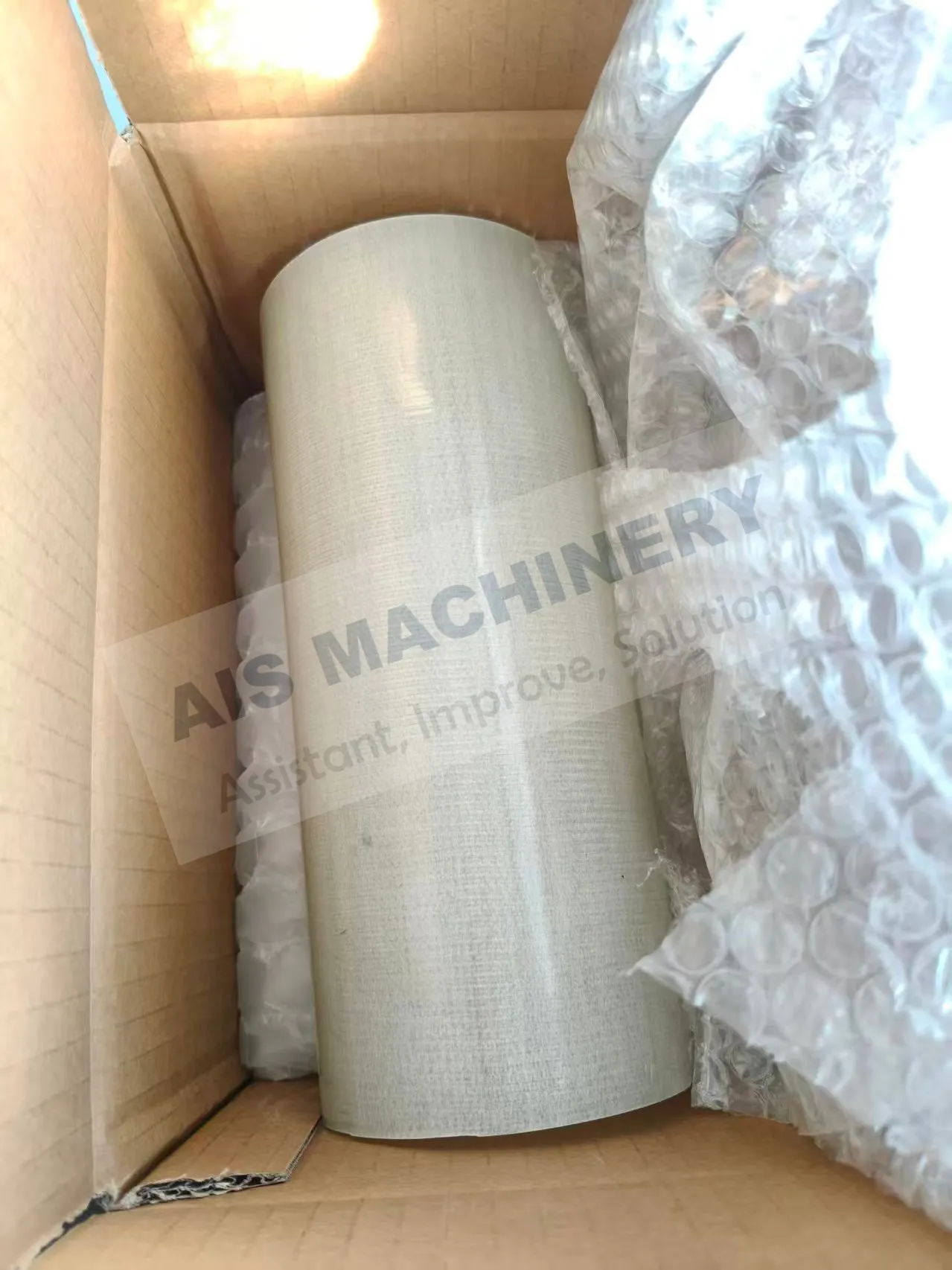

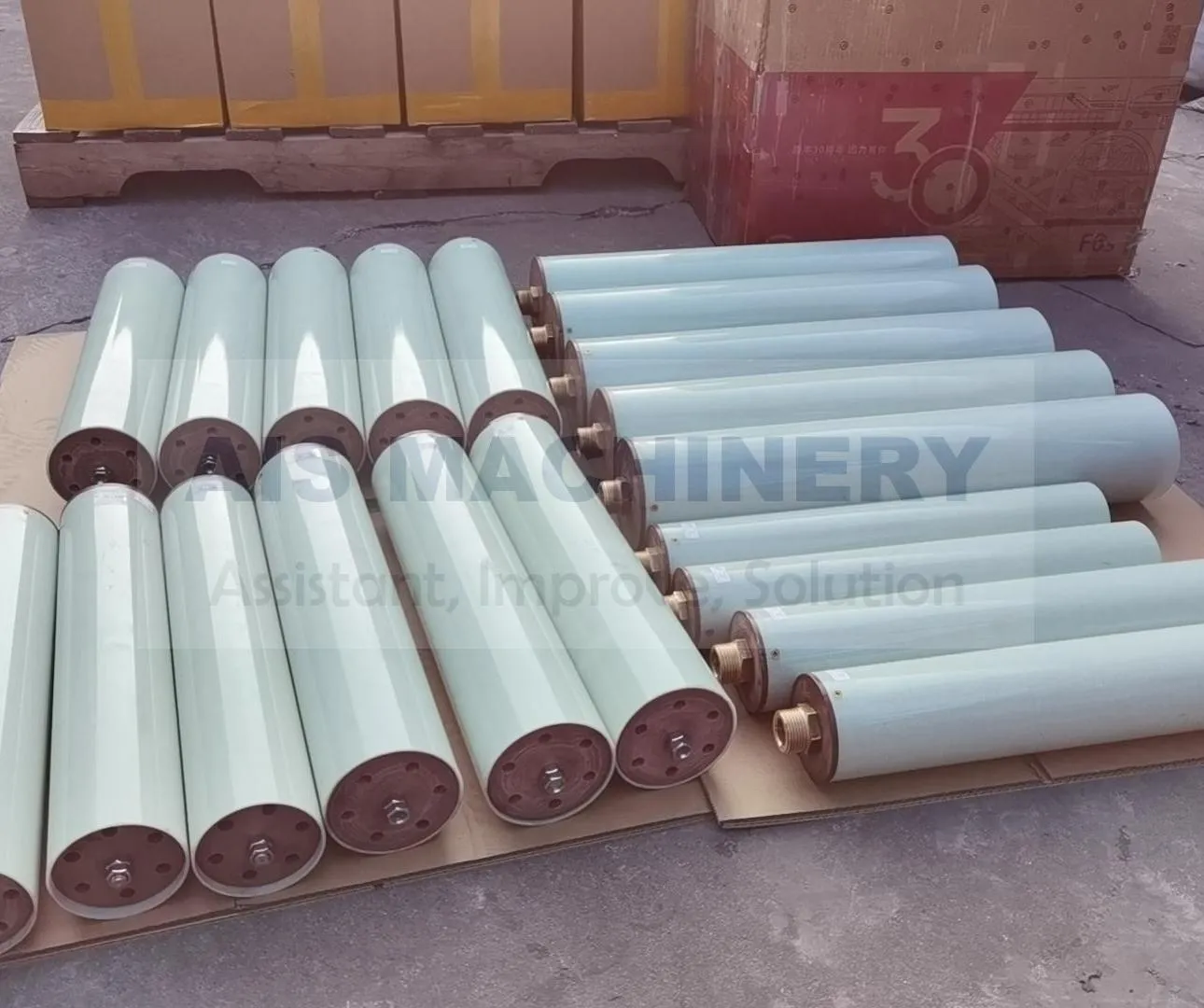

Impeder casing (also known as impeder housing หรือ impeder tube) is an essential protective component in high-frequency (HF) welded tube and pipe mills.
It serves as the outer protective shell of the impeder assembly, providing mechanical support, electrical insulation, and thermal protection for the ferrite cores and cooling channels inside.

In high-temperature, high-speed HF welding environments, a high-quality impeder casing ensures stable performance, reduces power loss, and significantly extends impeder service life — resulting in higher production efficiency and lower operating costs.

Function and Applications

✅Key Functions

1. • Electrical Insulation & Structural Support

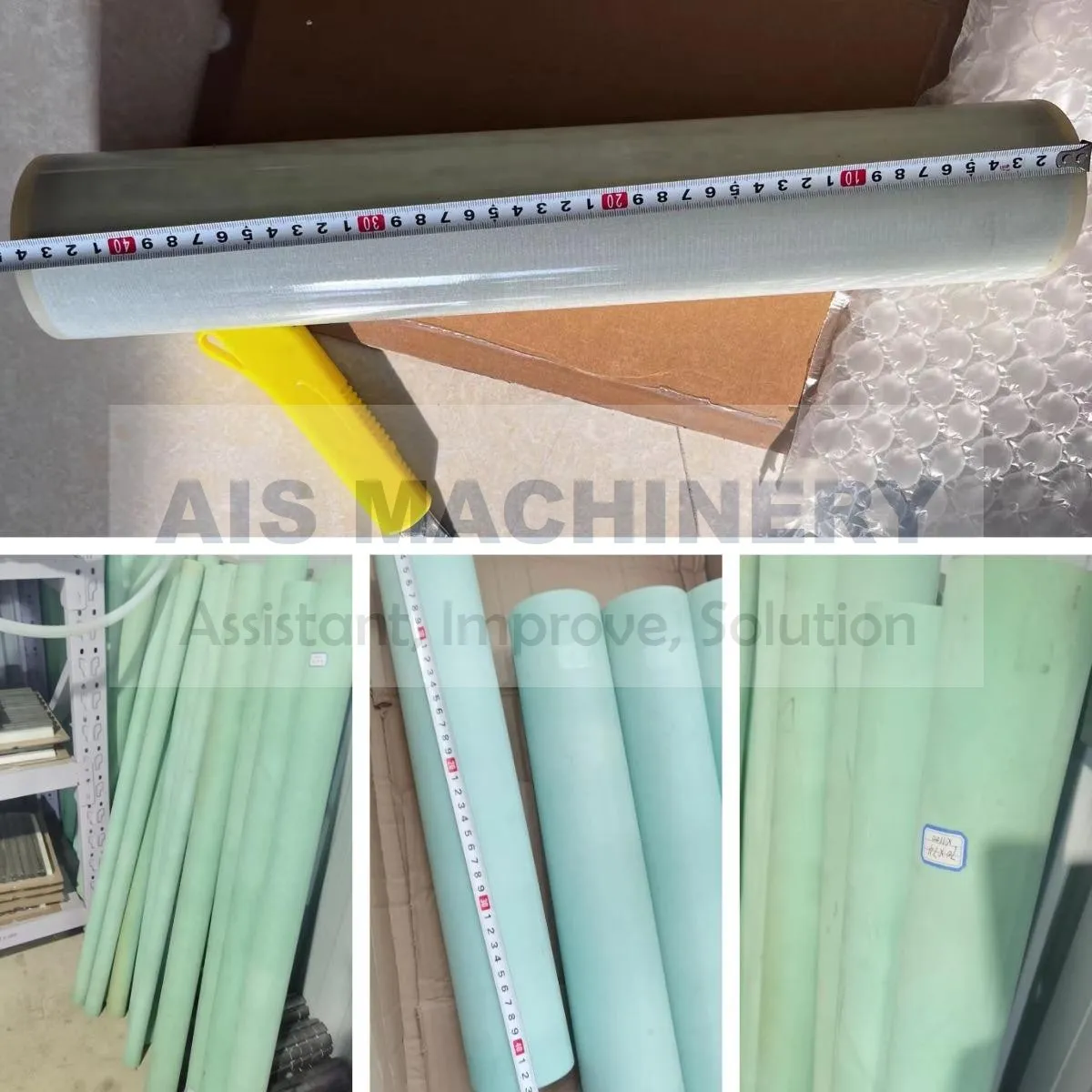

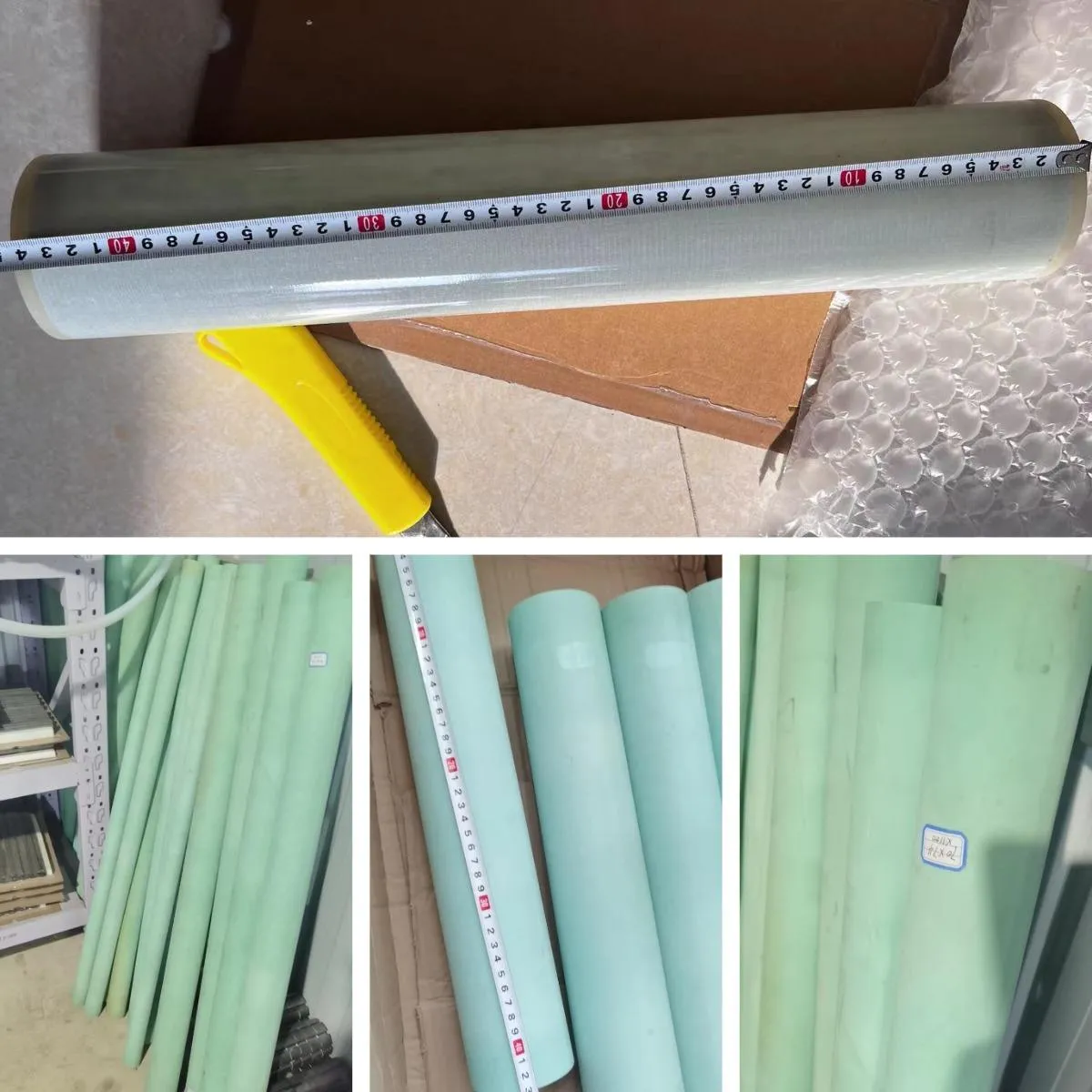

   The casing isolates ferrite cores from the welding current and mechanical stress. Made from high-temperature-resistant materials such as glass fiber reinforced epoxy (G10/G11), silicone glass (G7), or PTFE, it maintains dimensional stability and prevents magnetic core damage.

2. • Cooling Channel Integration
   The impeder casing works together with the internal cooling circuit to dissipate heat from the ferrite cores, preventing overheating and magnetic degradation.

3. • Thermal & Wear Protection
   During the welding process, the casing resists damage from molten metal spatter, sparks, and high radiant heat — withstanding continuous temperatures up to 300 °C (572 °F) depending on material type.

4. • Magnetic Performance Optimization
   The casing design and material stability help maintain the correct magnetic flux density and field alignment, ensuring maximum welding efficiency and minimal power consumption.

✅Typical Applications

• ERW / HFW tube and pipe mills (carbon steel, stainless steel, galvanized steel, aluminum tubes)

• High-speed and high-frequency production lines

• Small-diameter or thin-wall tube production where space and heat concentration are critical

• Heavy-duty welding environments requiring long service life and minimal downtime

• •
  •
  •

Technical Specifications

Note: Specifications may vary depending on manufacturer, tube size, cooling system, and welding frequency.

Material Comparison Table

Installation and Maintenance Guide

• Model Matching:
  Always confirm compatibility with tube OD, wall thickness, impeder ID, welding frequency, and cooling system before ordering.

• Material Selection:

  • ใช้ epoxy types for standard carbon steel lines.

  • ใช้ silicone glass หรือ PTFE for high-temperature or coated tube welding.

  • ใช้ coated types for extreme heat and heavy contamination environments.

• Cooling Coordination:
  Efficient water or coolant flow inside the casing is essential to maintain ferrite performance. Poor cooling drastically reduces efficiency and lifespan.

• Regular Inspection:
  Monitor the casing for cracks, deformation, or molten metal buildup. Replace immediately when wear or discoloration occurs.

• Surface Cleaning:
  Clean welding residue and check coolant quality periodically to prevent blockage or corrosion inside the casing.

Advantages of High-Quality Impeder Casings

• Reduced power loss และ better welding efficiency

• Increased impeder core life และ lower replacement cost

• Consistent tube weld quality และ reduced downtime

• Energy saving และ cost-effective long-term performance

FAQ – Impeder Casing

What is an impeder casing?

Answer:

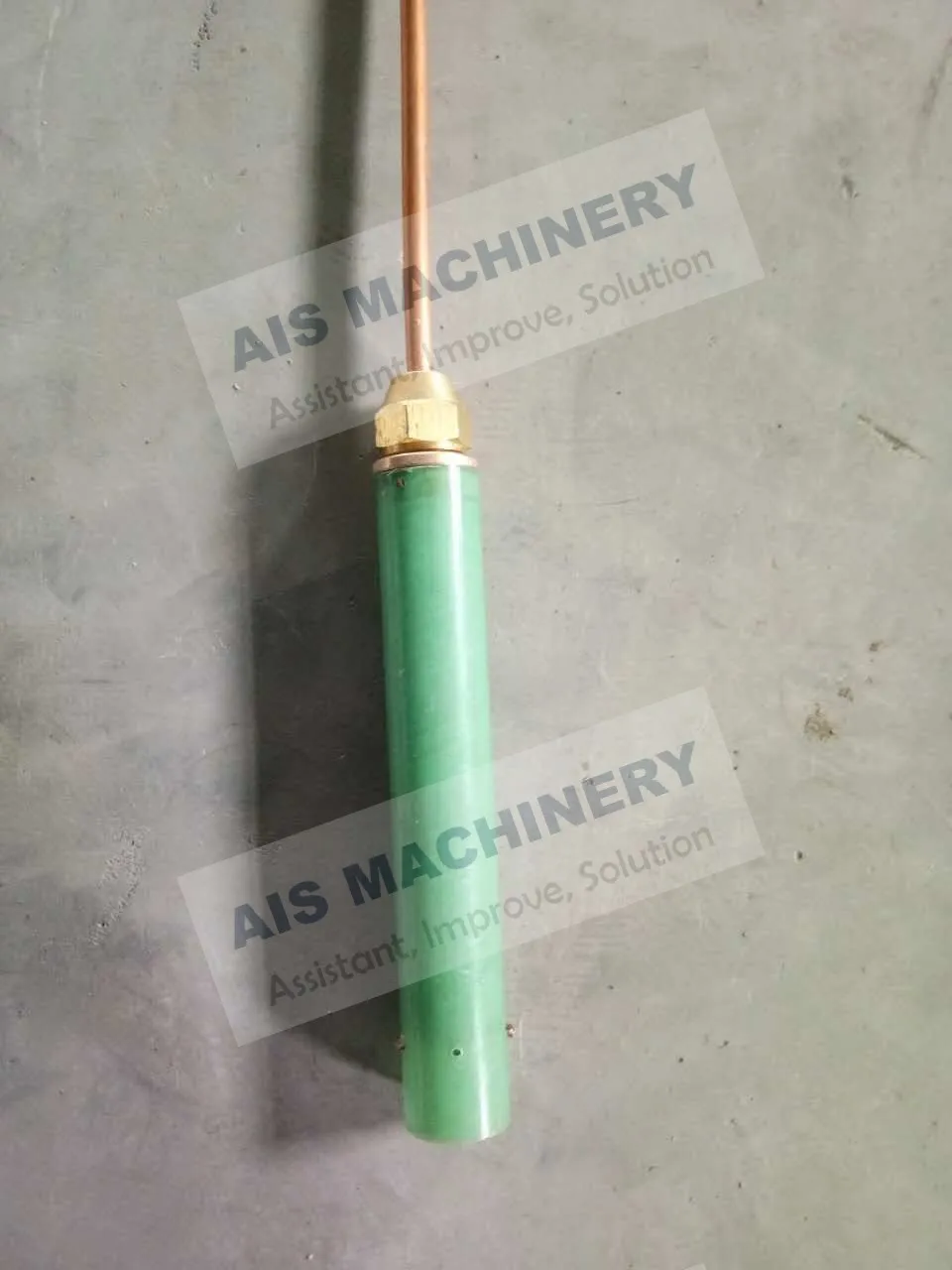

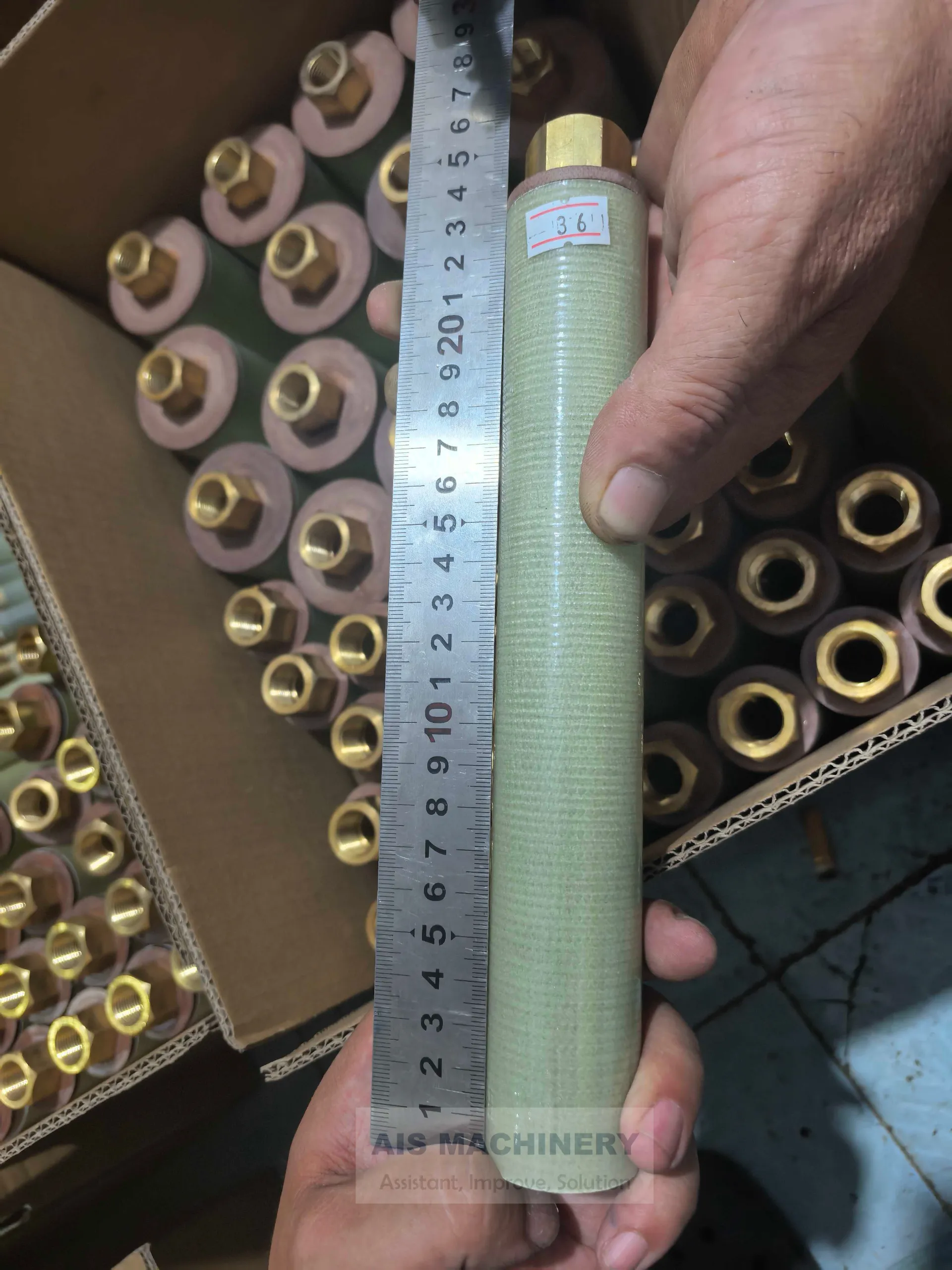

An impeder casing is the outer protective tube used in high-frequency welded tube mills. It shields and supports the ferrite cores, providing insulation and cooling protection during welding.

What materials are used?

Answer:
Common materials include epoxy glass (G10/G11), silicone glass (G7), และ PTFE (Teflon).
PTFE types offer the highest heat resistance and longest service life.

How to choose the right impeder casing?

Answer:
Select based on tube size, welding frequency, and temperature.
ใช้ epoxy for standard lines and PTFE หรือ silicone for high-temperature or high-speed production.

How long does it last?

Answer:
Typically 1–3 months for epoxy types and up to 6 months for PTFE types, depending on cooling and usage conditions.

What are the main benefits?

Answer:
High-quality casings improve welding efficiency, extend ferrite life, and reduce power loss และ downtime.
