เครื่องยกซ้อนแบบตัดตามความยาว

สายการผลิตตัดตามความยาวเป็นอุปกรณ์การผลิตอัตโนมัติสำหรับการตัดม้วนโลหะแบบความยาวคงที่ ซึ่งสามารถแปรรูปม้วนโลหะที่มีความกว้างและความหนาต่างกันให้เป็นแผ่นที่มีขนาดที่แม่นยำและมีพื้นผิวเรียบ

สายการผลิตทั้งหมดประกอบด้วยโมดูลฟังก์ชันต่างๆ มากมาย รวมถึง: รถขนม้วนวัสดุ, อุปกรณ์ปลดม้วนวัสดุแขนเดียว, สะพานป้อนวัสดุ, สะพานเปลี่ยนผ่านบัฟเฟอร์ไฮดรอลิก, ระบบตัดตามความยาวด้วยการตัดอัตโนมัติ, เครื่องปรับระดับความแม่นยำสูง, อุปกรณ์ตัดที่ควบคุมด้วยเซอร์โว, หน่วยตัดตามขวาง, ระบบสายพานลำเลียง, ชั้นวางสำหรับปลดม้วนวัสดุ, อุปกรณ์เรียงซ้อนอัตโนมัติ, รถขนม้วนวัสดุและระบบขับเคลื่อนเซอร์โวที่รองรับและหน่วยควบคุมไฮดรอลิก ฯลฯ ชิ้นส่วนทั้งหมดทำงานร่วมกันเพื่อให้ได้กระบวนการแปรรูปม้วนวัสดุทั้งหมดที่มีประสิทธิภาพและเสถียร

รายละเอียดสินค้า

ติดต่อเราตอนนี้

รายละเอียดสินค้า

วีดีโอ




คำอธิบายการผลิต


ตัดตามความยาวด้วย Flying Shear และเครื่องซ้อนอัตโนมัติ เครื่องตัดเหล็กม้วนเป็นชิ้นสั้นและซ้อนโดยอัตโนมัติ ด้วยความเร็วและความแม่นยำสูง รายละเอียดเพิ่มเติมกรุณาติดต่อเพื่อทราบข้อมูลเพิ่มเติม

The leveling equipment developed by our company is suitable for various metal coils with thicknesses ranging from 0.18mm to 25mm and widths ranging from 200mm to 3000mm. It has high-precision cross-cutting functions, and the sizing error is controlled within ±0.1mm, which is suitable for the flattening processing needs of various plates. The slitting series equipment covers a thickness range of 0.25mm to 20mm, and also supports strip processing with a width of 200mm to 3000mm. It provides high-speed, medium-speed and standard configurations according to different production needs. Among them, the high-speed precision leveling machine can process up to 35 2-meter-long plates per minute; and the high-speed disc slitting unit can reach a working speed of up to 120 meters/minute, meeting the efficient and high-quality slitting tasks.

This Cut to Length line with Flying Shear and automatic Stacker production line is designed with functions of cut to length.  Applied with pneumatic, hydraulic, frequency converter driving system, AC servo system, PLC controlled. It is with stable and reliable performance and operating in safe and convenient way.



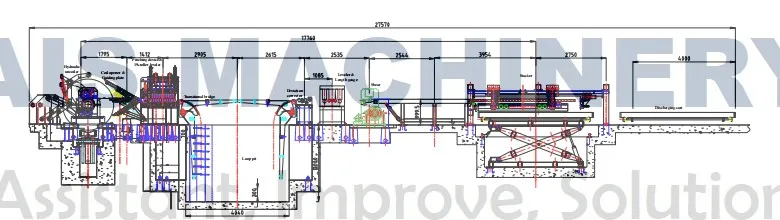

การวาดโครงร่างเพื่อใช้อ้างอิง

Charging—uncoiling—pressing& guiding —pinch device—guiding—leveling—code and guage—cut to length—falling—collecting—manual baling.

steel coil flatener machine



1. รายการอุปกรณ์และขอบเขตการจัดหา

การเก็บคอยล์รูปตัววี

2 ชุด

รถคอยล์

1 ชุด

เครื่องคลายม้วนไฮดรอลิก

1 ชุด

ระบบรองรับไฮดรอลิก

1 ชุด

เครื่องรีดแบน

1 ชุด

สะพานรับแรงดึง

1 ชุด

อุปกรณ์นำทาง

1 ชุด

เครื่องปรับระดับ

1 ชุด

อุปกรณ์โค้ดและเกจวัด

1 ชุด

เครื่องตัด

1 ชุด

อุปกรณ์บีบลูกตุ้ม

1 ชุด

โต๊ะทำงานสำหรับขนถ่ายสินค้า (Stacker)

1 ชุด

ระบบไฮดรอลิกและระบบนิวแมติก

1 ชุด

ระบบควบคุมไฟฟ้า

1 ชุด

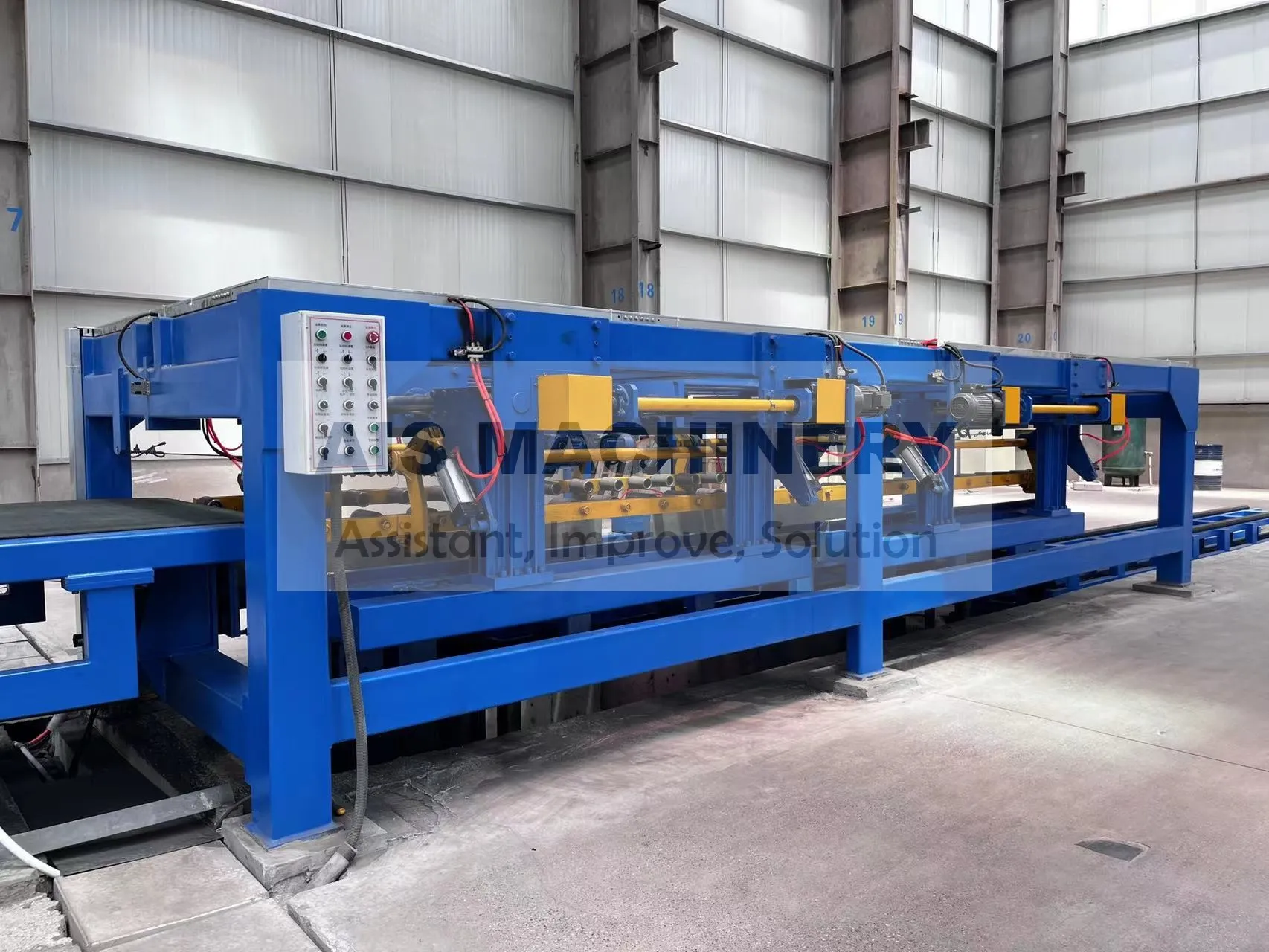

  • Read More About cut to length line

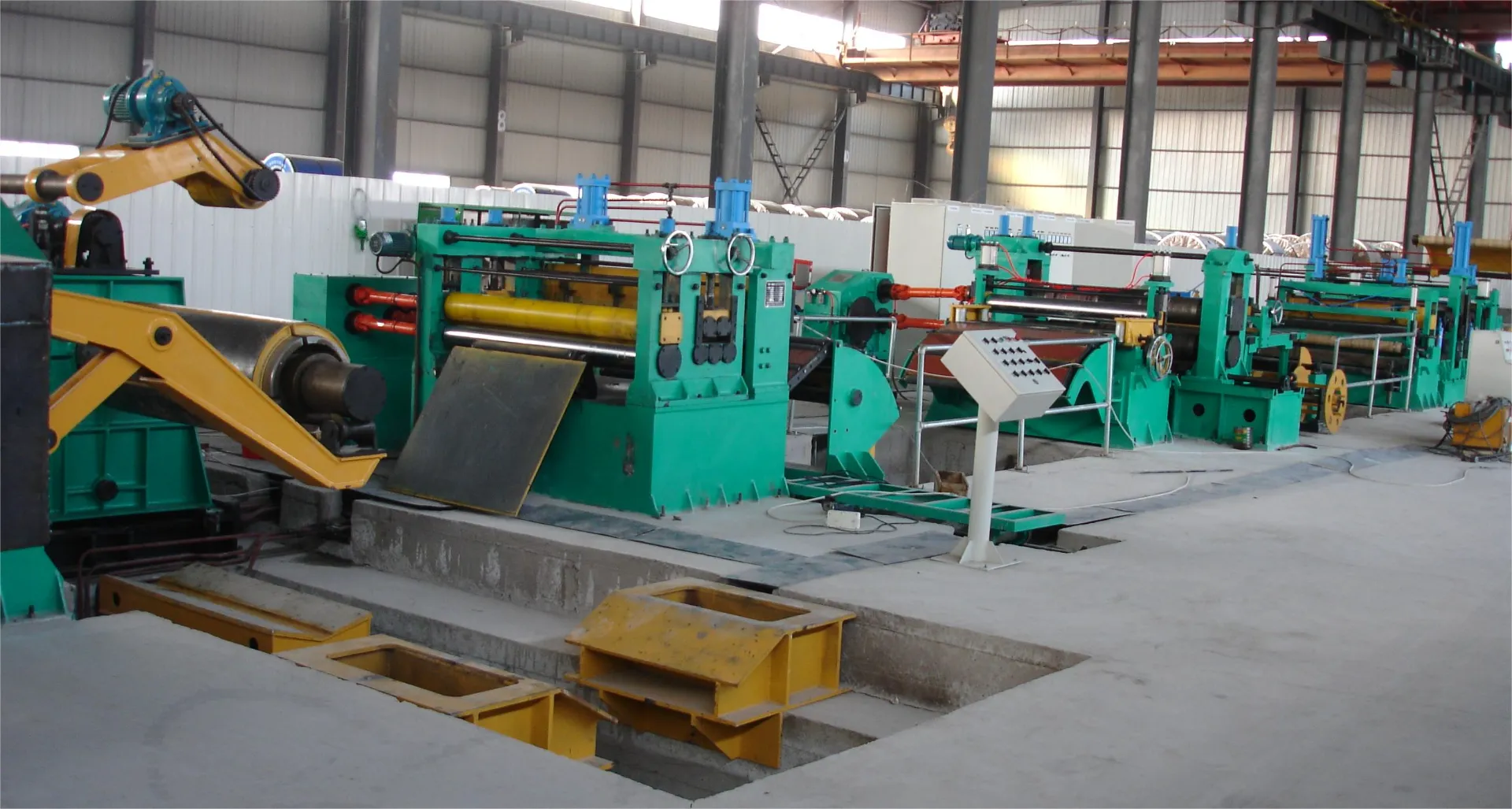

  • steel coil shear to short piece machine

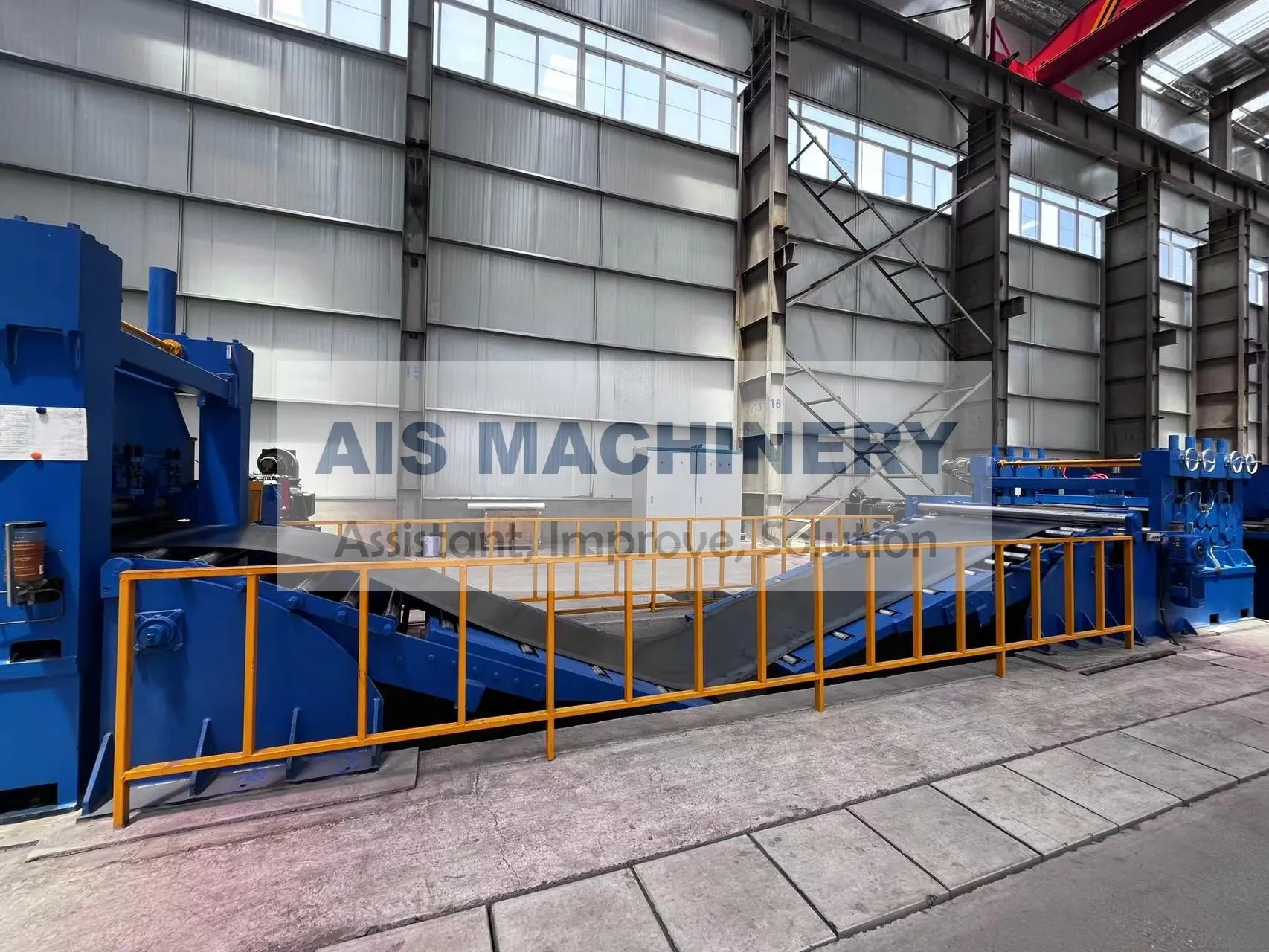

  • steel coil cut to length line automatic stacker

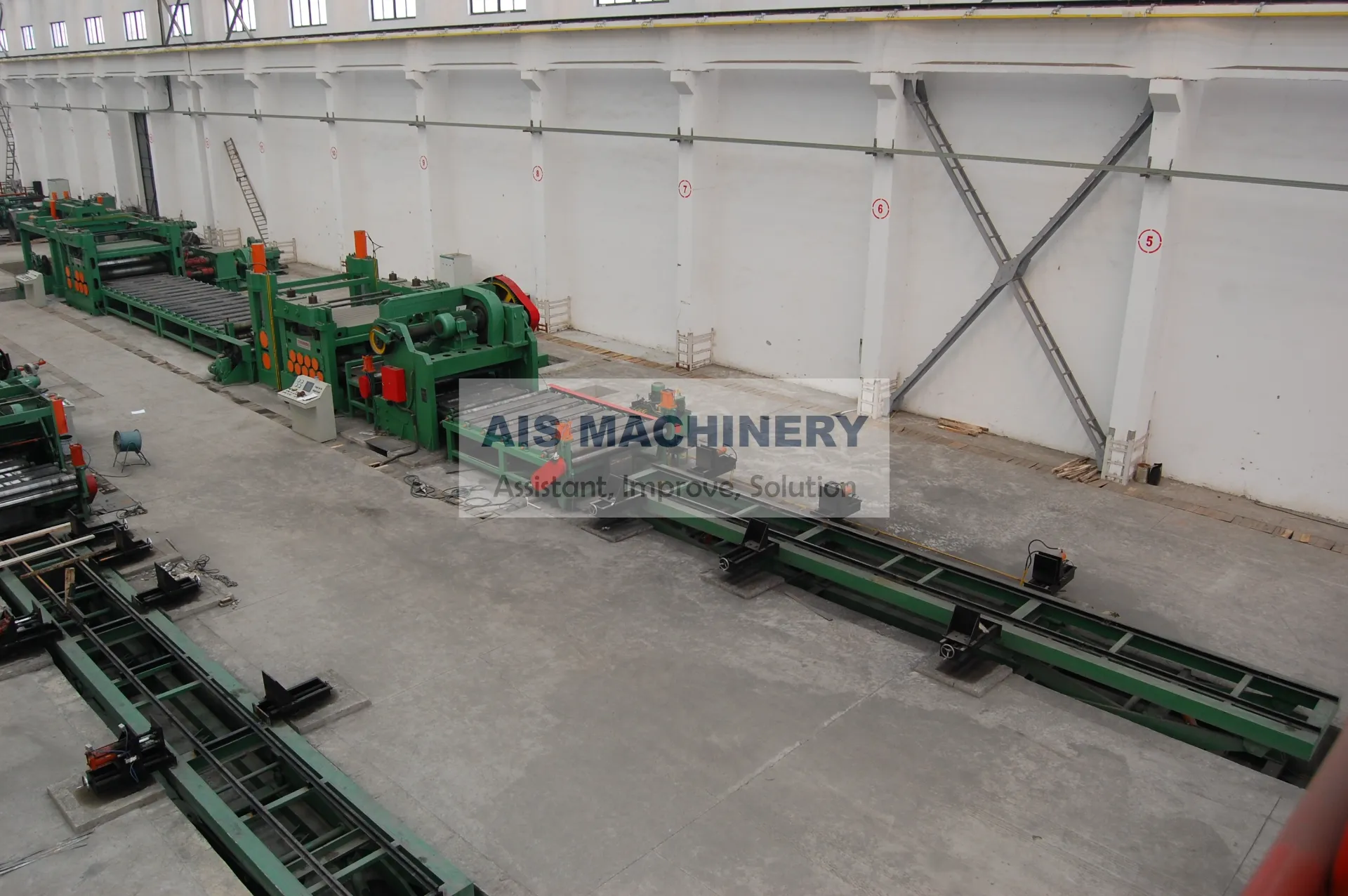

  • steel coil cut to sheet

2.  BASIC DESIGN DATA

การออกแบบสายที่เสนอจะอิงตามข้อกำหนดต่อไปนี้:

ข้อมูลจำเพาะของวัตถุดิบ

วัตถุดิบ:

เหล็กสีดำ,เหล็กสีน้ำเงิน,เหล็กอาบสังกะสี,

cold-rolling steel, prepainted steel, pickling coil

ความหนาของแผ่นเหล็ก :

0.2~2.0 มม.

ความกว้างของแผ่นเหล็ก :

500~1250 มม.

เส้นผ่านศูนย์กลางภายในของขดลวดแผ่น:

Φ508

เส้นผ่านศูนย์กลางภายนอกของขดลวดแผ่น:

Φ1000-Φ1800mm

ปริมาณสูงสุดของคอยล์แผ่น:

15 ตัน

ความยาวที่ตัด:

500~6000มม.

ความแม่นยำในการตัดความยาว:

L=2m≤±0.5mm(2.0mm)

ความเร็ว:

สูงสุด 80 เมตร/นาที

กำลังไฟฟ้าเข้า:

 415V 3 เฟส 4 สาย 50Hz

ทิศทางการให้อาหาร:

ด้านซ้ายหรือด้านขวา

สไตล์เทคนิคการตัดเส้น:

Automatic fixed length and feeding feed length, fixed shear.

ความแม่นยำของ Flattener

≤±1.5mm/m2

ปริมาณกอง

2000mm  32-35 pieces/min

ความยาวของกอง

500-6000 มม.

ความสูงของกอง

400 มม.

ความต้องการไฟฟ้า

รวมประมาณ 110 กิโลวัตต์



อะไหล่ให้เลือก

อะไหล่ของเราใช้:

1. มีดตัด

2. สเปเซอร์สลิตเตอร์

3. สเปเซอร์ PTFE

4. ตัวแยกคอยล์



บริการของเรา

เหตุใดจึงเลือกเรา?

เทคโนโลยีชั้นนำ คุณภาพที่เชื่อถือได้ บริการเป็นเลิศ!

การออกแบบที่เหมาะสม เลือกใช้วัสดุคุณภาพสูง!

รับประกันกระบวนการอบร้อน!

เฟืองเกลียวเอียง ข้อต่อเฟืองดรัม และคาร์บูไรเซชัน

การชุบแข็งฟันเกียร์

ระบบขับเคลื่อนมีเสถียรภาพ มีประสิทธิภาพและสวมใส่ได้พร้อมเสียงรบกวนต่ำ

ทนทานต่อการสึกหรออย่างแม่นยำสูงและลูกกลิ้งมีอายุการใช้งานยาวนาน

เครื่องกลึงทุกเครื่อง ร่องลิ่ม ถูกวางตำแหน่งและกัดด้วย CNC



ติดต่อเรา

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* ชื่อ

* อีเมล

โทรศัพท์

*ข้อความ

คำถามที่พบบ่อยเกี่ยวกับการตัดตามความยาวสาย

Cut to Length Line Flying Shear Stacker คืออะไร?

เป็นระบบอัตโนมัติที่ใช้ในการตัดและเรียงซ้อนแผ่นโลหะให้มีความยาวตามที่กำหนดเพื่อนำไปแปรรูปต่อไป

การทำงานของ Flying Shear คืออะไร?

กรรไกรตัดโลหะจะตัดแผ่นโลหะในขณะที่เคลื่อนที่ ช่วยให้ตัดได้อย่างรวดเร็วและแม่นยำ โดยไม่หยุดสายการผลิต

เครื่องนี้สามารถรองรับวัสดุประเภทใดได้บ้าง?

สามารถรองรับโลหะได้หลายชนิด เช่น เหล็ก อลูมิเนียม และสแตนเลส

เครื่องซ้อนกรรไกรบินใช้งานง่ายไหม?

ใช่ มีอินเทอร์เฟซที่เป็นมิตรกับผู้ใช้และสามารถใช้งานได้โดยต้องมีการฝึกอบรมขั้นต่ำ

สามารถตัดวัสดุได้หนาและกว้างสูงสุดได้เท่าไร?

ข้อมูลจำเพาะจะขึ้นอยู่กับรุ่น แต่โดยทั่วไปแล้วสามารถตัดแผ่นโลหะที่มีความหนาสูงสุด 12 มม. และความกว้างสูงสุด 2,000 มม. ได้
