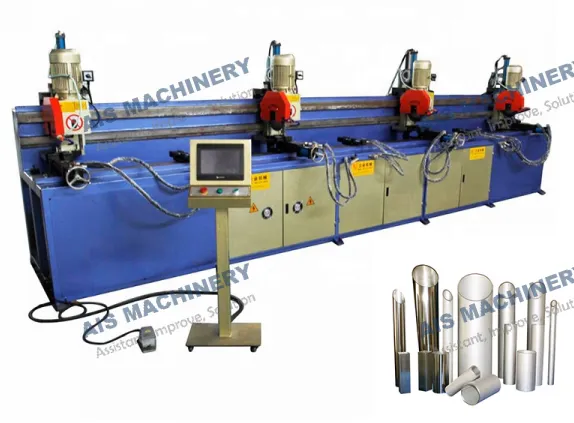

Hydraulic Multi-Head Tube Cutting Machine

A Hydraulic Multi-Head Tube Cutting Machine is a high-efficiency industrial cutting system designed to cut multiple tubes at the same time using several cutting heads.

Powered by a hydraulic system, this machine ensures stable cutting force, high precision, and continuous operation, making it ideal for mass production environments.

It is widely used for cutting:

• ✔Carbon steel tubes
• ✔Stainless steel tubes
• ✔Aluminum pipes
• ✔ERW welded pipes
•

Where Is It Used in a Tube Mill?

In a typical ERW tube mill line, the hydraulic multi-head cutting machine is located at the finishing section (after sizing and straightening).

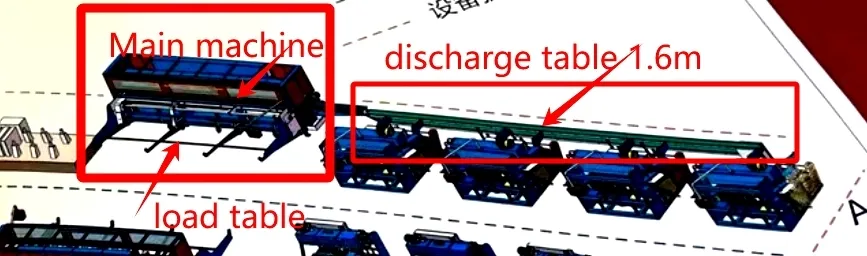

Typical Process Flow:

👉 The machine is mainly used in the final cutting stage, where long pipes are cut into required lengths for delivery.

Funktionsprinzip

The machine operates through a coordinated hydraulic and mechanical system:

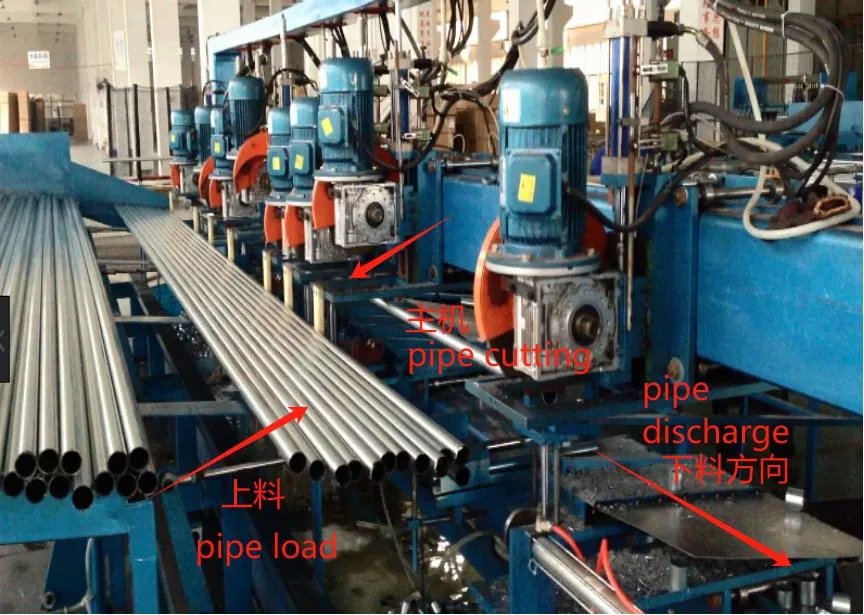

1. Tubes are fed into the cutting area (automatically or manually)
2. Multiple cutting heads are positioned according to required spacing
3. The hydraulic system drives the cutting tools simultaneously
4. Several tubes are cut at the same time
5. Finished pipes are discharged for collection

👉 In simple terms:
“One machine performs multiple cutting operations in a single cycle.”

Key Features & Advantages

• 🔹 Multi-head design – Cut multiple tubes simultaneously
• 🔹 Hydraulic drive system – Strong, stable, and reliable
• 🔹 High production efficiency – Ideal for mass production
• 🔹 Accurate cutting length – Consistent output quality
• 🔹 Flexible configuration – Adjustable number of cutting heads
• 🔹 Reduced labor cost – Less manual operation required
•

Comparison: Multi-Head vs Single-Head Tube Cutting Machine

Typical Technical Parameters

Anwendungen

This machine is widely used in:

• • Tube mill production lines
• • Steel pipe manufacturing plants
• • Furniture tube processing
• • Automotive components
• • Construction materials (scaffolding, structural pipes)

Häufig gestellte Fragen

1. How many tubes can be cut at one time?

It depends on the number of cutting heads. Typically, 2 to 10 tubes can be cut simultaneously.

2. Is the cutting length adjustable?

Yes. The machine can be configured for fixed length or adjustable cutting length, depending on your production needs.

3. What materials can this machine cut?

It is suitable for:

• Kohlenstoffstahl
• Stainless steel
• Aluminum

4. Is it suitable for small production?

Not recommended. This machine is designed for high-volume production. For small batches, a single-head machine is more cost-effective.

5. How to choose the right model?

We recommend providing:

• Tube diameter & thickness
• Required cutting length
• Number of tubes per cycle
• Production capacity

👉 Our engineers will suggest the best configuration.
