8 นิ้ว 219 มม. ERW Tube Mill จากผู้ผลิตจีน

อุปกรณ์เชื่อมท่อตะเข็บตรงขนาด 8 นิ้วนี้ใช้การออกแบบแบบโมดูลาร์ โครงสร้างเหล็กสำหรับงานหนัก และระบบการปรับ CNC เพื่อให้มั่นใจถึงความเสถียรและความแม่นยำในการผลิตท่อเหล็กผนังหนาขนาดใหญ่ โครงสร้างโดยรวมถูกเชื่อมและประกอบเข้ากับโปรไฟล์ที่ได้รับการปรับปรุง พร้อมความต้านทานแผ่นดินไหวและความสามารถในการรับน้ำหนักที่ดี ชิ้นส่วนสำคัญทั้งหมดได้รับการตัดเฉือนอย่างแม่นยำด้วยเหล็กโลหะผสมที่มีความแข็งแรงสูง และติดตั้งระบบนำทางเชิงเส้นตรงหรือระบบขับเคลื่อนบอลสกรูเพื่อให้มีการตอบสนองสูงและมีข้อผิดพลาดต่ำ

รายละเอียดสินค้า

ติดต่อเราตอนนี้

รายละเอียดสินค้า

วีดีโอ





คำอธิบายสินค้า


เส้นผ่านศูนย์กลาง 6 นิ้ว 168 มม. ถือเป็นท่อขนาดกลางที่เชื่อมด้วยตะเข็บตรง ท่อชนิดนี้มีการใช้งานหลากหลาย เช่น เสาเข็มรับพลังงานแสงอาทิตย์ เสาเข็มดิน และงานก่อสร้าง เป็นต้น

อุปกรณ์นี้สามารถผลิตท่อได้ตั้งแต่ขนาดเล็กสุด 2 นิ้ว (50.8 มม.) ไปจนถึงขนาดใหญ่สุด 6 นิ้ว (168 มม.) อุปกรณ์ชุดนี้ประกอบด้วยท่อทุกชนิด เส้นผ่านศูนย์กลางท่อที่ต่างกันต้องใช้แม่พิมพ์ที่แตกต่างกันลูกค้าสามารถเลือกรูปแบบทางเทคนิคที่หลากหลายสำหรับอุปกรณ์ชุดนี้ได้ ไม่ว่าจะเป็นท่อกลมธรรมดาแบบสี่เหลี่ยมจัตุรัส ท่อสี่เหลี่ยมจัตุรัสสำหรับท่อสี่เหลี่ยมและสี่เหลี่ยมผืนผ้า หรือเทคโนโลยีการขึ้นรูปแบบยืดหยุ่น FFX ไม่ว่าคุณจะเลือกตัวเลือกใด เราก็สามารถมอบโซลูชันที่สมบูรณ์แบบให้คุณได้



รายการอุปกรณ์จัดหา

หน่วยอุปกรณ์ คำอธิบาย
เครื่องคลายม้วน การขยายตัวของไฮดรอลิก ป้องกันการหลวมของคอยล์ รองรับน้ำหนักคอยล์ 7T/10T
เครื่องเชื่อมแบบเฉือนและแบบชน ตำแหน่งอัตโนมัติเพื่อการเปลี่ยนคอยล์อย่างรวดเร็ว
ตัวสะสม ประเภทห่วงแนวนอนเพื่อให้แน่ใจว่ามีการป้อนแถบอย่างต่อเนื่อง
โรงขึ้นรูป โครงสร้างเพลาสองแถว การปรับเซอร์โว รองรับแบบกลม/FFX/สี่เหลี่ยม
เครื่องเชื่อมความถี่สูง Solid-state control, 200–600kHz options, adjustable power output
ระบบระบายความร้อนด้วยน้ำ ระบายความร้อนด้วยท่อภายในและภายนอกเพื่อรักษารูปทรง
หน่วยปรับขนาด ปรับรูปทรงและยืดผมได้อย่างแม่นยำ ปรับให้เข้ากับท่อสี่เหลี่ยม/สี่เหลี่ยมได้
เลื่อยบิน เลื่อยร้อนหรือเย็นก็ได้ ระบบควบคุมการซิงโครไนซ์เซอร์โว
ตารางวิ่งออก การขนถ่ายด้วยตนเองหรืออัตโนมัติพร้อมตัวยกซ้อนเสริม

2.  BASIC DESIGN DATA

การออกแบบสายที่เสนอจะอิงตามข้อกำหนดต่อไปนี้:

ข้อมูลจำเพาะของวัตถุดิบ

รายการข้อมูลจำเพาะ

ค่า/ช่วง

ช่วงเส้นผ่านศูนย์กลางท่อ

Φ89mm – Φ219mm

ช่วงความหนาของผนัง

2.0mm – 8.0mm

ช่วงความกว้างของแถบ

280mm – 700mm

ความแข็งแรงของวัสดุ

200 – 600 MPa

ความเร็วสาย

15 – 40 m/min

ความแม่นยำในการตัด

±1.5mm

วิธีการขึ้นรูป

รอบต่อรอบ / FFX / รอบต่อสแควร์

ระบบควบคุม

ซีเมนส์ PLC + HMI

กำลังไฟฟ้าทั้งหมด (โดยประมาณ)

400 – 600 kW (based on configuration)

โหมดการทำงาน

สลับแบบแมนนวล / อัตโนมัติ

การใช้งานท่อ

ภาคอุตสาหกรรม

การใช้งานทั่วไป

การก่อสร้างเหล็ก

คอลัมน์ วงเล็บ โครงโครงสร้าง

ระบบส่งน้ำมันและก๊าซ

ท่อแก๊ส ท่อแรงดันปานกลาง

วิศวกรรมเทศบาล

ท่อดับเพลิง, ท่อระบายน้ำ

พลังงานทดแทน

เสาพลังงานแสงอาทิตย์ เสาเข็มติดตั้งภาคพื้นดิน

ยานยนต์และเครื่องจักร

ท่อแชสซี แขนกล

คุณสมบัติการควบคุมอัจฉริยะ

โมดูล

คำอธิบายฟังก์ชั่น

การควบคุมความเร็วอัตโนมัติ

รับประกันการซิงโครไนซ์ระหว่างการขึ้นรูปและการเชื่อม

บินเห็นซิงค์

การตัดแบบไดนามิกโดยมีการเบี่ยงเบนความยาวน้อยที่สุด

หน่วยความจำพารามิเตอร์

การสลับการตั้งค่าลูกกลิ้งอย่างรวดเร็ว

ระบบแจ้งเตือนเหตุขัดข้อง

แสดงข้อผิดพลาดแบบเรียลไทม์ ทริกเกอร์การหยุดอัตโนมัติ

การบูรณาการโอพีซี

รองรับการเชื่อมต่อกับระบบ MES/Industry 4.0

ปัญหาและแนวทางแก้ไขทั่วไป

ปัญหา

สาเหตุและวิธีแก้ไข

การเบี่ยงเบนแถบ

ปรับความตึง ตรวจสอบม้วนนำและการควบคุมลูป

รอยแตกของรอยเชื่อม

เพิ่มพลัง HF ปรับแต่งการระบายความร้อนด้วยน้ำ

เสี้ยนที่ Cut Edge

ตรวจสอบความคมของเลื่อยและการซิงโครไนซ์การป้อน

ส่วนเบี่ยงเบนเส้นผ่านศูนย์กลาง

ปรับช่องว่างม้วนขนาดและแรงกดขึ้นรูป

รูปร่างท่อไม่เสถียร

ตรวจสอบความแข็งแกร่งของเฟรม การวางแนวม้วน และความตึงของแถบ



      • 8inch pipe milling saw cutoff

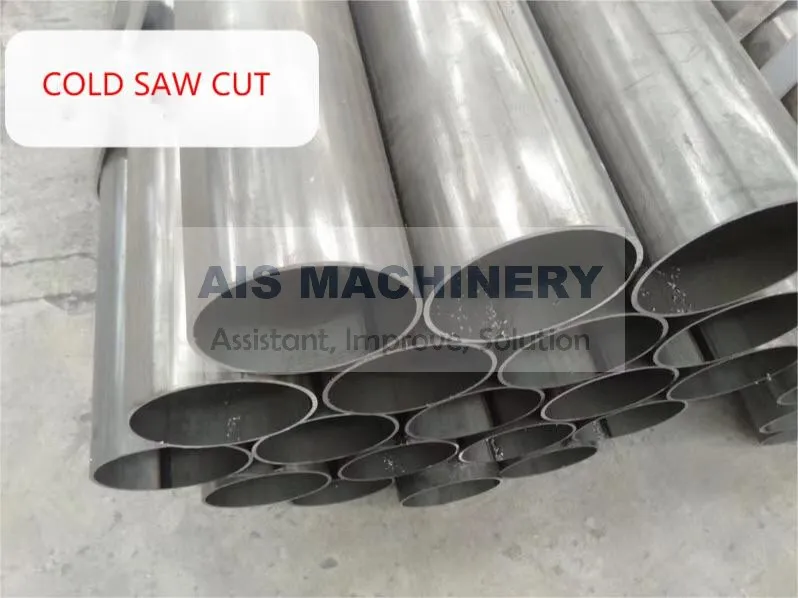

      • 8inch round pipe

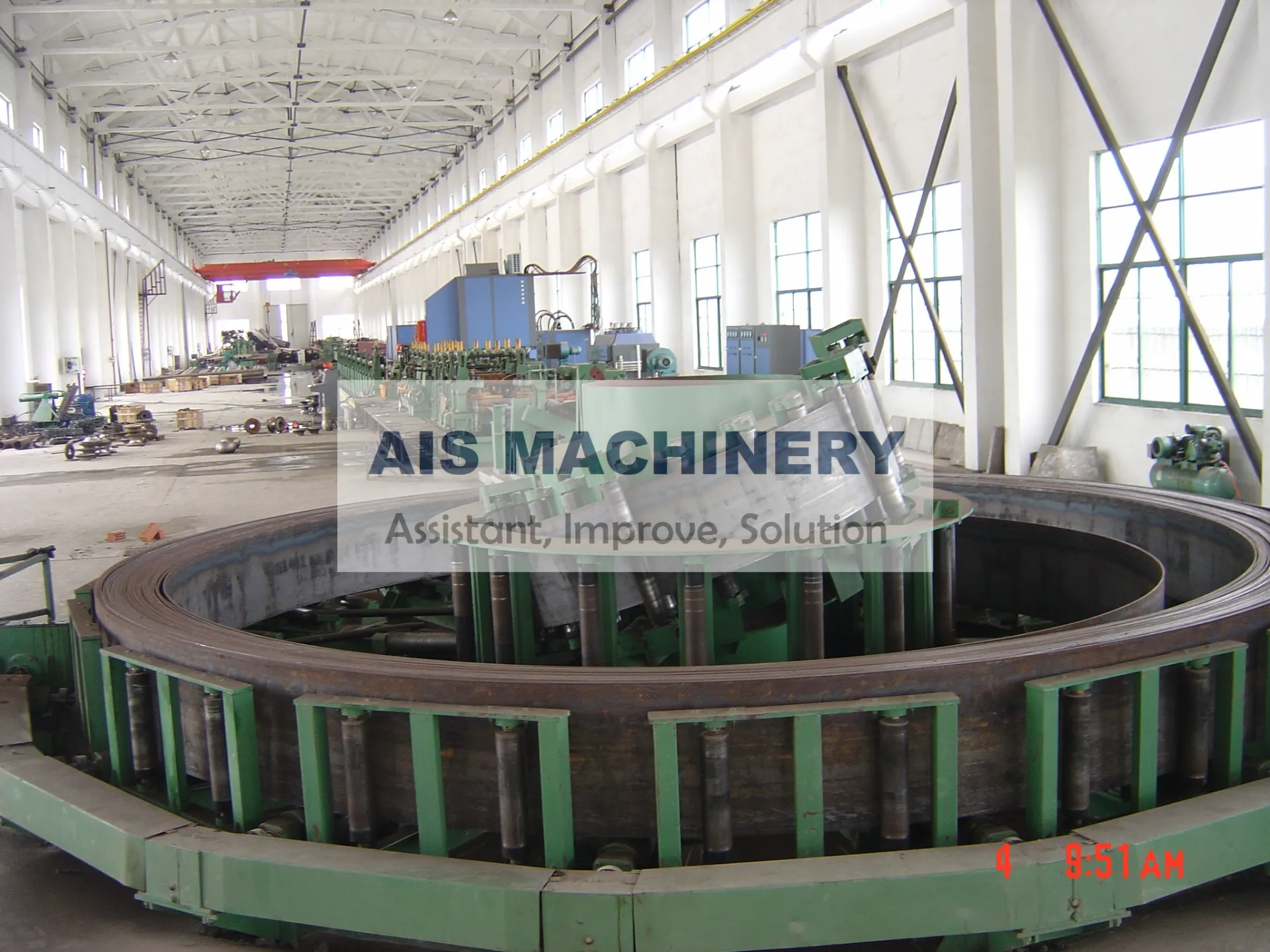

  • landing type horizontal accumulator

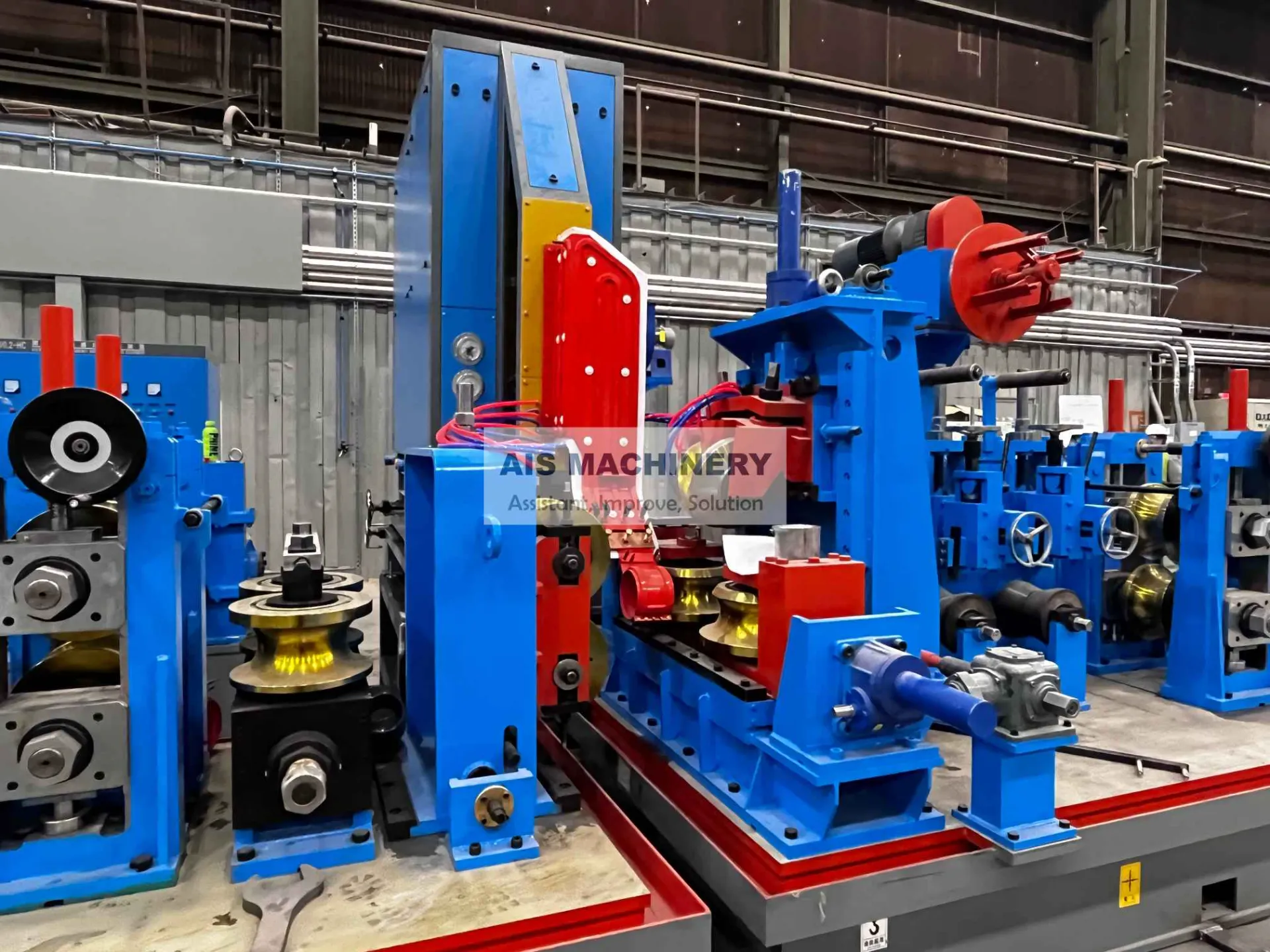

  • 219 steel pipe making machine

การไหลของสายการผลิต


{Steel Tape}→Coil car→ Uncoiler →Peeler and hold down roll→Flattener→ Strip-head Cutter and welder→Spiral accumulator→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +squeeze roller)+ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cutoff saw →→ Run-out table →→Straingtener machine →→Chamfer machine →→Hydro tester machine →→automatic package machine

tube making process



รายละเอียดบรรจุภัณฑ์และการจัดส่ง


  1. รายการ

    คำอธิบายบรรจุภัณฑ์

    การขึ้นรูปลูกกลิ้ง

    ลังไม้พร้อมน้ำมันป้องกันสนิม

    เครื่องขึ้นรูป

    รัดโครงแล้วหุ้มด้วยผ้ากันฝุ่น

    ตู้ควบคุม

    กล่องไม้กันกระแทกพร้อมสายไฟและคู่มือ

    วิธีจัดส่ง

    การบรรจุแบบโมดูลาร์ การบรรทุกตู้คอนเทนเนอร์ หรือการขนส่งทางบก

    เอกสารที่ให้มา

    ใบรับรองคุณภาพ รายการบรรจุภัณฑ์ แผนภาพการเดินสายไฟ

  2.

ติดต่อเรา

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* ชื่อ

* อีเมล

โทรศัพท์

*ข้อความ

คำถามที่พบบ่อยเกี่ยวกับโรงสีหลอด ERW ขนาด 8 นิ้ว

จะทำอย่างไรถ้าแถบเหล็กเบี่ยงเบนบ่อย?

ตรวจสอบว่าความตึงคลี่คลายนั้นสมดุลหรือไม่ และยืนยันว่ากลไกนำทางและอุปกรณ์ควบคุมความตึงของลูปทำงานได้ตามปกติ

รอยเชื่อมมีแนวโน้มที่จะระเบิดเมื่อมีความหนาของผนังมากหรือไม่?

เพิ่มกำลังเหนี่ยวนำและควบคุมความเข้มของการทำความเย็นในเวลาเดียวกัน เพื่อหลีกเลี่ยงการทำความเย็นและความร้อนอย่างกะทันหันในบริเวณการเชื่อม

เลื่อยบินตัดไม่สม่ำเสมอหรือมีเสี้ยนหรือไม่?

ตรวจสอบการสึกหรอของใบเลื่อย การตั้งค่าความเร็วตัด และความตรงของระบบรางนำ
