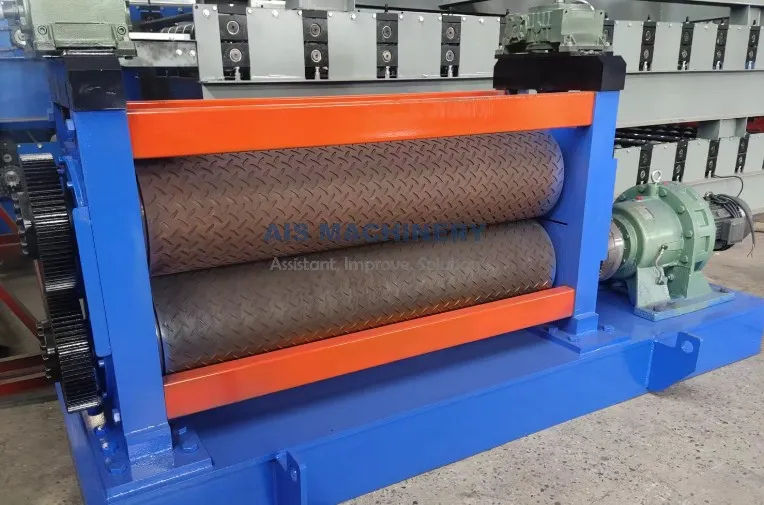

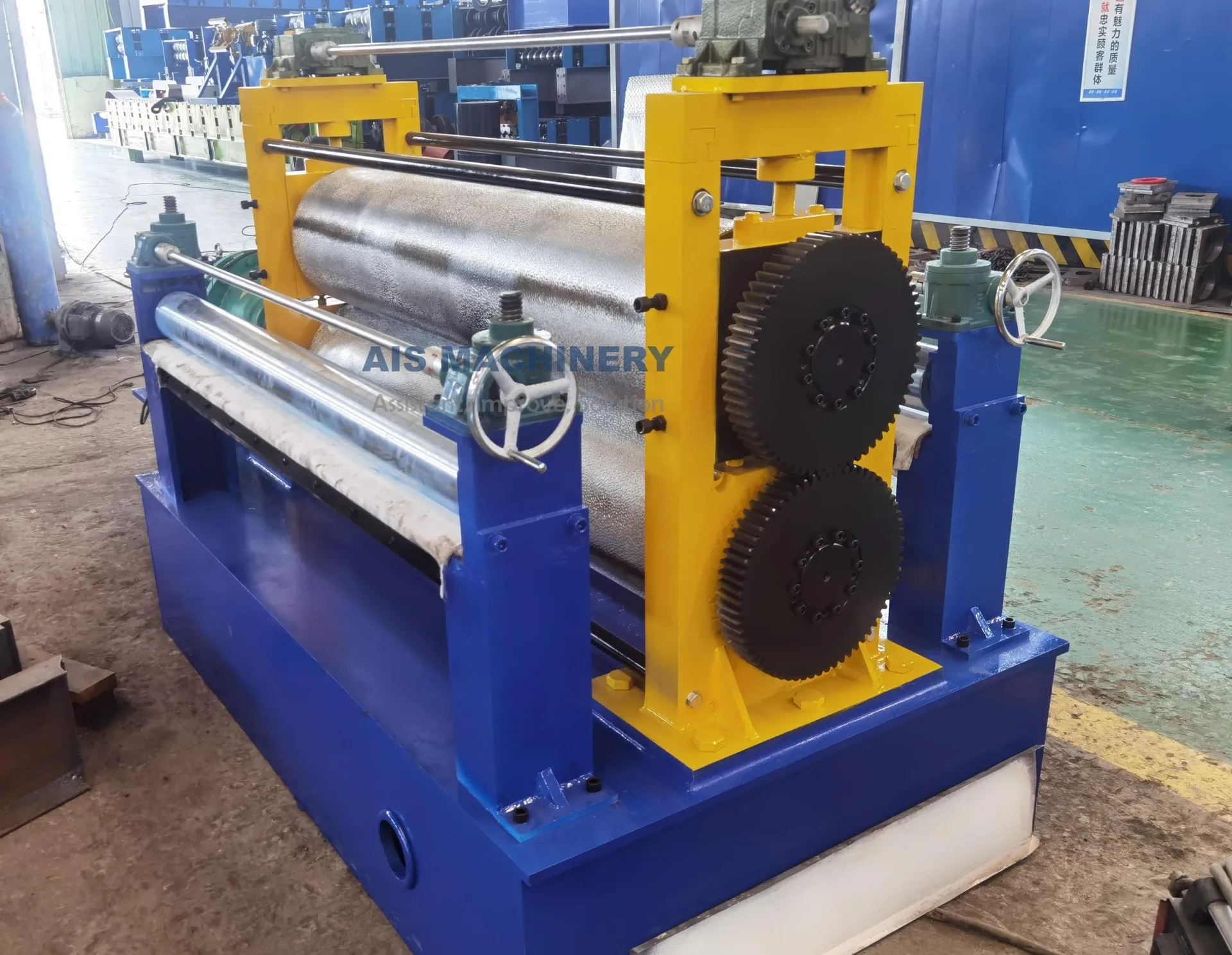

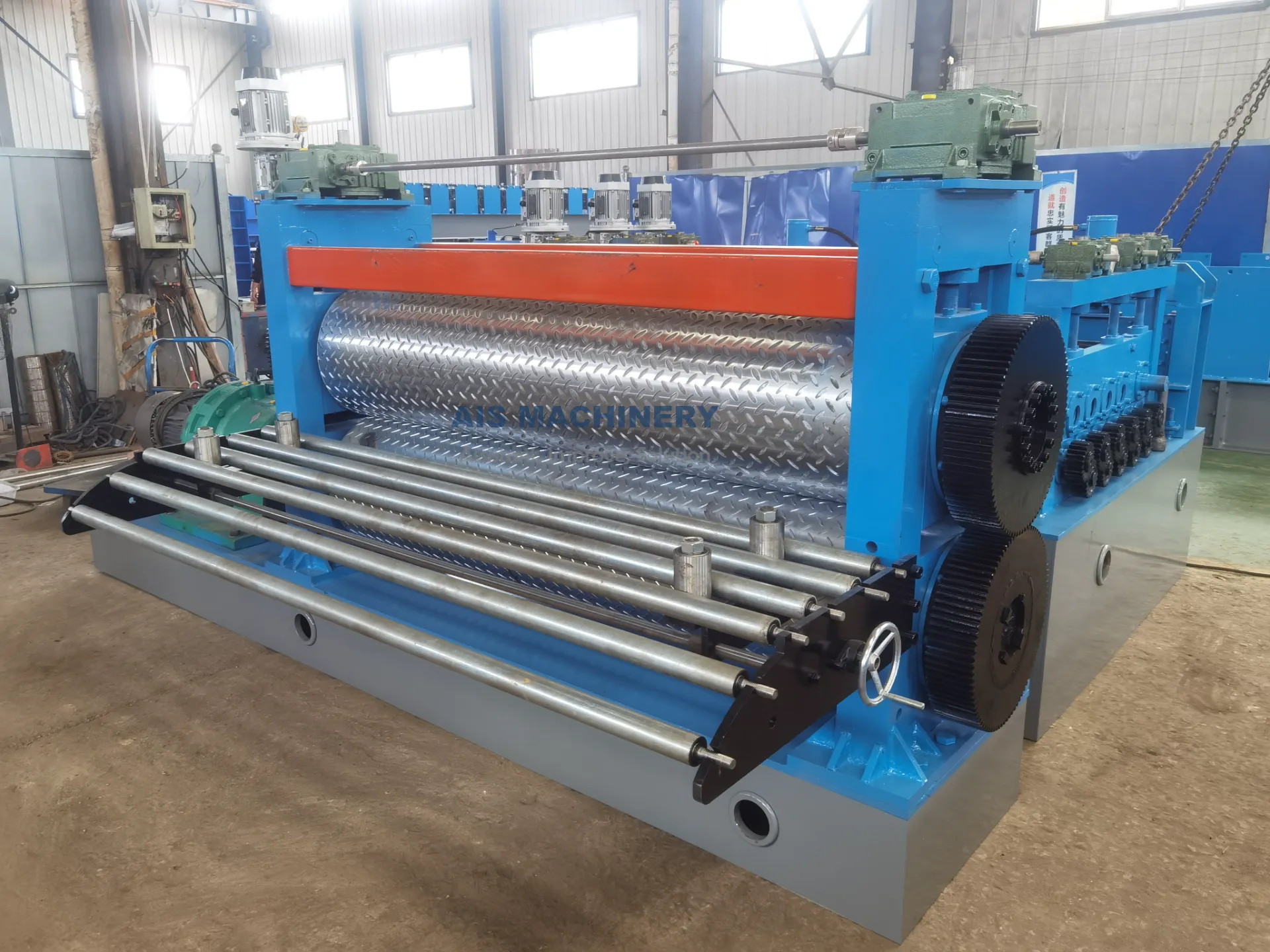

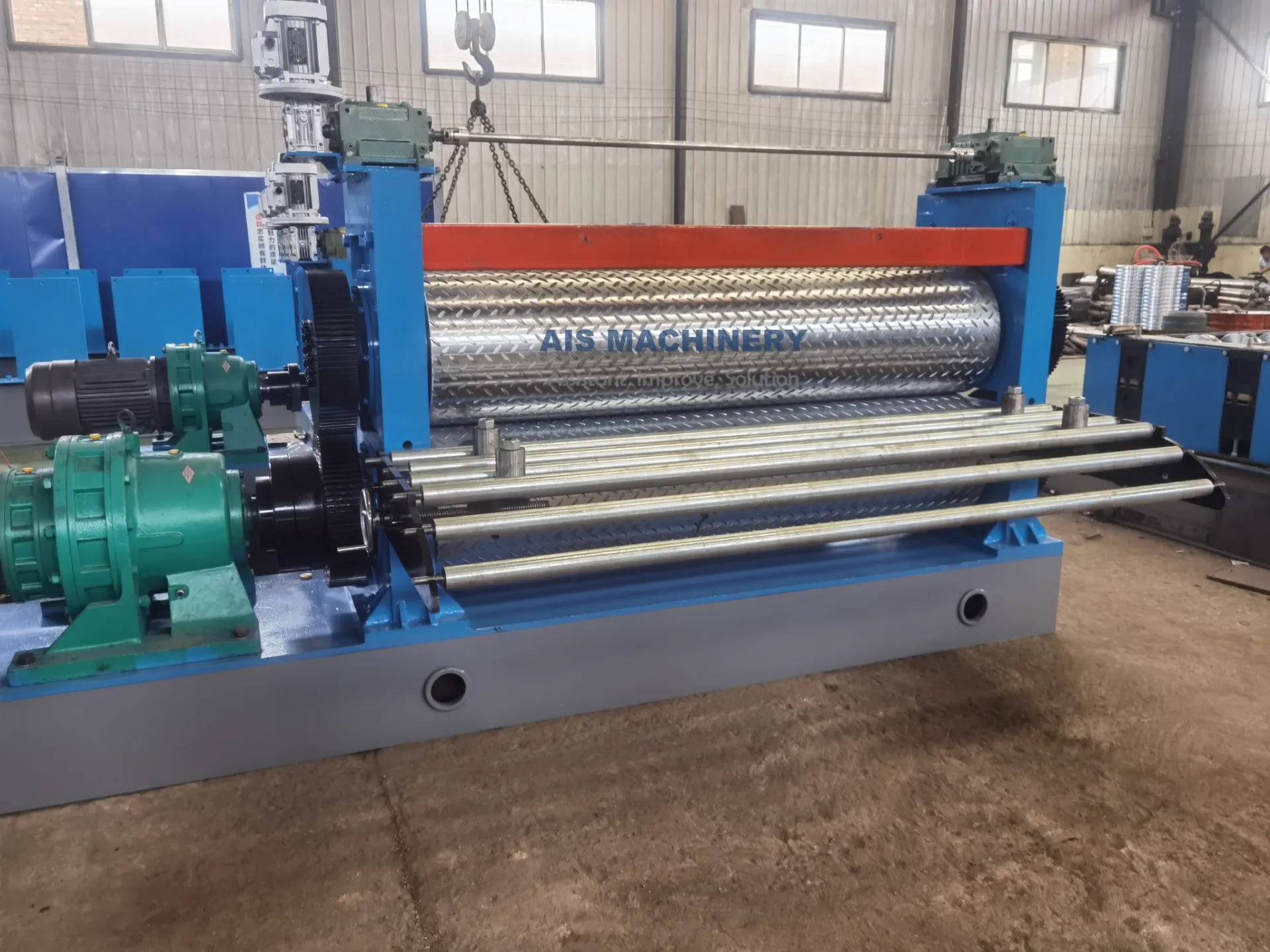

Embossing Machine for Metal Sheets

An embossing machine is an industrial system designed to create raised or recessed patterns on the surface of metal sheets, coils, or strips. By applying controlled pressure through precision-engraved rollers, the machine forms decorative or functional textures that enhance both the appearance and performance of the material.

This equipment is widely used in industries such as steel processing, aluminum manufacturing, construction materials, and decorative tubing production.

Main Components of an Embossing Machine

A standard metal embossing machine consists of the following core components:

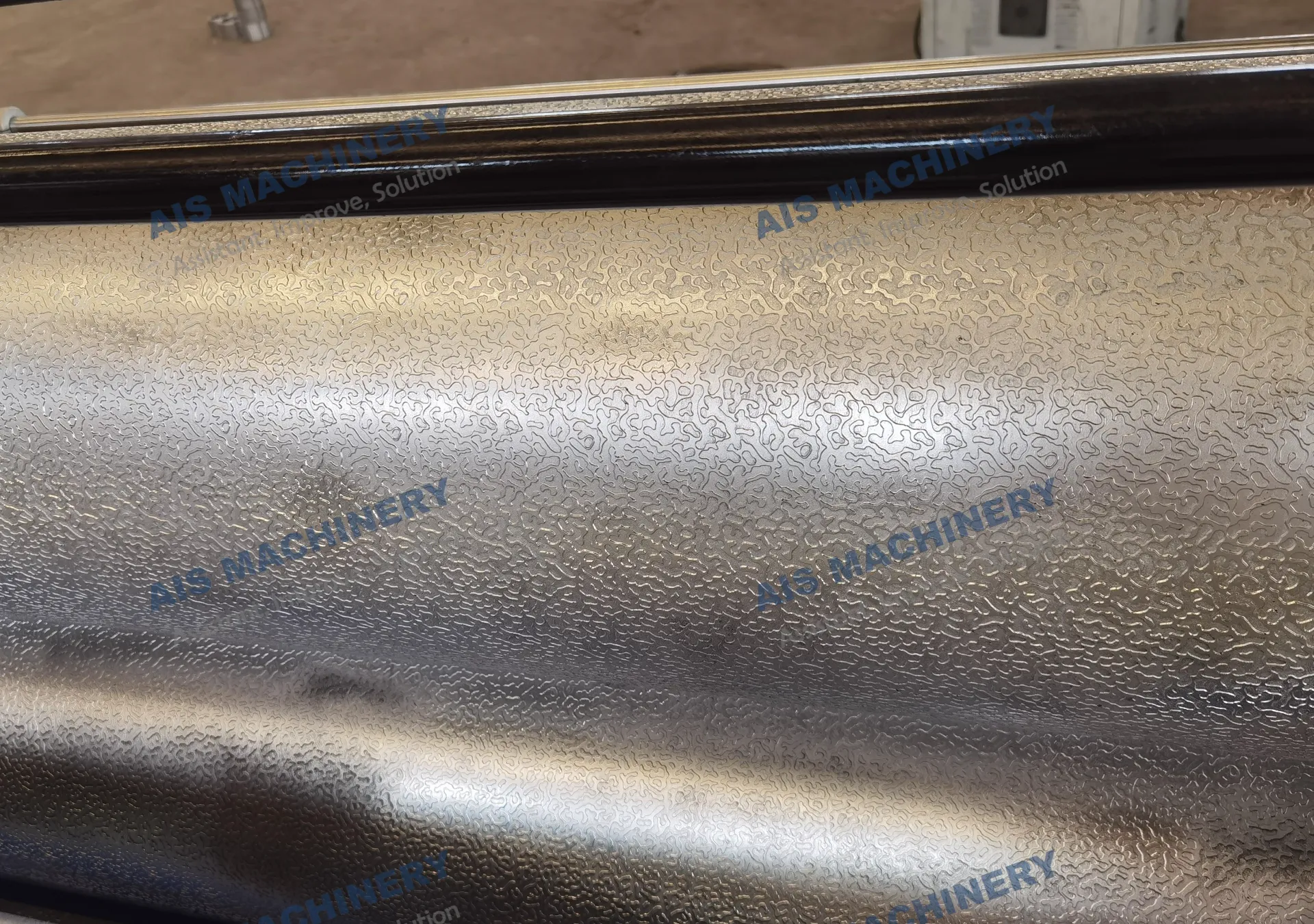

1️⃣ Embossing Roller (Pattern Roller)

The embossing roller is the most critical part of the machine.

• Made of high-strength alloy steel
• Surface engraved with customized patterns
• Heat-treated for wear resistance and long service life

👉 Determines the final texture and quality of the embossed surface

2️⃣ Counter Roller (Rubber or Steel Roller)

• Works together with the embossing roller
• Provides opposing force and pressure
• Can be rubber-coated or hardened steel depending on application

👉 Ensures uniform depth and clarity of the pattern

3️⃣ Drive System

• Includes motor, gearbox, and transmission system
• Controls the rotation speed of rollers
• Ensures synchronized and stable operation

4️⃣ Pressure Adjustment System

• Hydraulic or mechanical adjustment
• Allows precise control of embossing depth
• Adapts to different material thicknesses

5️⃣ Frame & Machine Body

• Heavy-duty welded structure
• Ensures rigidity and vibration resistance
• Guarantees long-term stable operation

6️⃣ Feeding & Guiding System

• Guides the material into the rollers
• Maintains alignment and prevents deviation
• Improves embossing accuracy
  •
  •
  •
  •

Working Principle

The embossing process is straightforward and efficient:

1. Metal sheet or coil is fed into the machine
2. Material passes between the embossing roller and counter roller
3. Under controlled pressure, the pattern is transferred onto the surface
4. Finished embossed material exits continuously

👉 The entire process is continuous, making it ideal for high-volume production lines.

Applications of Metal Embossing Machine

Our embossing machines are widely used for:

• ✅Stainless steel embossed sheets (decorative panels, elevators)
• ✅Aluminum embossed sheets (roofing, insulation, anti-slip plates)
• ✅Carbon steel plates (industrial flooring, safety surfaces)
• ✅Decorative pipes and tubes (furniture, handrails, architecture)

Optional Embossing Patterns

We offer a wide range of customizable patterns, including:

• Diamond pattern (anti-slip)
• Stucco / orange peel
• Linen / leather texture
• Customized logo or design
  •
  •

Technical Parameters (Typical)

How to Choose the Right Embossing Machine

📌To recommend the most suitable model, we suggest confirming:

• Material type (carbon steel, stainless steel, aluminum)
• Material thickness and width
• Required embossing pattern
• Production capacity (speed)
• Online (in-line) or standalone machine

Why Choose Our Embossing Machine

• Proven experience in metal processing equipment
• Custom design based on your production requirements
• Reliable performance and long service life
• Professional technical support and after-sales service

FAQ

Q1: Can the embossing pattern be customized❓

Yes, we provide fully customized roller engraving based on your design or samples.

Q2: Is the machine suitable for stainless steel❓

Absolutely. Our embossing machines are designed to handle stainless steel with high precision and durability.

Q3: Can it be integrated into a production line❓

Yes, the machine can be installed inline with slitting lines, leveling lines, or tube mills.

RELATION EQUIPMENT

We provides all equipment to tube mill entry section:

Coil Car

Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler

Peeler and hold down roll arm

Flattening Machine

Automatic and Semi Auto Shearer & Butt Welder

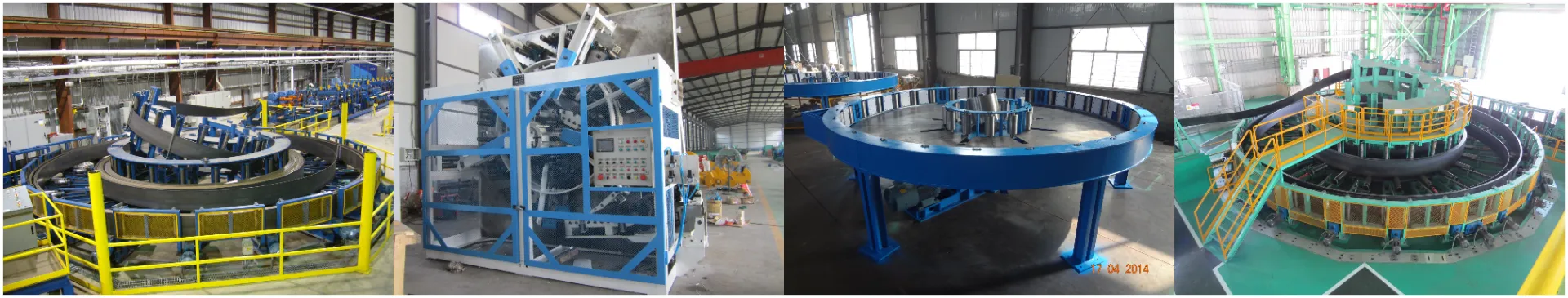

Vertical Cage Accumulator​ & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

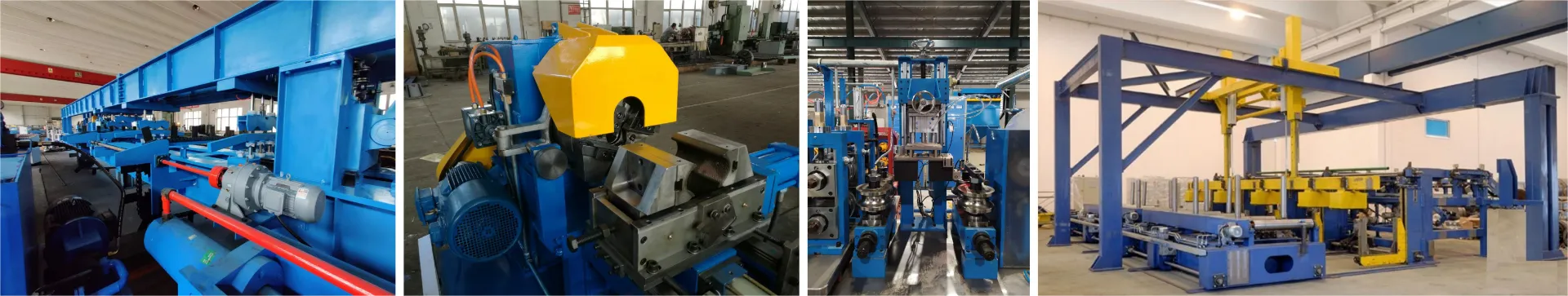

TUBE MILL FINISHING SECTION

We provides all equipment to tube mill Finishing section:

1. Eddy current machine

2. Seam annealing machine

3. Straightener machine

4. Chamfer and end facer machine

5. Hydro Tester machine

6. Threading machine

7. Painting and oil machine

8. Automatic bundle and package machine

SPARE PARTS TO CHOOSE

Our Spare Parts Apply:

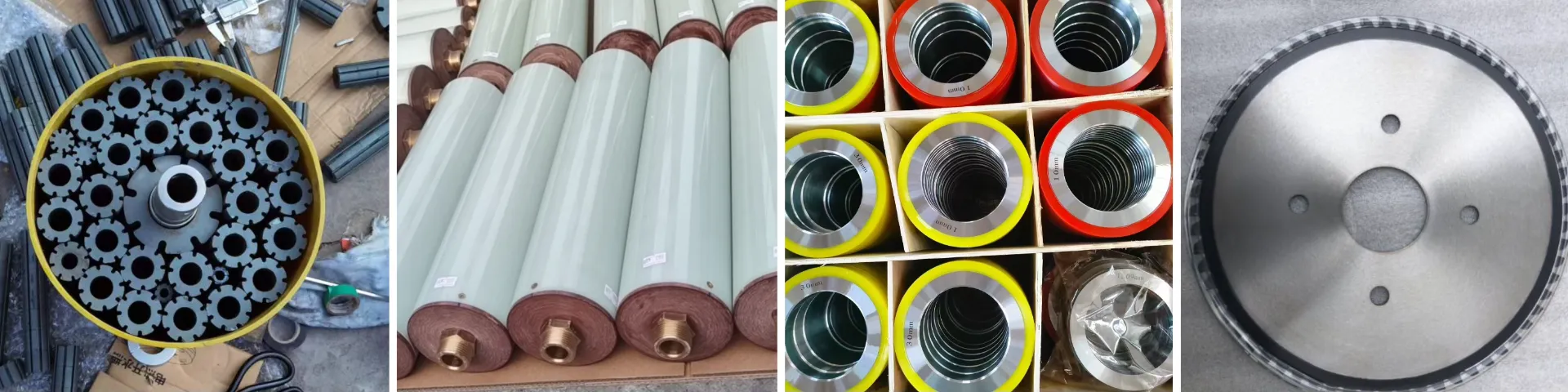

1. Roller, Mould, Cr12, Cr12Mov material, D2,D3 material
