Industrial HF Welder for ERW Tube Mills – Improve Welding Quality

Dec . 17, 2025 00:00

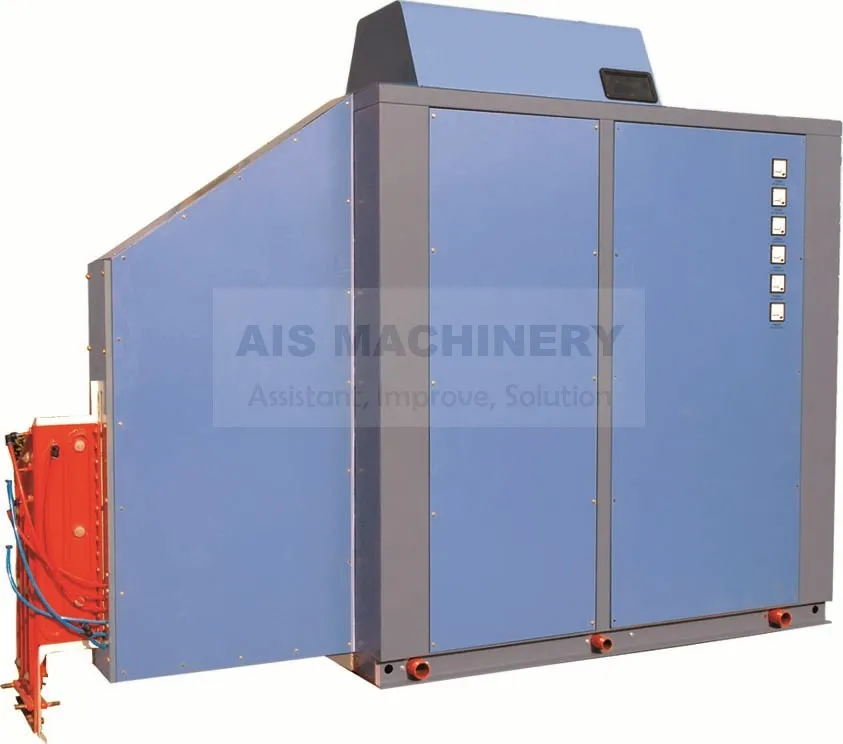

What Is an HF Welder?

An HF Welder (High Frequency Welder) is the core welding equipment used in an ERW Tube Mill (Electric Resistance Welded Pipe Production Line). It applies high-frequency electric current to heat the edges of steel strip and weld them together under pressure, forming a continuous welded tube.

HF welding is widely used for producing carbon steel pipes, structural tubes, GI pipes, and precision welded tubes with stable quality and high efficiency.

Main Function of HF Welder in ERW Tube Mill

In an ERW tube mill, the HF welder is responsible for the most critical process – strip edge welding.

Its main roles include:

Heating strip edges to welding temperature using high-frequency current
Ensuring uniform and deep weld penetration
Supporting continuous, high-speed tube production
Improving weld strength and surface quality

A stable HF welder directly determines pipe welding quality, production speed, and final yield rate.

Key Performance Features

A professional HF welder for tube mills offers the following performance advantages:

✅High-frequency output for fast and concentrated edge heating
✅Stable power control to adapt to different pipe sizes and thicknesses
✅High welding efficiency suitable for long-time continuous operation
✅Strong compatibility with various ERW tube mill lines
✅Reliable protection system to ensure safe operation

These features help manufacturers reduce scrap rate and improve overall production efficiency.

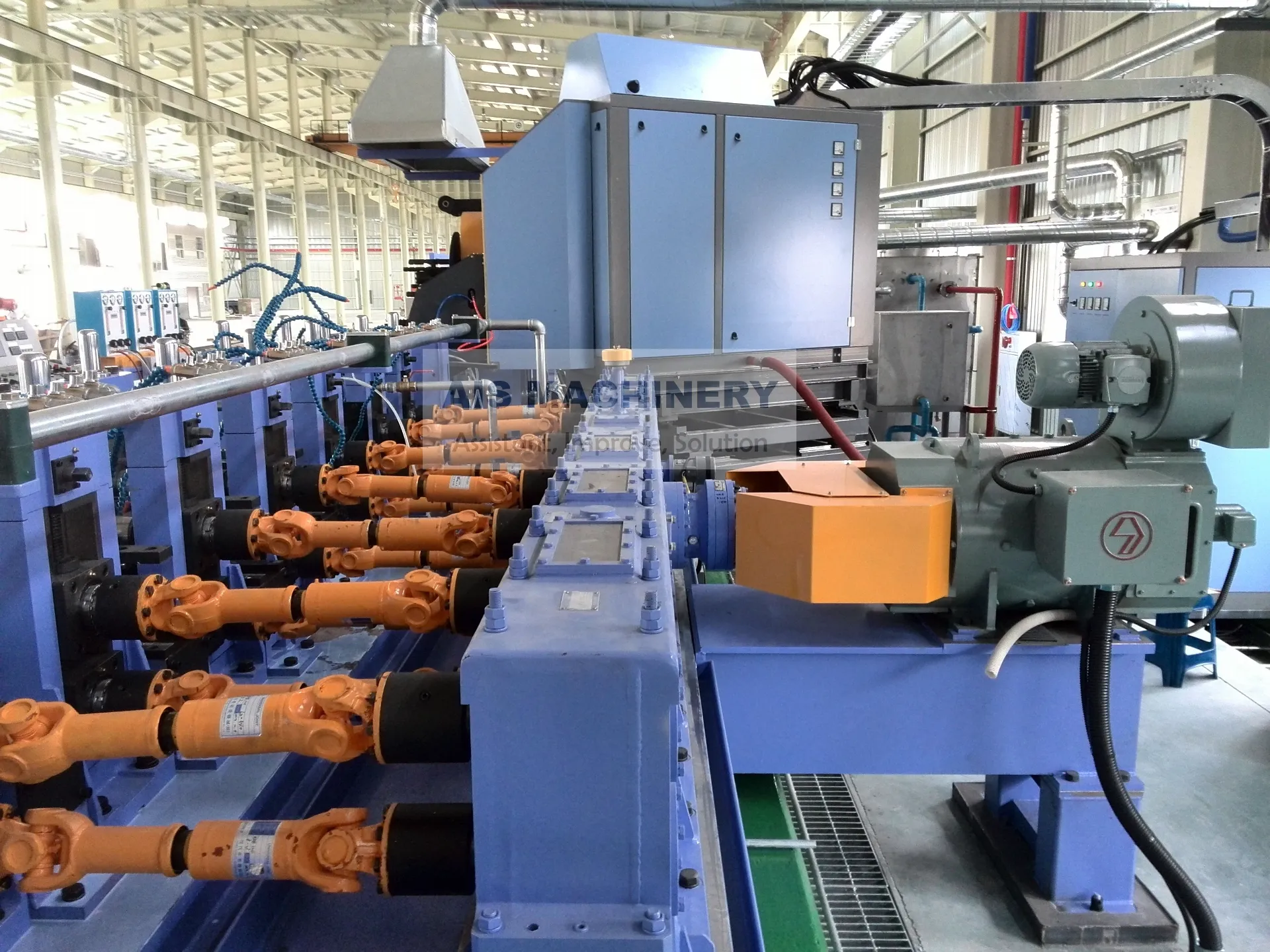

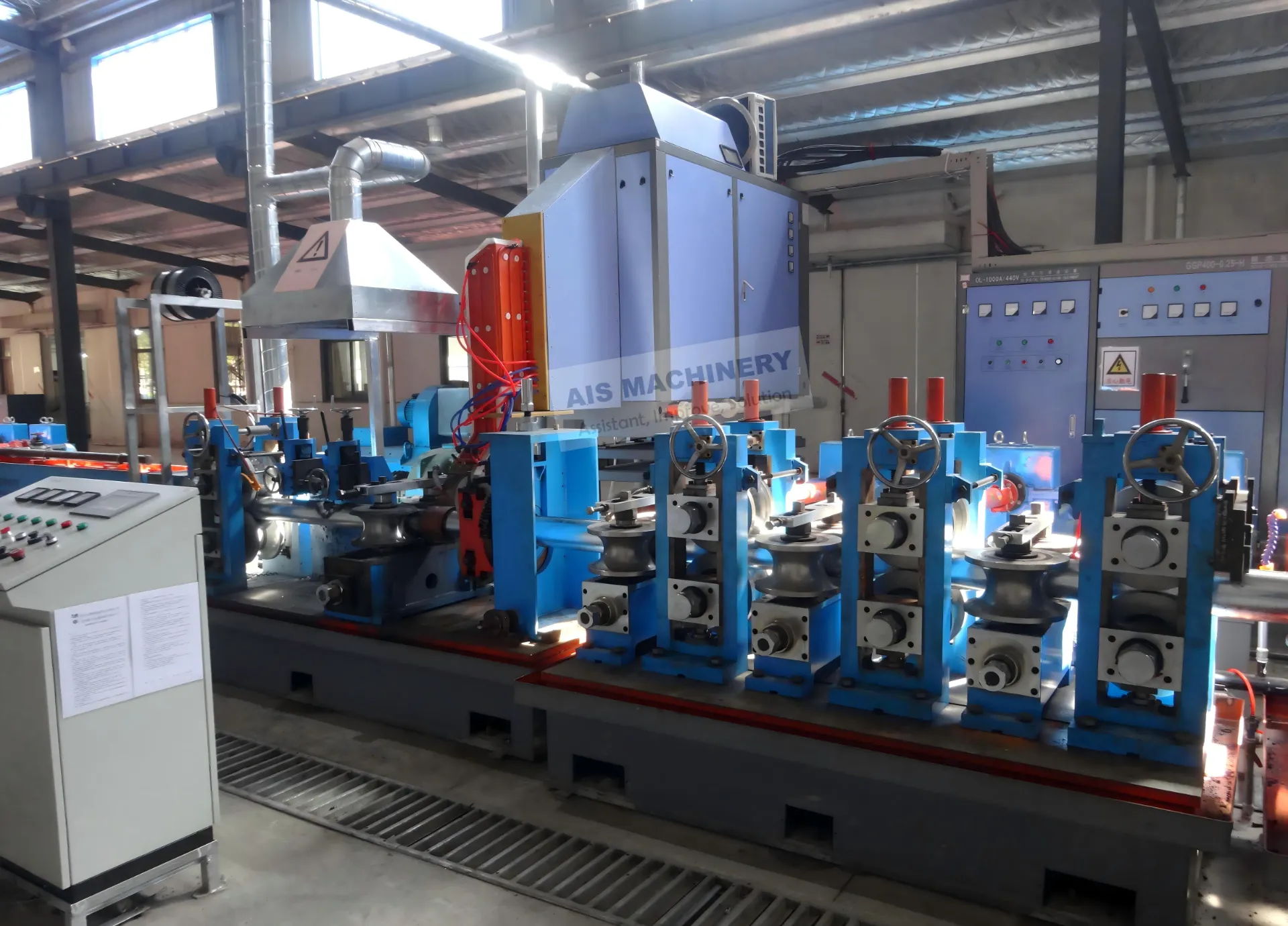

ERW Tube Mill Welding System

Related Equipment Used with HF Welder

To achieve high-quality welding, the HF welder works together with several key ERW tube mill components:

1️⃣Impeders – Guide and concentrate HF current to improve welding efficiency
2️⃣Induction Coil / Contact Tips – Transfer HF energy to the strip edges
3️⃣Welding Stand & Squeeze Rolls – Apply pressure to form a solid weld seam
4️⃣Cooling System – Maintain stable operating temperature of the welder

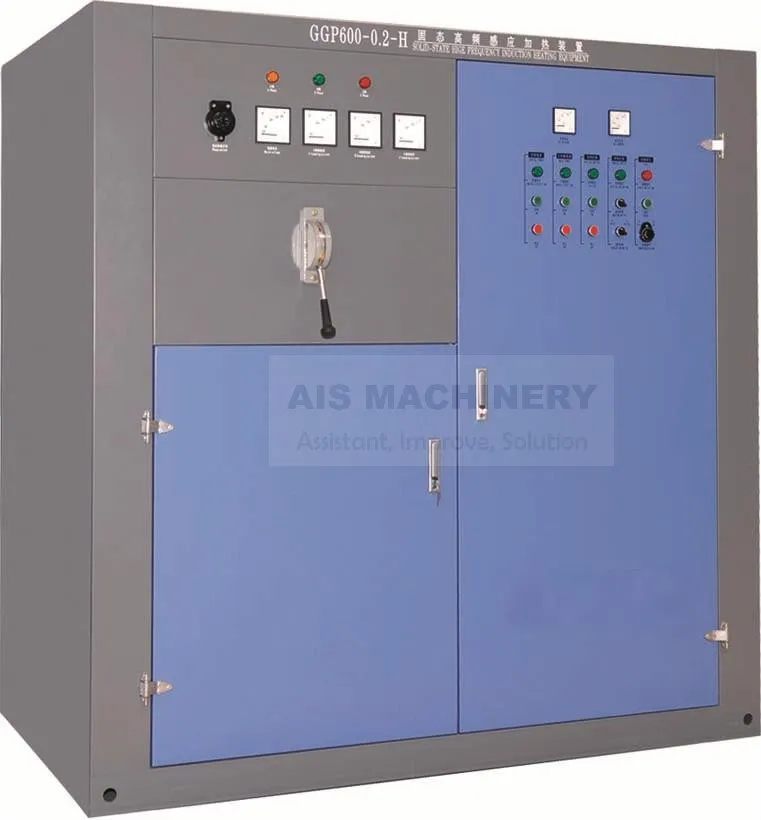

5️⃣HF Transformer & Rectifier Cabinet – Ensure stable power supply

Proper matching of these devices is essential for consistent weld quality.

Applications

HF welders are widely used in the production of:

ERW steel pipes
Structural tubes
Scaffolding pipes
Furniture tubes
Oil & gas line pipes (low and medium pressure)

They are suitable for small, medium, and large diameter tube mills.

Why Choose a Professional HF Welder?

A high-quality HF welder helps you:

🔹Achieve strong and uniform weld seams
🔹Increase production speed
🔹Reduce welding defects
🔹Lower maintenance and operating costs

Choosing a reliable HF welding system means stable production and long-term cost savings.

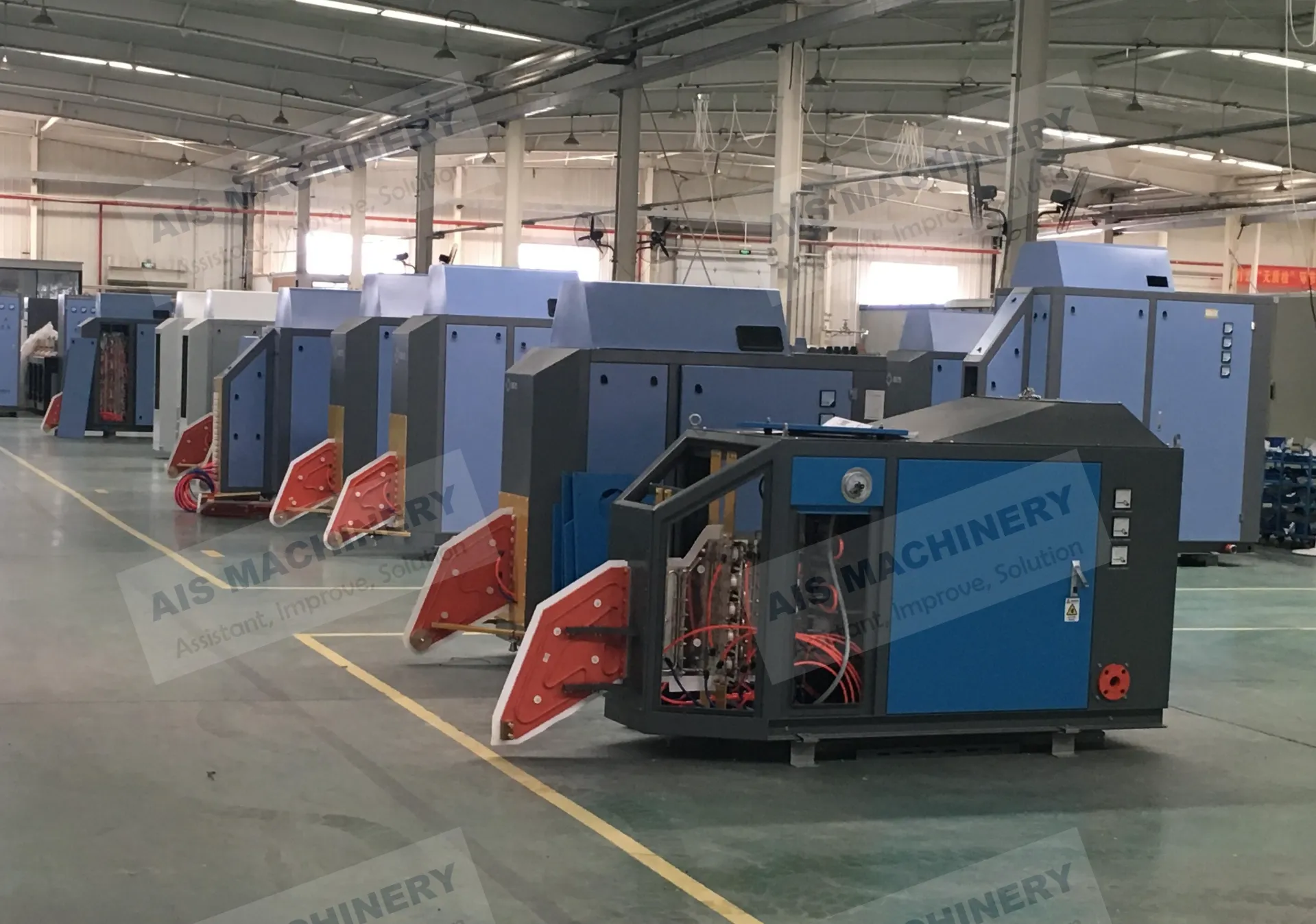

Manufacturer & Technical Support

Hebei AIS Machinery Equipment supplies professional HF welders and complete ERW tube mill solutions.

Customized HF welding systems
Matched impeders, induction coils, and welding accessories
Technical support for installation and commissioning
Long-term spare parts supply

📞 Contact: +86 15176910262

We help tube manufacturers achieve stable welding quality, higher efficiency, and reliable long-term operation.Looking for a reliable HF welder for your ERW tube mill? Contact us for technical details and quotation.
