Elevating Structural Fabrication: The Power of Advanced Roll Forming

The relentless evolution of the global construction industry continually demands higher efficiency, precision, and material optimization in structural component manufacturing. At the forefront of this technological drive is the specialized c purlin forming machine. This sophisticated equipment plays a pivotal role in the production of C-shaped purlins, essential secondary structural elements in modern light-gauge steel buildings. These components are critical for supporting roofing and wall cladding systems across a diverse range of structures, from expansive industrial warehouses and commercial complexes to robust agricultural facilities. The machine’s capability to transform raw steel coils into precisely dimensioned purlins ensures structural integrity, accelerates project timelines, and reduces overall construction costs, making it an indispensable asset in contemporary fabrication processes.

Current industry trends highlight a growing reliance on automated, high-speed production lines, a domain where the c purlin machine excels. This shift is fueled by a demand for faster project completion, reduced labor dependency, and consistent quality output. The pre-engineered metal building (PEMB) sector, in particular, has seen exponential growth, directly influencing the demand for advanced c purlin roll forming machine solutions. Furthermore, increasing global emphasis on sustainable and resilient construction practices underscores the value of steel components, which are inherently durable, recyclable, and efficiently formed by these specialized machines. Our exploration delves into the intricate mechanisms and operational advantages that define a cutting-edge purlin roll forming machine, showcasing its profound impact on enhancing productivity and precision in the B2B construction supply chain.

Precision Engineering: The C Purlin Forming Process

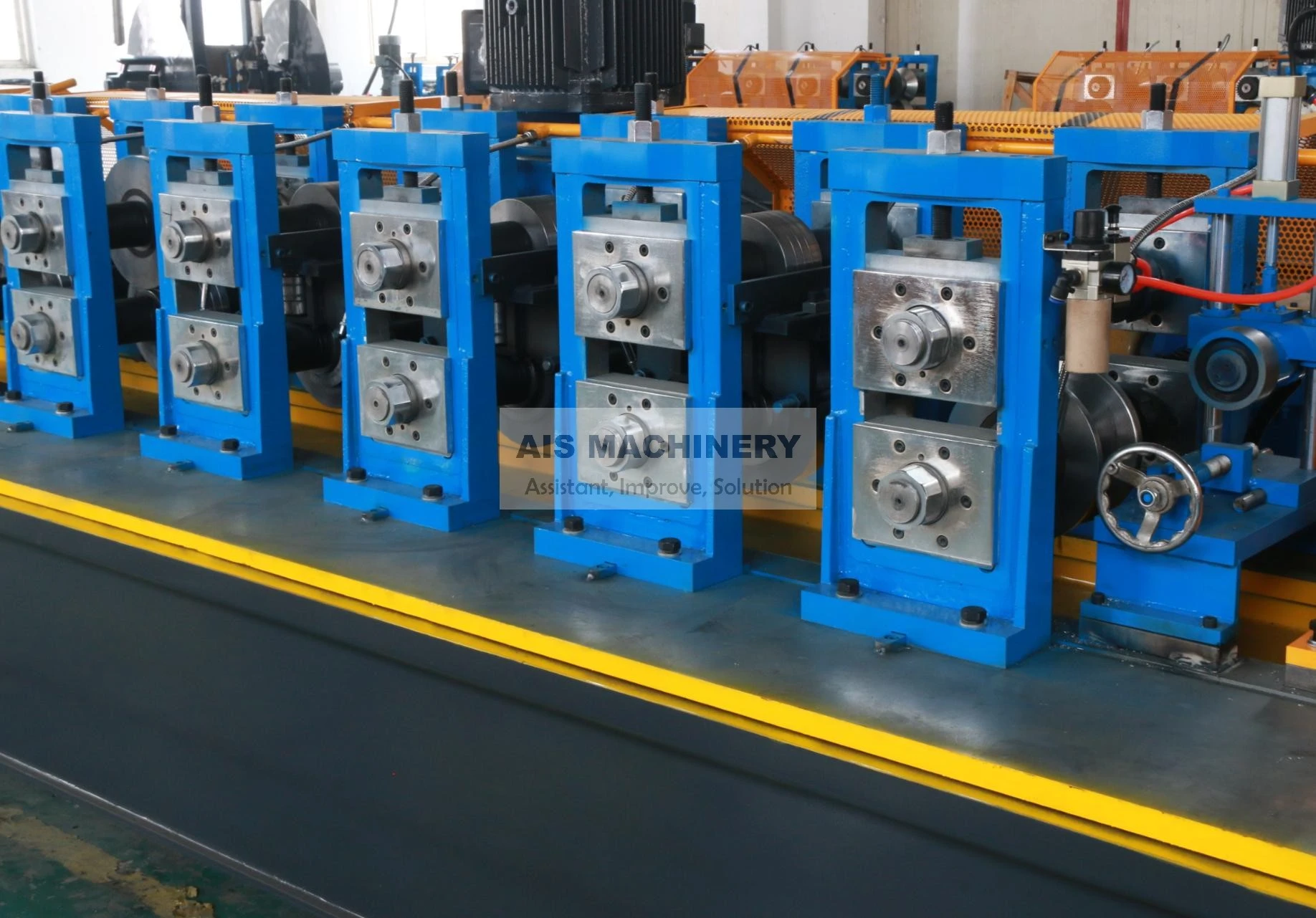

The operational heart of a c purlin roll former lies in its meticulously engineered cold roll forming process, a technique superior to traditional bending methods due to its ability to maintain material integrity and achieve exceptional dimensional accuracy. This automated process begins with the decoiling of a high-strength steel coil, which is then precisely guided into a multi-stage roller system. Each consecutive roller stand progressively bends and shapes the flat steel strip until it achieves the desired C-profile. The design and precision of these rollers are paramount, often fabricated from hardened alloy steel and finished with CNC machining to ensure minimal friction and consistent material flow, thereby preventing stress concentrations and spring-back. This sophisticated forming capability guarantees that every purlin produced exhibits uniform structural properties and meets stringent engineering specifications, vital for their load-bearing functions.

Integral to the forming line is the integrated punching and cutting system. After the C-profile is fully formed, the continuous section passes through an inline hydraulic or servo-driven punching unit. This unit is capable of creating various patterns of bolt holes, web holes, and service holes with high precision, based on pre-programmed designs, eliminating the need for post-forming fabrication. The final stage involves a high-speed flying saw or hydraulic shear that cuts the purlin to the specified length without interrupting the continuous forming process, significantly boosting throughput. Throughout this entire sequence, advanced sensors and a PLC (Programmable Logic Controller) system monitor and control every parameter, from material feed rate to cutting length, ensuring adherence to global standards such as ISO 9001 and ANSI specifications. The robust construction of the machine, often utilizing precision cast and forged components for critical drive parts, contributes to an extended operational lifespan typically exceeding 15-20 years with proper maintenance, ensuring long-term return on investment.

Technical Parameters and Performance Analytics

Selecting an optimal c purlin forming machine necessitates a deep understanding of its technical specifications, which directly influence operational efficiency and product quality. Key parameters include the machine's capacity to handle various material thicknesses and types, typical forming speeds, and the flexibility for profile adjustments. Leading-edge machines are designed to process a range of steel grades, including galvanized steel, cold-rolled steel, and high-strength low-alloy (HSLA) steels, with material thicknesses generally ranging from 1.5mm to 3.0mm. A standout feature of advanced c purlin roll forming machine models is their rapid profile change capability, allowing for swift transitions between different purlin sizes (e.g., C100, C150, C200, C250) without extensive manual adjustments, often through fully automatic width adjustment systems controlled via a sophisticated HMI (Human-Machine Interface). This adaptability is crucial for manufacturers serving diverse project demands and optimizing production schedules.

The sophisticated integration of PLC-based control systems and user-friendly HMIs allows for meticulous control over every aspect of the production line. This includes automated adjustments for purlin dimensions, precise hole punching patterns tailored to specific project blueprints, and real-time performance monitoring. Such technological advancements ensure exceptional quality consistency and significantly reduce material waste, directly contributing to a lower per-unit cost for the finished purlins. For example, a well-calibrated purlin roll forming machine consistently achieves dimensional tolerances within ±0.5mm, a level of precision far exceeding traditional fabrication methods. This accuracy is paramount for the seamless integration of purlins into pre-engineered building systems, minimizing on-site modifications and accelerating construction timelines. The combination of high speed, precision, and automation underscores the significant technical advantages offered by modern roll forming machines.

Versatile Applications and Economic Impact

C-purlins, expertly produced by a robust c purlin machine, are fundamental structural components widely utilized across an extensive array of industries. Their primary role is in the construction of pre-engineered metal buildings, where they function as vital secondary structural elements for supporting roof and wall cladding, effectively transferring loads to the primary structural framework and resisting various environmental forces, including wind and seismic loads. Beyond general construction, these versatile purlins are indispensable in the development of large-span structures such as industrial factories, expansive logistics centers, agricultural buildings like large-scale barns and greenhouses, and various public facilities including sports arenas. The inherent adaptability of the C-profile, combined with the capability of a c purlin roll former to produce a wide range of sizes and gauges, ensures suitability for diverse load requirements and architectural designs.

In specialized sectors, purlins formed by a sophisticated purlin roll forming machine are adapted for unique applications. For instance, in certain petrochemical installations, they can form part of non-load-bearing support structures in non-corrosive zones. In the metallurgical industry, they might be integrated into lighter framework for ancillary structures. A key advantage of using purlins produced by a specialized c purlin forming machine is their superior strength-to-weight ratio, which significantly optimizes material consumption and contributes to a lighter overall building structure, leading to reduced foundation costs. Furthermore, the use of pre-galvanized steel coils provides exceptional corrosion resistance, extending the lifespan of the structures, particularly in challenging environmental conditions. This directly supports sustainable building practices by enabling robust insulation systems, thereby reducing energy consumption for heating and cooling. Case studies consistently demonstrate accelerated construction timelines and enhanced structural integrity when utilizing high-quality, machine-formed purlins.

Strategic Investment: Manufacturer Comparison and Custom Solutions

The decision to invest in a c purlin forming machine is a significant capital expenditure that warrants thorough due diligence in manufacturer selection. Reputable manufacturers distinguish themselves through a blend of engineering excellence, robust post-sales support, and comprehensive customization capabilities. Critical factors for evaluation include the machine's overall robustness, particularly its frame construction and the quality of its forming rollers, the level of automation offered (e.g., PLC brand, auto-width adjustment systems), and demonstrated production speeds. Leading suppliers typically provide comprehensive warranties, often spanning 12 to 24 months, coupled with extensive technical support encompassing installation, operator training, and reliable spare parts availability. Evaluating a manufacturer’s track record, scrutinizing client testimonials, and verifying adherence to international certifications like ISO 9001 and CE compliance are crucial steps in assessing their commitment to quality and long-term customer satisfaction.

For specialized projects, the demand for custom solutions is increasingly common. A highly adaptable purlin roll forming machine supplier can offer tailored configurations, ranging from integrated decoiling and slitting units to multi-profile capabilities that allow a single machine to produce both C and Z purlins, or other bespoke structural shapes. For instance, clients frequently require unique hole patterns, specific material gauges, or the ability to process proprietary steel alloys. A manufacturer with proven engineering acumen can design and construct a c purlin roll forming machine specifically to these precise requirements, ensuring optimal performance and efficiency for highly specialized applications. Our commitment to providing bespoke solutions, coupled with end-to-end support from initial consultation and design to installation and ongoing maintenance, reflects our dedication to fostering enduring client success within the demanding B2B fabrication sector. Our service cases frequently involve optimizing production lines for higher throughput or integrating new automation features for specific client demands, showcasing our deep industry experience.

Ensuring Reliability: Trustworthiness and Comprehensive Support

Frequently Asked Questions (FAQ)

• Q: What is the typical delivery schedule for a standard c purlin forming machine?

  A: For our standard configurations, the lead time generally ranges from 60 to 90 business days, depending on current production schedules. Custom-engineered machines may require 90-120 days to account for specialized design and component sourcing. We provide a detailed, transparent project timeline upon order confirmation.

• Q: What warranty and after-sales services are provided for the purlin roll forming machine?

  A: We offer a comprehensive 12-month warranty covering major mechanical and electrical components. Our dedicated after-sales support includes prompt remote troubleshooting, options for on-site technical assistance, and a readily available inventory of genuine spare parts to minimize any potential downtime for your production line.

• Q: Is it possible for the c purlin machine to produce other profiles, like Z-purlins?

  A: While our dedicated c purlin roll forming machine is optimized for C-profiles, we do offer versatile multi-profile machines or specialized custom solutions that can produce Z-purlins and a variety of other cold-formed sections. We encourage you to discuss your specific profile requirements with our expert sales engineers to explore tailored solutions.

Our commitment to client success extends far beyond the initial purchase of a c purlin forming machine. We recognize that consistent, reliable operation with minimal downtime is paramount for your business’s profitability. Our delivery process is meticulously managed, encompassing rigorous factory acceptance testing (FAT), secure packaging for transit, and expert coordination for international shipping, ensuring your equipment arrives in pristine condition. We provide comprehensive installation manuals and offer expert supervision for initial setup and commissioning, empowering your operational team with the necessary knowledge to run the machine efficiently and safely. This dedication to long-term partnerships is underpinned by our robust customer support, always available to address technical queries or operational challenges promptly, ensuring your production line maintains peak performance and profitability.

Conclusion: The Future of Cold-Formed Steel Production

The modern c purlin forming machine stands as a testament to the advancements in structural steel component manufacturing. Its unparalleled ability to produce high-precision, superior-quality C-purlins efficiently and cost-effectively positions it as an indispensable asset for a myriad of construction and industrial applications. By leveraging cutting-edge automation, robust mechanical engineering, and comprehensive technical support, these machines empower businesses to adeptly meet the dynamic demands of the market, ensuring both structural integrity and operational excellence. Continuous innovation within the cold roll forming technology sector promises even greater versatility, higher speeds, and enhanced material efficiency in the years to come, further cementing the crucial role of the purlin roll forming machine as a foundational element in contemporary fabrication and construction methodologies worldwide.

References

1. Smith, J. (2021). Design and Optimization of Roll Forming Processes for Lightweight Steel Structures. Journal of Manufacturing Systems, 60, 345-358.
2. European Committee for Standardization. (2018). EN 1090-2: Execution of Steel Structures and Aluminium Structures - Technical Requirements for Steel Structures.
3. American Iron and Steel Institute. (2020). AISI S100: North American Specification for the Design of Cold-Formed Steel Structural Members.
