Slitting & Cut-to-Length Combined Production Line: A Smarter Way to Process Steel Coils

Apr . 21, 2026 10:22

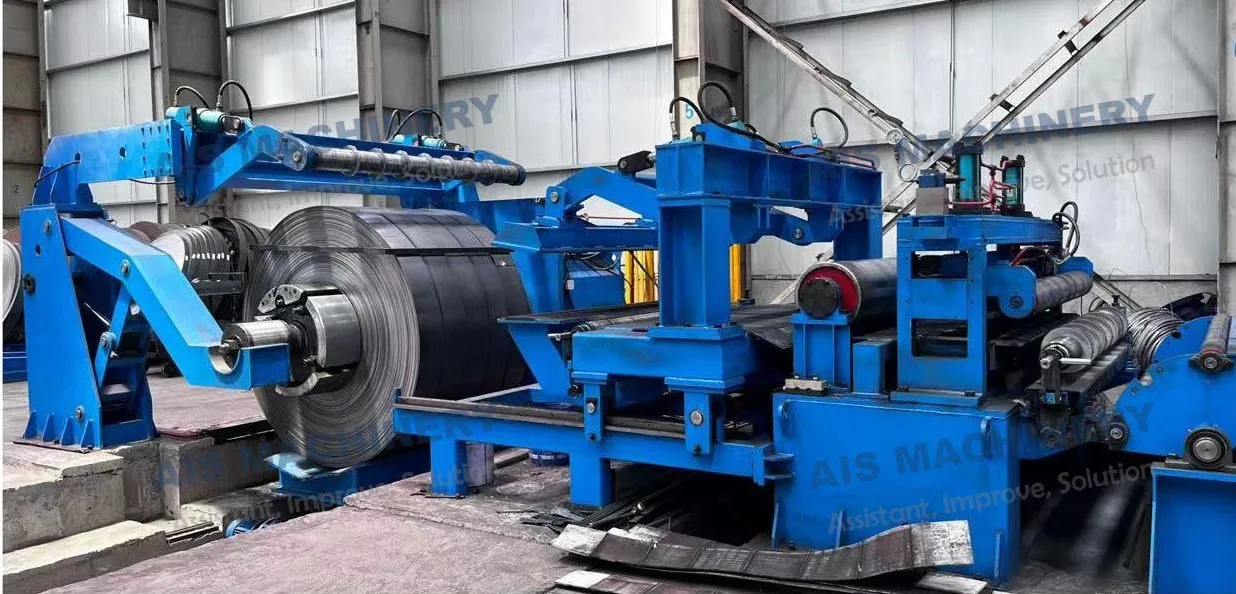

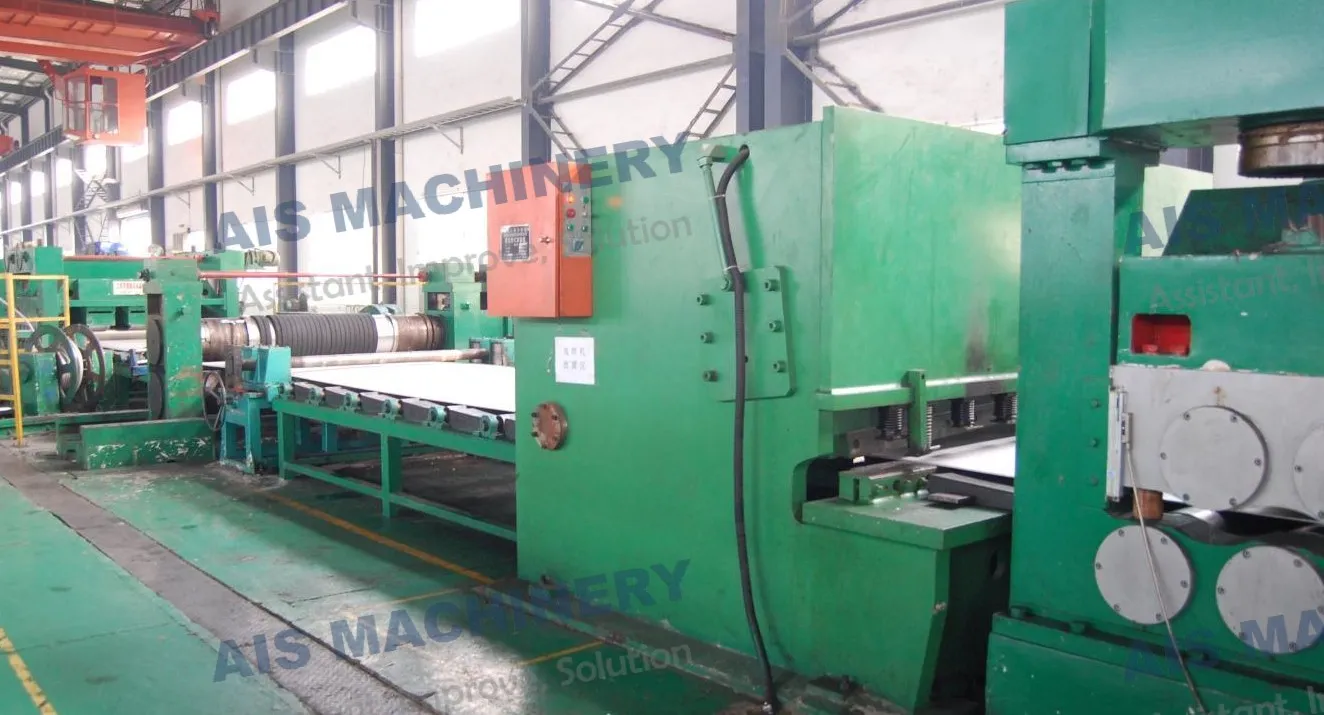

What Is a Slitting & Cut-to-Length Combined Line?

A Slitting & Cut-to-Length Combined Production Line is an advanced metal processing system that combines two key functions in one line:

✅Slitting Line – cuts wide steel coils into narrow strips
✅Cut-to-Length (CTL) Line – cuts steel coils into flat sheets of fixed length

Instead of using two separate machines, this combined line allows manufacturers to perform coil slitting and sheet cutting in a single workflow.

This solution is widely used in industries such as:

Steel service centers
Construction materials
Automotive components
Appliance manufacturing

How Does the Combined Line Work?

The process is flexible and can switch between slitting and cut-to-length modes depending on production needs.

Typical Process Flow:

Loader → Decoiler → Leveler / Cross Shearing → Front Loop Pit → Front Guider → Slitter → Waste Scrap Winder → Rear Loop Pit → Tension Unit → Recoiler → Unloader → Guider → NC Length → Cross Shearing → Conveyor → Stacking

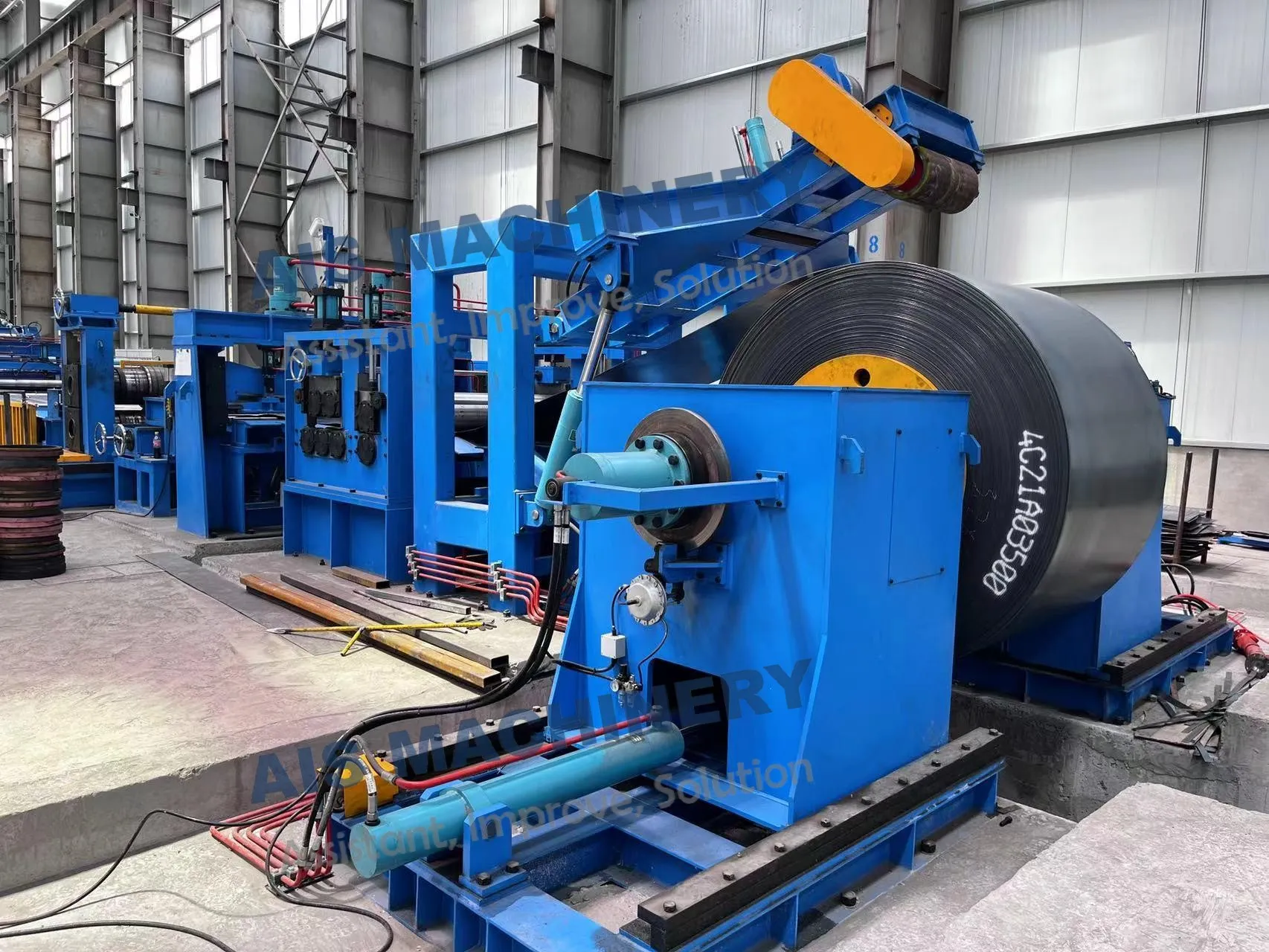

• Loader & Decoiler – Load and unwind the steel coil

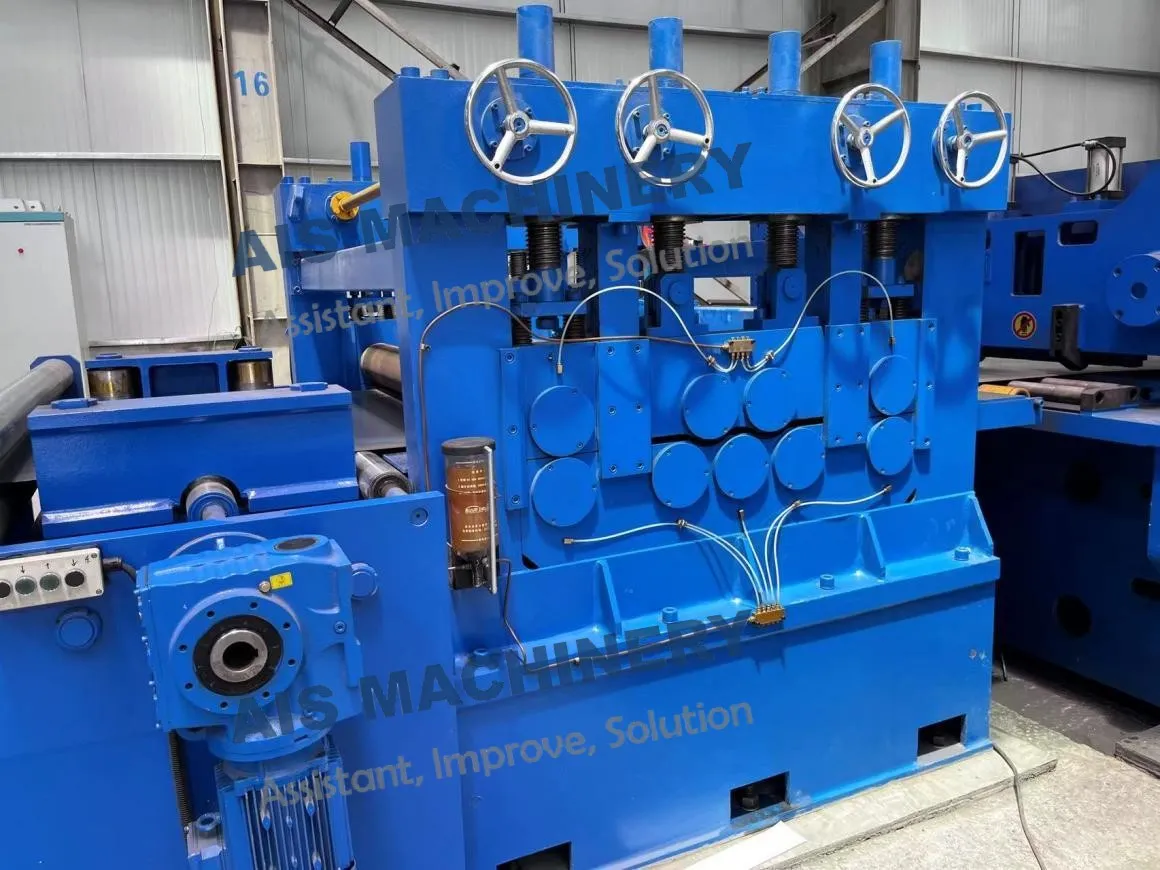

• Leveler & Cross Shearing – Flatten the material and cut the head if needed

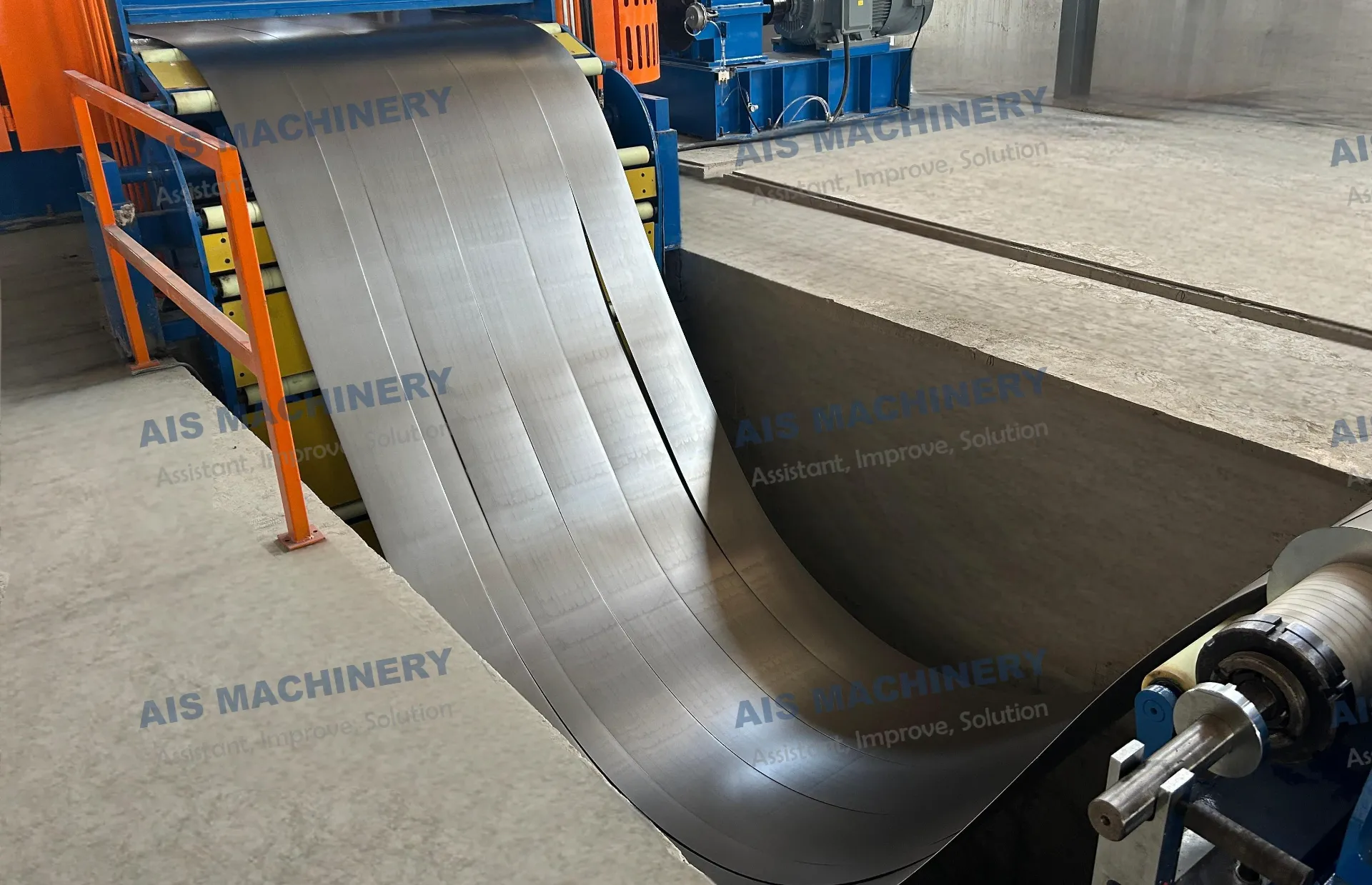

• Loop Pits (Front & Rear) – Store material to keep continuous operation

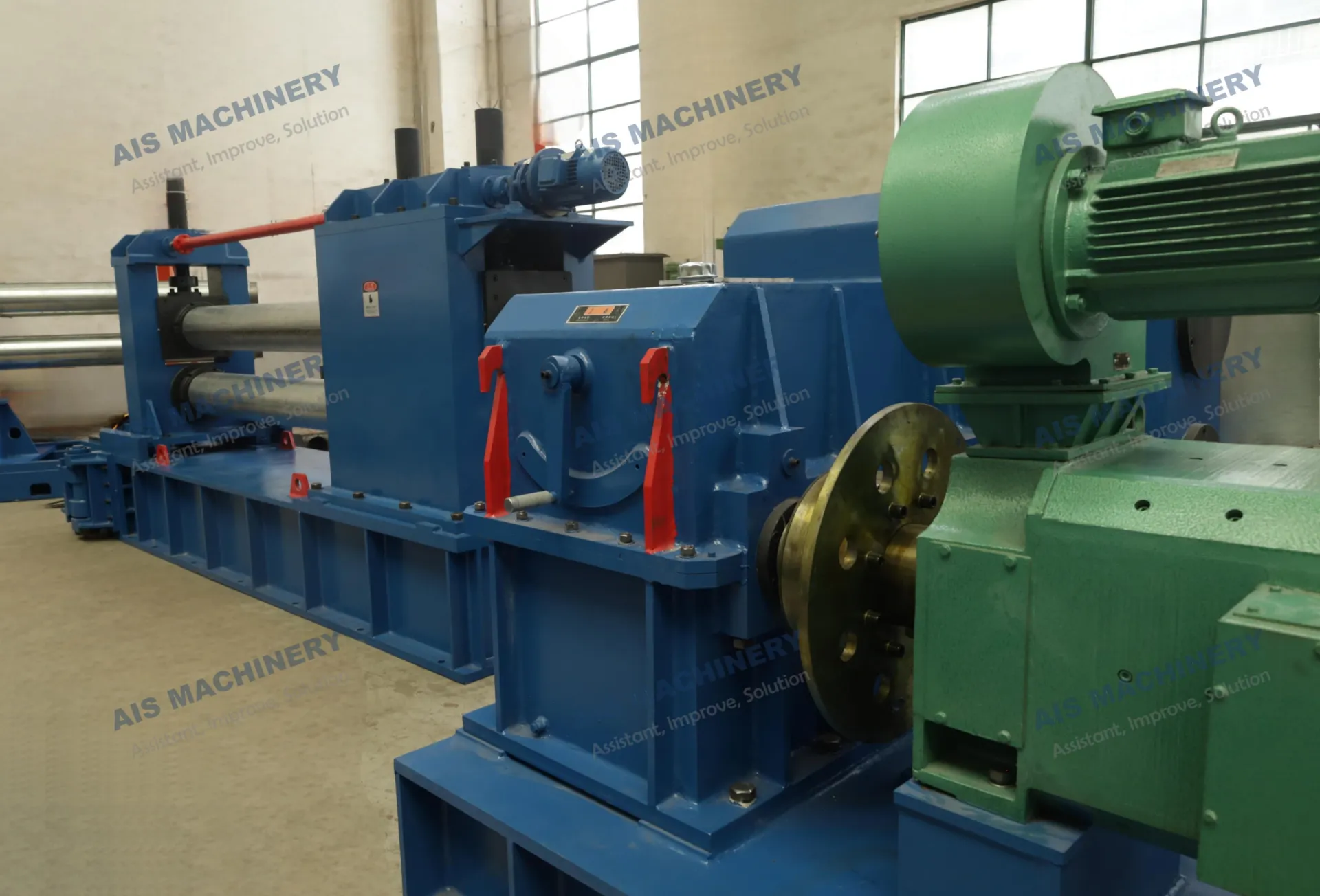

• Slitter – Cut wide coil into multiple narrow strips
• Scrap Winder – Collect edge waste
• Tension Unit & Recoiler – Maintain strip tension and rewind finished coils
• NC Length & Cross Shearing – Precisely cut sheets to required length
• Conveyor & Stacking – Transport and stack finished sheets automatically

Why Combine Slitting and CTL in One Line?

This design is becoming popular because it offers a multi-purpose solution for coil processing.

Key Advantages

1️⃣ Space Saving

One machine replaces two separate production lines, saving valuable factory space.

2️⃣ Lower Investment Cost

Customers only need to invest in one combined system instead of two independent lines.

3️⃣ Flexible Production

Quick switching between slitting and CTL helps handle different orders with small batch sizes.

4️⃣ Reduced Handling

Less material transfer between machines means:

Lower labor cost
Reduced damage risk
Higher efficiency

5️⃣ Better Workflow Integration

All processes are controlled in one system, making operation more streamlined.

Are There Any Limitations?

While the combined line is highly efficient, it is not perfect for every situation.

Possible Disadvantages

1. Lower Peak Efficiency (Compared to Dedicated Lines)

A standalone slitting line or CTL line may achieve higher speed and specialization.

2. Changeover Time

Switching between slitting and cut-to-length modes may require:

Tool adjustments
Setup time

3. Higher Technical Complexity

The system design is more complex, which means:

Higher maintenance requirements
Skilled operators are needed

4. Not Ideal for High-Volume Single Products

If your production is 100% slitting or 100% CTL, a dedicated line might be more cost-effective.

When Should You Choose a Combined Line?

This solution is ideal if you:

Handle diverse product specifications
Need both steel strips and sheets
Have limited factory space
Want a cost-effective and flexible system

Typical Technical Parameters

Item	Range
Coil Thickness	0.3 – 6.0 mm
Coil Width	Up to 2000 mm
Slitting Strips	5 – 30 strips
Cutting Length	300 – 6000 mm
Line Speed	80 – 150 m/min

Final Thoughts

The Slitting & Cut-to-Length Combined Production Line is a smart solution for modern steel processing. It brings together flexibility, efficiency, and cost savings in one system.

While it may not fully replace dedicated machines in high-volume production, it is an excellent choice for companies looking to expand capabilities without expanding space or budget.
