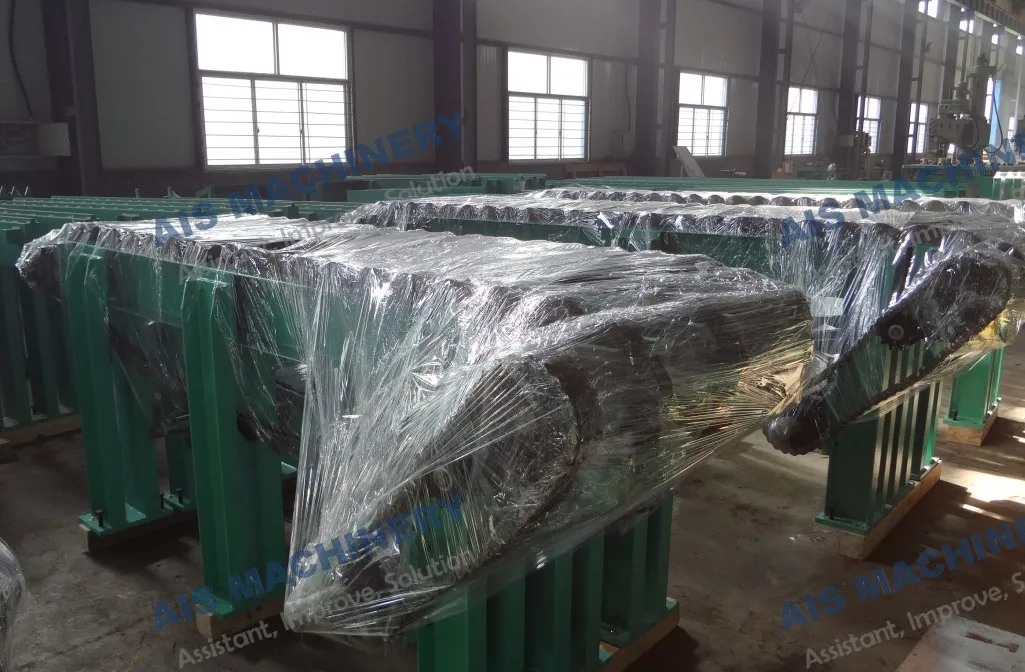

Conveyor & Run Out Table for ERW Tube Mill

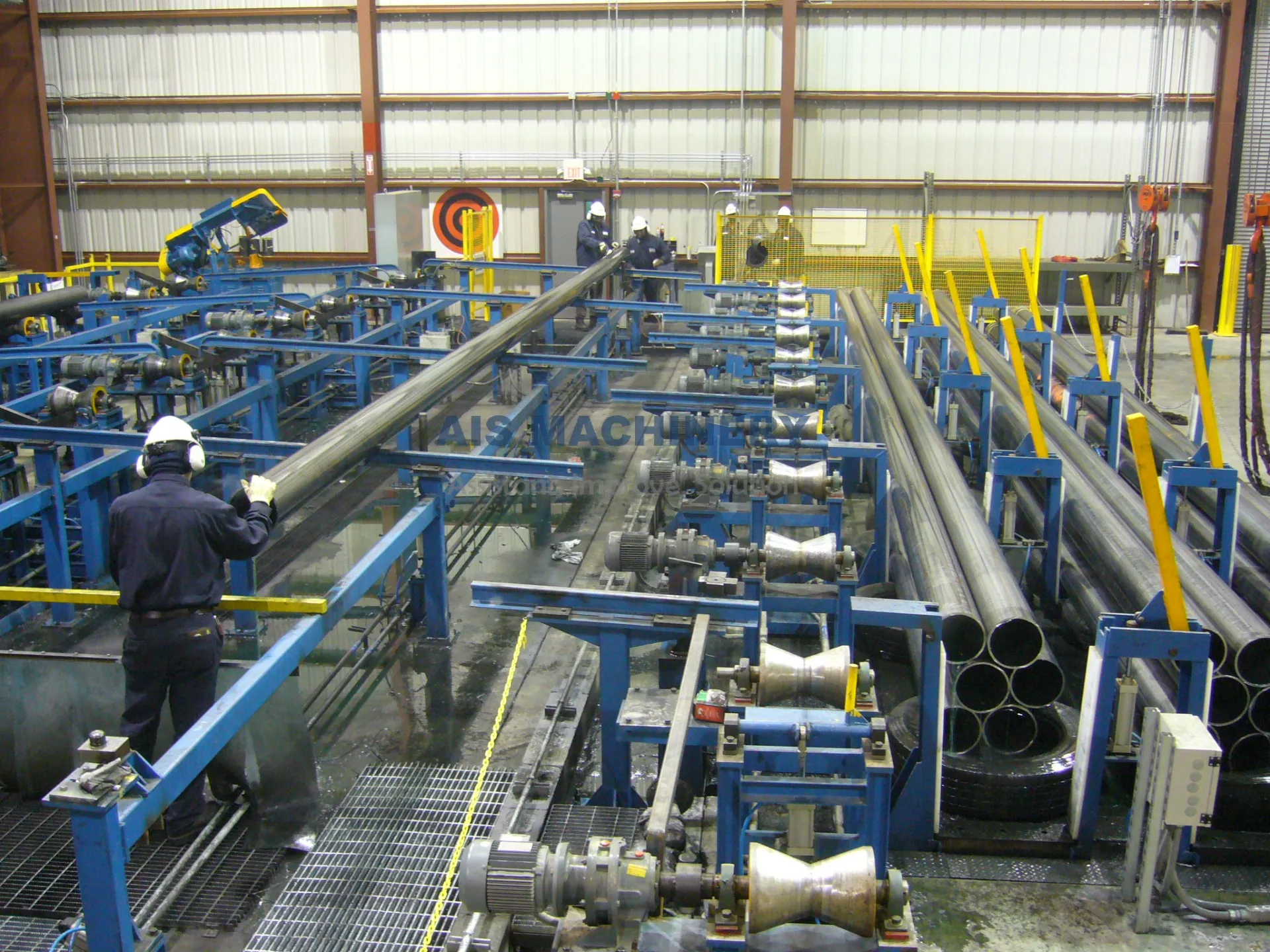

The Conveyor and Run Out Table is a downstream material handling system used in an ERW tube mill. Its main function is to support, transport, align, and buffer finished pipes after cutting, ensuring smooth and stable transfer to the next processing or packing stage.

This system is essential for maintaining continuous production, reducing manual handling, and preventing surface damage to finished tubes.

Application in ERW Tube Mill

In a standard ERW tube mill line, the Conveyor & Run Out Table is located after the cutting section.

Typical process position:

Forming & Welding → Sizing → Flying Cut-off / Cold Saw → Run Out Table & Conveyor → Inspection / Stacking / Packing

It acts as the bridge between cutting and finishing, ensuring that pipes are discharged in an orderly, controlled manner.

Main Functions

• Safely receive pipes after cutting

• Support hot or cold tubes without deformation

• Transfer pipes smoothly to inspection or packing areas

• Align pipes for easy manual or automatic handling

• Buffer production to avoid line stoppage

Key Features & Performance

• 📌Stable Support Structure
  Heavy-duty steel frame ensures rigidity and long service life under continuous operation.

• 📌Smooth Pipe Movement

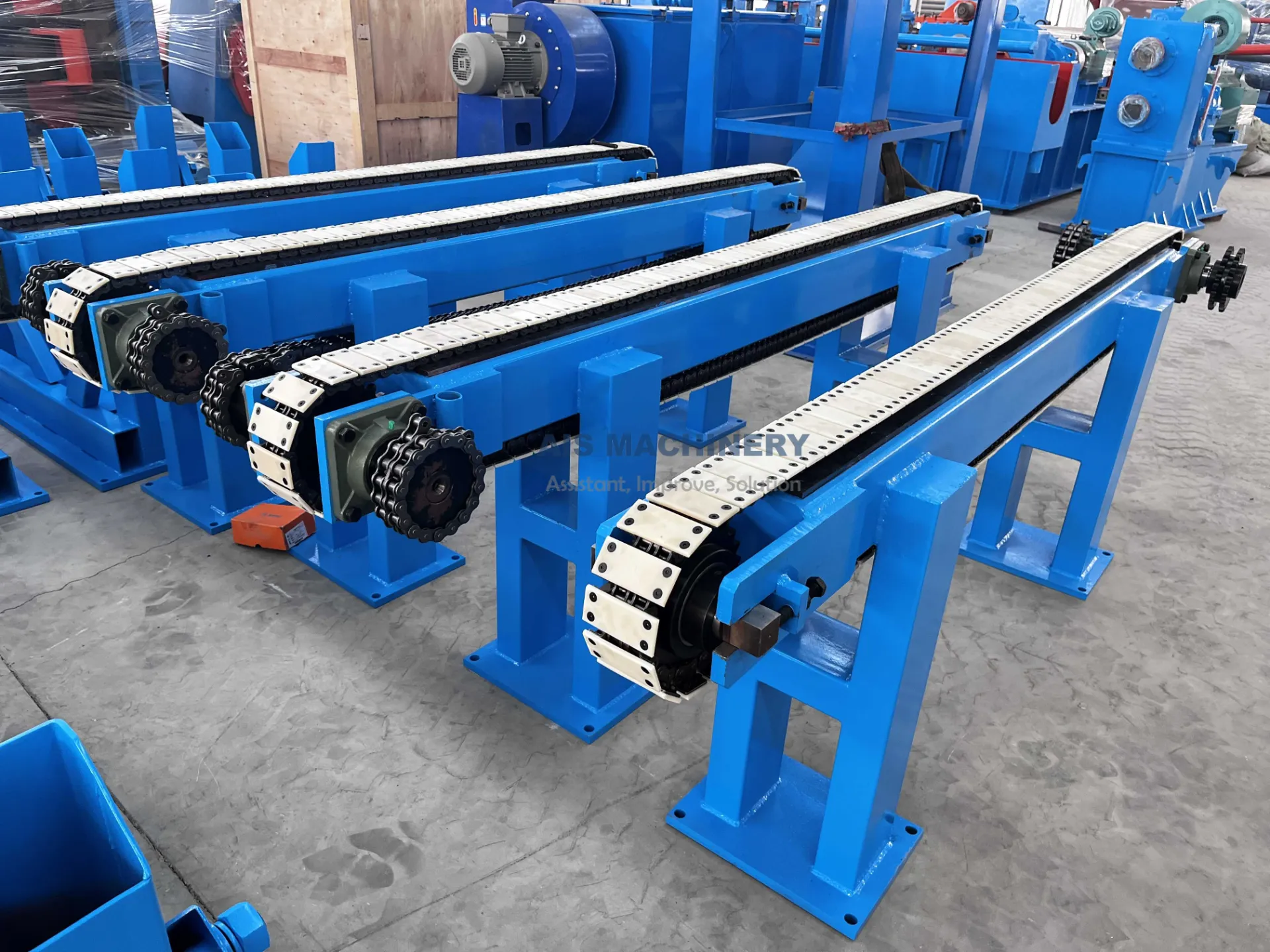

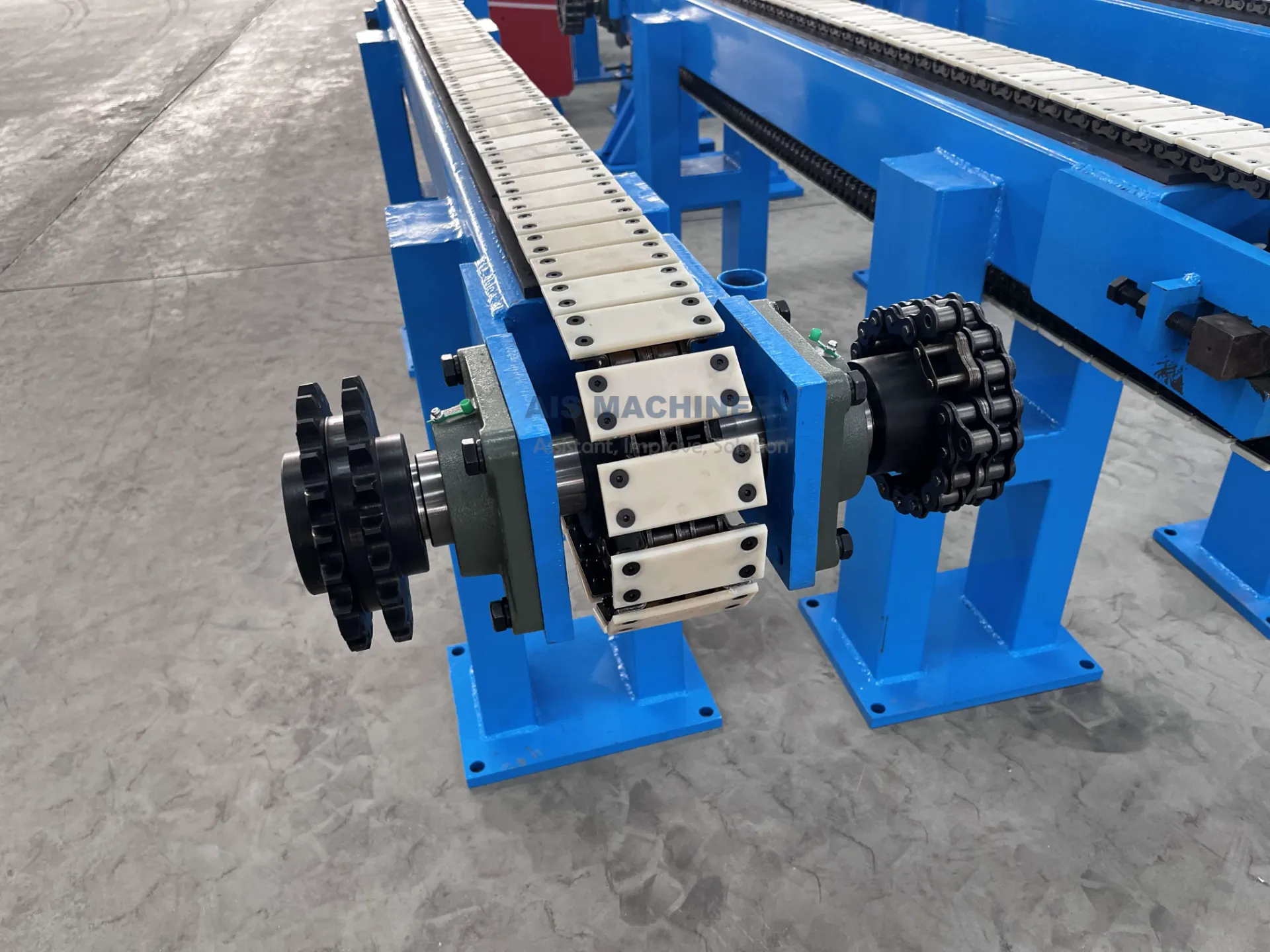

  Equipped with rollers or chain-driven conveyors to minimize friction and surface scratches.

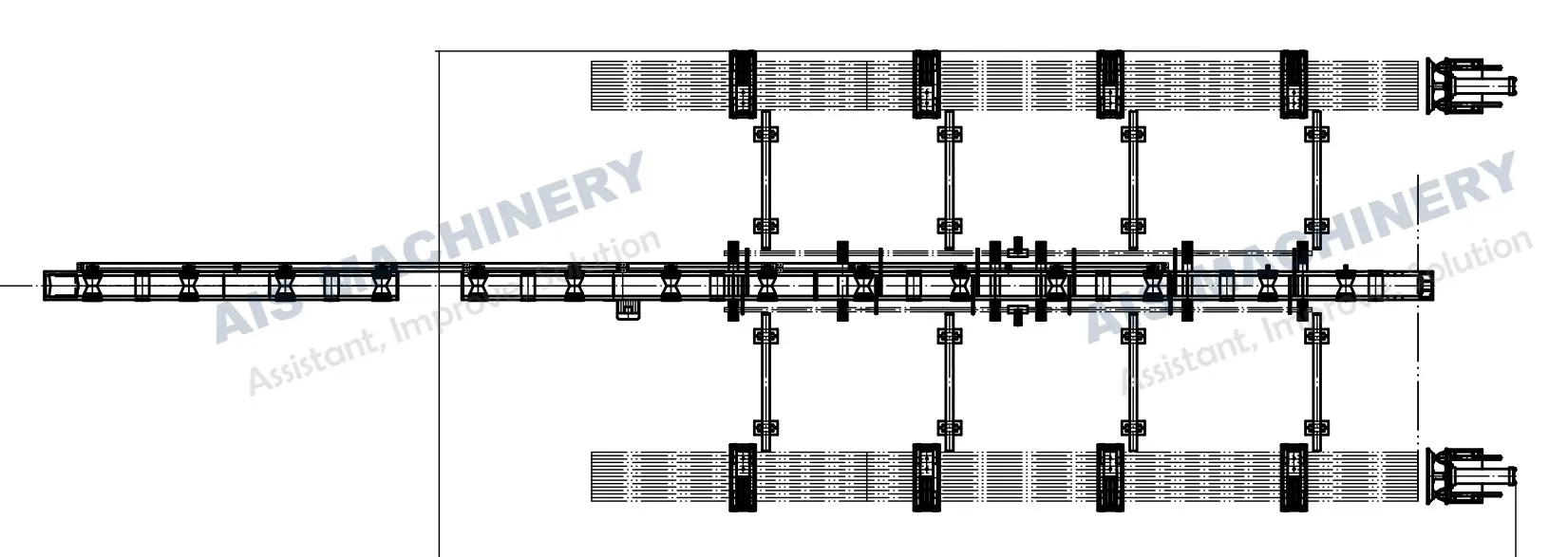

• 📌Flexible Length & Layout
  Modular design allows customization according to mill speed, pipe length, and workshop layout.

• 📌Speed Synchronization
  Conveyor speed can be synchronized with the cut-off unit to ensure smooth pipe discharge.

• 📌Low Maintenance
  Simple mechanical structure with easy access for inspection and maintenance.

•

Typical Technical Parameters

👉All parameters can be customized according to actual production requirements.

FAQ – Conveyor & Run Out Table

Q1: What is the function of a conveyor and run out table?
It receives and transfers pipes after cutting, ensuring smooth discharge and orderly delivery to the finishing section.

Q2: Where is it installed in an ERW tube mill?
It is installed after the flying cut-off or saw and before inspection, stacking, or packing equipment.

Q3: Can it be customized?
Yes. Length, layout, conveyor type, and speed can be customized to match pipe size and mill speed.

Q4: What conveyor types are available?

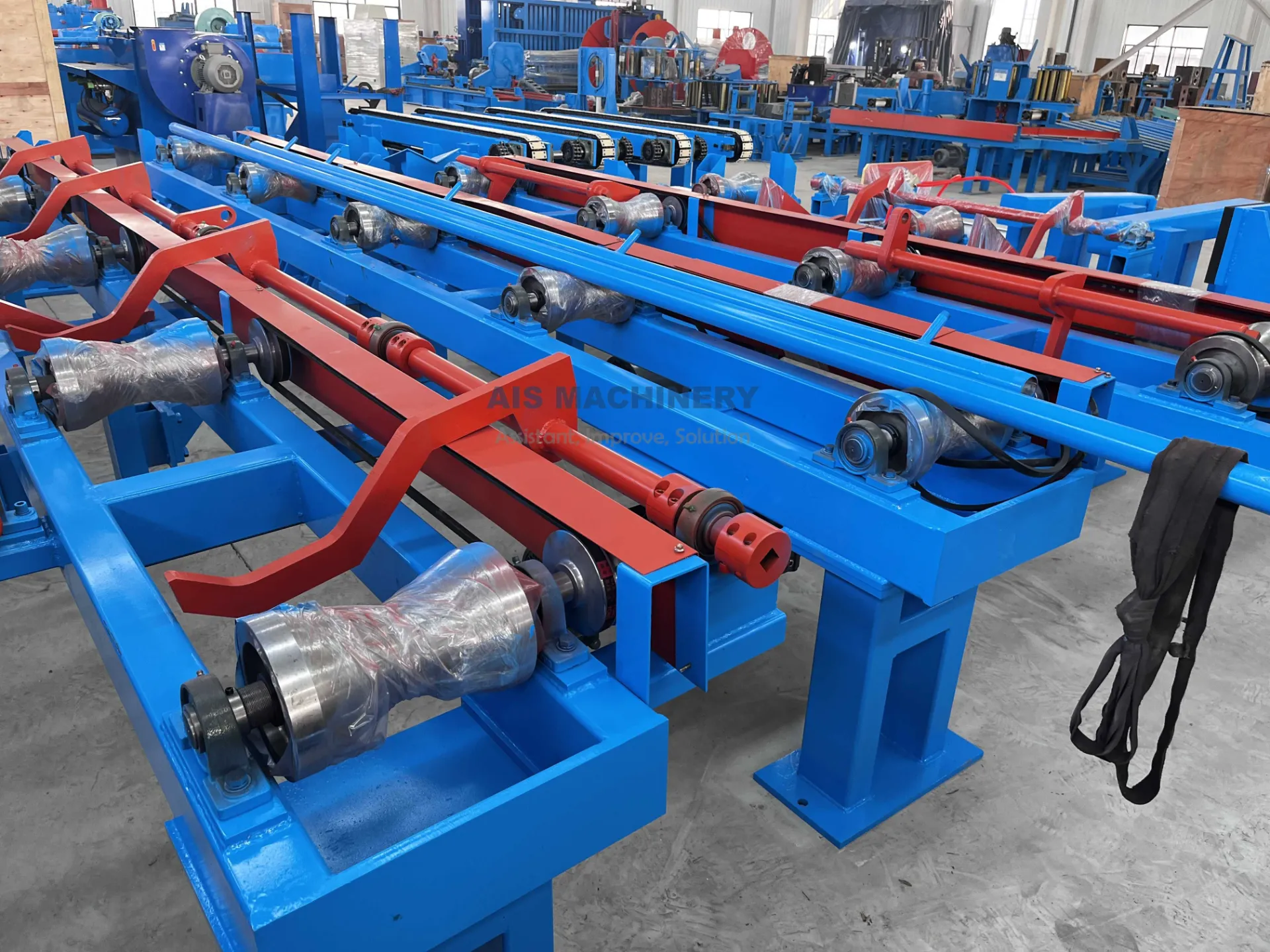

Roller conveyors, chain-driven conveyors, and gravity-type run out tables are commonly used.

Q5: Does it support high-speed production lines?
Yes. The system can be synchronized with the tube mill for stable operation at high line speeds.

Why Conveyor & Run Out Table Matters

A well-designed Conveyor & Run Out Table directly impacts:

• Production efficiency

• Finished pipe surface quality

• Labor cost reduction

• Overall line stability

It is a critical yet often underestimated part of a modern ERW tube mill.

Custom Solutions Available

We offer Conveyor & Run Out Table systems tailored to:

• Different pipe sizes and weights

• High-speed or heavy-duty production lines

• Manual, semi-automatic, or fully automatic finishing sections

📩 Contact us to get a configuration proposal that perfectly matches your ERW tube mill.
