TCT SAW BLADE

TCT Saw Blade stands for Tungsten Carbide Tipped Saw Blade, a circular cutting tool with tungsten carbide teeth brazed onto a steel body. It is widely used in metal, wood, plastic, and composite material cutting operations, especially in high-speed, precision-demanding environments.

Product Details

Contact Now

Product Details

Video



Product Description

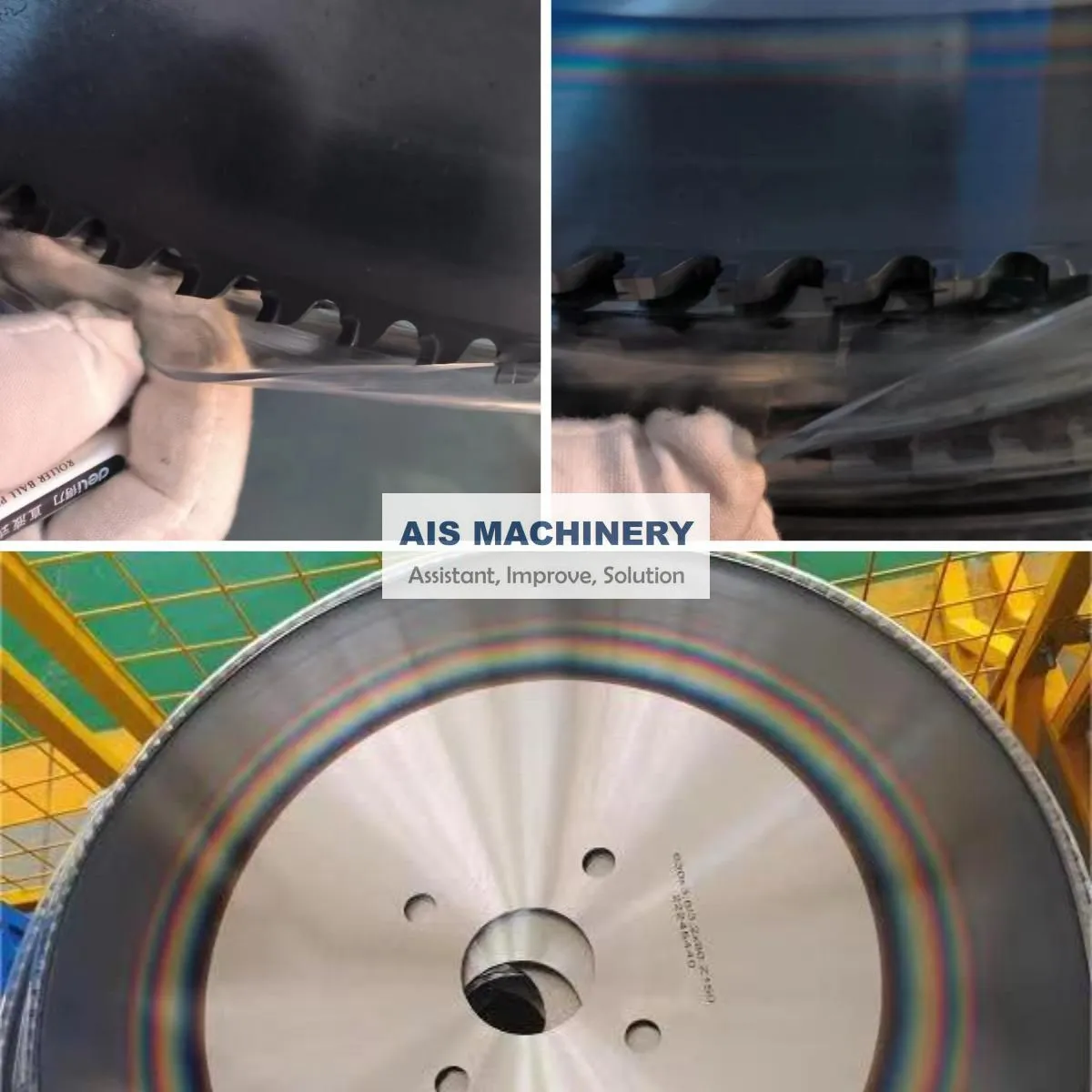

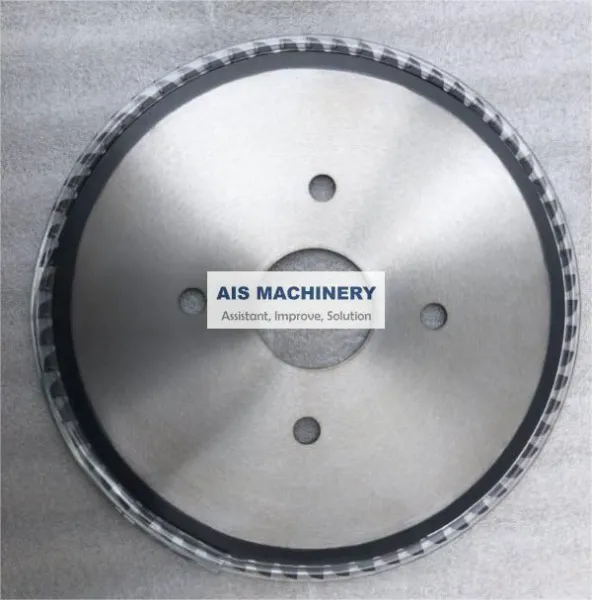

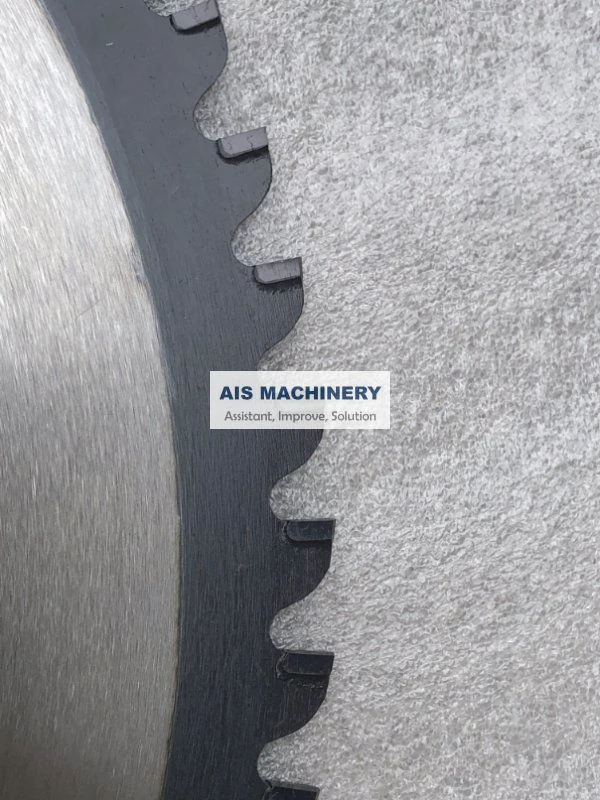

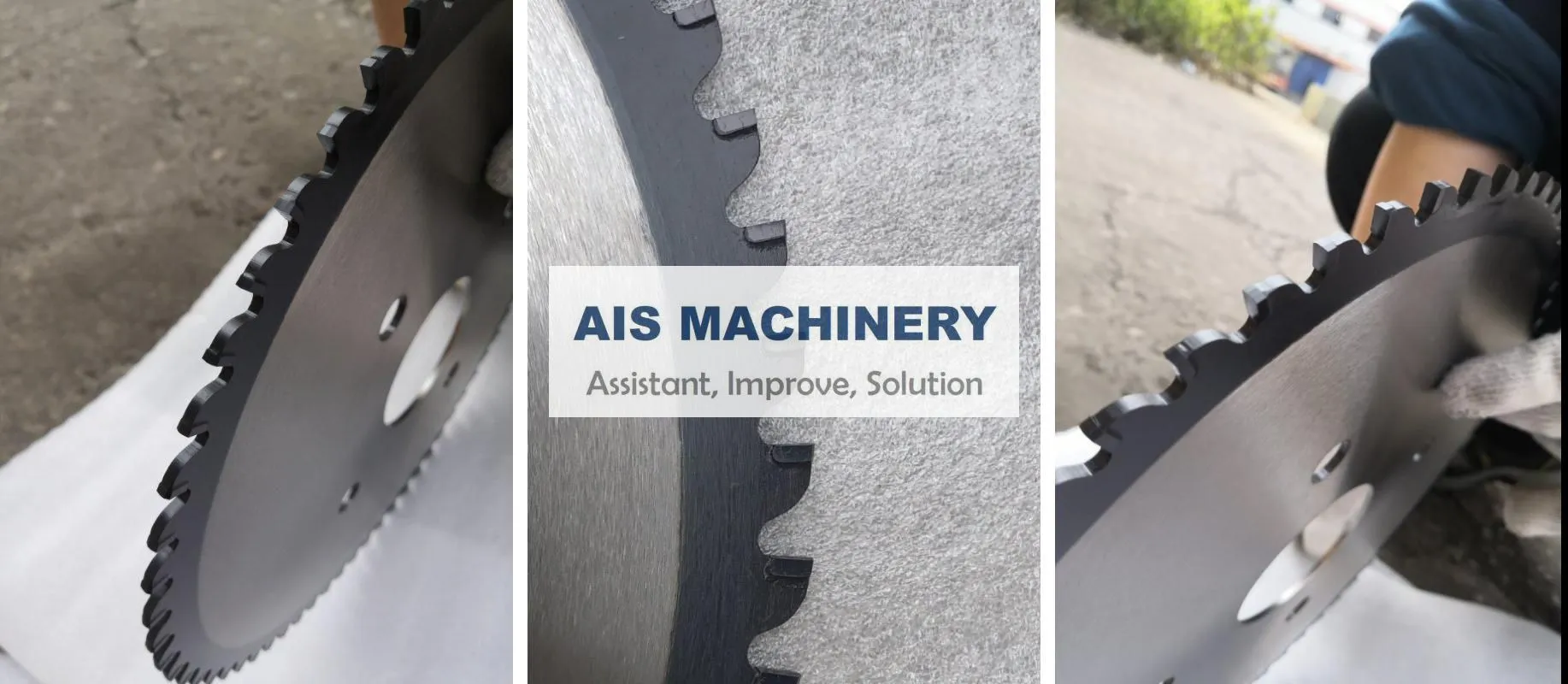

🧩 TCT Saw Blade Overview

TCT Saw Blade stands for Tungsten Carbide Tipped Saw Blade, a circular cutting tool with tungsten carbide teeth brazed onto a steel body. It is widely used in metal, wood, plastic, and composite material cutting operations, especially in high-speed, precision-demanding environments.

📦 Product Description

Attribute Description
Name TCT Circular Saw Blade
Body Material High-strength alloy steel
Tip Material Tungsten Carbide (commonly: K10, K20, or custom grades)
Tooth Shape ATB (Alternate Top Bevel), TCG (Triple Chip Grind), CTCG, etc.
Surface Finish Polished, coated (e.g., TiN, TiAlN), anti-rust treated
Cutting Types Dry cut / wet cut / cold cut depending on application
Application Ferrous & non-ferrous metal, aluminum, copper, wood, plastic, PVC, etc.
  • Read More About induction coil
  • Read More About induction coil



  • Read More About induction coil
  • Read More About induction coil

📊 Basic Technical Data Table (Example)

Parameter Value Example
Outer Diameter (OD) 250 mm – 800 mm
Bore Diameter (ID) 32 mm, 50 mm, 80 mm (customizable)
Tooth Count 60T, 72T, 100T, 120T, etc.
Tooth Type TCG / ATB / CTCG
Tip Grade K10 / K20 / Customized carbide
Cutting Speed Up to 3,000 m/min (material dependent)
Surface Coating TiN / TiAlN / Black oxide / None

📐 Standard Size Chart (Sample)

OD (mm) ID (mm) Teeth No. Thickness (mm) Application
250 32 60 2.2 Light metal, aluminum
315 40 72 2.5 Steel, stainless steel
355 50 80 2.8 Tube cutting
400 80 100 3.0 Cold cutting ferrous metal
500 80 120 3.2 Heavy-duty structural steel

🔍 TCT vs HSS vs Friction Saw – Comparison Table

Feature TCT Saw Blade HSS Saw Blade Friction Saw
Tip Material Tungsten Carbide High-Speed Steel Alloy steel (heat friction)
Cutting Speed Medium–High (dry/cold) Low–Medium High (requires cooling)
Cut Quality Excellent (burr-free) Good Rough (heat-affected zone)
Durability High Medium Low
Sharpening Cycle Longer intervals Frequent sharpening needed Very frequent
Ideal for Steel, Al, copper, etc. Thin-wall metal, precision Heavy-duty hot cutting
Cost High upfront, long life Medium Low upfront, short life

🧽 Maintenance Tips for TCT Saw Blades

  1. Keep the blade clean – remove built-up resin or metal chips regularly using solvent or cleaner.

  2. Avoid overheating – do not exceed recommended RPM or feed rate to prevent tooth damage.

  3. Store properly – hang or lay flat in a dry place to avoid warping or chipping.

  4. Inspect teeth – check for missing or cracked carbide tips before each use.

  5. Sharpen professionally – carbide-tipped blades require proper grinding machines for resharpening.





  1. Enter Section Equipments
  2.
  3. 1. Coil car and Storage
  4. 2.Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler
  5. 3.Peeler and hold down roll arm
  6. 4.Flattening Machine
  7. 5.Automatic and Semi Auto Shearer & Butt Welder
  8. 6.Vertical Cage Accumulator​ & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

Read More About impeder rod

Read More About ferrite impeder rods

Finishing Section

  1.
  2. 1. Eddy current machine
  3. 2. Seam annealing machine
  4. 3. Straightener machine
  5. 4. Chamfer and end facer machine
  6. 5. Hydro Tester machine
  7. 6. Threading machine
  8. 7. Painting and oil machine
  9. 8. Automatic bundle and package machine

Read More About ferrite impeder rods

Read More About impeder rod

Spare Parts and Consumble Parts

  1.
  2. 1. Rollers, Moulds, Dies, D2,D3 material to choose
  3. 2. Ferrite, Impeder, Fiberglass tube
  4. 3. HSS saw blades, TCT Saw blades, Friction saw blades
  5. 4. OD burr remove inserts, ID burr remover inserts
  6. 5. HF welder Induction Coil and other HF welder spare parts
  7. 6. Copper tube for induction Coil, PTFE pipe for Induction Coil
  8. 7. Mosfet, Boards
  9. 8. Steel pipe Strapping machine

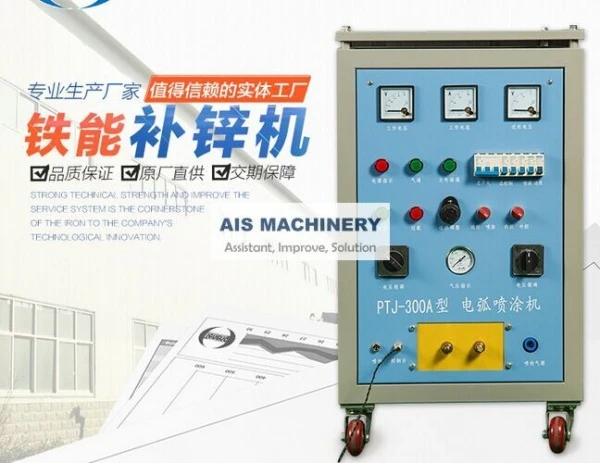

  10. 9. Zinc Spray Machine, Zinc wire, Zinc spray gun

Read More About impeder rod

Read More About fiberglass tube

Certificate


Read More About erw tube mill china

Our Service

  1. Why Choose Us?
  2. 1.Leading Technology, Reliable Quality, Excellent Service! Optimized Design, High quality material select!  Heat treatment process guarantee!

  3. 2.Spiral bevel gear, drum gear coupling and carburization. Gear teeth quenching. Driven system stable, efficient and wearable with lower noise.

  4. 3.High precision wear resisting and Long life of toolings. All the machine Lathes, Key Grooves are positioned and Milled by CNC.

  5. 4.Quality department make sure the material of the raw materials quality, and ensure the machine running perfect.

Read More About impeder rod

After-sales service

  1. 1.Machine test running videos will supply to customer before shipment.
  2. 2.Online techenical support WHOLE LIFT FREE.
  3. 3.Professional engineers team to install the machine,  train your employee well.
  4. 4.One year warranty and life-long technical support.
  5. 5 .24 hours for engineer response.
  6. 6.Your business relationship with us will be confidential to any third party.
  7. 7.  We welcome customers to visit our factory anytime.

Read More About impeder rod

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

TCT SAW BLADE FAQs

What is a TCT Saw Blade?

A TCT (Tungsten Carbide Tipped) saw blade is a circular saw blade with carbide-tipped teeth brazed onto a steel body. These teeth are extremely hard and wear-resistant, designed to cut materials like metal, wood, aluminum, and plastic with high precision and long life.

What materials can a TCT blade cut?

TCT blades are versatile and can cut: Ferrous metals (mild steel, stainless steel – with proper tooth geometry) Non-ferrous metals (aluminum, copper, brass) Wood and MDF Plastics and composites PVC, acrylic sheets, and laminates

How long does a TCT blade last?

Blade life depends on: Material being cut Operating speed and feed rate Machine stability Cooling and lubrication Tooth grade and sharpening cycle In general, a TCT blade can last 3 to 10 times longer than HSS blades under the same conditions.

Can TCT blades be sharpened?

Yes. TCT blades can be resharpened multiple times using professional CNC or automatic grinding machines. It's important to sharpen before the teeth wear down completely to maintain performance and reduce breakage risk.

Do I need coolant when cutting with a TCT blade?

For metal cutting: Coolant or misting is highly recommended to reduce heat, extend blade life, and improve surface finish. For wood, aluminum, or plastic: Usually no coolant is needed, but proper chip evacuation and airflow help.
