โรงสีท่อ ERW ขนาด 14 นิ้ว 355 มม

บรรทัดนี้ใช้การขึ้นรูปเย็นอย่างต่อเนื่องและการเชื่อมแบบเหนี่ยวนำความถี่สูง มันมี เทคโนโลยีการขึ้นรูป FFX และ ระบบเปลี่ยนม้วนอย่างรวดเร็วให้ประสิทธิภาพสูง การขึ้นรูปที่แม่นยำ และการสลับขนาดที่รวดเร็ว เหมาะอย่างยิ่งสำหรับท่อโครงสร้าง ความดัน และท่อเกรด API ที่มีสเปคสูง

รายละเอียดสินค้า

ติดต่อเราตอนนี้

รายละเอียดสินค้า

วีดีโอ





คำอธิบายสินค้า

  • ช่วงขนาดกว้าง: Capable of producing ERW pipes with diameters from Φ114mm to Φ325mm, covering most large-size industrial demands.

  • ความสามารถในการเชื่อมที่แข็งแกร่ง: ติดตั้งเครื่องเชื่อมเหนี่ยวนำ HF กำลังสูง มีความเสถียรสำหรับวัสดุที่มีผนังหนา

  • ระบบเครื่องมือแบบม้วนแบบยืดหยุ่น: การออกแบบการเปลี่ยนแม่พิมพ์อย่างรวดเร็วช่วยลดเวลาหยุดทำงานและรองรับท่อขนาดต่างๆ

  • การควบคุมอัตโนมัติเต็มรูปแบบ: การควบคุม PLC แบบรวมศูนย์พร้อมหน้าจอสัมผัส HMI ใช้งานง่ายและปรับแต่ง

  • การออกแบบแบบโมดูลาร์: ง่ายสำหรับการติดตั้ง การบำรุงรักษา การอัปเกรดในอนาคต และการสนับสนุนระยะไกล



รายการอุปกรณ์จัดหา


Coil Loading → Uncoiling → Shear & Butt Welding → Accumulator → Forming → HF Welding → Deburring → Cooling → FFX Sizing/Forming → Flying Saw Cutting → Straightening → Hydrostatic Testing → Oiling/Painting → Automatic Bundling


เลขที่ ชื่ออุปกรณ์ คำอธิบายฟังก์ชั่น
1 รถคอยล์ไฮดรอลิก + คอยล์เลอร์ โหลดและคลายคอยล์เหล็กพร้อมระบบปรับแรงตึงอัตโนมัติ รองรับคอยล์หนัก
2 เครื่องเชื่อมแบบเฉือนและแบบชน เชื่อมต่อคอยล์สองตัวแบบ end-to-end โดยไม่ต้องหยุดสายหลัก
3 ตัวสะสม รักษาการจ่ายแถบระหว่างการเปลี่ยนคอยล์
4 โรงงานขึ้นรูป FFX ระบบการขึ้นรูปที่ยืดหยุ่นซึ่งปรับตำแหน่งม้วนสำหรับท่อกลมและท่อสี่เหลี่ยมโดยอัตโนมัติ
5 เครื่องเชื่อมเหนี่ยวนำ HF เชื่อมขอบแถบได้อย่างแม่นยำโดยใช้การเหนี่ยวนำความถี่สูง
6 อุปกรณ์ลบคมภายในและภายนอก ลบแฟลชเชื่อมเพื่อปรับปรุงรูปลักษณ์และคุณภาพของท่อ
7 ระบบสเปรย์น้ำหล่อเย็น ระบายความร้อนอย่างรวดเร็วของรอยเชื่อมและท่อเต็มเพื่อรักษารูปร่าง
8 หน่วยปรับขนาดและรูปร่าง FFX ปรับเส้นผ่านศูนย์กลางภายนอก/O.D. อย่างละเอียดและปรับรูปทรงท่อสี่เหลี่ยม/สี่เหลี่ยม
9 ระบบตัดเลื่อยบิน การตัดท่อแบบซิงโครไนซ์ความเร็วสูง เลื่อยร้อน เลื่อยเย็น หรือคัตเตอร์มิลลิ่งก็ได้
10 หน่วยเปลี่ยนม้วนด่วน ช่วยให้สามารถเปลี่ยนแปลงแม่พิมพ์ได้อย่างรวดเร็วเพื่อลดเวลาหยุดทำงานและแรงงาน
11 เครื่องยืดผม แก้ไขการโค้งงอของแกนท่อและปรับปรุงความตรง
12 เครื่องทดสอบอุทกสถิต การทดสอบแรงดันเพื่อความแข็งแรง/การปิดผนึกตามมาตรฐาน API 5L/5CT
13 หน่วยการเอาอกเอาใจ/การพ่นสี ใช้น้ำมันหรือสีป้องกันการกัดกร่อนบนพื้นผิวท่อ
14 ระบบมัดท่ออัตโนมัติ นับ จัดตำแหน่ง และรัดท่อสำเร็จรูปสำหรับบรรจุภัณฑ์โดยอัตโนมัติ
15 ระบบควบคุมส่วนกลาง (PLC + HMI) จัดการการปฏิบัติงานในสายการผลิต การเตือน ข้อมูล และรองรับบริการระยะไกล


2.  BASIC DESIGN DATA

การออกแบบสายที่เสนอจะอิงตามข้อกำหนดต่อไปนี้:

รายการ

ช่วงพารามิเตอร์

เส้นผ่านศูนย์กลางท่อ

Φ114mm – Φ325mm

ความหนาของผนัง

3.0mm – 12.0mm

วัสดุแถบ

Q195, Q235, Q345, X42, X52 ฯลฯ

ความกว้างของแถบ

350mm – 1000mm

ความเร็วในการขึ้นรูป

5 – 20 m/min (depending on thickness)

กำลังไฟฟ้าแรงสูง

400 – 1000 kW (recommended customization)

พลังขับเคลื่อนหลัก

90 – 160 kW

ความอดทนในการตัด

±2mm

กำลังไฟฟ้าที่ติดตั้งทั้งหมด

800 – 1200 kW

ส่วนการขึ้นรูปและการปรับขนาด FFX Forming Technology

FFX (เอ็กซ์เพรสขึ้นรูปยืดหยุ่น) เป็นระบบการขึ้นรูปขั้นสูงที่ใช้ ม้วนสากลในส่วนเปิด และปรับตำแหน่งลูกกลิ้ง (ขึ้น/ลง ซ้าย/ขวา) เพื่อรองรับท่อขนาดต่างๆ และความหนาของผนัง ข้อดีที่สำคัญ:

  • 🔄 การเปลี่ยนแปลงอย่างรวดเร็ว: Only sizing rolls need to be replaced, switching in 10–20 minutes

  • 💰 ประหยัดต้นทุนเครื่องมือ: ชุดม้วนมากกว่า 80% สามารถนำมาใช้ซ้ำได้ทุกขนาด

  • 🎯 ความแม่นยำมิติสูง: ช่วยเพิ่มการจัดแนวตะเข็บเชื่อมและเส้นผ่านศูนย์กลางภายนอกที่สม่ำเสมอ

  • ⚙️ บูรณาการอย่างชาญฉลาด: ใช้งานได้กับรถเข็นเปลี่ยนม้วนอัตโนมัติและระบบหน่วยความจำพารามิเตอร์



ข้อดีของระบบเปลี่ยนม้วนด่วน:

  • ระบบช่วยให้เปลี่ยนขาตั้งเต็มม้วนได้อย่างรวดเร็ว:

  • รางหรือรถเข็นไฮดรอลิกสามารถเลื่อนชุดม้วนออกทั้งหมดได้

  • การล็อคและการวางตำแหน่งด้วยปุ่มเดียว

  • น้อยกว่า 20 นาทีต่อการเปลี่ยนแปลง

  • รองรับการจัดการ ID แม่พิมพ์และการจัดเก็บสูตรดิจิทัล



คำอธิบายอุปกรณ์เสริมการตกแต่งขั้นสุดท้าย

ชื่ออุปกรณ์ คำอธิบายฟังก์ชั่น
เครื่องทดสอบอุทกสถิต การทดสอบแรงดันสูงสุด 25MPa สำหรับความแข็งแรง/การปิดผนึกของท่อ การฉีดน้ำอัตโนมัติและการระบายน้ำ
เอ็ดดี้ผู้ทดสอบปัจจุบัน NDT แบบออนไลน์สำหรับรอยเชื่อมและตัวท่อเพื่อตรวจจับรอยแตก การเจือปน หรือการขาดฟิวชัน
เครื่องหนีบท่อ แก้ไขการโค้งงอตามแนวแกนเพื่อให้แน่ใจว่าเส้นมีรูปร่างและความตรง
หน่วยการเอาอกเอาใจ/การพ่นสี ใช้น้ำมันหรือสีป้องกันเพื่อต้านทานการกัดกร่อนและปรับปรุงรูปลักษณ์
เครื่องลบคมปลายท่อ ทางเลือกสำหรับการเตรียมการบากหรือปลายเกลียว API

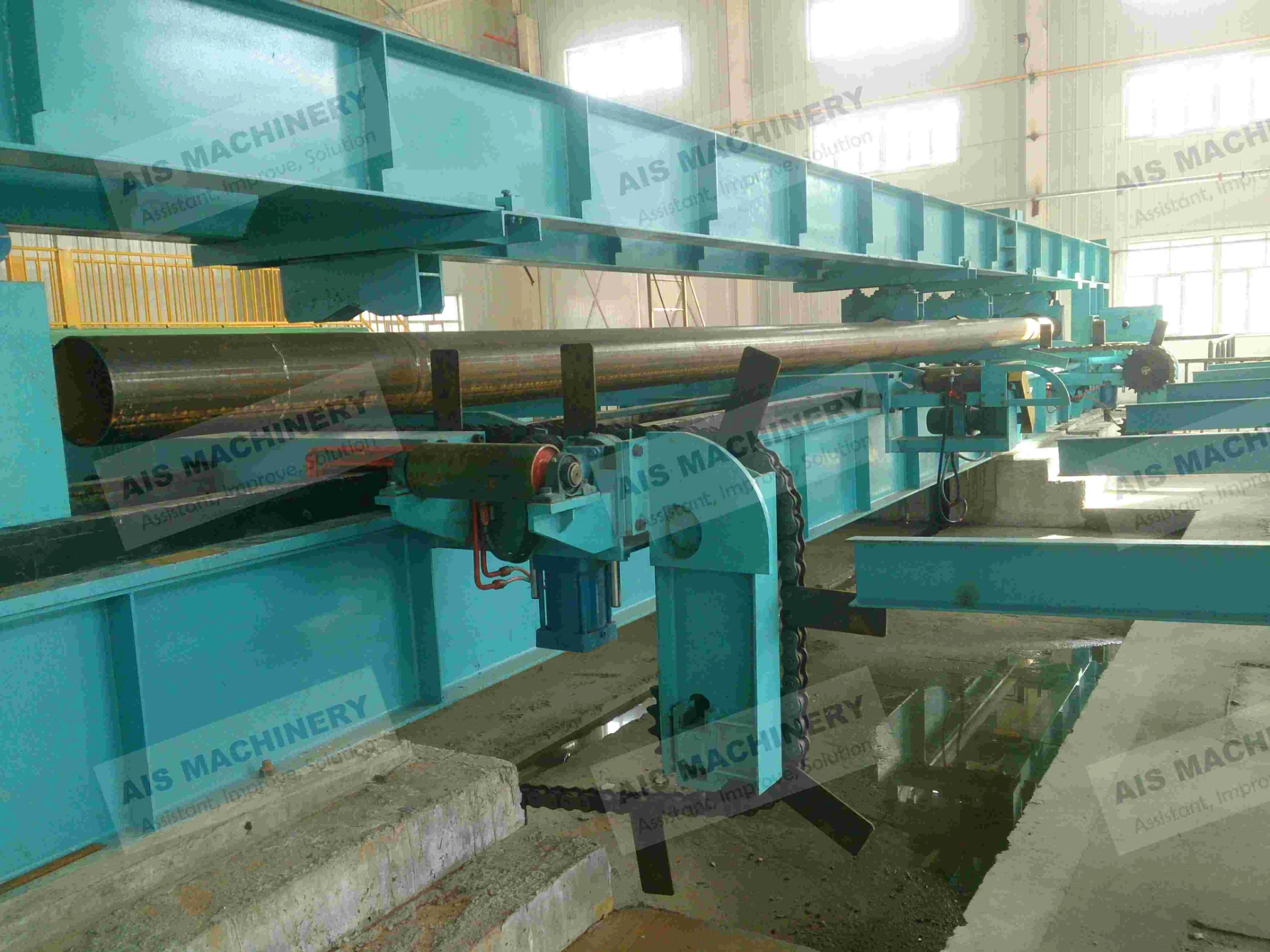

erw tube mill finishing section machine

erw pipe hydro tester machine and chamfer machine

ขั้นตอนการปฏิบัติงาน

  1.
  2.

  • double cone heavy duty Uncoiler
  • horizontal sprial accumulator

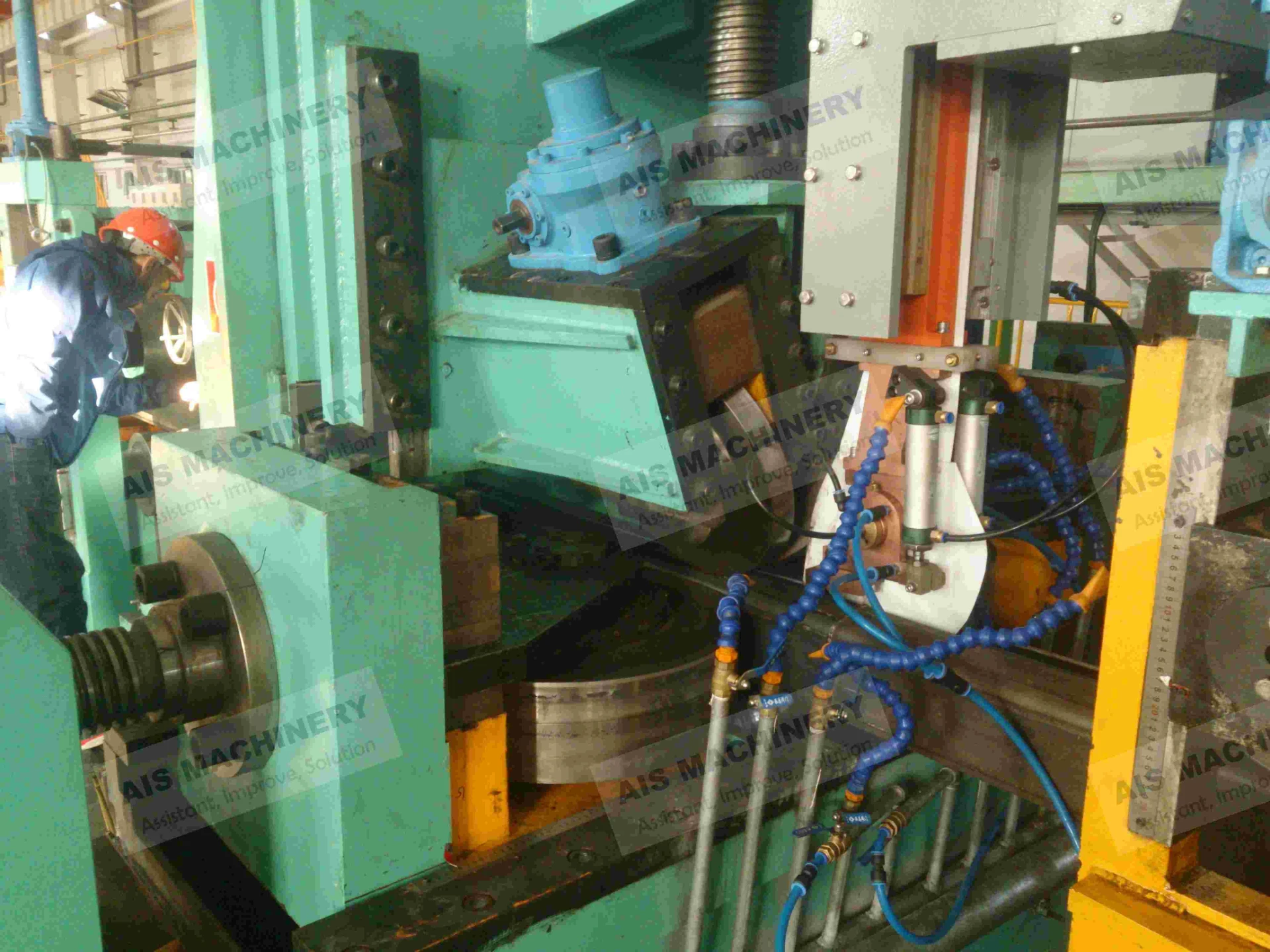

      • ffx forming and sizing section
      • 14inch milling saw to sell
  • solid state induction welding machine contact type
  • Hydrostatic Testing Machine



การใช้งานผลิตภัณฑ์


  1.

    • สายการผลิตนี้เหมาะสำหรับการผลิตท่อเส้นผ่านศูนย์กลางขนาดใหญ่คุณภาพสูงที่ใช้ใน:

      • ✅ ท่อส่งน้ำมันและก๊าซ (API 5L)

      • ✅ เสาเข็มฐาน เสาเข็มสะพาน ท่อโครงสร้างท่าเรือ

      • ✅ระบบน้ำและระบายน้ำของเทศบาล

      • ✅ โครงสร้างเหล็กและท่อโครงสร้างสำหรับงานหนัก

      • ✅ ท่อร้อยสายและท่อแรงดันสำหรับใช้ในอุตสาหกรรม

ติดต่อเรา

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* ชื่อ

* อีเมล

โทรศัพท์

*ข้อความ

คำถามที่พบบ่อยเกี่ยวกับโรงสีหลอด ERW ขนาด 14 นิ้ว

รอยเชื่อมอ่อนหรือไม่สม่ำเสมอ

พลังงาน HF ต่ำหรือขอบแถบที่ไม่ตรง ปรับตำแหน่งคอยล์ HF และอิมพีแดนซ์ เพิ่มพลังงาน

ส่วนเบี่ยงเบนมิติในท่อ

พารามิเตอร์ FFX ไม่ได้รับการปรับเทียบหรือออฟเซ็ตลูกกลิ้ง ปรับเทียบการขึ้นรูปและขนาดส่วนใหม่โดยใช้การตั้งค่าล่วงหน้า

ความยาวตัดไม่แม่นยำ

ใบเลื่อยทื่อหรือเซอร์โวไม่ตรงกัน เปลี่ยนใบมีด ซิงโครไนซ์ตัวเข้ารหัสเลื่อยบินอีกครั้ง
