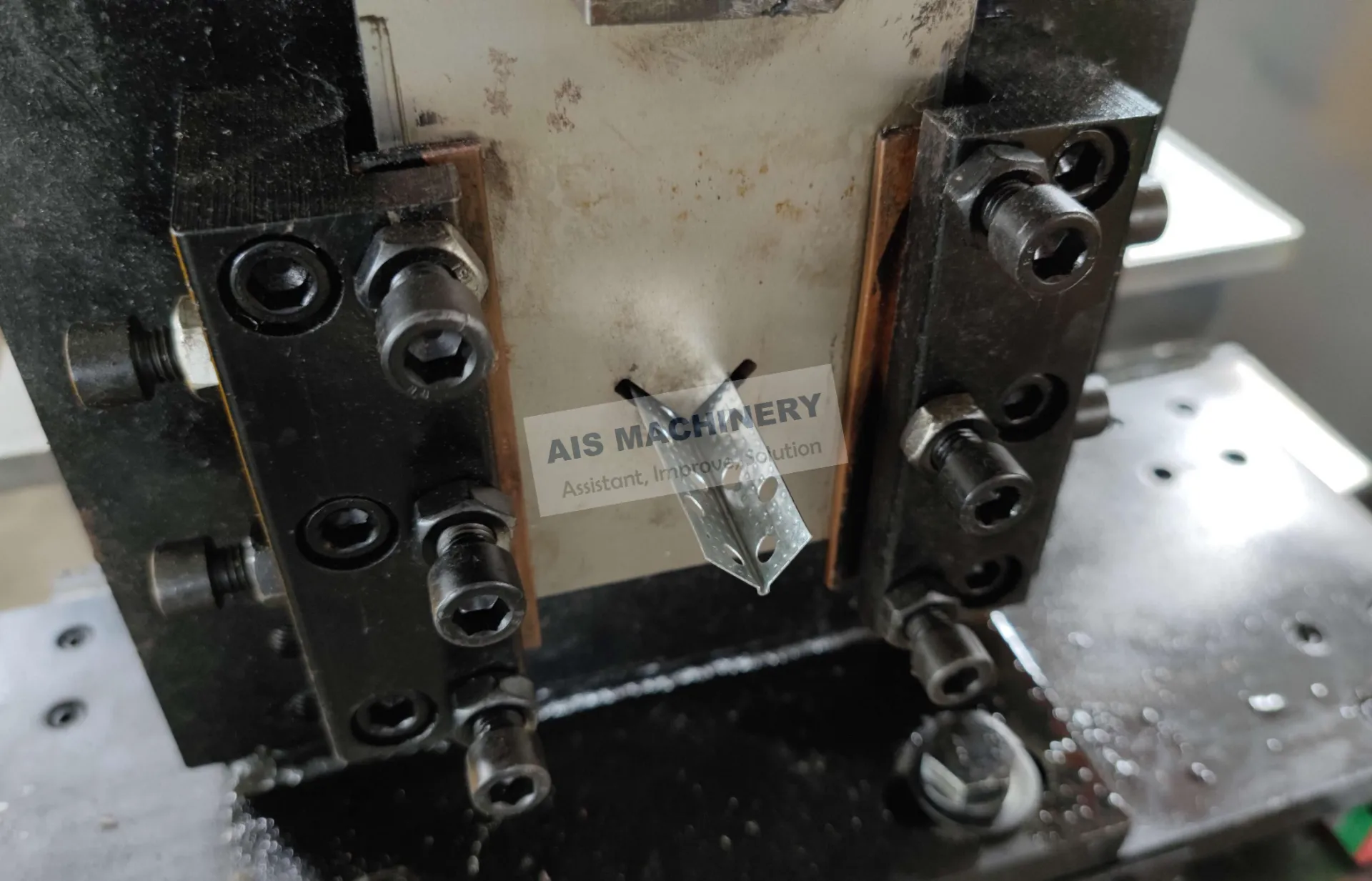

Angle Profile Roll Forming Machine

The Angle Profile Roll Forming Machine is a specialized equipment designed for producing L-shaped angle profiles from steel strips or coils. These profiles are widely used in construction, steel structures, shelving systems, and support frames. The machine integrates coil feeding, leveling, roll forming, cutting, and output into one continuous line, ensuring high efficiency and precise dimensions. With automatic control systems, it delivers consistent quality and reduces labor costs, making it an essential solution for modern metal fabrication industries.

Key Features & Performance

• High Precision Forming – Advanced roll forming technology ensures accurate angles and consistent dimensions.

• Durable Construction – Made with high-strength steel frames and precision rollers for long service life.

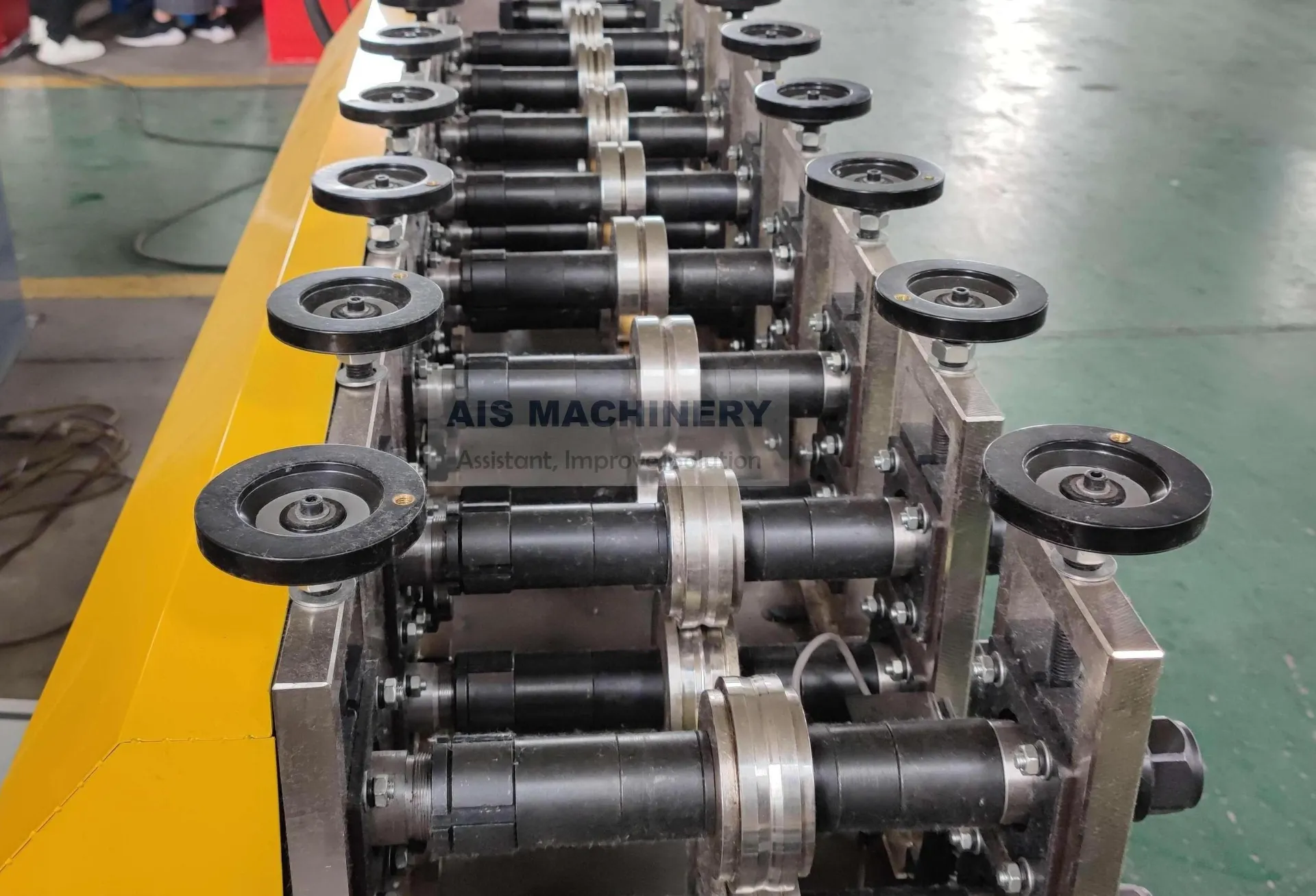

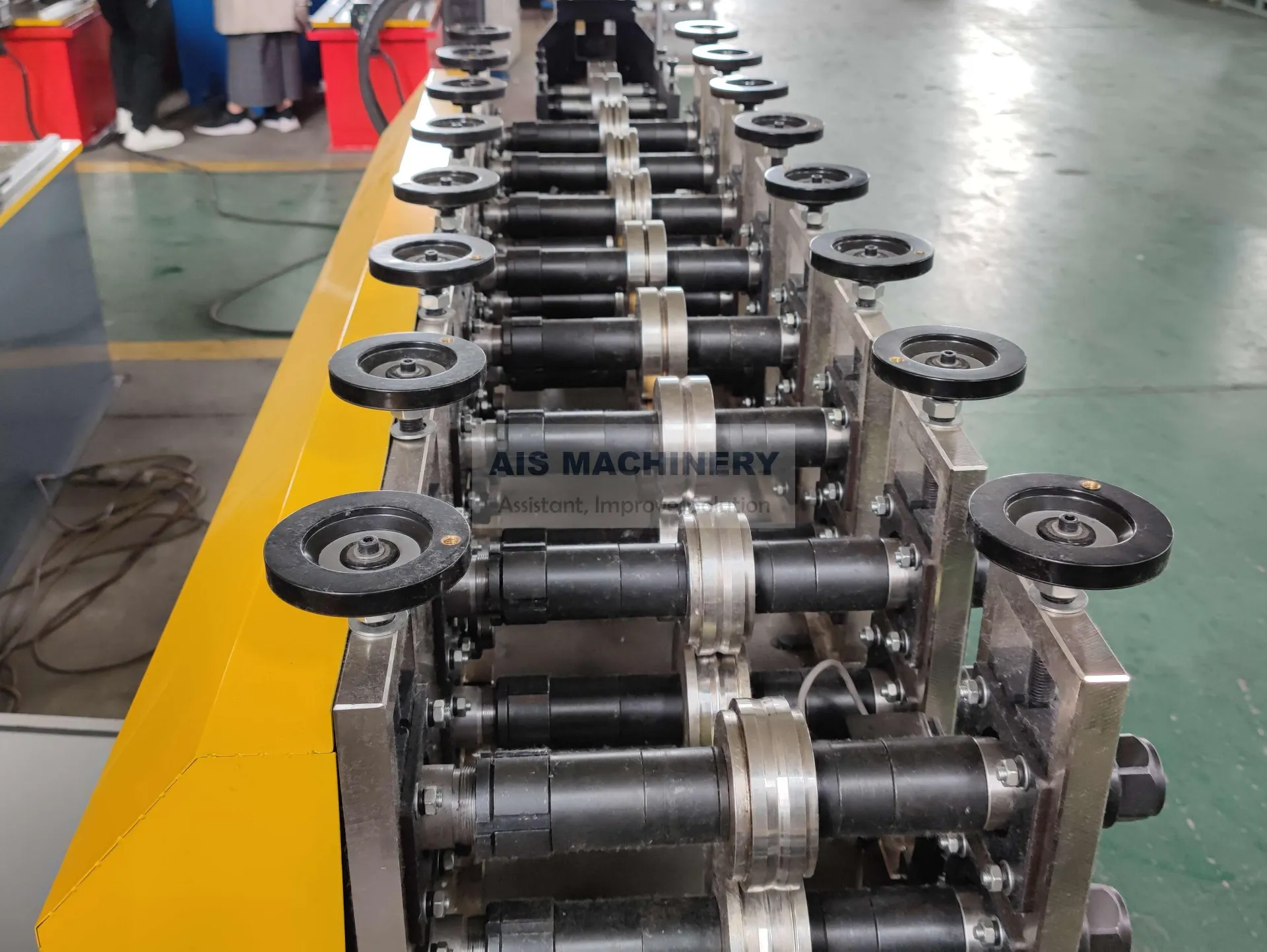

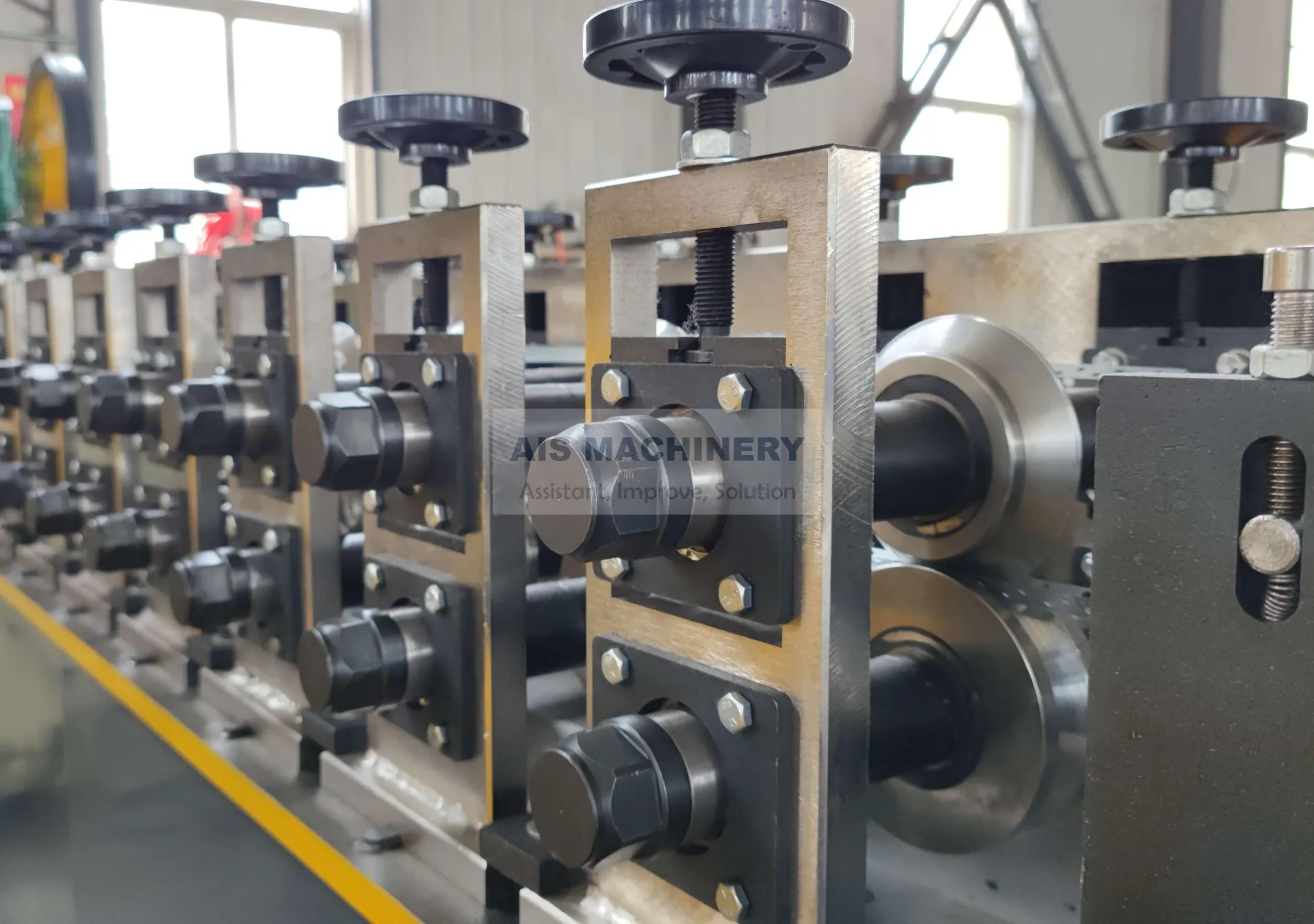

• Flexible Production – Adjustable forming rollers allow customization for different sizes of angle profiles.

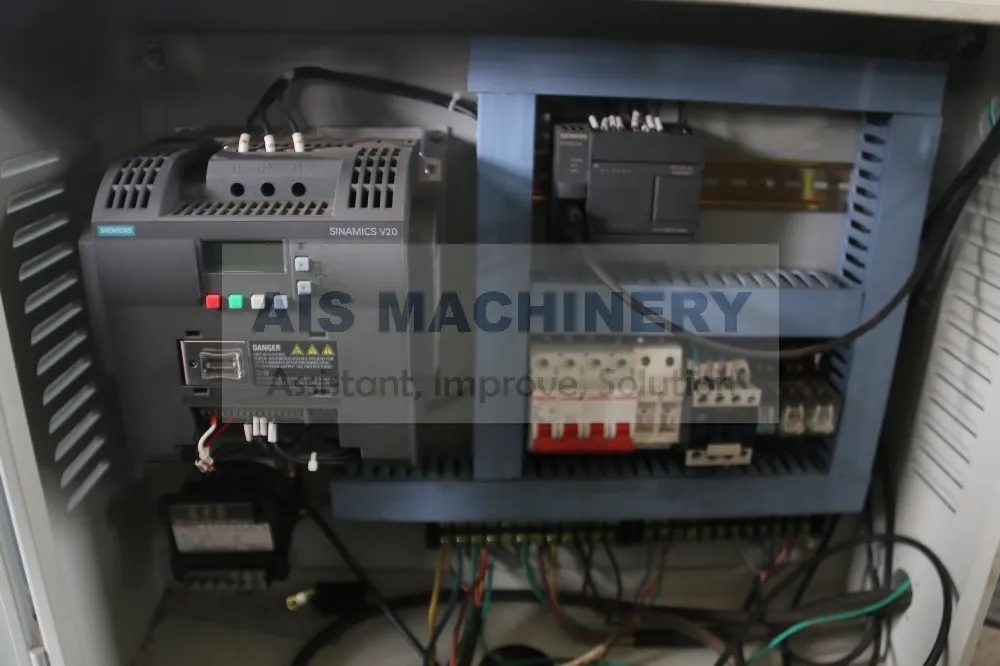

• Automatic Operation – PLC control with touch screen interface for easy operation and real-time monitoring.

• Smooth Surface Finish – Ensures clean, burr-free, and uniform product surfaces.

• Energy Saving – Optimized power system reduces energy consumption.

• •
  •
  •

Technical Specifications (Typical Model)

Applications

• 🔹Construction Industry – Steel structures, roof purlins, and framing.

• 🔹Storage Systems – Shelving and warehouse racks.

• 🔹Electrical Engineering – Cable trays and support brackets.

• 🔹Industrial Fabrication – Machinery frames and reinforcement parts.

• •
  •
  •

Comparison with Other Roll Forming Machines

Frequently Asked Questions (FAQ)

Q1: What materials can the Angle Profile Roll Forming Machine process?
A1: It can work with galvanized steel, mild steel, and stainless steel.

Q2: Can it produce both equal and unequal angle profiles?
A2: Yes, the forming rollers can be adjusted for different sizes and angles.

Q3: What is the typical forming speed?
A3: Depending on the model, the speed is usually 8–20 meters per minute.

Q4: Is the machine fully automatic?
A4: Yes, it is equipped with a PLC system for automatic feeding, forming, and cutting.

Q5: Can the machine be customized?
A5: Yes, coil width, thickness, forming stations, and cutting length can all be tailored to customer requirements.

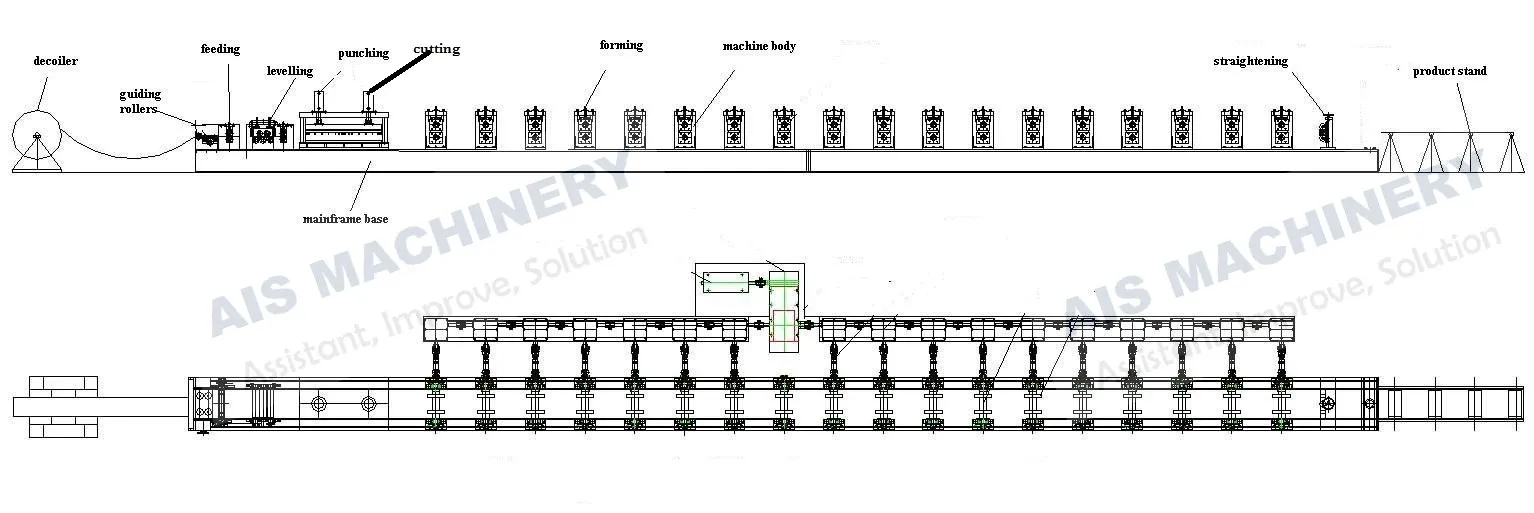

Production Process

1. 1.Coil Loading → 2. Decoiling & Feeding → 3. Leveling → 4. Roll Forming →

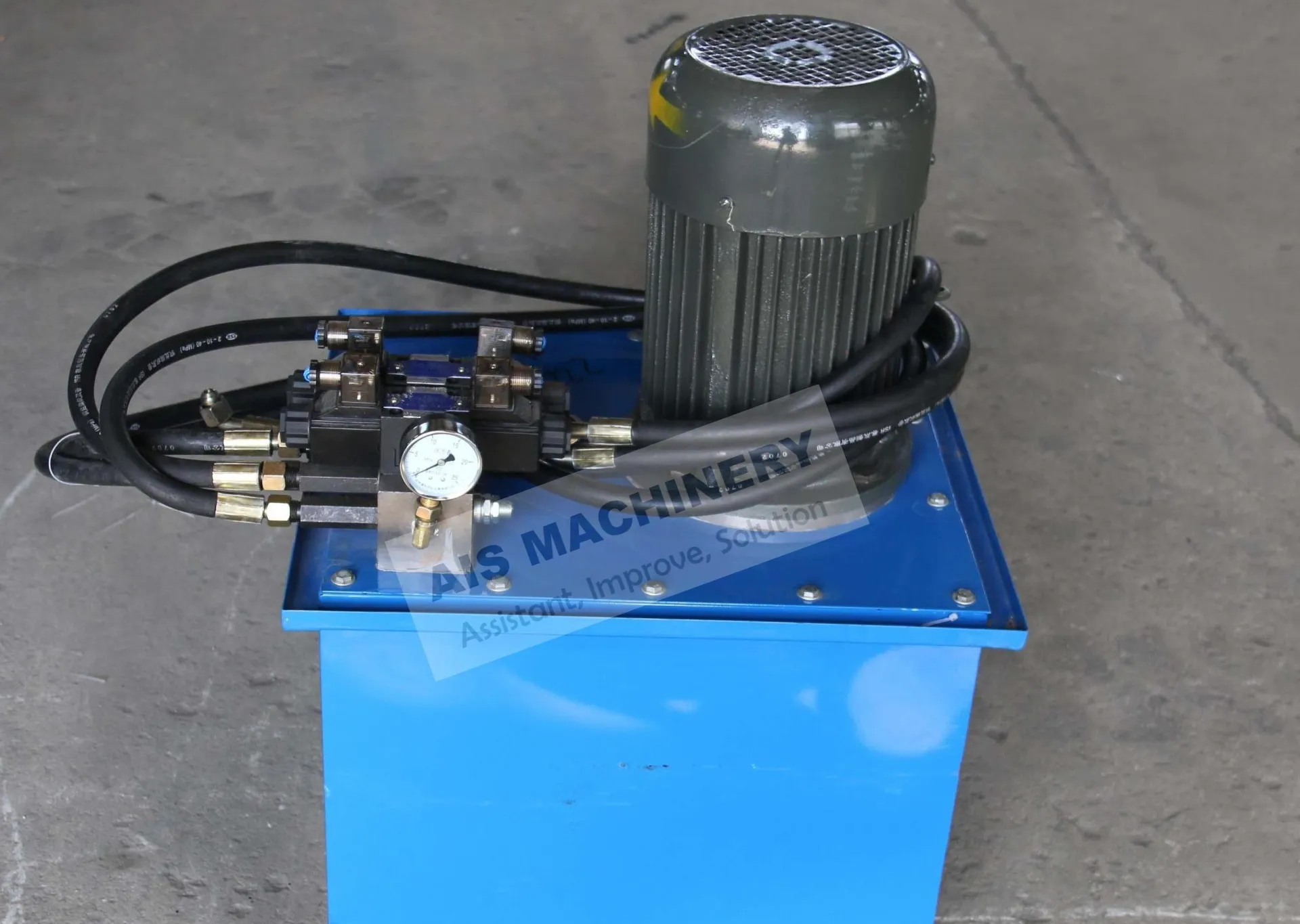

2. 5.Hydraulic Cutting → 6. Finished Product Collection

1.What is a roll forming machine used for?

Cold roll forming machines are used in a variety of industries, including construction, automotive, aerospace, and manufacturing. They are highly automated and can produce high-quality products at a high rate of speed, making them a popular choice for mass production.

RELATION EQUIPMENT

We provides all equipment to tube mill entry section:

Coil Car

Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler

Peeler and hold down roll arm

Flattening Machine

Automatic and Semi Auto Shearer & Butt Welder

Vertical Cage Accumulator​ & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

TUBE MILL FINISHING SECTION

We provides all equipment to tube mill Finishing section:

1. Eddy current machine

2. Seam annealing machine

3. Straightener machine

4. Chamfer and end facer machine

5. Hydro Tester machine

6. Threading machine

7. Painting and oil machine

8. Automatic bundle and package machine

9. Drilling machine

SPARE PARTS TO CHOOSE

Our Spare Parts Apply:

1. Roller, Mould, Cr12, Cr12Mov material, D2,D3 material

2. Ferrite, Impeder, Fiberglass tube

3. HSS saw blades, TCT Saw blades, Friction saw blades

4. OD burr remove inserts, ID burr remover inserts

5. HF welder Induction Coil and other HF welder spare parts

6. Copper tube for induction Coil, PTFE pipe for Induction Coil

7. Mosfet, Boards

8. Steel pipe Strapping machine

9. Zinc Spray Machine, Zinc wire, Zinc spray gun

OUR CERTIFICATE

OUR SERVICE

Why Choose Us?

Leading Technology, Reliable Quality, Excellent Service!

Optimized Design, High quality material select!

Heat treatment process guarantee!

Spiral bevel gear, drum gear coupling and carburization.

Gear teeth quenching.

Driven system stable, efficient and wearable with lower noise.

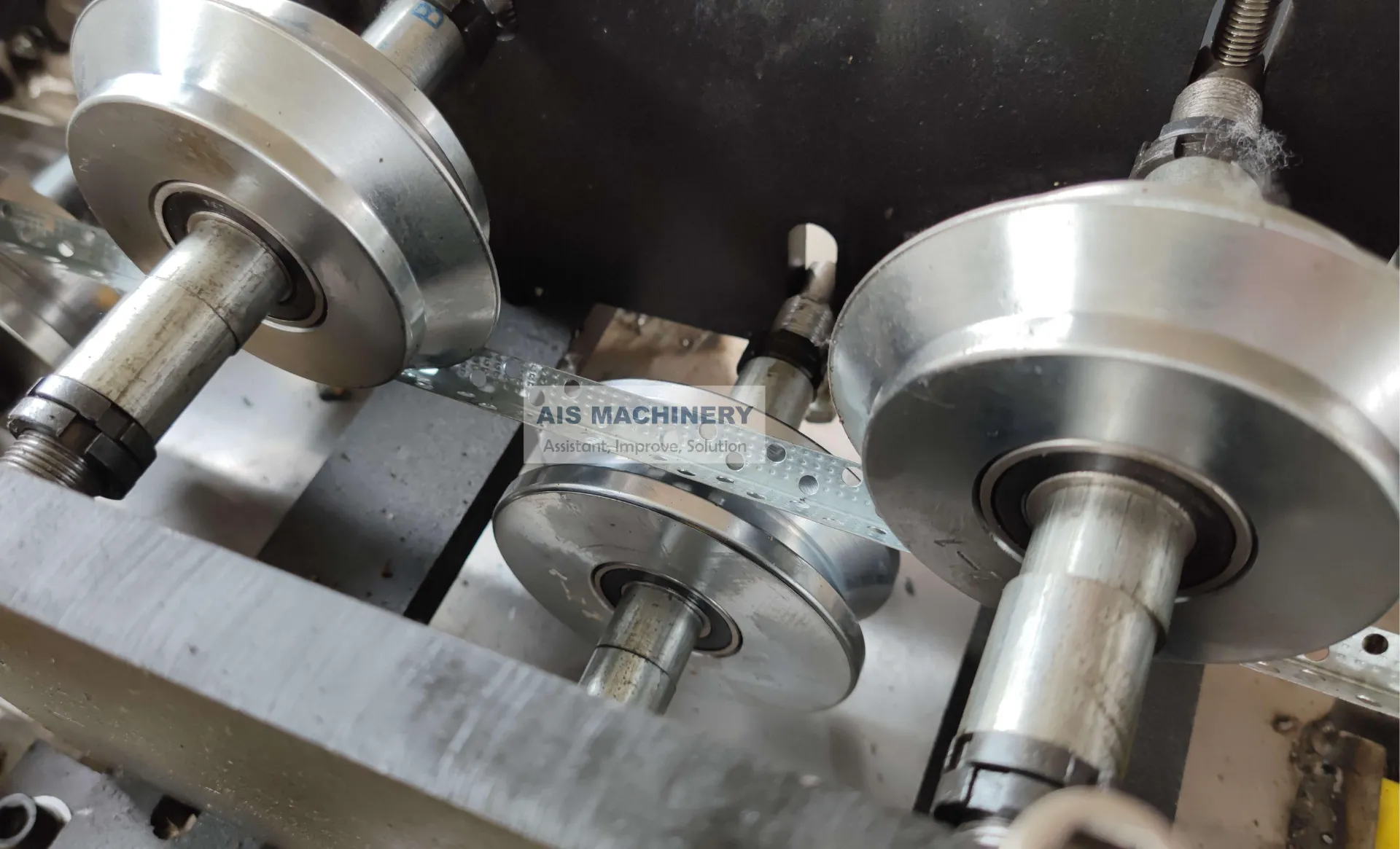

High precision wear resisting and Long life of rollers.

All the machine Lathes, Key Grooves are positioned and Milled by CNC.

Our Service

Pre-sale service

1.  We can provide machine running videos for reference

2.  We will recommend the most suitable equipment according to the needs of customers

3.  We can provide the layout of the factory

4.  We welcome customers to visit our factory

After-sales service

1.We will delivery the machine and provide the documents on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions, Our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, And train your employee until they can operate the machine well.

3.We provide one year warranty and life-long technical support.

4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

5 .24 hours for engineer response.

6.Your business relationship with us will be confidential to any third party.

Quality Control

We have the single quality department, that make sure the material of the raw materials is good, and ensure the machine running smoothly.
