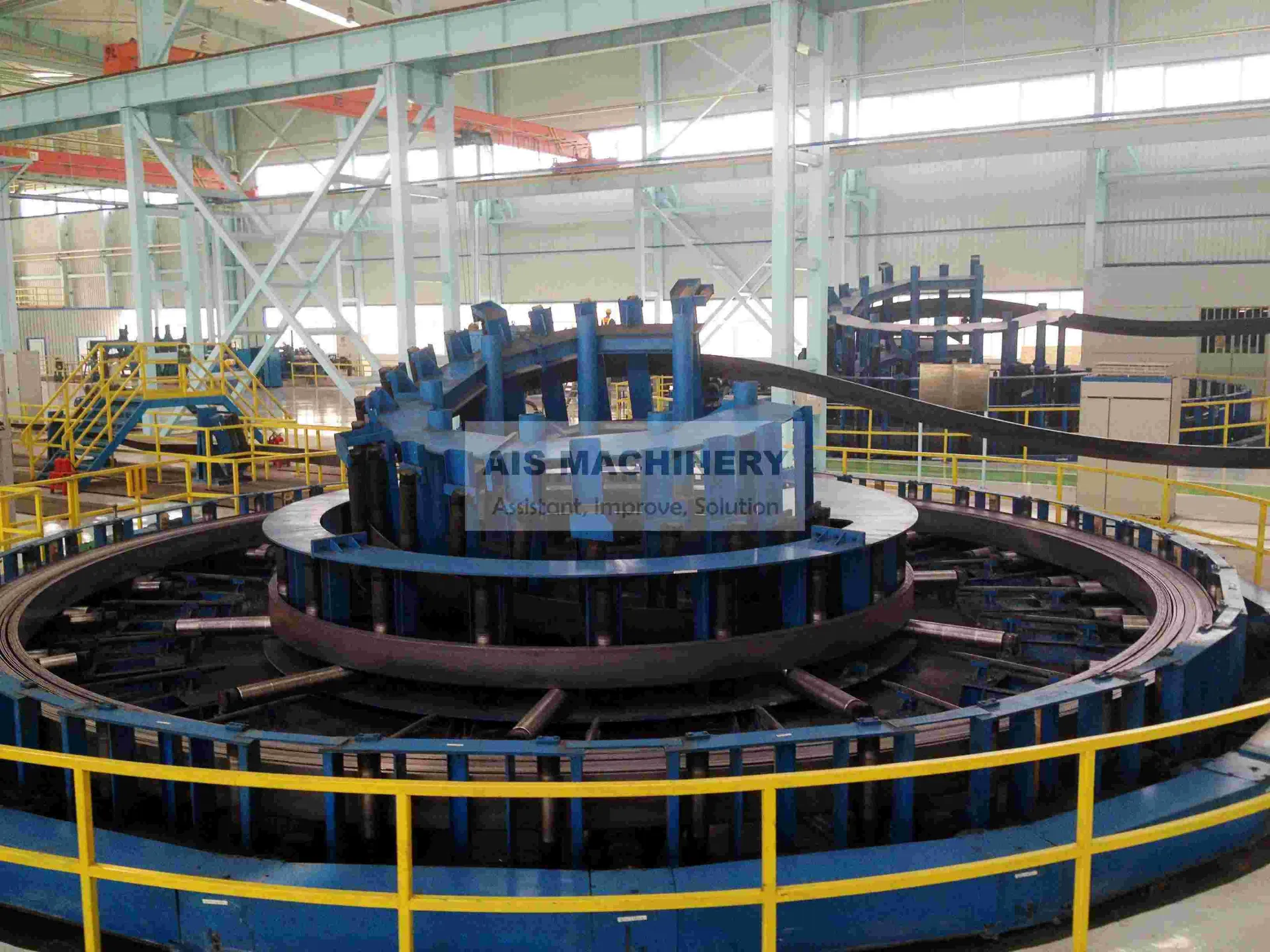

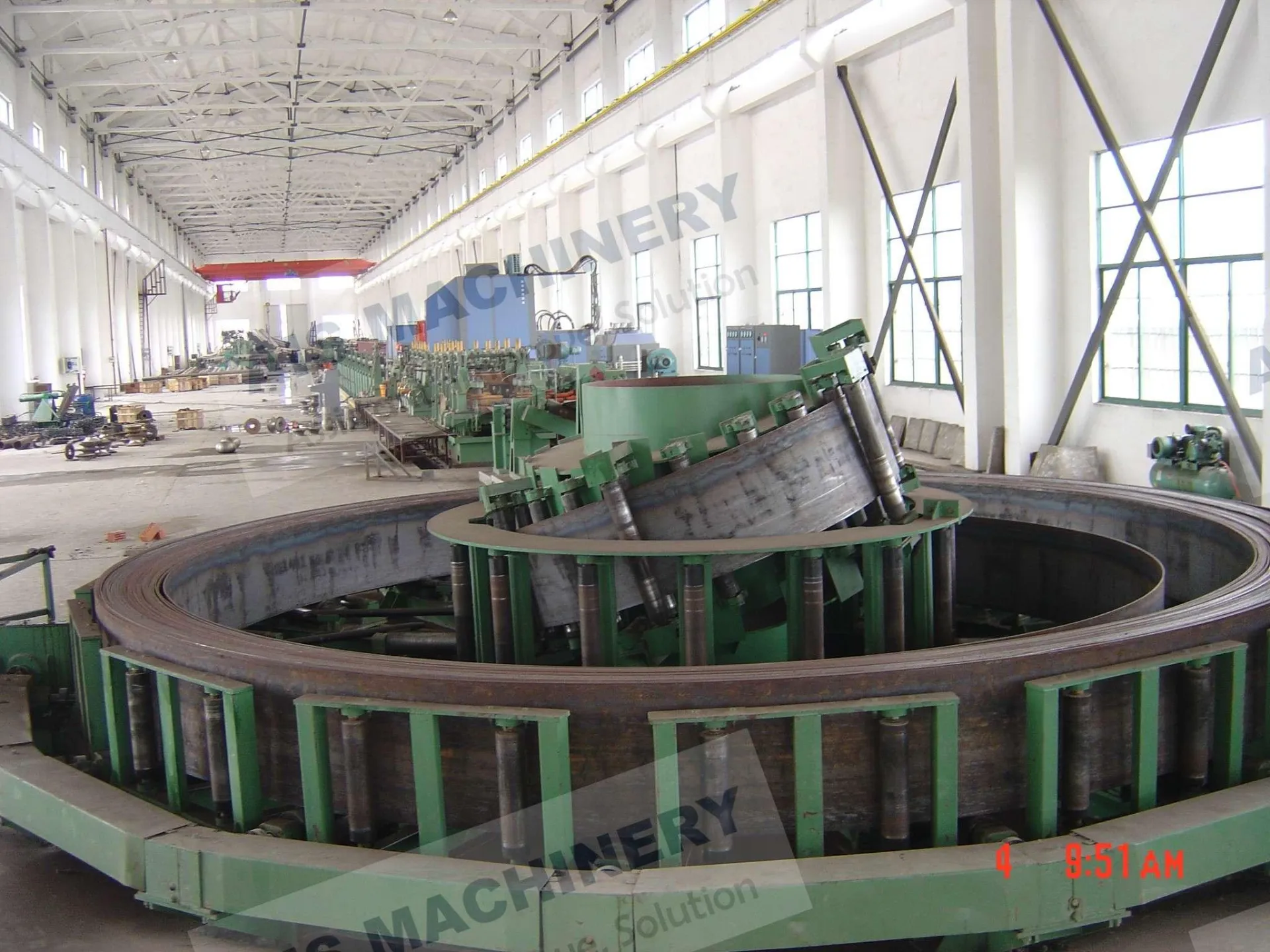

Horizontal Accumulator

Der Horizontal Accumulator, also known as a Floor-Type Spiral Accumulator, is a dynamic coil storage system used in tube mills, slitting lines, and other continuous strip processing lines. Its main function is to buffer strip material during coil changeover or welding, ensuring non-stop production.

Produktdetails

Kontaktieren Sie mich jetzt

Produktdetails

Video

Spezifikation

✅ 1. Product Overview

🌀 2. Working Principle & Storage Mode

This accumulator stores strip material horizontally in a serpentine loop layout. As the strip is fed from the uncoiler, it enters the accumulator and is guided through a series of rollers that form horizontal loops. These loops are stored along a linear bed or platform.

Storage Form: Horizontal spiral/serpentine loops
How It Works:
1. Infeed phase: Strip enters and forms horizontal loops while the production line continues running.
2. Outfeed phase: When the uncoiler stops, the accumulator feeds the stored strip forward.
3. Synchronization: Infeed and outfeed are controlled by a PLC to balance loop volume and maintain tension.

⚙️ 3. Technical Specifications (Sample Configuration)

Artikel	Wert
Streifenbreite	as requirement,normally suitable for big size and thickness
Streifendicke	as requirement,normally suitable for big size and thickness
Storage Capacity	1000 meters (based on number of loops)
Liniengeschwindigkeit	0–100 m/min
Loop Type	Horizontal serpentine (spiral bed)
Kontrollsystem	PLC + Inverter + Tension control
Installation Space	Depends on required storage length

🏗️ 4. Main Components

Loop Frame & Guide Rollers – Forms and guides horizontal strip loops.
Infeed & Outfeed Rollers – Feed strip in and out smoothly.
Tension Control System – Maintains strip tension via sensors.
Drive System – Includes servo or inverter motors for speed control.
Support Platform – Steel base frame or track for loop support.
SPS-Schaltschrank – Centralized automation and logic control.

🧭 5. Application Scenarios

ERW tube and pipe mills
Steel strip slitting and recoiling lines
Cut-to-length and blanking lines
Continuous cold roll forming systems
Pickling and galvanizing lines

🔄 6. Comparison: Disc vs. Horizontal vs. Vertical Accumulator

Besonderheit	Disc Type Accumulator	Horizontal Accumulator	Vertical Spiral Accumulator
Layout Length	10m length	over 10m length	Very High
Space Usage	Compact	Large floor space	High ceiling space
Loop Style	Flat coil loops	Horizontal serpentine	Vertical spiral
Structure Complexity	Simple	Moderate	Complex
Maintenance	Easy	Moderate	More complex
Tension Control	Good	Very good	Excellent
Cost	Lower	Medium	Higher
Application Flexibility	General purpose	For longer buffer needs	For high-speed & large-volume lines

🎯 7. How to Choose

Choose Disc Accumulator if:
- You have limited floor and vertical space
- Pipe diameter lower 127mm, thickness lower 5mm.
- Buffering needs are moderate
Choose Horizontal Accumulator if:
- You have enough floor space
- Need long strip buffering (20m+)
- Require good tension control but limited ceiling height
Choose Vertical Spiral Accumulator if:
- High-speed line (80–120 m/min)
- Short space
- You can accommodate a tall structure

BEZIEHUNGSAUSRÜSTUNG

Wir liefern die gesamte Ausrüstung für den Eingangsbereich des Rohrwerks:

Spulenwagen

Abwickler mit Einzel- und Doppelkopf sowie hydraulische und pneumatische Abwickler

Schäler und Rollenniederhalter

Abflachungsmaschine

Automatische und halbautomatische Scher- und Stumpfschweißmaschine

Vertical Cage Accumulator & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

disc accumulator to storage strip

erw tube mill feeding section

UNSER SERVICE

Warum uns wählen?

Führende Technologie, zuverlässige Qualität, exzellenter Service!

Optimiertes Design, hochwertige Materialauswahl!

Garantie des Wärmebehandlungsprozesses!

Spiralkegelrad, Trommelzahnradkupplung und Aufkohlung.

Abschrecken der Zahnräder.

Angetriebenes System stabil, effizient und tragbar mit geringerer Geräuschentwicklung.

Hohe Präzision, Verschleißfestigkeit und lange Lebensdauer der Rollen.

Alle Drehmaschinen und Schlüsselnuten werden CNC-gefräst und positioniert.

ais machinery exhibition attend

Kundendienst

1.Wir liefern die Maschine und stellen die Dokumente rechtzeitig zur Verfügung, um sicherzustellen, dass Sie die Maschine schnell erhalten können

2.Wenn Sie die Vorbereitungsbedingungen erfüllt haben, kommt unser schnelles und professionelles Team von Kundendiensttechnikern zu Ihnen in die Fabrik, um die Maschine zu installieren, Ihnen die Bedienungsanleitung zu geben und Ihre Mitarbeiter zu schulen, bis sie die Maschine gut bedienen können.

3. Wir bieten ein Jahr Garantie und lebenslangen technischen Support.

4. Gut ausgebildete und erfahrene Mitarbeiter beantworten alle Ihre Anfragen auf Englisch und Chinesisch

5,24 Stunden für die Antwort des Technikers.

6. Ihre Geschäftsbeziehung mit uns wird gegenüber Dritten vertraulich behandelt.

Qualitätskontrolle

Wir haben eine eigene Qualitätsabteilung, die die Qualität der Rohstoffe sicherstellt und dafür sorgt, dass die Maschine reibungslos läuft.

ais machinery after service and quality control

Schreiben Sie uns

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-Mail

Telefon

*Nachricht

Horizontal Accumulator FAQ

How long can a horizontal accumulator store?

depending on strip thickness and accumulator design.

What is the main advantage over disc accumulators?

It offers greater storage length and better tension control for mid-to-high speed lines.

Is it difficult to maintain?

Maintenance is moderate. Most systems use standard rollers and accessible platforms.

Does it require a lot of floor space?

Yes, horizontal accumulators require more floor space but are ideal when height is limited.
