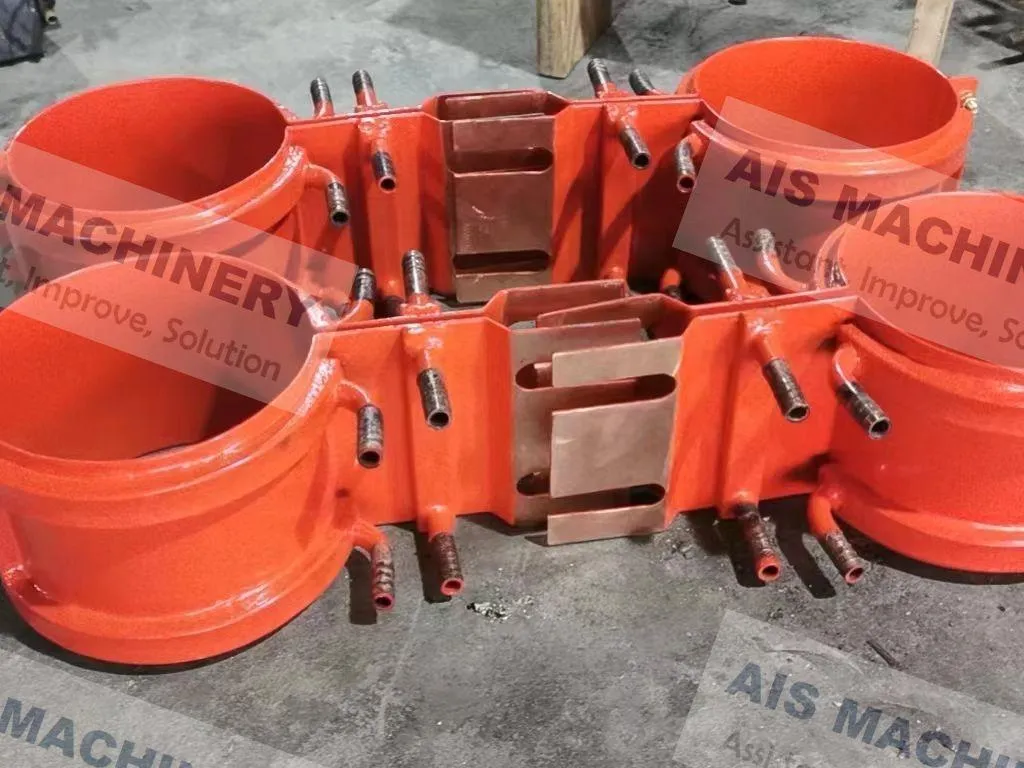

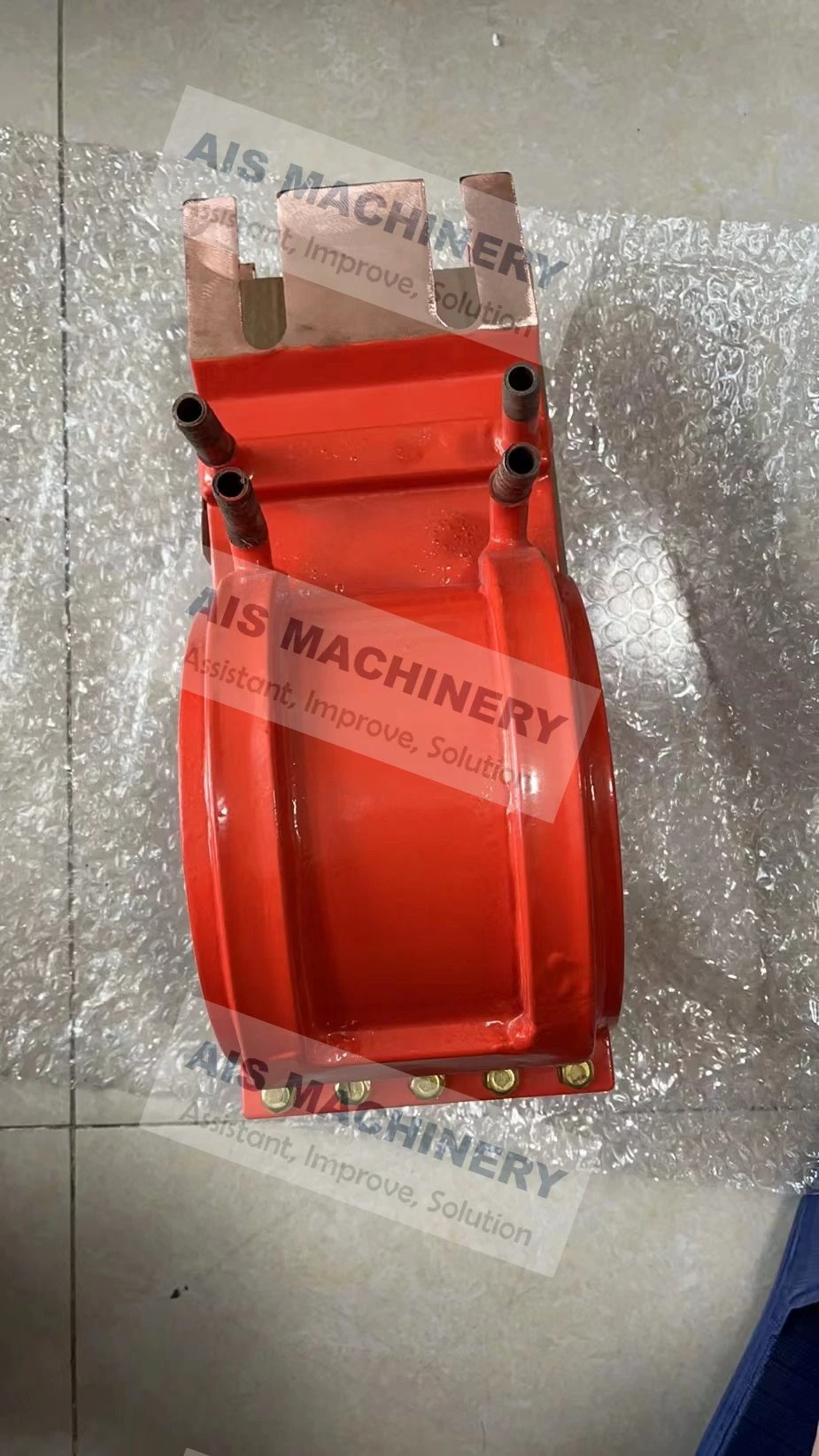

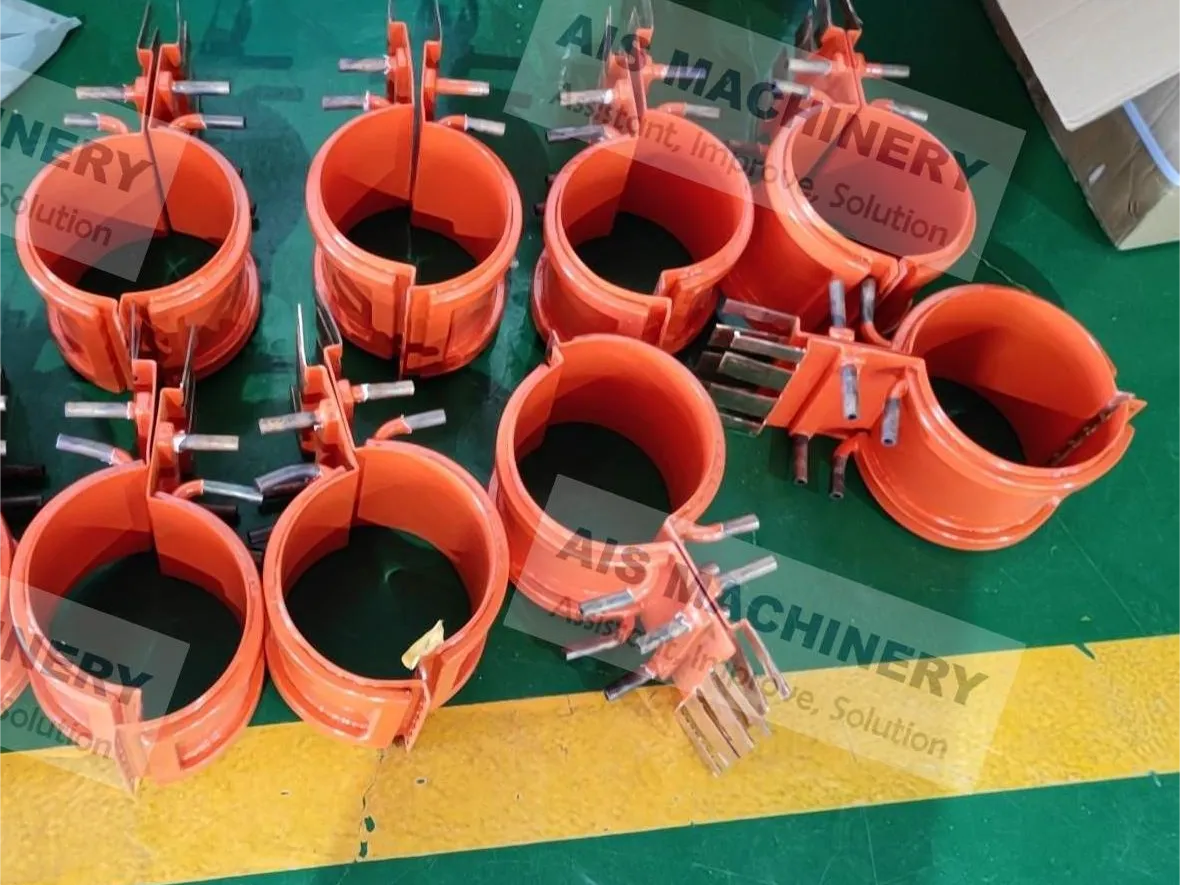

High-Frequency Induction Coil

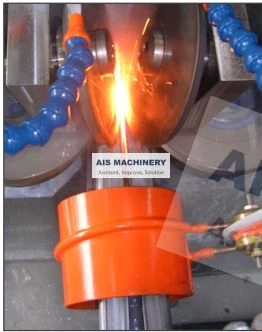

The Induction Coil is a key component in welded pipe production lines, commonly used in high-frequency welding processes. It works by generating high-frequency currents through electromagnetic induction, which locally heats the pipe surface to the required welding temperature, thus enabling efficient and high-quality welding. The induction coil is typically used in conjunction with a high-frequency power supply to ensure stable and efficient welding. It plays a vital role in the welding of various materials, such as steel pipes, seamless pipes, and galvanized pipes, in welded pipe production.

2. Working Principle

The working principle of the induction coil is based on electromagnetic induction heating. When an electric current passes through the coil, it creates a changing magnetic field around it. According to Faraday's law of electromagnetic induction, this magnetic field induces high-frequency currents in the pipe, which generates heat (Joule heat) on the surface and interior of the pipe, raising the pipe to the desired welding temperature.

The specific process is as follows:

1. Current flows through the coil: The high-frequency power supply sends high-frequency current to the induction coil.

2. Magnetic field generation: The alternating current passing through the coil generates a changing magnetic field that passes through the pipe and induces currents in the pipe's surface.

3. Pipe heating: The induced currents in the pipe generate Joule heat, which heats the pipe to the required welding temperature (typically between 800°C and 1200°C).

4. Welding: The heated pipe edges soften and are fused together under pressure to form a strong welded joint.

The induction coil allows for control over the heating zone and depth by adjusting the frequency and current intensity, ensuring the precision and consistency of the welding process.

3. Technical Specifications

4. Main Components

1. Coil Body:

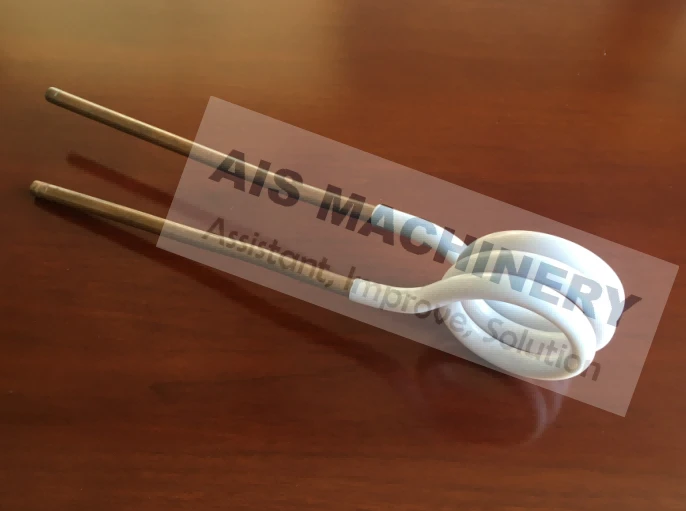

   • The coil is the core component of the induction heating system, typically made from copper tubing for high electrical conductivity. The coil shape (e.g., circular, spiral) is closely related to the pipe specifications and welding requirements.

2. High-Frequency Power Supply:

   • The high-frequency power supply provides the necessary power to the induction coil, usually using a high-frequency inverter or tube oscillator. It generates a stable high-frequency current to ensure continuous and stable welding.

3. Cooling System:

   • Since the induction coil generates significant heat during operation, a cooling system is crucial. Typically, a water-cooling system circulates coolant through pipes to remove the heat and maintain the coil at a safe operating temperature.

4. Oscillator and Adjustment Device:

   • The oscillator and adjustment devices are used to control the frequency and amplitude of the high-frequency current to meet the different welding needs of various pipe types. By adjusting frequency and power, the heating process can be precisely controlled.

5. Insulation Layer:

   • Due to the high current and temperature during operation, the coil is typically covered with a high-performance insulation material to prevent electrical leakage and ensure operator safety.

6. Sensors and Control System:

   • Sensors are used to monitor the heating temperature and pipe position, with real-time feedback to the control system. The control system adjusts the heating process to maintain optimal temperature and speed during welding.

5. Summary

The induction coil plays a key role in welded pipe equipment by providing stable and precise heating to the pipe through electromagnetic induction, ensuring efficient and high-quality welding. Its main features include the flexibility of the high-frequency power supply, high electrical conductivity of the coil, and a comprehensive cooling and control system. With proper configuration and optimization, the induction coil significantly improves welding quality, reduces energy consumption, and increases production efficiency. Therefore, it is an essential component in modern welded pipe production lines.

1. Enter Section Equipments
2.
3. 1. Coil car and Storage

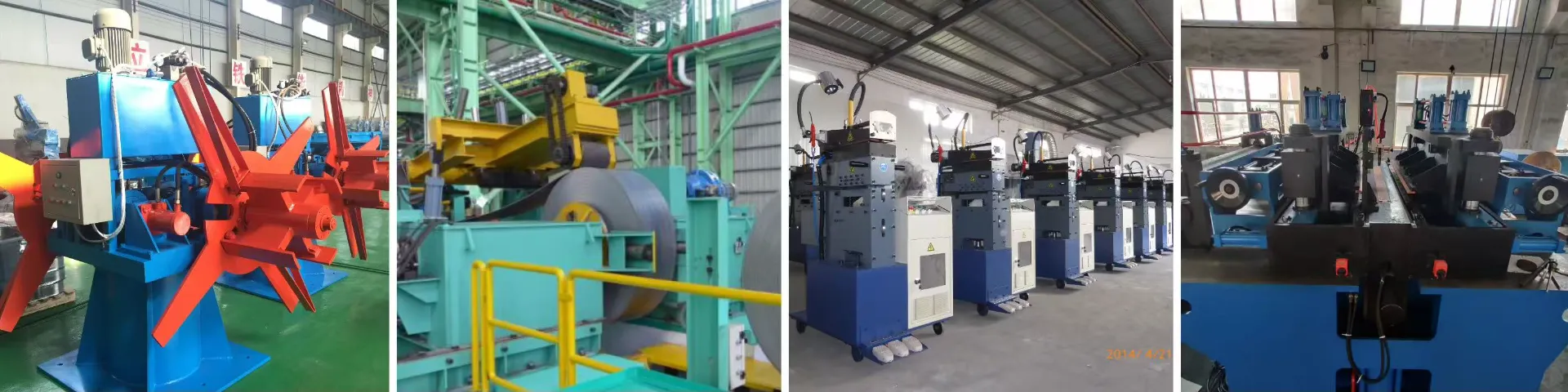

4. 2.Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler
5. 3.Peeler and hold down roll arm
6. 4.Flattening Machine
7. 5.Automatic and Semi Auto Shearer & Butt Welder

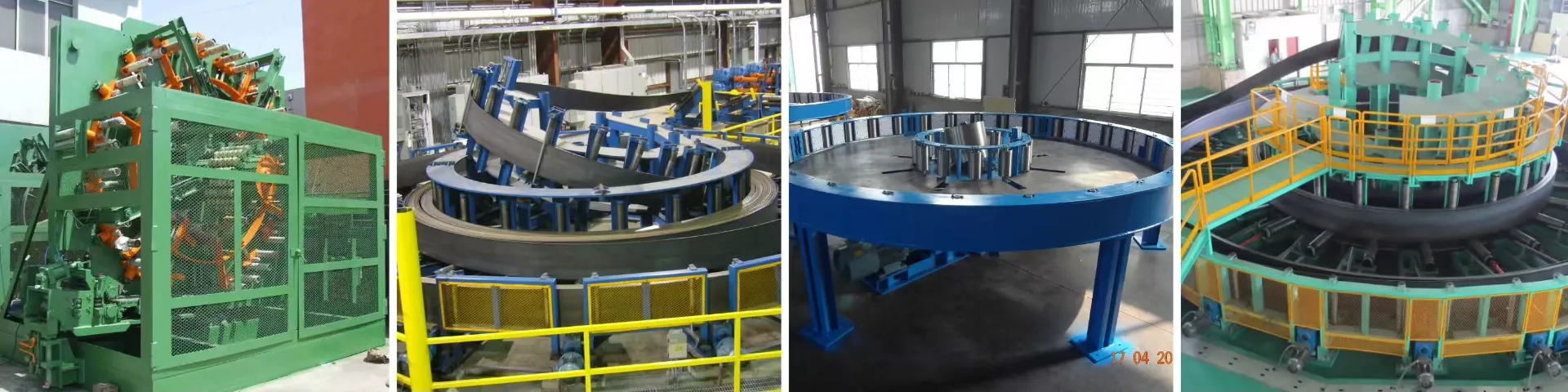

8. 6.Vertical Cage Accumulator​ & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator


1.

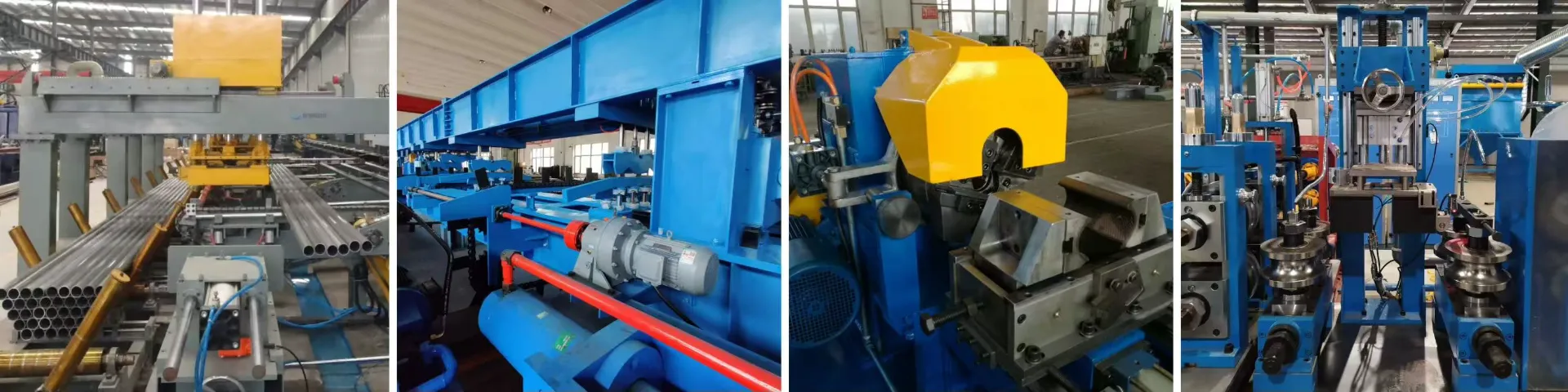

2. 1. Eddy current machine

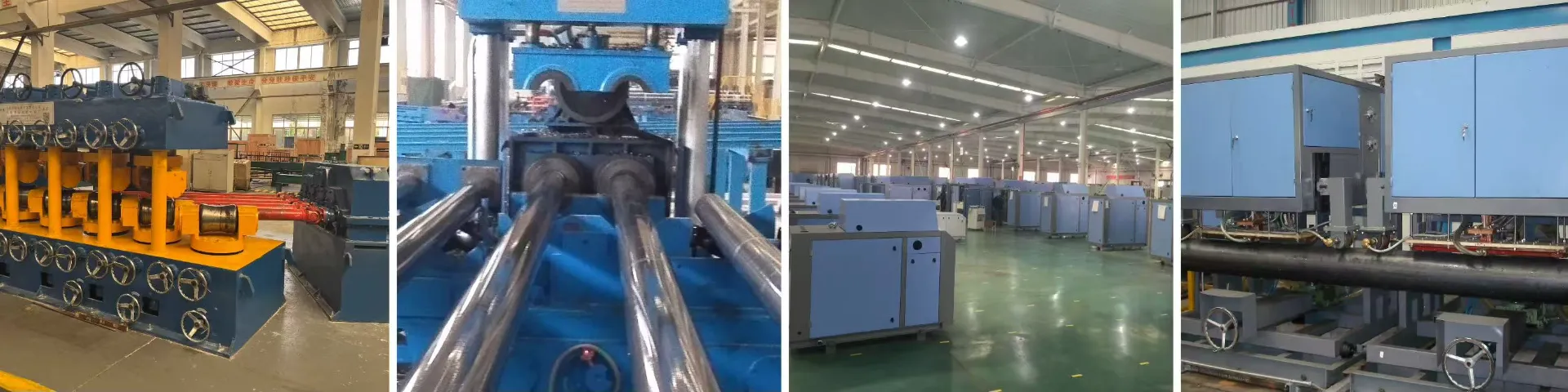

3. 2. Seam annealing machine

4. 3. Straightener machine

5. 4. Chamfer and end facer machine

6. 5. Hydro Tester machine

7. 6. Threading machine

8. 7. Painting and oil machine

9. 8. Automatic bundle and package machine

1.

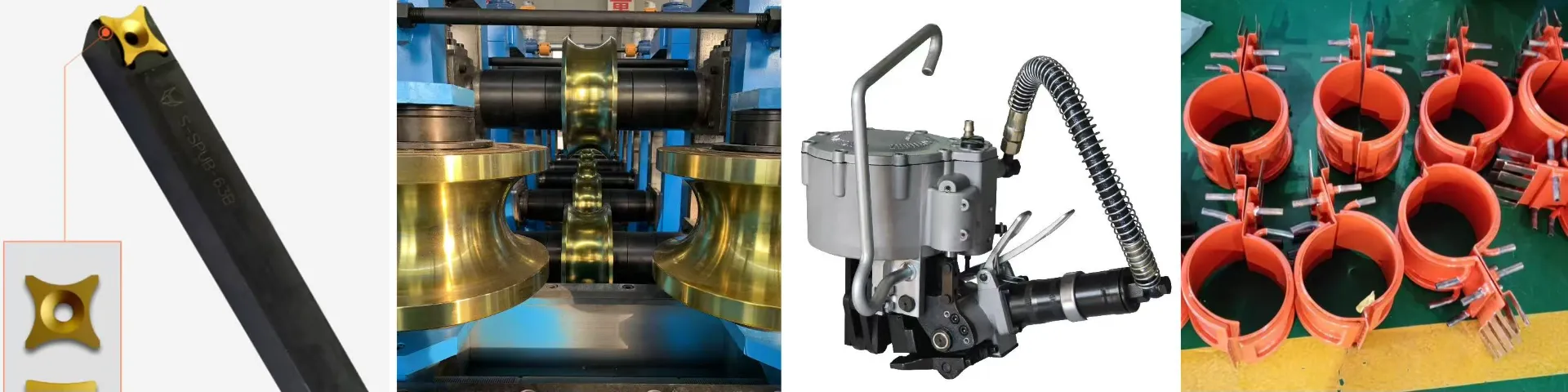

2. 1. Rollers, Moulds, Dies, D2,D3 material to choose

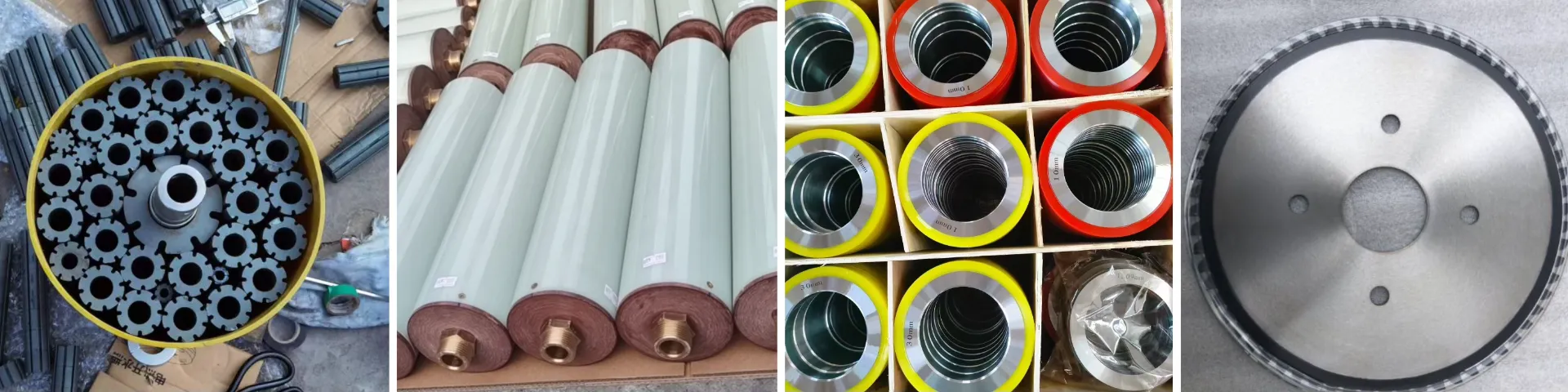

3. 2. Ferrite, Impeder, Fiberglass tube

4. 3. HSS saw blades, TCT Saw blades, Friction saw blades

5. 4. OD burr remove inserts, ID burr remover inserts

6. 5. HF welder Induction Coil and other HF welder spare parts

7. 6. Copper tube for induction Coil, PTFE pipe for Induction Coil

8. 7. Mosfet, Boards

9. 8. Steel pipe Strapping machine

10. 9. Zinc Spray Machine, Zinc wire, Zinc spray gun

1. Why Choose Us?


2. 1.Leading Technology, Reliable Quality, Excellent Service! Optimized Design, High quality material select!  Heat treatment process guarantee!

3. 2.Spiral bevel gear, drum gear coupling and carburization. Gear teeth quenching. Driven system stable, efficient and wearable with lower noise.

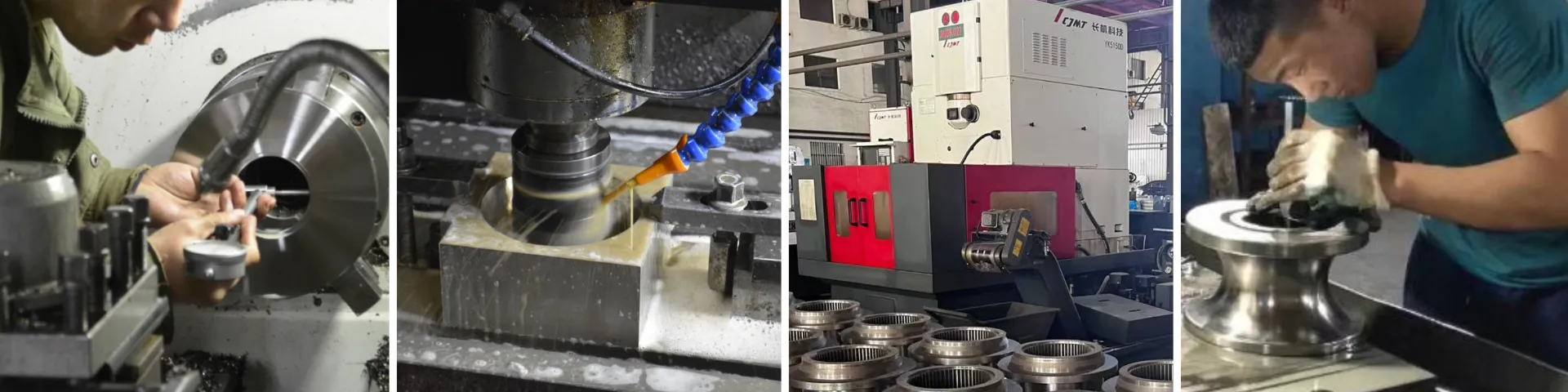

4. 3.High precision wear resisting and Long life of toolings. All the machine Lathes, Key Grooves are positioned and Milled by CNC.
