High-Speed Steel Coil Slitting Line Manufacturer | AIS MACHINERY

AIS MACHINERY specializes in the design and manufacturing of high-performance steel coil slitting lines. Our slitting machines are engineered for precision, speed, and reliability, making them ideal for processing cold-rolled, hot-rolled, stainless steel, and galvanized coils. Especially suitable for coils with thicknesses ranging from 2mm to 8mm, our slitting lines serve industries such as automotive, construction, appliance, and metal processing.

Product Details

Contact Now

Product Details

Video

Slitting Line Technology

Equipment Composition

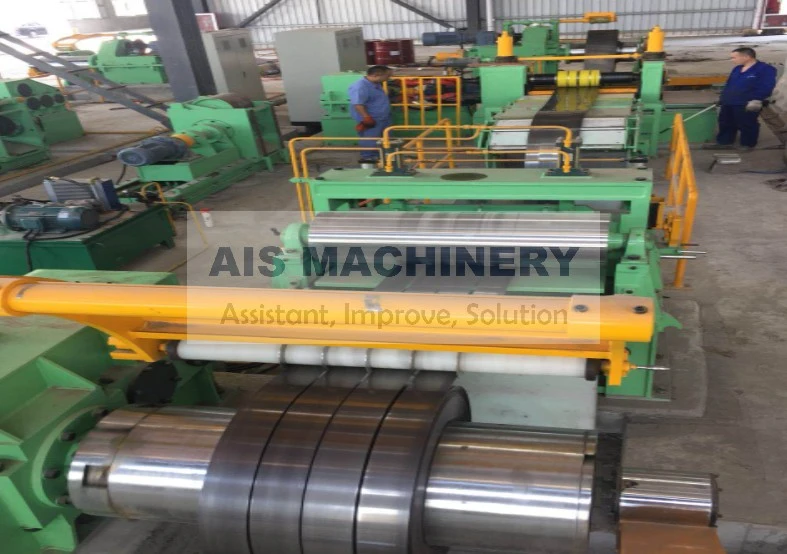

A typical AIS MACHINERY high-speed slitting line includes the following main components:

Hydraulic Uncoiler – Holds and uncoils heavy steel coils (up to 25 tons).
Leveling Unit – Flattens the coil to ensure uniformity before slitting.
Slitter Head – Equipped with rotary knives to cut the coil into multiple strips.
Scrap Winder – Rewinds edge scrap for easy collection.
Tension Stand – Applies back tension for clean rewinding.
Recoiler – Rewinds the slit strips into compact coils.
Hydraulic Pusher & Coil Car – For easy loading/unloading of master and slit coils.
PLC Control System – Centralized touchscreen interface for automated and manual operation.

Operating Process & Step-by-Step Explanation

Loading the Coil
The coil is loaded onto the hydraulic uncoiler using a coil car. Hydraulic arms clamp the coil securely.
Feeding & Leveling
The steel sheet is fed into the leveler to remove curvature and ensure flatness.
Slitting Process
The sheet enters the slitter, where rotary knives precisely cut it into pre-set strip widths.
Edge Trimming & Scrap Collection
Scrap edges are removed and wound by the scrap winder.
Tension Control
The strips pass through the tension stand to ensure tight, even rewinding.
Recoiling
Each slit strip is wound into a coil on the recoiler. A separator system ensures neat stacking.
Unloading
Finished coils are pushed out with a hydraulic pusher and moved via coil car.

Technical Parameters (2mm–8mm Thickness)

Parameter	Specification
Material Thickness	2.0 – 8.0 mm
Coil Width	Max. 2000 mm
Coil Weight	Max. 25 tons
Slitting Speed	0 – 80 m/min (adjustable)
Slitting Accuracy	±0.15 mm
Number of Strips	Up to 10 strips (based on thickness)
ID of Master Coil	Φ508–Φ610 mm
ID of Slit Coil	Φ508 mm
Knife Shaft Diameter	Φ240 mm
Power Supply	380V / 50Hz / 3Phase (customizable)
Total Installed Power	~150 kW (varies per configuration)

Applications of Slit Steel Strips

The slit strips produced by our machines are widely used in:

Tube and Pipe Manufacturing
Especially for ERW straight seam welded pipes.
Cold Roll Forming Lines
Used as feedstock for producing C/U/Z purlins, door frames, etc.
Stamping and Pressing
For automotive, white goods, and hardware components.
Cable Tray and Rack Systems
Metal Roofing and Panel Production

Precision Manufacturing & Quality Assurance

CNC Machining for Accuracy
All critical components, including knife shafts and spacers, are machined using high-precision CNC centers to ensure tight tolerances and minimal vibration.
High-Quality Bearings and Drives
We use top-brand bearings and gearboxes to guarantee durability and stable operation.
In-House Quality Control
Each machine undergoes strict dimensional inspection, trial operation, and functional testing before delivery.
ISO and CE Standards
Our slitting lines comply with international standards to ensure safety and performance.

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

High-Speed Steel Coil Slitting Line FAQs

What materials can your slitting line process?

It can slit carbon steel, stainless steel, galvanized steel, cold-rolled steel, and silicon steel.

Can you customize the number of strips or coil width?

Yes, both the number of knives and line width can be tailored to your needs.

How long does it take to install and commission the equipment?

Typically 7–15 days depending on site readiness and machine complexity.

Do you provide on-site training?

Yes, our engineers provide training during commissioning and offer long-term support.

How do you ensure consistent quality?

Through CNC machining, in-process inspection, and final functional testing before delivery.
