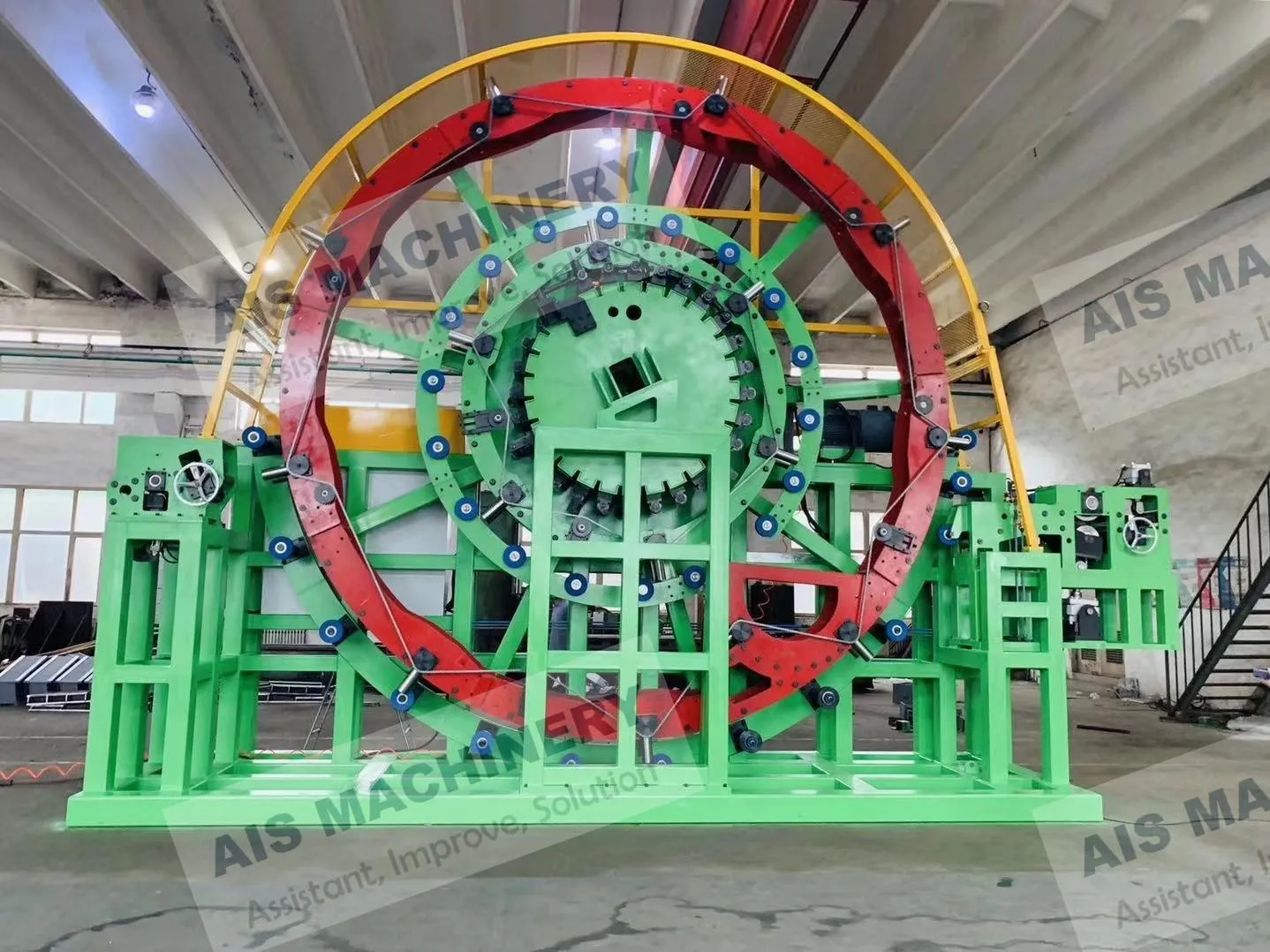

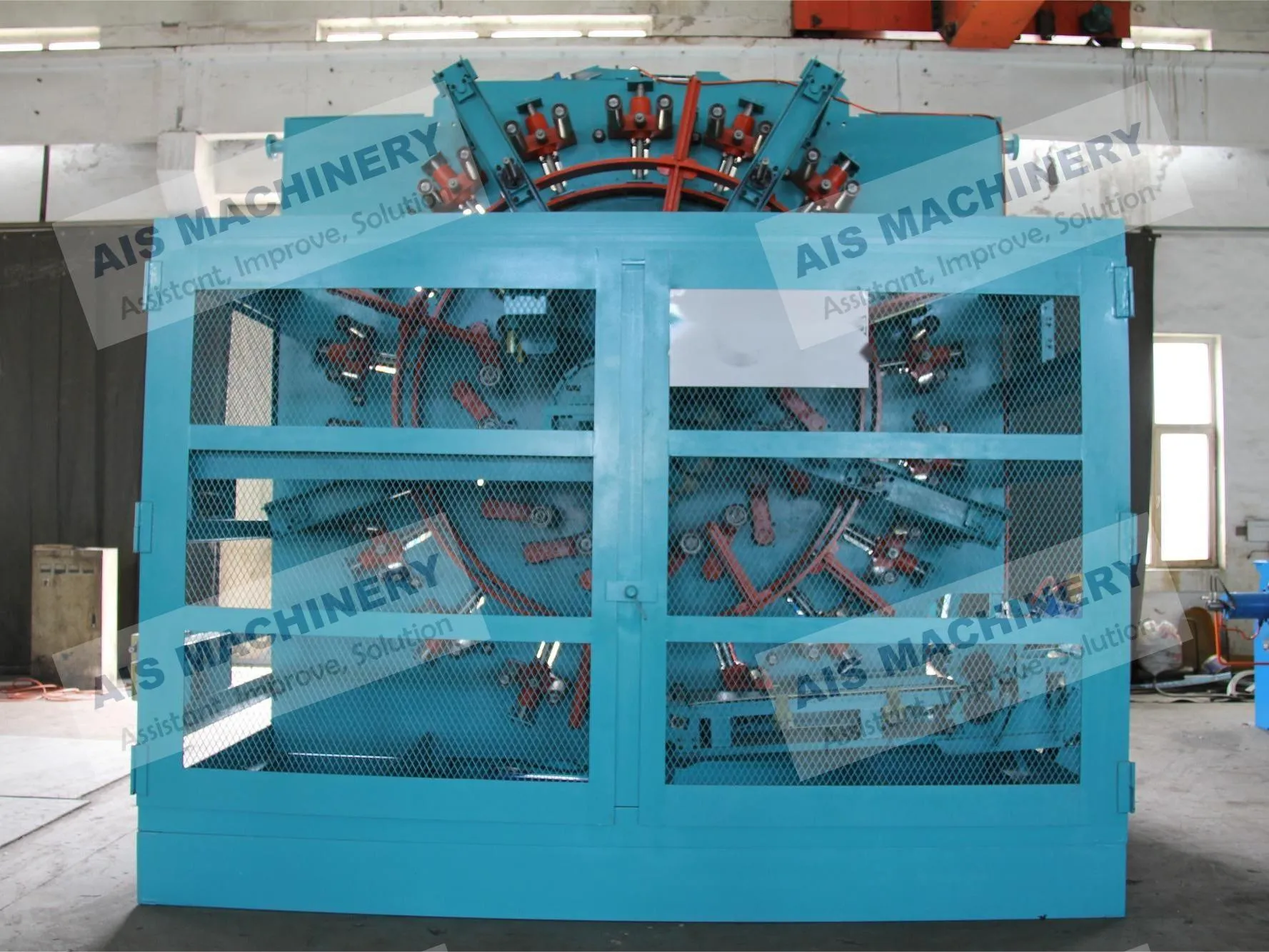

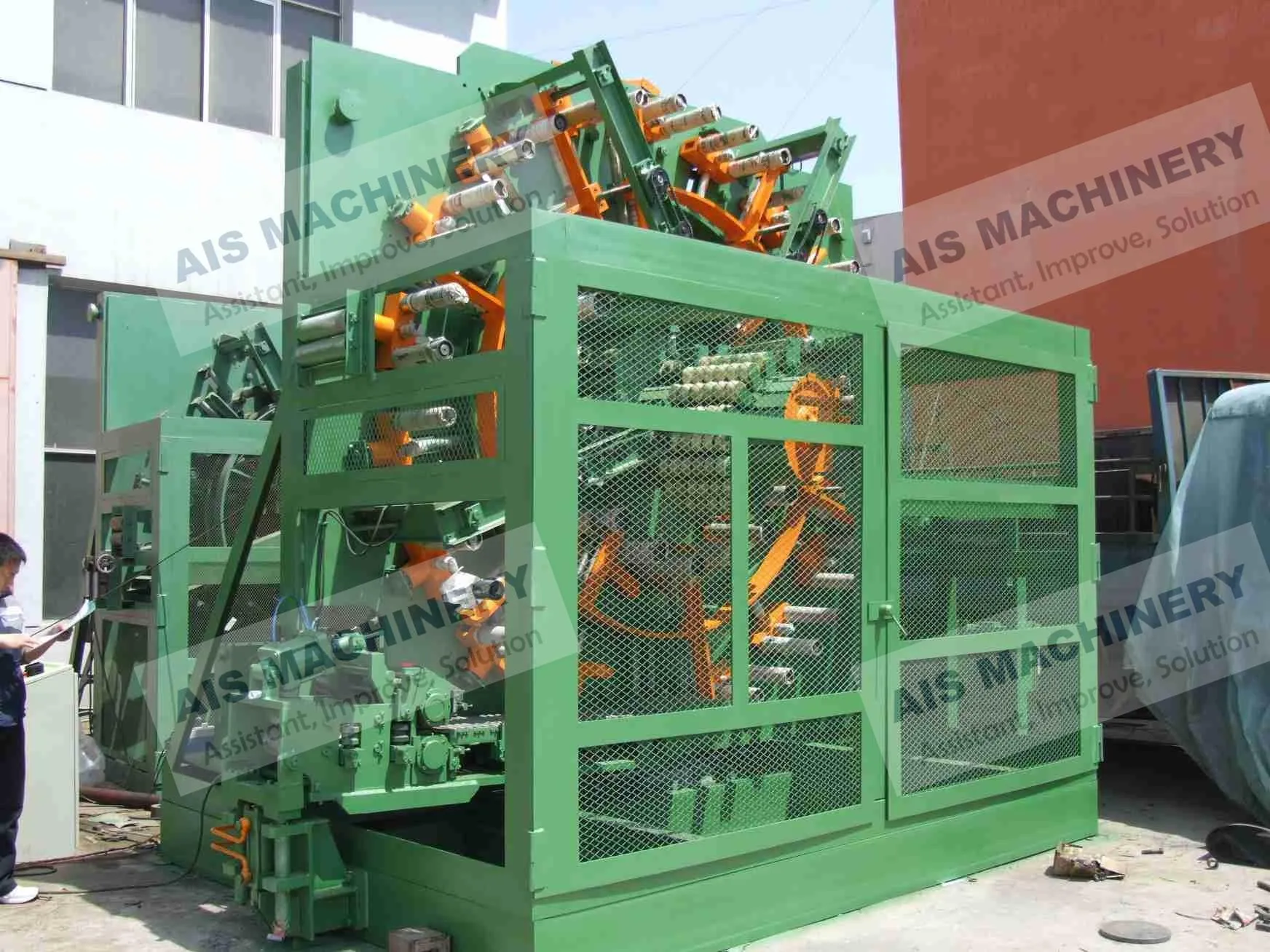

Vertical Spiral Accumulator

The Vertical Spiral Accumulator is an efficient strip storage system used in continuous production lines such as high-frequency ERW tube mills and slitting lines. Its main function is to provide temporary strip storage during coil changeover or welding, ensuring continuous, uninterrupted production.

Product Details

Contact Now

Product Details

Video

Specification

✅ 1. Product Overview

🌀 2. Working Principle

The strip enters from the bottom and is guided upward along a spiral track for storage. It exits from the top while feeding the next stage. A frequency-controlled motor, along with tension sensors and a PLC system, regulates infeed and outfeed speeds, allowing for automated operation and tension balancing.

⚙️ 3. Technical Specifications (Example)

Item	Specification Range
Accumulator Height	2 – 8 meters (customizable)
Strip Thickness	0.8 – 4.5 mm
Strip Width	200 – 800 mm
Storage Length	30 – 120 meters (depending on loops)
Line Speed	0 – 120 m/min

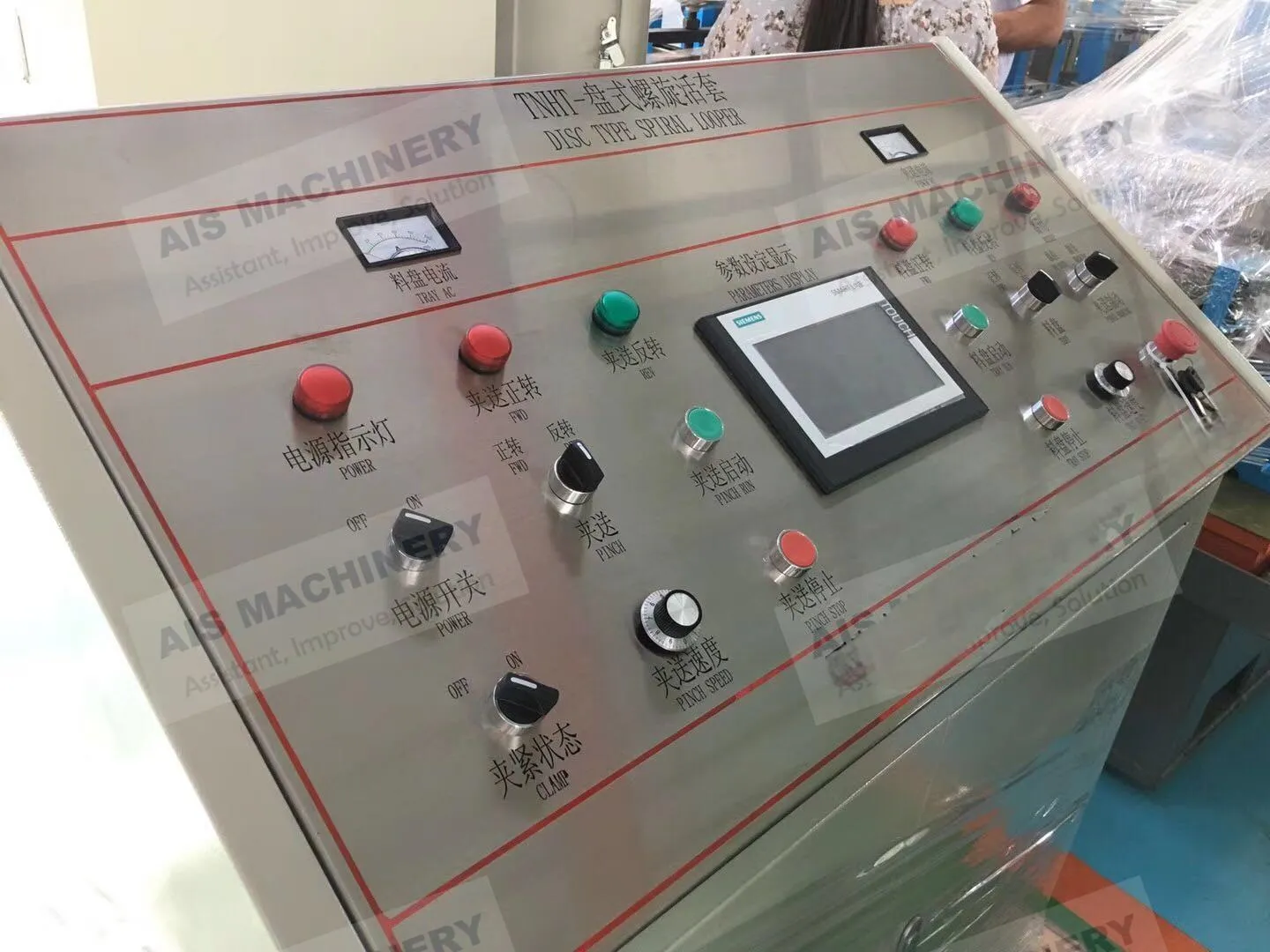

Control System	PLC + Inverter + Tension Sensor

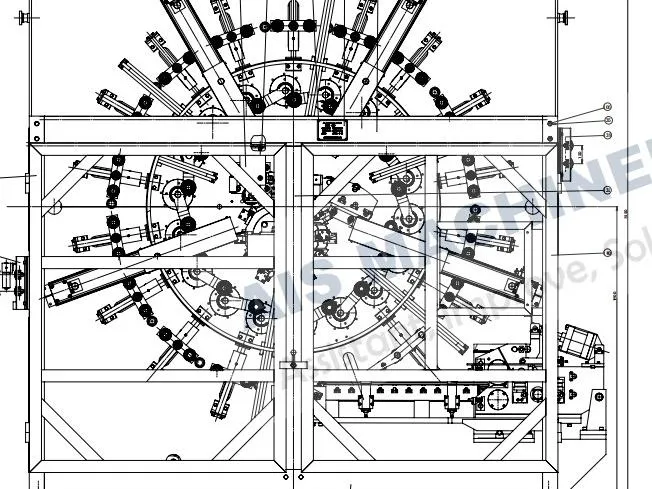

🏗️ 4. Main Components

Spiral Guide Track – Guides strip in a vertical spiral motion for storage.
Entry/Exit Guide Systems – Ensures smooth strip entry and discharge.
Tension Control System – Balances strip tension during storage.
Drive Motor System – Controls strip speed via frequency inverter.
Safety Systems – Includes guards, limit switches, and emergency stops.

🔍 5. Comparison: Vertical Spiral vs. Disc Accumulator

Feature	Vertical Spiral Accumulator	Disc Type Accumulator
Storage Capacity	High	Medium
Space Efficiency	Vertical structure, small footprint	Larger footprint
Structural Complexity	Higher complexity and cost	Simpler structure, moderate cost
Strip Stability	Very stable, guided path	Stable, shorter path
Automation Compatibility	Excellent, fully PLC controlled	High automation compatibility
Installation & Maintenance	Requires precision, complex setup	Simple installation and maintenance
Suitable Speed	Mid-to-high speed lines	Mid-speed lines

Conclusion: Vertical Spiral Accumulators are ideal for high-speed, high-capacity applications, while Disc Accumulators are more suited for compact, mid-speed setups.

🧭 6. Application Scenarios

ERW tube mills (for coil change buffering)
Slitting and cut-to-length lines
Cold roll forming lines
High-speed coating or pickling lines
Any continuous process requiring dynamic strip buffering

🎯 7. Selection Guide

Selection Criteria	Recommendation
Line Speed	Use spiral type if over 80 m/min
Floor Space Constraints	Spiral is preferred if vertical space is available
Buffering Length	Choose spiral for long strip storage
Tension Control Requirements	Spiral offers better control
Budget Consideration	Disc type is more cost-effective for general use

RELATION EQUIPMENT

We provides all equipment to tube mill entry section:

Coil Car

Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler

Peeler and hold down roll arm

Flattening Machine

Automatic and Semi Auto Shearer & Butt Welder

Vertical Cage Accumulator & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

disc accumulator to storage strip

erw tube mill feeding section

OUR SERVICE

Why Choose Us?

Leading Technology, Reliable Quality, Excellent Service!

Optimized Design, High quality material select!

Heat treatment process guarantee!

Spiral bevel gear, drum gear coupling and carburization.

Gear teeth quenching.

Driven system stable, efficient and wearable with lower noise.

High precision wear resisting and Long life of rollers.

All the machine Lathes, Key Grooves are positioned and Milled by CNC.

ais machinery exhibition attend

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

Vertical Spiral Accumulator FAQ

How much strip can a vertical spiral accumulator store?

depending on the number of spiral loops and height.

What space requirements does it have?

Vertical design requires a workshop height of at least 5 meters.

Can it perform automatic tension and speed adjustment?

Yes. With tension arms, PLC, and VFD, it supports fully automated tension and speed control.

Is it more expensive than disc accumulators?

Yes, generally higher in cost, but offers greater performance, capacity, and adaptability.
