Pipe Straightener Machine

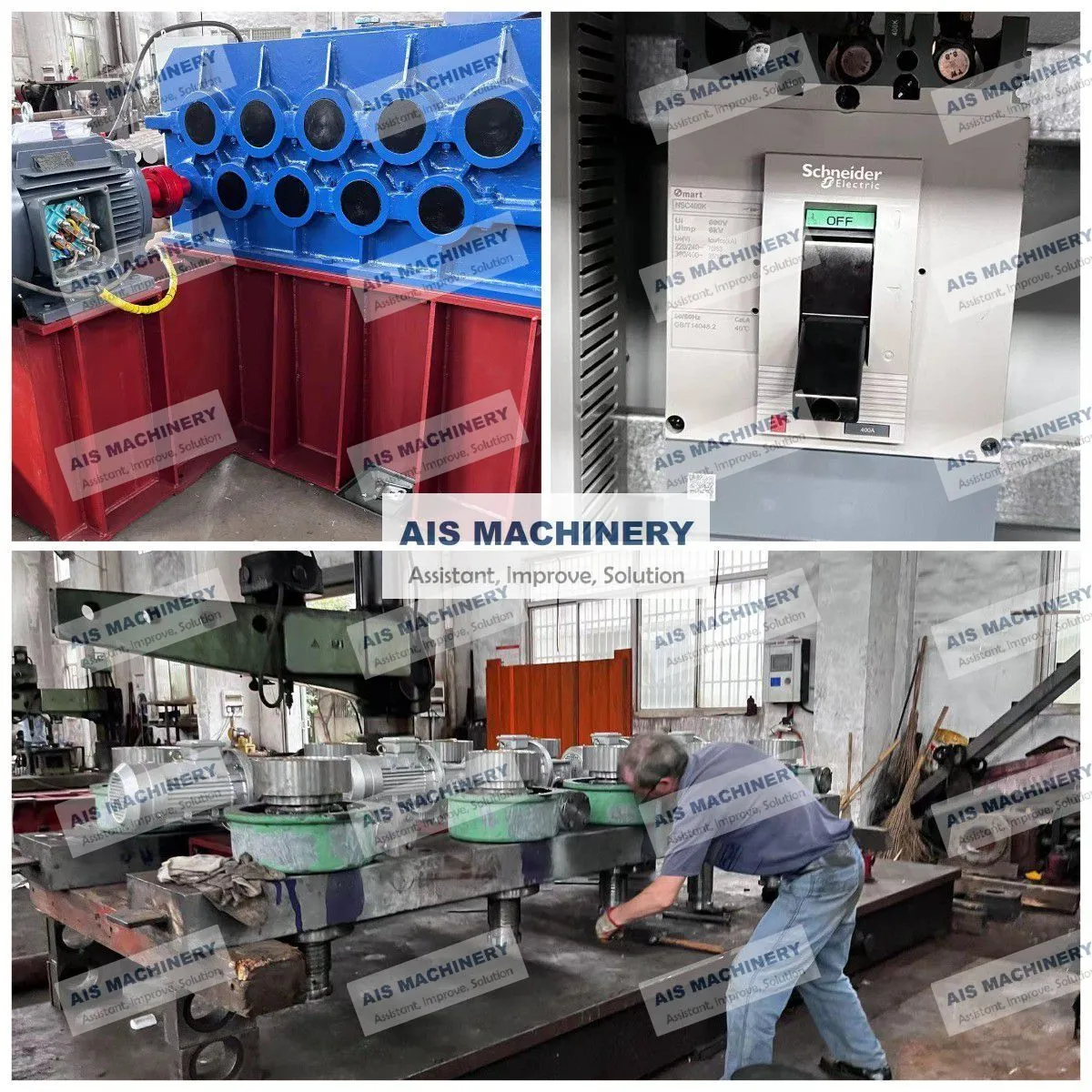

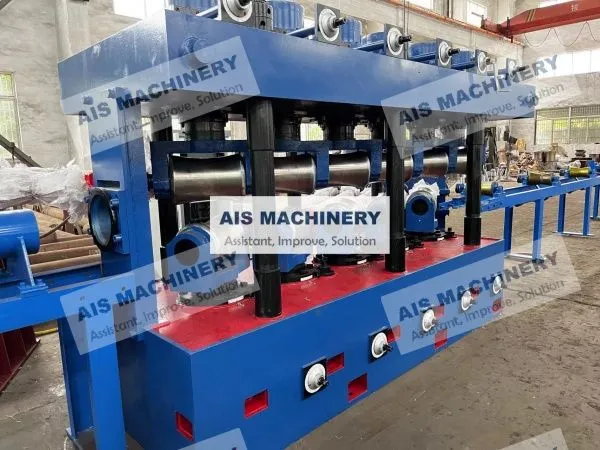

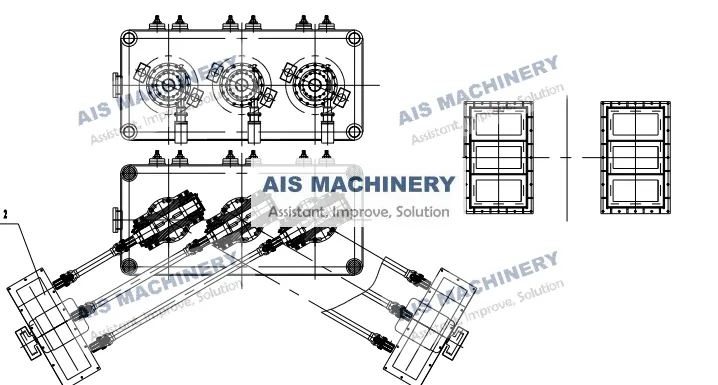

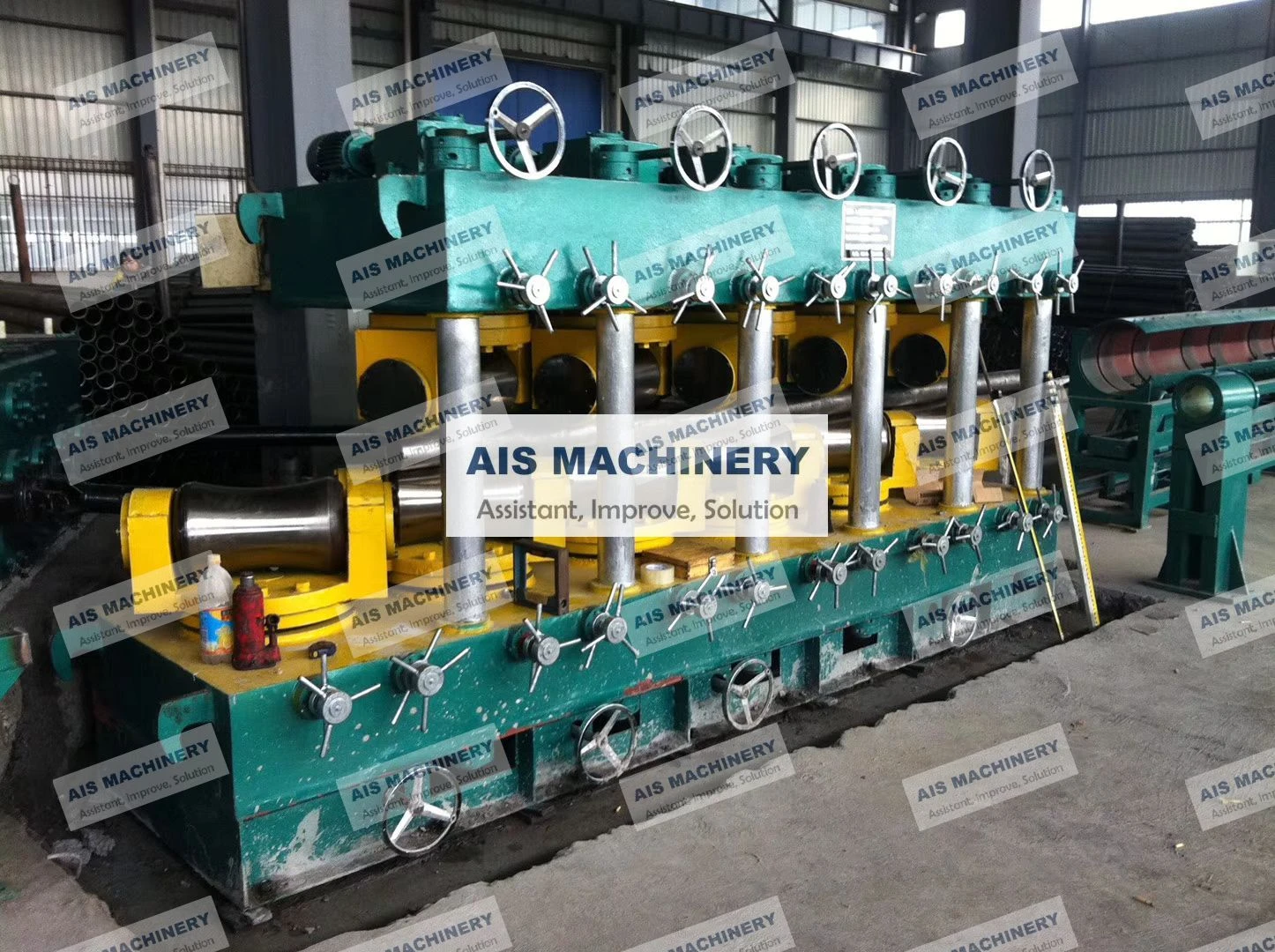

4. Main Components

1. Machine Base – Welded steel frame supporting the system;

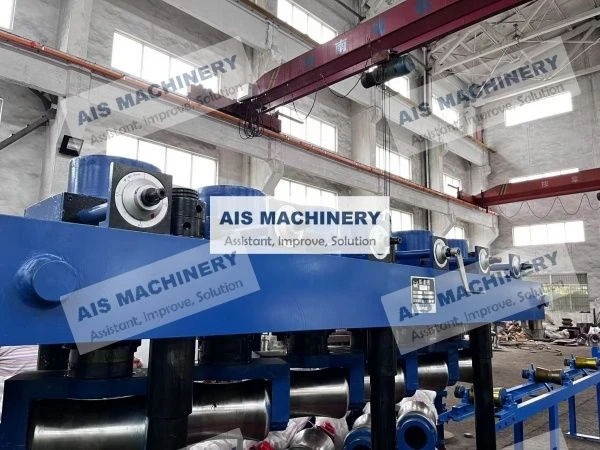

2. Straightening Rollers – Core units arranged in top and bottom sets for pipe correction;

3. Drive System – Motor + gearbox + chains/gears to rotate the rollers;

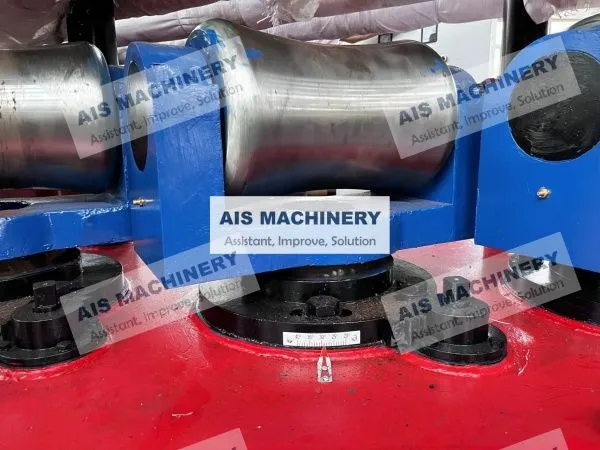

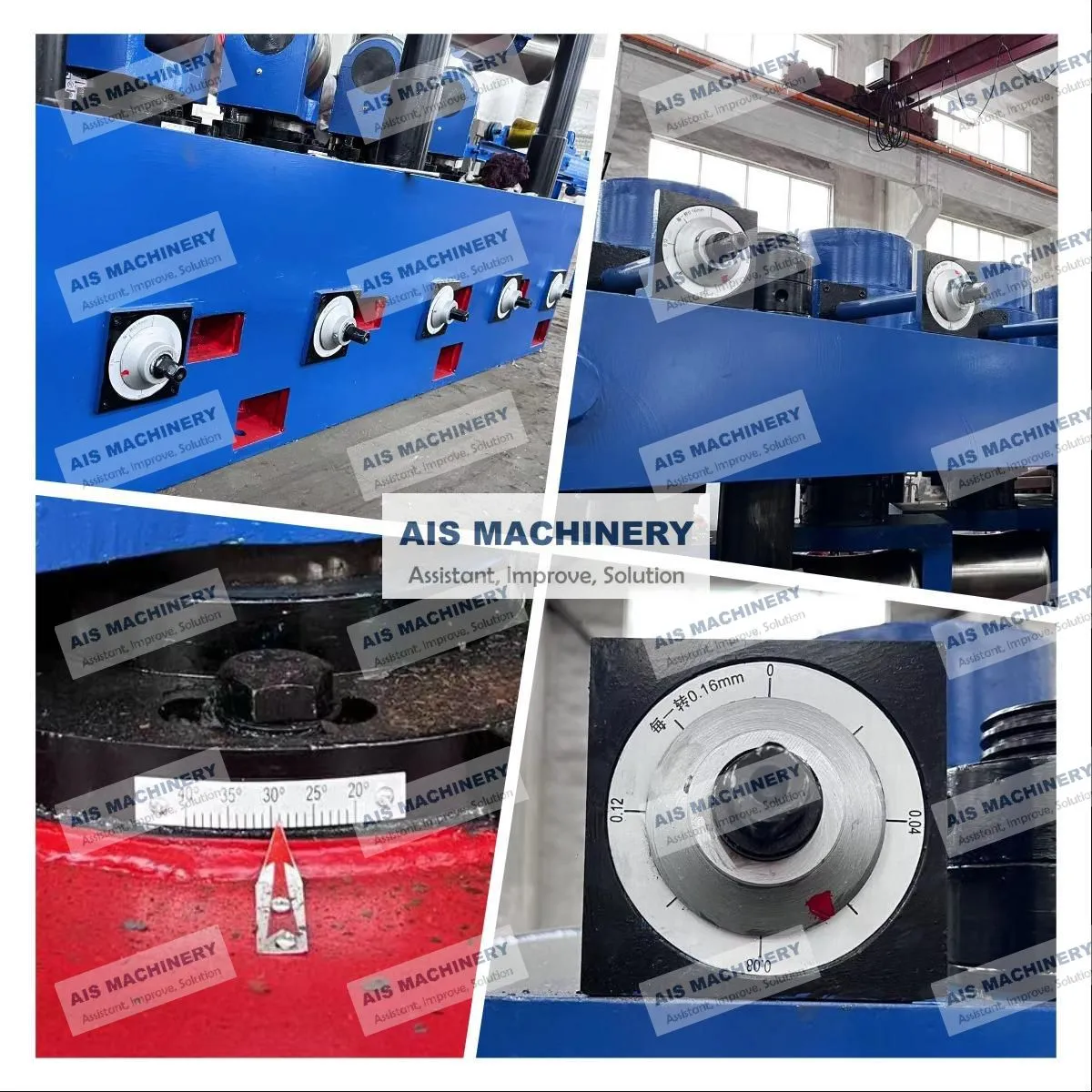

4. Adjustment Mechanism – To adjust roller gap and angle for different pipe sizes;

5. Guide Device – Ensures precise entry of the pipe into the rollers;

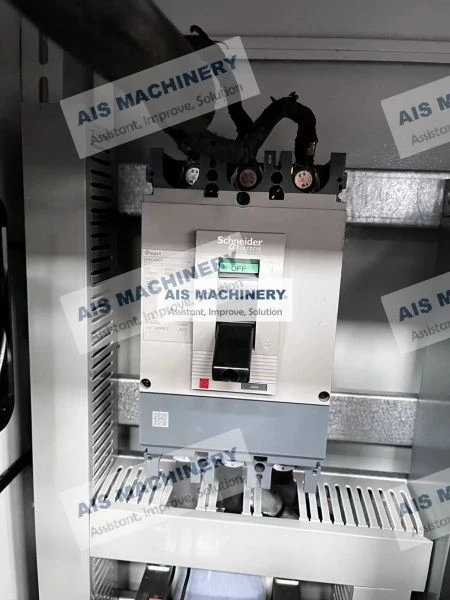

6. Control Panel – For setting speed, pressure, and roller position;

7. Safety Devices – Emergency stop buttons, protective covers, etc.

5. Operation Procedure

1. Preparation:

   • Ensure power and lubrication systems are functioning;

   • Adjust roller spacing according to pipe specifications.

2. Startup Settings:

   • Set appropriate straightening speed;

   • Start motor and ensure smooth rotation of rollers.

3. Feeding and Straightening:

   • Feed the welded pipe from upstream equipment;

   • Pipe passes through rollers and is straightened under pressure.

4. Output and Inspection:

   • Straightened pipes are delivered to the next process;

   • Visually or dimensionally inspect for straightness and surface quality.

6. Maintenance

Daily Maintenance:

• Inspect rollers for wear or damage;

• Check for loose bolts or fasteners;

• Clean machine surfaces to prevent jamming;

• Lubricate moving parts (recommended daily).

Periodic Maintenance (monthly or quarterly):

• Calibrate roller angles and spacing;

• Check electrical components for loose connections or overheating;

• Maintain electric/hydraulic adjustment systems (if equipped);

• Replace excessively worn parts.

Precautions:

• Do not process non-standard or oversized pipes;

• Avoid long idle running;

• Stop the machine immediately if abnormal noise, vibration, or jamming occurs.

•
