Coil Car for ERW Tube Mill | Reliable Steel Coil Loading Solution

Sep . 10, 2025 14:51

Product Introduction

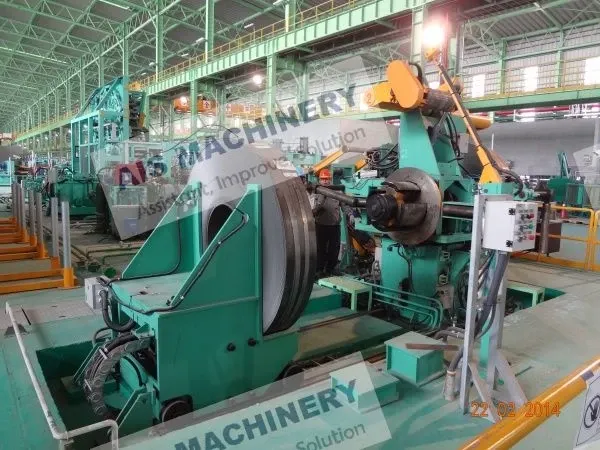

A coil car is an essential auxiliary equipment in an ERW tube mill production line. It is used to load, transport, and lift steel coils onto the uncoiler safely and efficiently. The coil car ensures smooth coil handling, reduces manual labor, and increases overall productivity of the tube mill line. Designed with strong structure and reliable hydraulic or motorized systems, it guarantees stability during coil loading and positioning.

Applications

ERW Tube Mills – Loading hot-rolled or cold-rolled steel coils before uncoiling
Slitting Lines – Feeding coils to the uncoiler section
Cut-to-Length Lines – Handling heavy coils for processing
Steel Processing Plants – Coil storage and transfer to production machines

Key Features & Performance

🔹High Load Capacity: Typically designed for 5–30 tons depending on coil size.
🔹Precise Positioning: Hydraulic or electric drive ensures accurate coil centering with uncoiler.
🔹Durable Structure: Heavy-duty frame with wear-resistant rollers.
🔹Safety System: Anti-tilt design, emergency stop functions.
🔹Smooth Operation: Low-noise hydraulic lifting and stable platform movement.
🔹Integration: Fully compatible with ERW tube mill uncoiler systems.

Technical Specifications (Typical Range)

Parameter	Specification Range
Coil Weight Capacity	5 – 30 Tons
Coil Width	500 – 1600 mm
Coil OD (Outer Dia)	800 – 2200 mm
Coil ID (Inner Dia)	450 – 760 mm
Lifting Height	300 – 800 mm
Drive System	Hydraulic / Motorized
Control	PLC / Manual / Remote Operation
Speed	6 – 12 m/min (adjustable)

Common Questions (FAQ)

Q1: Why do ERW tube mills need a coil car?
A1: The coil car ensures fast and safe loading of heavy steel coils onto the uncoiler. Without it, manual handling or crane loading slows down production and increases safety risks.

Q2: Can the coil car be customized for different coil sizes?
A2: Yes. The design can be tailored to coil weight, width, and diameter requirements of your tube mill.

Q3: What is the difference between hydraulic and motorized coil cars?
A3: Hydraulic cars provide stronger lifting force and smoother movement, while motorized cars are cost-effective and suitable for lighter coils.

Q4: How is the coil car synchronized with the uncoiler?
A4: The car is aligned with the uncoiler mandrel and can be controlled via PLC or operator panel for accurate positioning.

Customer Case Study

Client: Middle East Steel Tube Manufacturer
Requirement: The client needed a 20-ton coil car for an ERW tube mill producing 114mm to 219mm pipes. The coil width was up to 1500mm and OD up to 2000mm.
Solution: We supplied a hydraulic coil car with 20-ton capacity, PLC control, and anti-slip rollers. It was integrated with their motorized uncoiler, reducing coil loading time by 40%.
Result: Production efficiency increased significantly, and operators reported safer and smoother coil handling.

🌐Related Equipment with Coil Car

1. Uncoiler (Decoiler Machine)

The uncoiler works directly with the coil car. Once the coil car lifts and transfers the steel coil, the uncoiler holds the coil in place and feeds the strip into the line. Hydraulic and motorized options are available.

2. Hydraulic Loading System

Often paired with the coil car, the hydraulic loading system ensures precise alignment of the coil with the uncoiler mandrel. This prevents coil damage and reduces setup time.

3. Coil Lifting Platform

A coil lifting platform helps position heavy coils at the right height before being moved to the uncoiler. It increases safety and improves handling efficiency.

4. Coil Alignment Device

This device aligns the coil accurately with the uncoiler after being transported by the coil car. Proper alignment ensures smooth feeding and reduces the risk of strip deviation.
