Ferrite Rods: The Hidden Core Behind Efficient Induction Welding

Nov . 05, 2025 00:00

🔹 Introduction to Ferrite Rod

A Ferrite Rod is a cylindrical core made from ferrimagnetic ceramic material, commonly used in electronic and electromagnetic applications such as inductors, transformers, and impedance matching components. It is typically composed of iron oxide (Fe₂O₃) mixed with other metal oxides such as manganese, zinc, or nickel, providing high magnetic permeability and low electrical conductivity.

Ferrite rods play a key role in radio frequency (RF) and induction heating systems, improving magnetic field concentration and minimizing energy losses.

⚙️ Main Functions and Applications

Ferrite rods are widely used in:

📡 RF Antennas – to enhance signal reception in AM and shortwave radios.
⚡ Inductors & Transformers – to improve magnetic coupling and reduce eddy current losses.

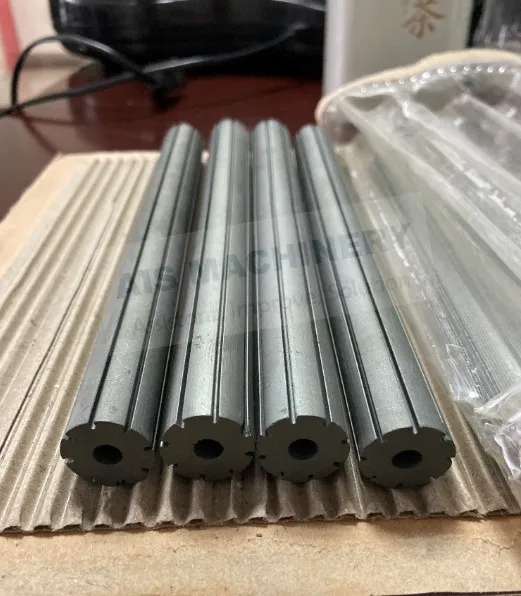

🌀 Impeders for Tube Welding – used inside induction coils to increase efficiency in high-frequency welding applications.
🔧 EMI Suppression – reduce electromagnetic interference in sensitive circuits.

Their high resistivity helps minimize eddy currents, making them ideal for high-frequency and high-temperature environments.

📊 Technical Parameters & Performance Features

Parameter	Typical Range	Description
Material Type	MnZn, NiZn Ferrite	Determines frequency response and temperature behavior
Magnetic Permeability (μi)	800 – 5000	Indicates ability to concentrate magnetic flux
Electrical Resistivity	10⁵ – 10⁷ Ω·cm	Higher values reduce eddy current losses
Operating Frequency	Up to 5 MHz (MnZn), 100 MHz+ (NiZn)	Suitable for various RF and induction systems
Curie Temperature	120°C – 300°C	Defines maximum working temperature
Shape & Size	Rod, bar, or custom core	Customizable per application requirement

Ferrite rods are lightweight yet strong, capable of maintaining stable magnetic characteristics under continuous operation.

⚖️ Ferrite Rod vs Iron Core

Feature	Ferrite Rod	Iron Core
Electrical Resistivity	Very High	Low
Eddy Current Loss	Minimal	Significant at high frequencies
Frequency Range	Excellent for HF/VHF	Suitable for low-frequency applications
Weight	Light	Heavy
Cost	Moderate	Moderate
Temperature Stability	Good	Very Good (depending on alloy)

👉 In summary, ferrite rods outperform iron cores in high-frequency and low-loss applications, making them the preferred choice for modern RF and induction systems.

🔍 Advantages of Using Ferrite Rods

✅ High magnetic permeability
✅ Excellent frequency performance
✅ Low eddy current and hysteresis losses
✅ Stable operation in varying temperatures
✅ Compact and cost-effective design

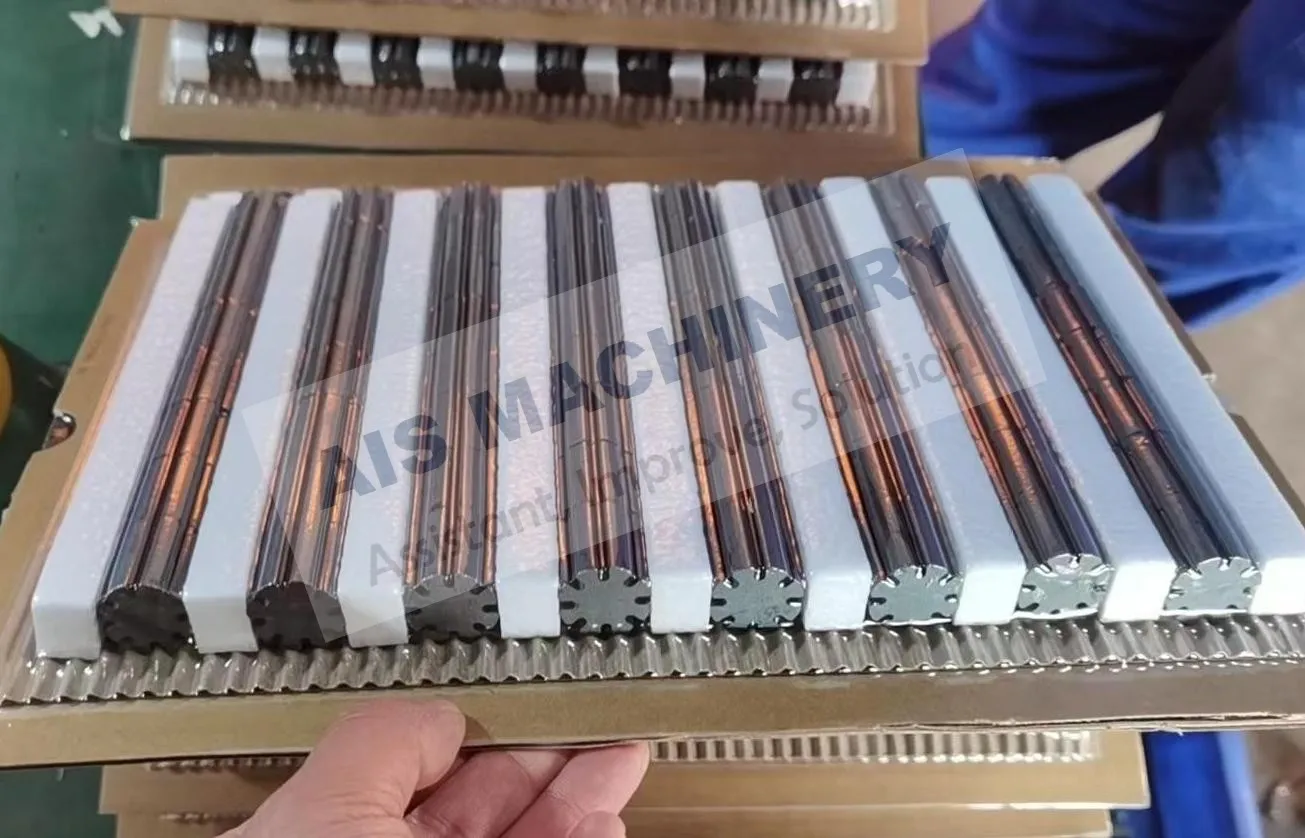

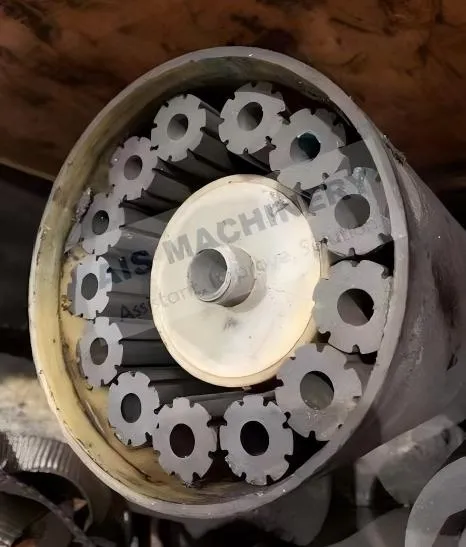

What is a Ferrite Rod

💡 Common Applications

AM/FM Radio antennas
High-frequency welding impeders
Inductive heating systems
RF transformers and chokes
EMI/RFI filters

❓ FAQ — Frequently Asked Questions

1️⃣ What materials are Ferrite Rods made of?
They are made of ferrimagnetic oxides, primarily manganese-zinc (MnZn) or nickel-zinc (NiZn) compounds, optimized for specific frequency ranges.

2️⃣ Why use a Ferrite Rod instead of a metal core?
Ferrite rods provide much lower eddy current losses and are more efficient at high frequencies compared to metallic cores.

3️⃣ Can Ferrite Rods be customized?
Yes. They can be customized in shape, size, permeability, and coating based on your equipment design and frequency needs.

4️⃣ What industries use Ferrite Rods most?
They are essential in electronics, RF engineering, induction welding, and electromagnetic research industries.
