Field Notes on the Shear And Welder Machine

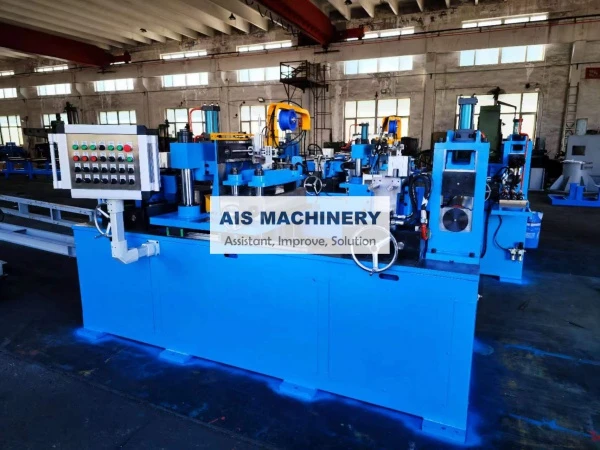

If you’ve ever babysat a coil-fed line at 3 a.m., you already know why a reliable Shear And Welder Machine matters: no coil change stoppages, fewer weld surprises, and—when it’s set up right—hours of smooth, boring productivity (the best kind). Actually, this unit bridges coils by shearing and automatically welding strip ends, keeping stamping, tube mills, and appliance lines humming.

Where it Fits and Why It’s Trending

Across steel service centers, automotive Tier-1s, and roll-form/tube lines, the ask is simple: continuous feed with consistent butt welds. Many customers say uptime beats raw speed now. Industry chatter points to smarter seam tracking, tighter alignment (≤0.2 mm is common), and digital weld records for audits—especially under ISO and OEM PPAP regimes.

Process Flow (real-world view)

Materials: mild/low alloy steel, HSLA, stainless (≈200–400 series), aluminum (with suitable weld head).
Methods: hydraulic or servo shear → edge preparation → strip alignment → MIG/TIG/Plasma butt weld → air or water-cooled quench.
Testing: visual per ISO 5817, alignment check ≤0.2–0.3 mm, tensile samples aiming ≥90% parent metal strength, NDT (MT/PT; UT if thicker) referencing AWS D1.1/ISO 17635.
Service life: often 8–15 years with standard PM; tooling and tips are the consumables.
Industries: automotive stampers, HVAC duct lines, white goods, tube/pipe mills, service centers.

Key Specifications

Parameter	Typical Value (≈, real-world may vary)
Strip width	200–1,600 mm
Thickness range	0.5–8.0 mm (custom to 12 mm)
Shear method	Hydraulic guillotine, ±0.15 mm cut squareness
Weld process	MIG / TIG / Plasma, with seam tracking option
Weld cycle	≈45–70 s per joint (line dependent)
Alignment accuracy	≤0.2 mm at weld
Power & controls	380–480 V, PLC (Siemens/AB), safety per IEC 60204-1
Certifications	CE; welding quality system ISO 3834 recommended

Vendor Comparison (quick take)

Vendor	Strengths	Trade-offs
AIS TubeMill (Origin: RM604 Shenxing Building, Xinhua Street, Shijiazhuang, Hebei, 050000, CN)	Robust frame, practical weld parameter library, customization depth	Lead time extends in peak months
Competitor A	High automation, nice HMI polish	Price premium; service windows vary
Competitor B	Fast cycle on thin gauge	Less forgiving on mixed-grade stock

Customization & Integration

Options include wider throat, TIG-to-Plasma swap, water-cooled chillers, vision seam tracking, quick-change clamp shoes, and data logging for PPAP. PLC brand can be matched to plant standards, which, to be honest, saves headaches later.

Case Notes

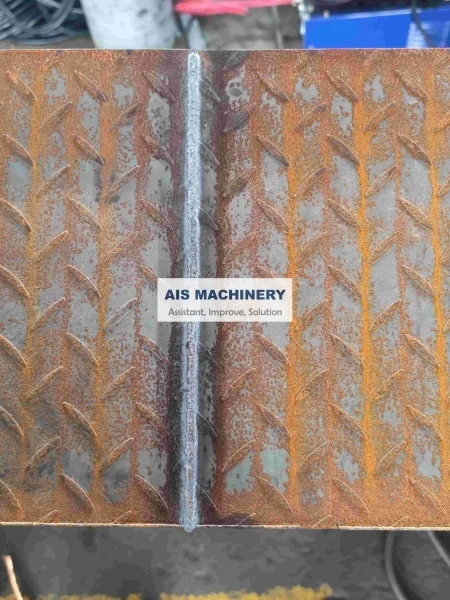

Automotive stamper: uptime +8–10%, weld cycle ≈55 s on 2.0 mm HSLA; tensile samples averaged 92–96% parent strength.
Tube mill: misalignment trimmed to ≤0.15 mm; changeover time for clamp shoes dropped by ~30%.

Quality & Compliance

WPS/PQR based on AWS D1.1 or EN 1011, shielding gas per ISO 14175, and electrical safety checks to IEC 60204-1. Visual per ISO 5817 (Level C/B, depending), with PT/MT on critical joints. Customers report smoother audits when weld data is archived automatically.

What users say

“Surprisingly forgiving on coil camber,” one line lead told me. Another remarked, “It seems that the Shear And Welder Machine cares more about our operators than our operators care about it”—which is a backhanded way of saying it’s stable.

However, do plan training. The best installs I’ve seen pair operator coaching with a preventive maintenance calendar—blades, torches, and alignment checks every 250–500 hours.

Bottom line

If continuous feed and clean butt welds are your bottleneck, a modern Shear And Welder Machine is a pragmatic upgrade—less drama on the floor, more good parts per shift.

Authoritative references

AWS D1.1/D1.1M: Structural Welding—Steel. https://pubs.aws.org
ISO 3834: Quality requirements for fusion welding of metallic materials. https://www.iso.org/standard/55851.html
IEC 60204-1: Safety of machinery—Electrical equipment of machines. https://webstore.iec.ch
ISO 14175: Welding consumables—Shielding gases. https://www.iso.org/standard/57440.html
ISO 5817: Welding—Fusion-welded joints in steel, nickel, titanium. https://www.iso.org/standard/30321.html
