Automatic High Speed Slitting Line | 120m/min Precision Performance

Sep . 11, 2025 15:02

📌 Product Overview

The Slitting Line is used to cut wide steel coils into multiple narrower strips with high accuracy and uniform edges. With a maximum line speed of 120m/min, this equipment ensures both high productivity and consistent quality. It is suitable for processing cold-rolled steel, hot-rolled steel, stainless steel, aluminum, and other metal coils.

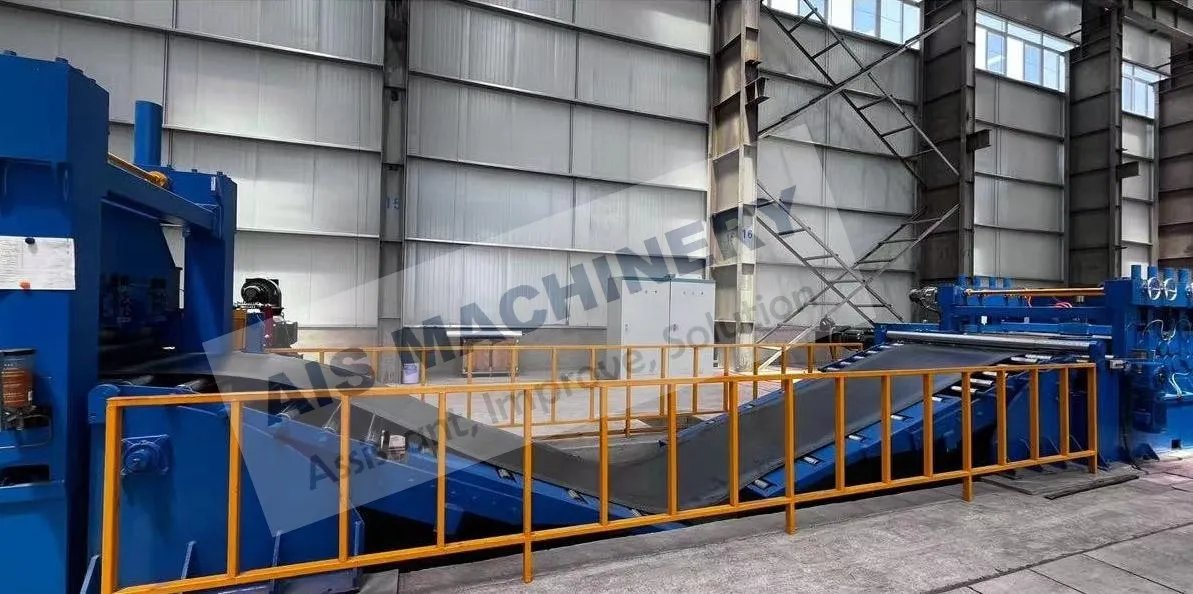

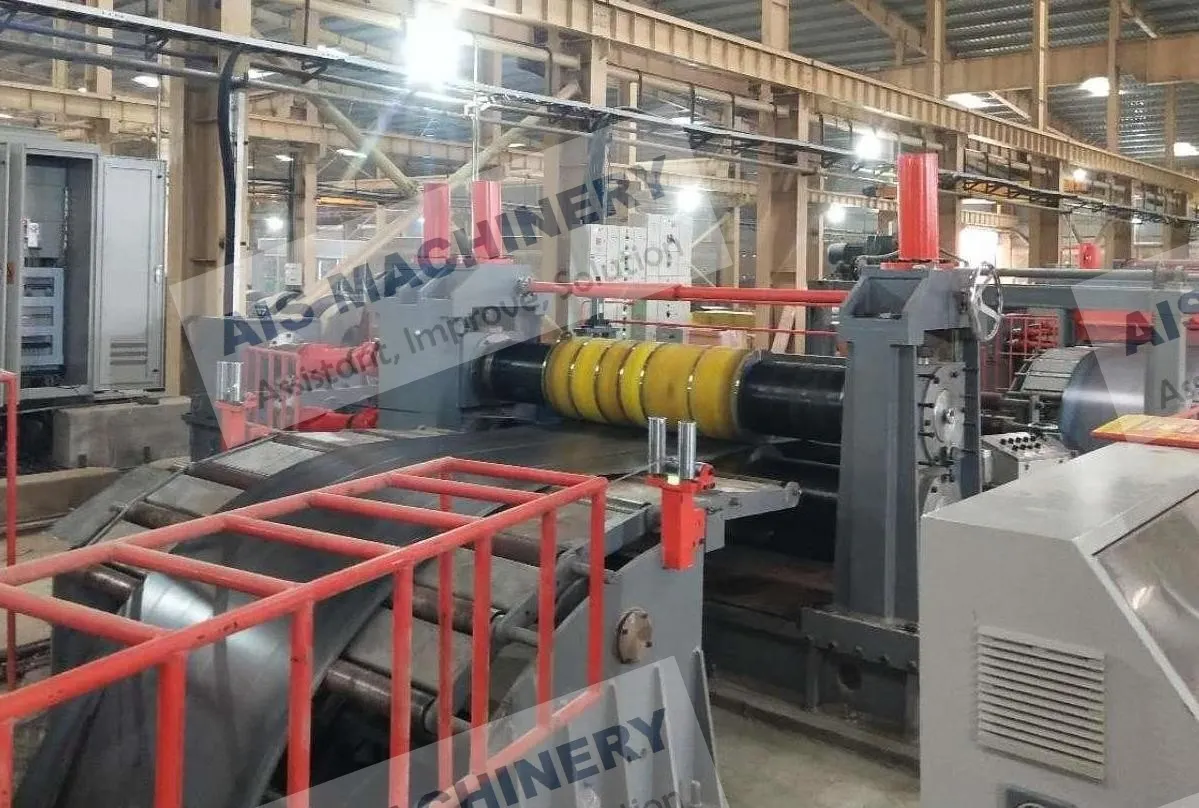

Precision Steel Coil Slitting Machine

⚙️ Key Features & Functions

• High Precision Cutting → Guaranteed strip width accuracy and burr control.
• High Speed Operation → Maximum line speed up to 120 meters per minute, increasing production efficiency.
• Robust Decoiler & Recoiler → Ensures stable tension and smooth coil handling.
• Automatic Slitting Tool Setup → Faster knife change and reduced downtime.
• Edge Scrap Handling → Efficient scrap recoiling system for clean operation.
• PLC Control System → Real-time monitoring, fault diagnosis, and production reporting.

📊 Technical Specifications

Item	Specification
Line Speed	Up to 120 m/min
Coil Thickness Range	0.5 – 4.0 mm
Coil Width	Up to 1250 mm
Coil Weight	Up to 20 Tons
Slitting Strips	According to customer requirements
Tolerance Control	±0.05 mm (depending on material)
Material Types	HR, CR, GI, PPGI, Stainless Steel, Aluminum
Control System	PLC with HMI Touchscreen

❓ Frequently Asked Questions (FAQ)

Q1: What industries use this slitting line?
A1: It is widely used in steel service centers, construction materials, household appliances, automotive parts, and metal packaging industries.

Q2: Can the machine handle stainless steel or aluminum?
A2: Yes. The line is designed to process various materials such as stainless steel, galvanized steel, and aluminum coils, with adjustments for knife settings.

Q3: What are the advantages of a 120m/min high-speed line compared to standard models?
A3: The main advantages are higher throughput, reduced production time, and tighter dimensional control, which help manufacturers save costs and meet high-volume demands.

Q4: Is operator training provided?
A4: Yes. We provide on-site installation, training, and after-sales support to ensure smooth operation.

🌍 Applications

Steel Processing Plants
Construction & Infrastructure Projects
Automotive Manufacturing
Appliance & Furniture Industry
- Metal Packaging Industry

📢 Composition of the Line

No.	Item Description	Qty
1	Coil Loading Car & Coil Preparing Saddle	01 set

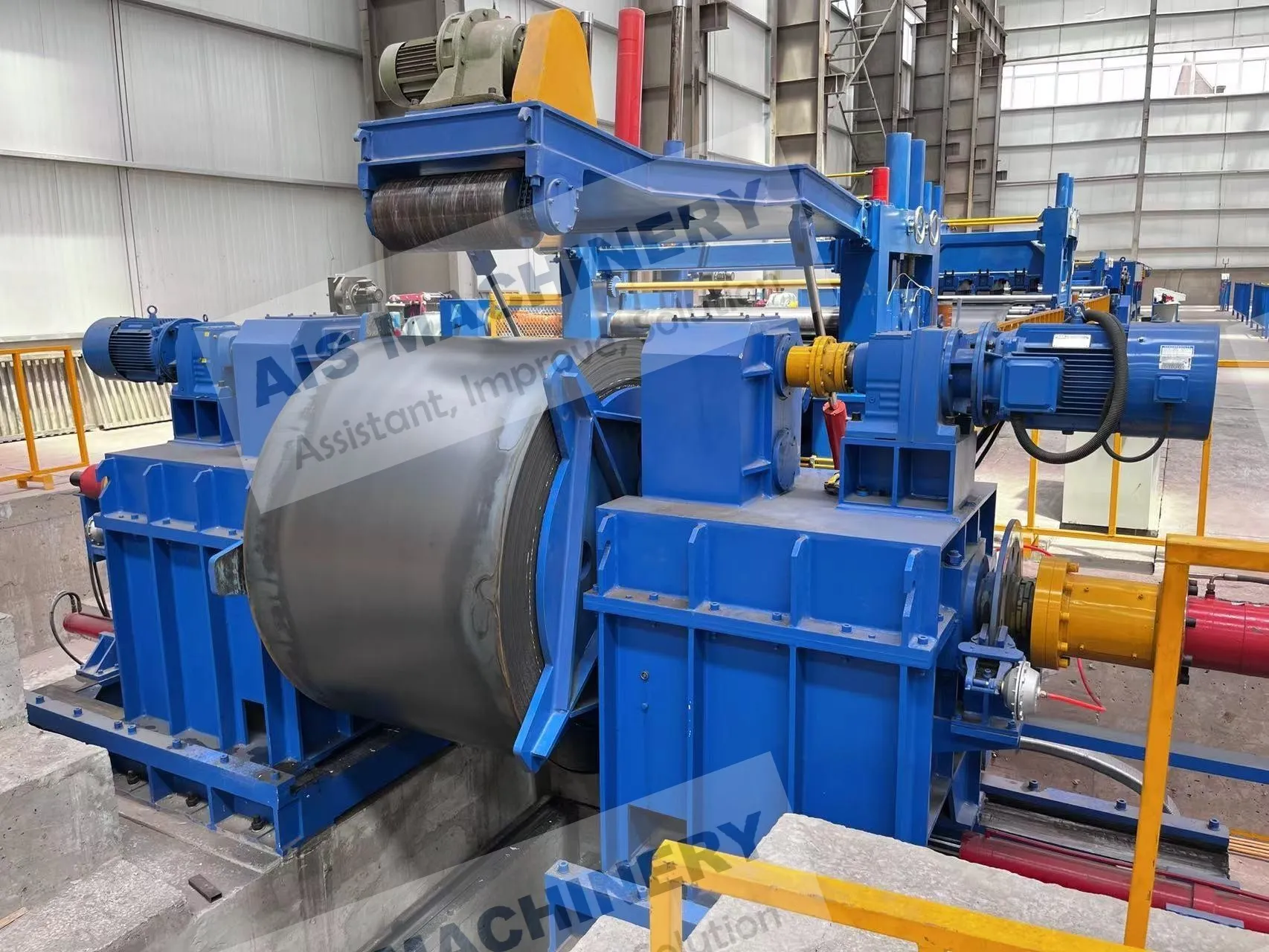

2	Hydraulic Single Mandrel Uncoiler	01 set
3	Coil-Head Press & Guide Device	01 set
4	Double Pinch Rolls & 5-Roller Leveler with Coil-Head Shoveler	01 set
5	First Pit Accumulator	01 set
6	Side Guide Unit before Slitter	01 set

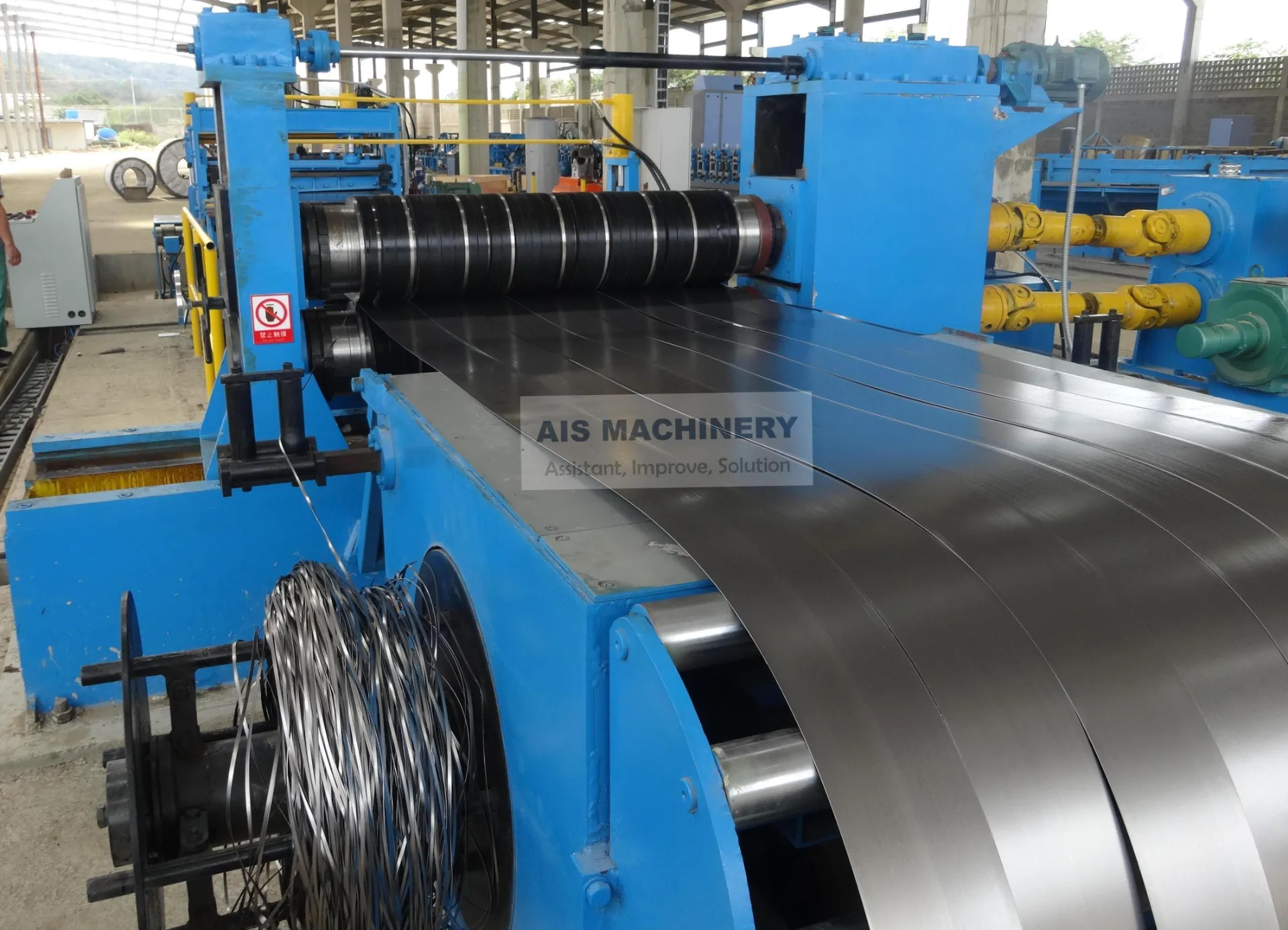

7	Precision Slitter (with Slitting Knives)	01 set
8	Edge Scrap Reeler	01 set
9	Second Pit Accumulator	01 set
10	Pre-separator & Tensioner	01 set
11	Recoiler with Overarm Separator	01 set
12	Coil Unloading Car	01 set
