Milling Saw Cut-off System – Clean & Accurate Cutting for ERW Tubes

What Is a Milling Saw?

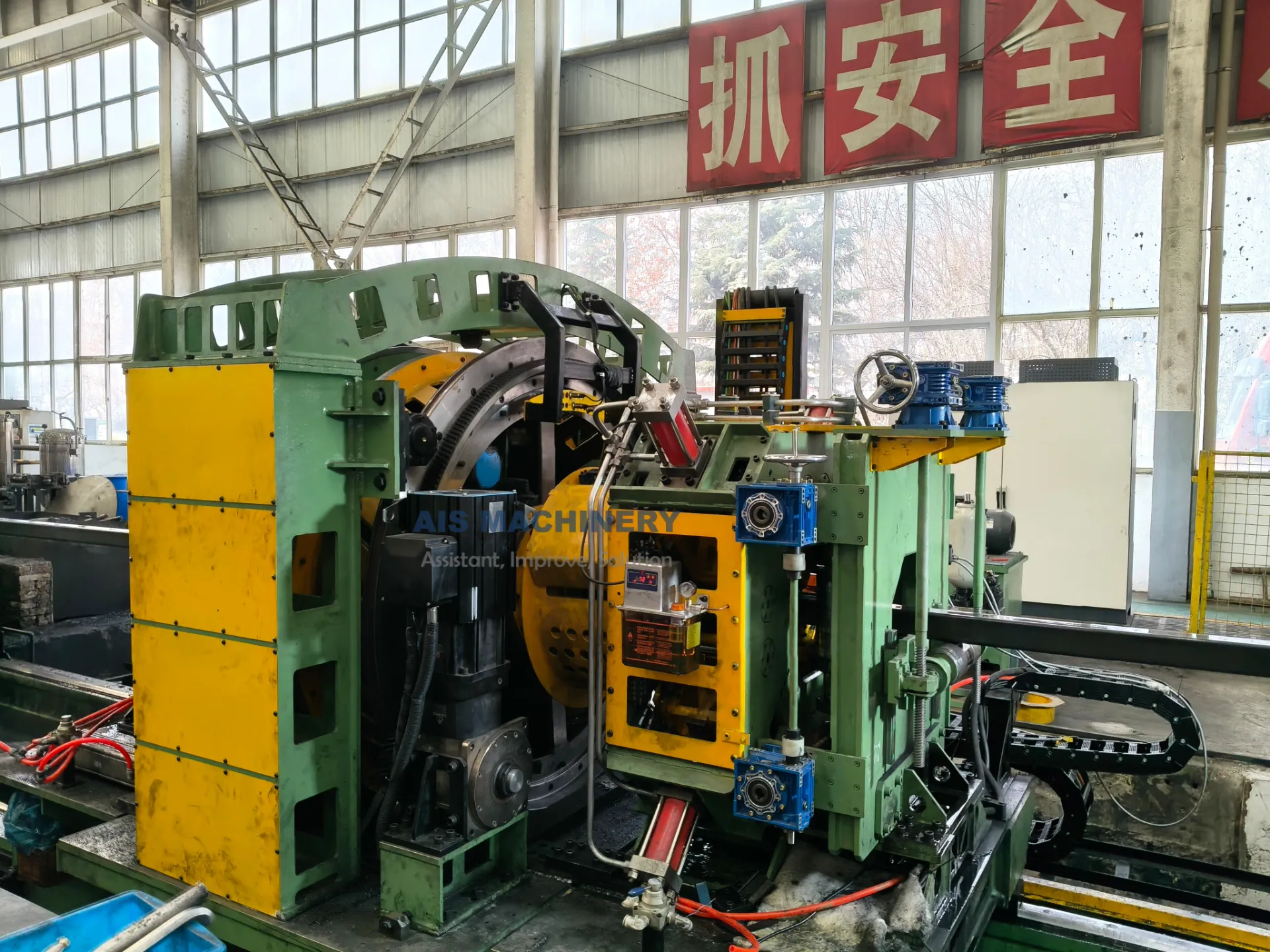

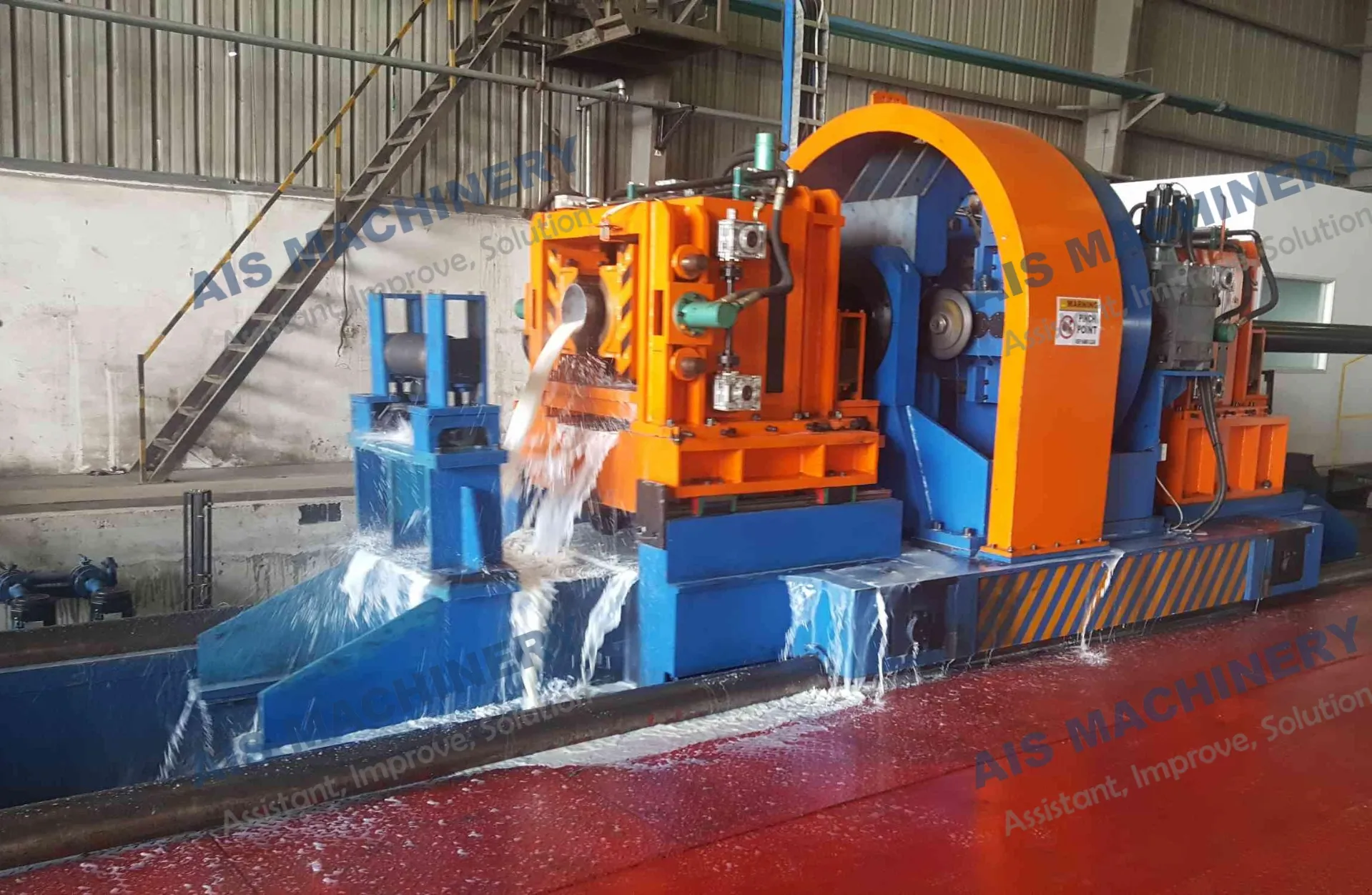

A milling saw is a precision cutting machine used to cut steel pipes or tubes by chip-removal milling instead of friction burning or cold shearing. It uses a high-speed rotating saw blade with cutting teeth to machine through the pipe wall, producing a clean, square, and burr-free cut.

In ERW tube production lines, the milling saw is widely used for flying cut-off or fixed-length cutting, especially where high cutting quality and stable downstream processing are required.

Main Applications

• Cutting ERW steel pipes and tubes to fixed length

• Suitable for carbon steel, mild steel, and alloy steel pipes

• Ideal for production lines requiring:

  • • Clean cut surface

  • • Accurate length tolerance

  • • Low noise and low thermal impact

Typical industries include construction pipes, structural tubes, furniture tubes, automotive tubes, and general engineering pipes.

Key Performance Features

• Cold milling cutting process: No burning, no discoloration on pipe ends

• High cutting accuracy: Length tolerance can reach ±0.5 mm

• Smooth cut surface: Minimal burrs, reducing secondary deburring work

• Stable cutting force: Low deformation of thin-wall tubes

• High automation: Can be integrated with servo flying cut-off systems

• Long blade life: Replaceable milling saw blade with regrinding capability

Typical Technical Parameters (Reference)

Parameters may vary depending on tube size and line speed

• Pipe outer diameter: typically Ø114 – Ø219 mm (commonly Ø168 mm and above)

• Pipe wall thickness: 0.8 – 8.0 mm

• Cutting length accuracy: ±0.5 mm

• Max line speed: up to 120 m/min

• Saw blade diameter: Ø350 – Ø600 mm

• Main motor power: 15 – 45 kW

• Cutting mode: Fixed cut or flying cut-off

• Control system: PLC + servo control

• •
  •

Position in ERW Tube Mill Line

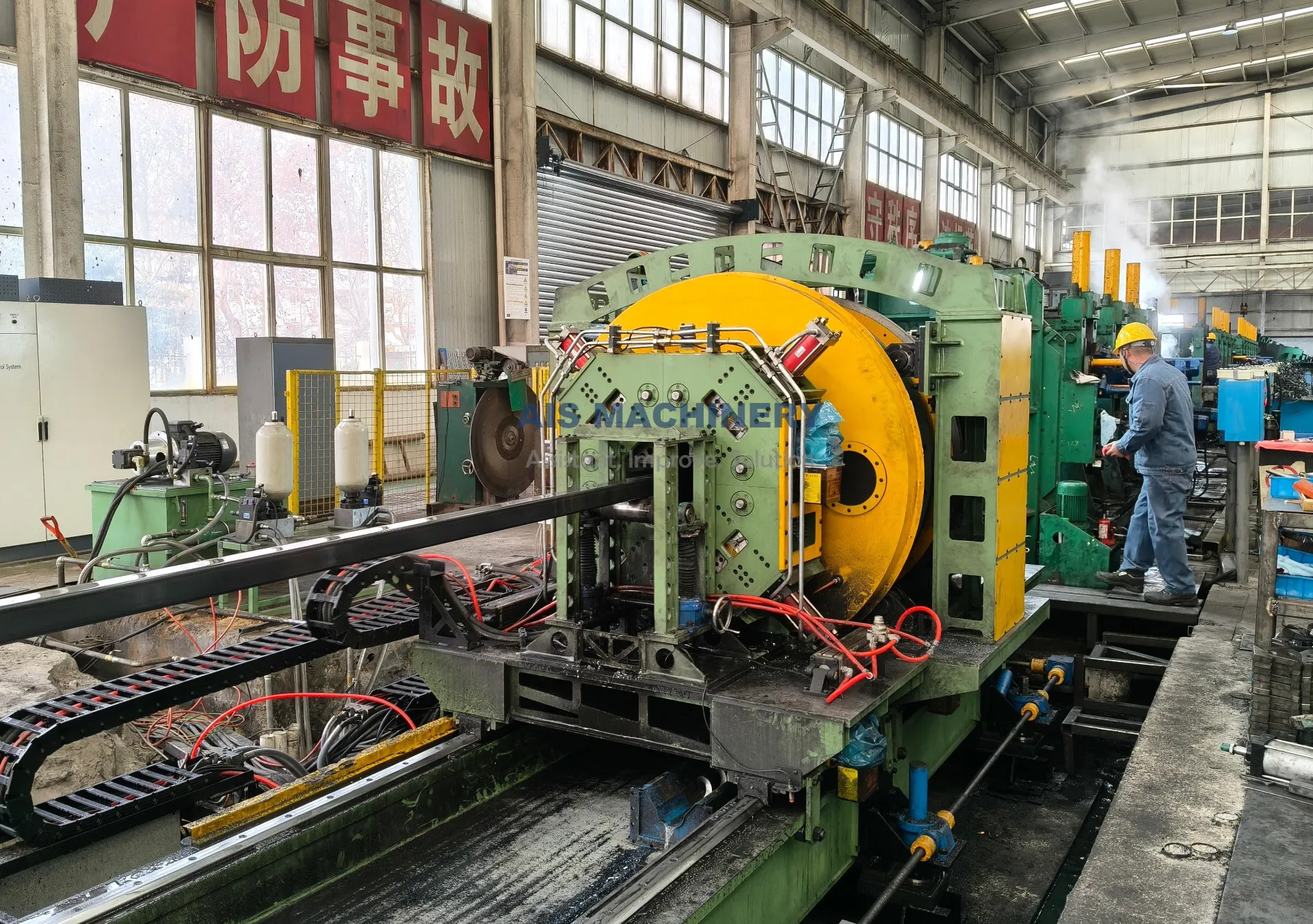

The milling saw is installed in the finishing section of the ERW tube mill.

🔍Typical process flow:

Uncoiler → Slitting Line → Accumulator → Forming Section → HF Welding → Sizing Section → Milling Saw Cut-off → Run-out Table → Packing

It works after sizing and before run-out table or stacking, ensuring accurate tube length for packing and delivery.

Milling Saw vs. Friction Saw vs. Cold Saw

Summary:

• ✅Milling saw: Best balance between cutting quality and production efficiency

• ✅Friction saw: Suitable for very high-speed lines where cut quality is less critical

• ✅Cold saw: Ideal for thick-wall pipes and high-end precision cutting, but with lower speed

Why Choose a Milling Saw for Your Tube Mill?

• Improves overall product quality and appearance

• Reduces downstream finishing and rejection rate

• Suitable for automated, high-efficiency ERW tube mills

• Lower long-term operating cost compared with friction cutting

A milling saw cut-off system is a reliable and cost-effective solution for manufacturers who want both productivity and consistent cutting quality.
