ERW Tube Mill Spare Parts: Key Components, Applications & Reliable Supply

In an ERW tube mill production line, spare parts play a critical role in maintaining stable operation, welding quality, and overall productivity. Timely replacement of high-wear and precision parts helps reduce downtime, control maintenance costs, and extend the service life of the tube mill.

Main ERW Tube Mill Spare Parts

1. Forming & Sizing Rolls

Application: Forming section and sizing section of the ERW tube mill
Function: Shape steel strip into round, square, or rectangular tubes and ensure final dimensional accuracy.
Performance Features:

• 🔹High wear resistance for long service life

• 🔹Precision machining for consistent tube OD and wall thickness

• 🔹Stable performance under continuous high-speed operation

2. Welding Consumable Parts (HF Welding Area)

Typical Parts: Impeder casing, impeder, copper contacts, welding shoes
Application: High-frequency welding section
Function: Support stable current transmission and heat concentration during welding.
Performance Features:

• 🔹Good electrical conductivity

• 🔹Heat resistance for continuous welding conditions

• 🔹Designed to match HF welder and tube mill layout

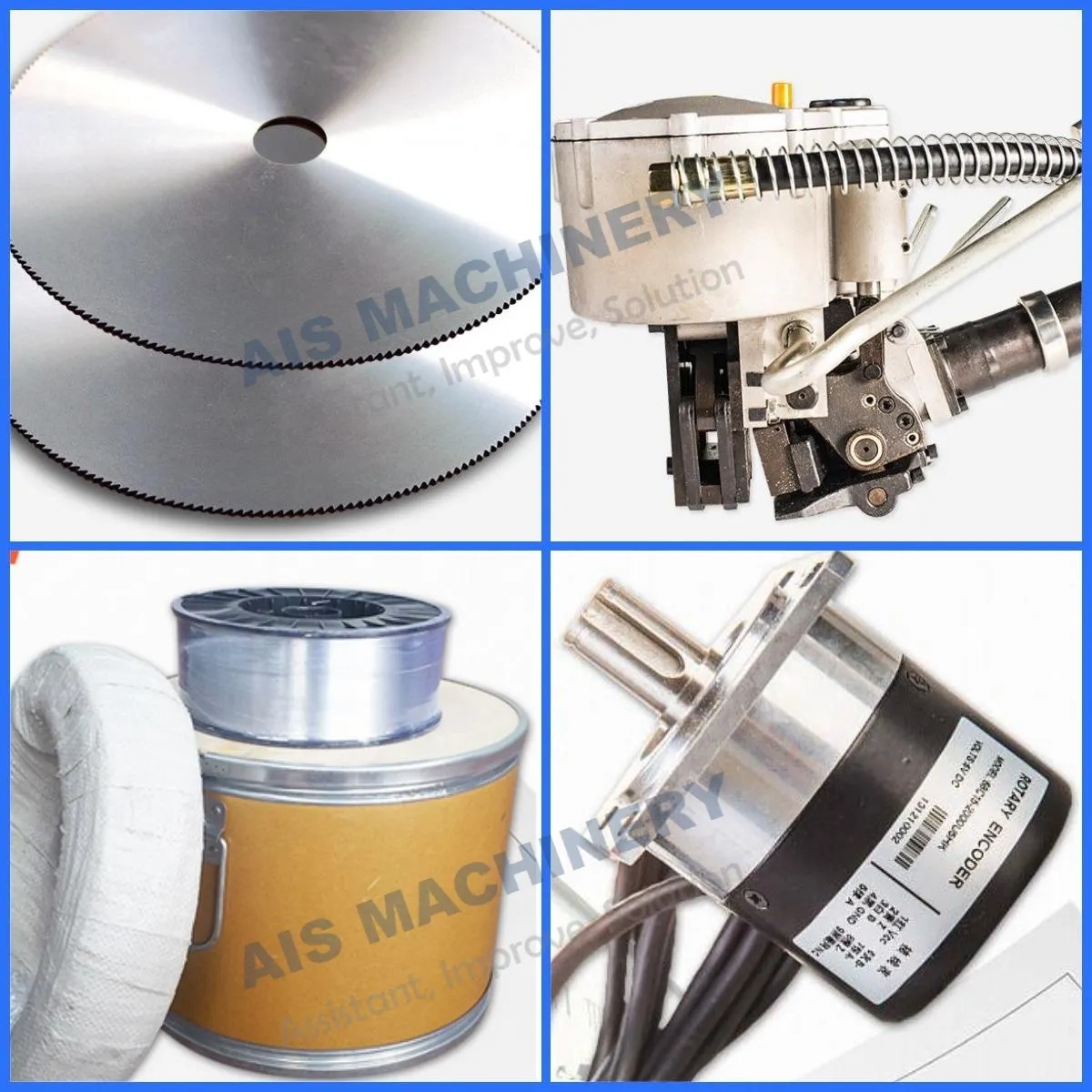

3. Cut-Off & Flying Saw Spare Parts

Typical Parts: Saw blades (HSS or TCT), blade holders, Saw Blade Sharpener
Application: Flying cut-off or cold saw section
Function: Ensure accurate tube length cutting and clean cutting surfaces.
Performance Features:

• 🔹High cutting accuracy

• 🔹Long blade life under high-speed cutting

• 🔹Stable performance for continuous production lines

4. Straightening Machine Spare Parts

Typical Parts: Straightening rolls, shafts, bearings
Application: Straightening section after sizing
Function: Correct tube straightness and reduce residual stress.
Performance Features:

• 🔹High rigidity and fatigue resistance

• 🔹Precision balance for smooth operation

• 🔹Consistent straightening effect for finished tubes

5. Electrical & Automation Spare Parts

Typical Parts: Sensors, encoders, PLC modules, cables
Application: Control system and automation section
Function: Monitor speed, position, and process stability.
Performance Features:

• 🔹High signal accuracy

• 🔹Strong anti-interference capability

• 🔹Compatible with modern ERW tube mill automation systems

•

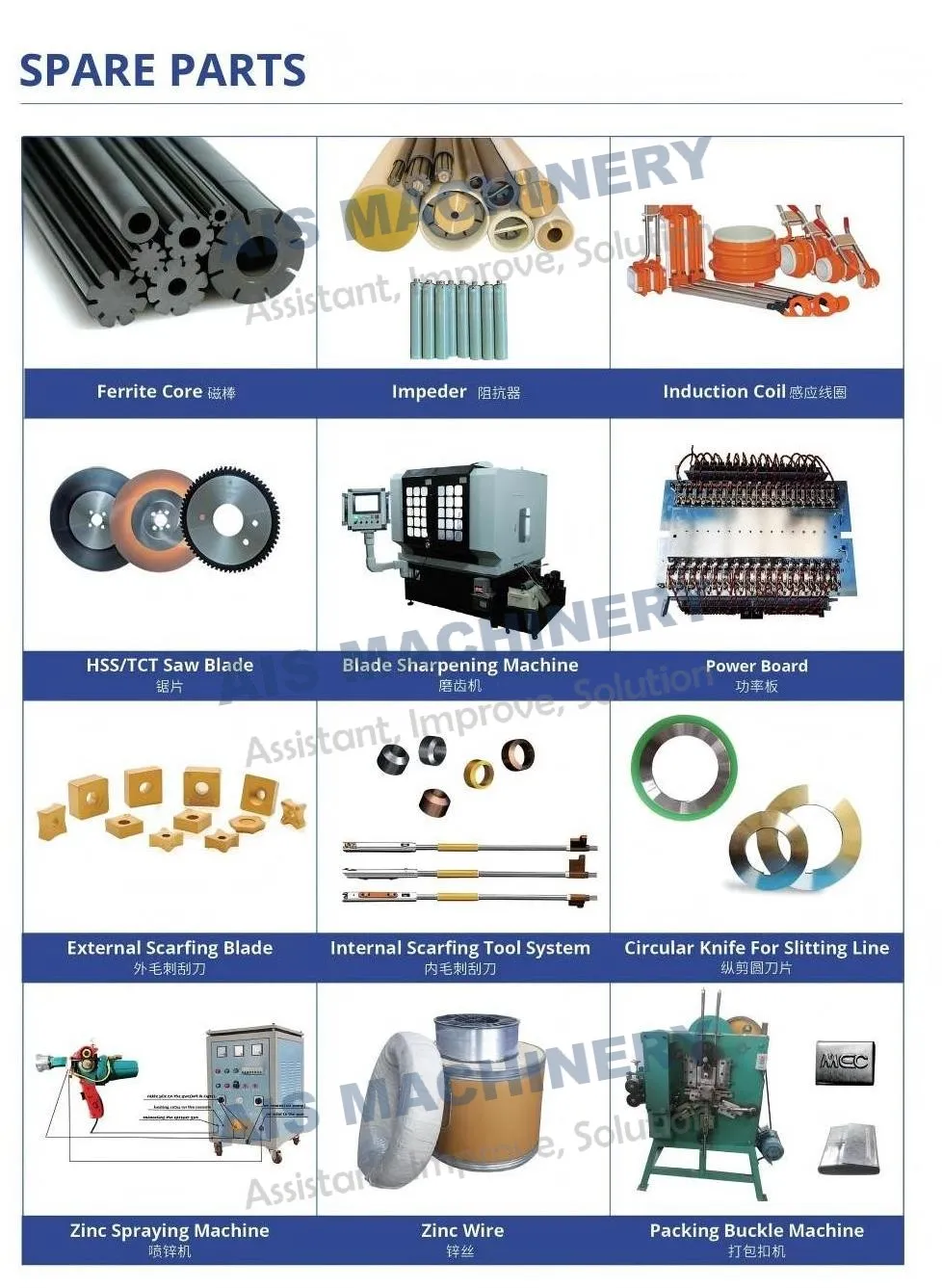

ERW Tube Mill Spare Parts We Supply

Our ERW tube mill can be supplied with a complete range of spare parts for welding, cutting, finishing, and auxiliary processes, ensuring stable operation and easy maintenance of the production line.

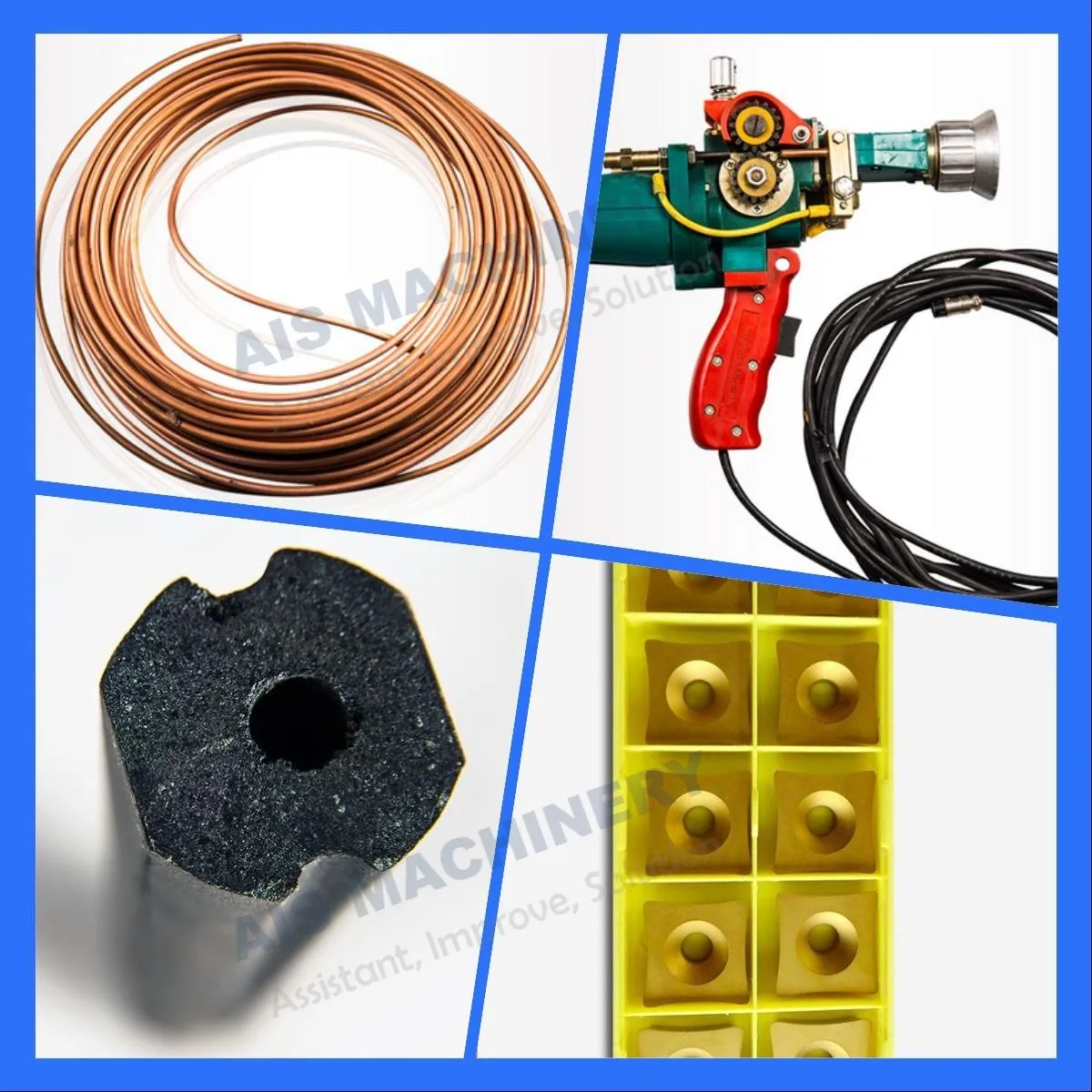

👉High-Frequency Welding Spare Parts

• Ferrite Core
  Improves current concentration in the HF welding zone and enhances welding efficiency.

• Impeder (Impedance Rod)
  Guides high-frequency current inside the tube to reduce power loss and stabilize weld quality.

• Induction Coil
  Provides induction heating for strip edges before welding in the HF welding section.

👉Cutting & Finishing Spare Parts

• HSS / TCT Saw Blade
  Used in flying cut-off or cold saw systems for accurate and high-speed tube cutting.

• Blade Sharpening Machine
  Enables efficient re-sharpening of saw blades to maintain cutting performance.

👉Scarfing & Slitting Spare Parts

• External Scarfing Blade
  Removes external weld bead after HF welding for a smooth tube surface.

• Internal Scarfing Tool System
  Removes internal weld bead to meet pipe quality and application requirements.

• Circular Knife for Slitting Line
  Used for steel coil slitting with stable cutting and long service life.

👉Auxiliary & Packing Spare Parts

• Power Board
  Ensures stable electrical control and power distribution for tube mill equipment.

• Zinc Spraying Machine
  Applied for anti-corrosion zinc coating on tube surfaces.

• Zinc Wire
  Consumable material used in zinc spraying process.

• Packing Buckle Machine
  Used for bundling and packing finished tubes before delivery.
