HF Welder for ERW Tube Mill: How Much Power Do You Really Need?

In an ERW tube mill production line, the High Frequency (HF) Welder plays a decisive role in weld quality, production stability, and line efficiency.

Common HF power options in the market include 150kW, 300kW, and 500kW, each designed for different pipe ranges and production requirements.

Choosing the right HF welder is not about selecting the highest power, but about matching power with pipe size, wall thickness, material, and production speed.

⚡Note: HF welders are available in a wide power range (from low power to high power such as 800 kW or above).

What Is the Role of High Frequency Welder in ERW Tube Mill?

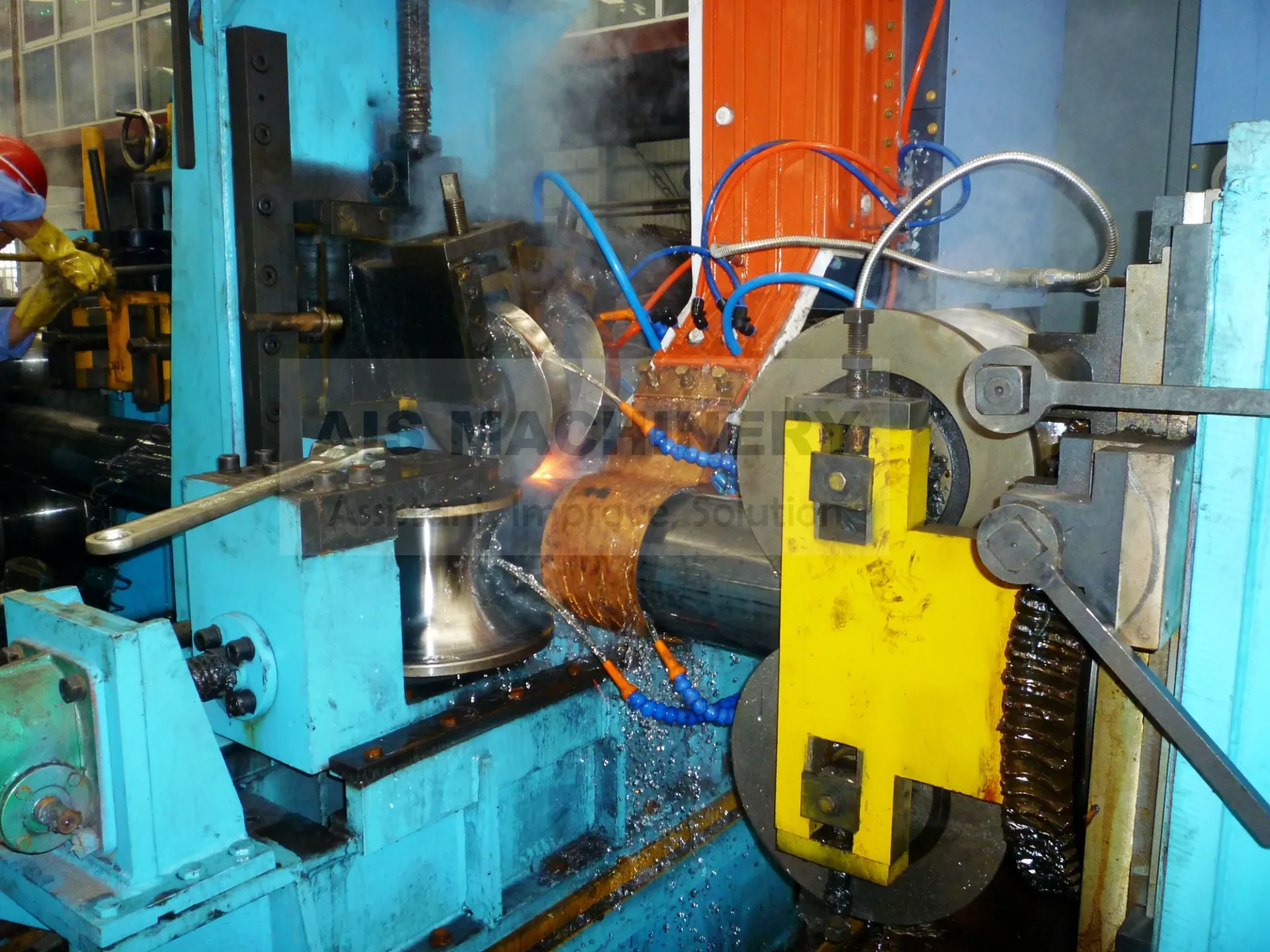

The HF welder uses high-frequency current to heat the strip edges to welding temperature.
After heating, the edges are pressed together by squeeze rolls to form a solid longitudinal weld.

In the ERW tube mill line, the HF welder is the core equipment of the welding section.

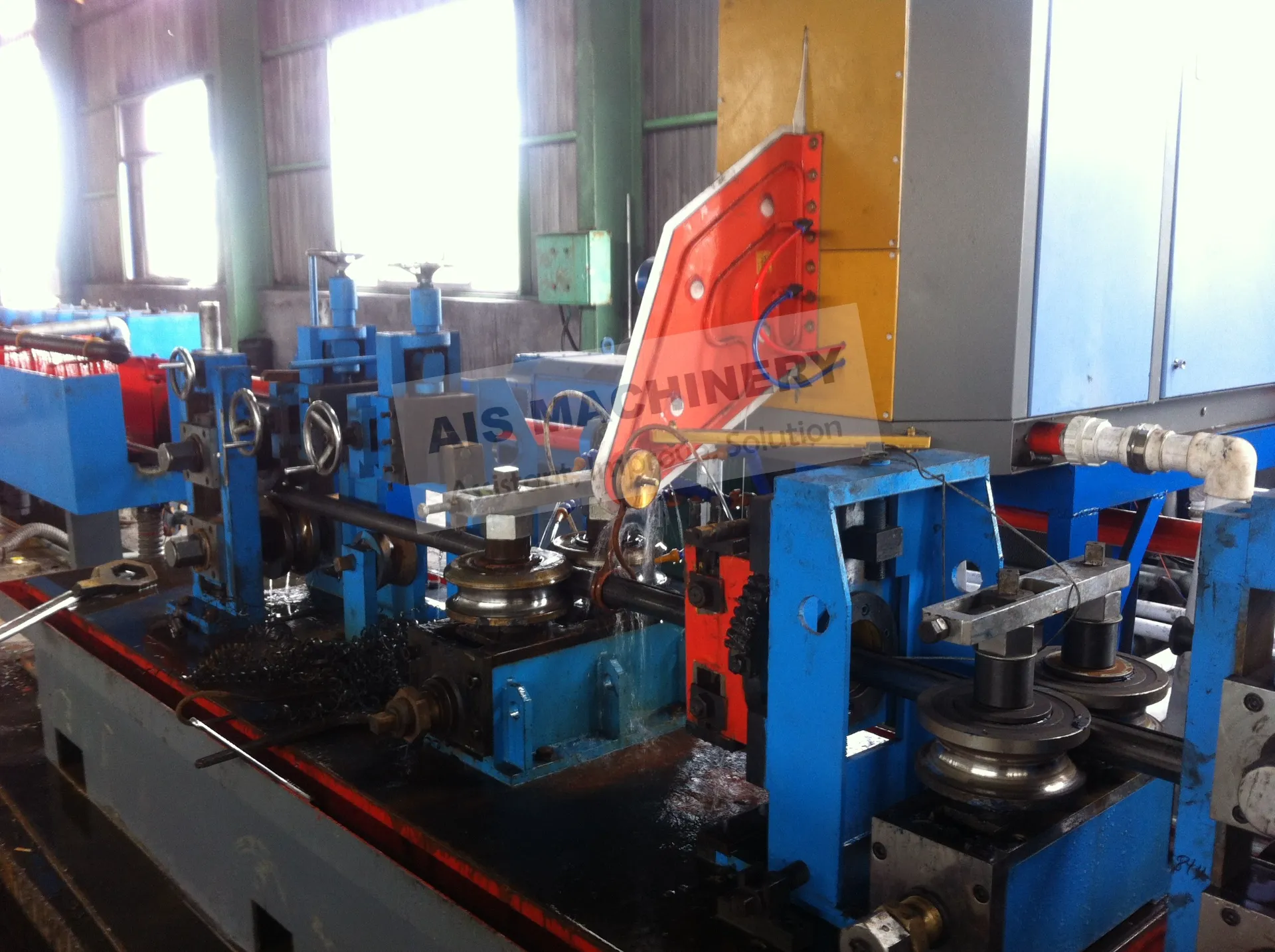

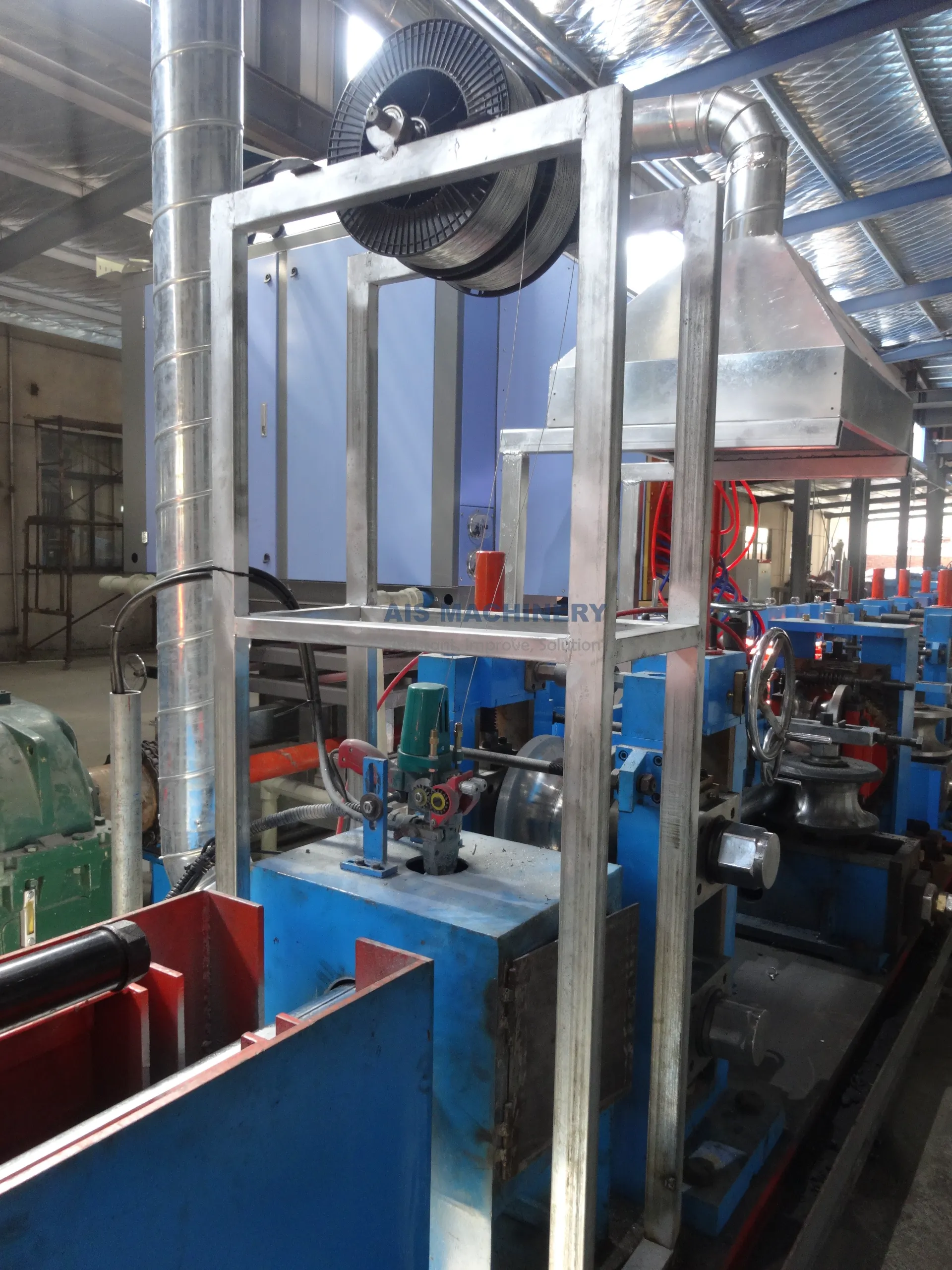

Position of HF Welder in the ERW Pipe Line

A standard ERW pipe line is arranged as:

Uncoiler → Accumulator → Forming Section → HF Welder → Sizing Section → Flying Cut-off → Finishing

The HF welder works together with:

• ⚙️Fin forming rolls

• ⚙️Impeder inside the tube

• ⚙️Squeeze rolls

HF current is applied right before the squeeze point, ensuring proper heating and stable welding.

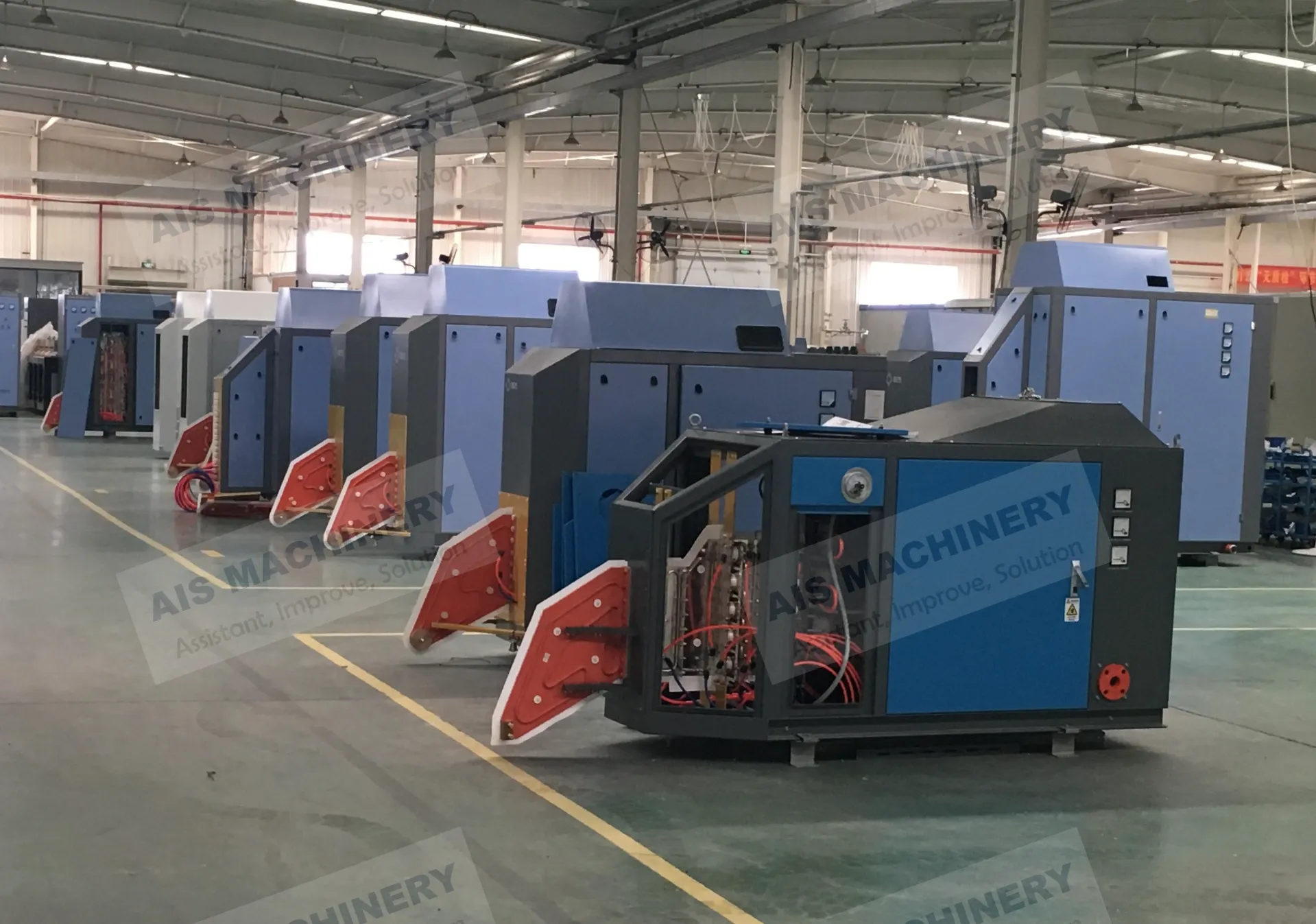

How to Choose Between 150kW, 300kW, and 500kW HF Welder

1. 150kW High Frequency Welder

Typical application:

• Small to medium tube mills

• Thin wall pipes

• Moderate production speed

Features:

• Lower energy consumption

• Suitable for small diameters and light thickness

• Cost-effective for basic production

Limitations:

• Not ideal for thick wall or high-speed welding

• Limited upgrade space for future expansion

2. 300kW High Frequency Welder

Typical application:

• Medium ERW tube mills

• Wider pipe diameter range

• Medium to thick wall pipes

Features:

• Good balance between power and efficiency

• Stable welding at higher speeds

• Widely used in industrial pipe production

Advantages:

• More flexible than 150kW

• Suitable for most standard carbon steel pipes

3. 500kW High Frequency Welder

Typical application:

• Medium to large ERW tube mills

• Large diameter pipes

• Thick wall and high-strength steel pipes

Features:

• Strong heating capacity

• Stable welding at high line speed

• Suitable for demanding production conditions

When to choose 500kW:

• Large pipe OD and thick wall

• High-strength or special steel grades

• High-speed continuous production

• Future expansion requirements

A 500kW HF welder provides more process margin, not just more power.

•
•

Key Factors That Affect HF Welder Power Selection

Pipe Outer Diameter

Larger diameters require higher energy input to heat the strip edges evenly.

Wall Thickness

Wall thickness has a major impact on power demand:

• Thin wall → lower power

• Thick wall → higher power

Material Type

High-strength steel and alloy steel require more stable and sufficient HF power.

Line Speed

Higher welding speed requires higher power to maintain weld temperature.

Future Production Plan

Choosing a higher power HF welder can prevent equipment replacement when pipe specifications expand.

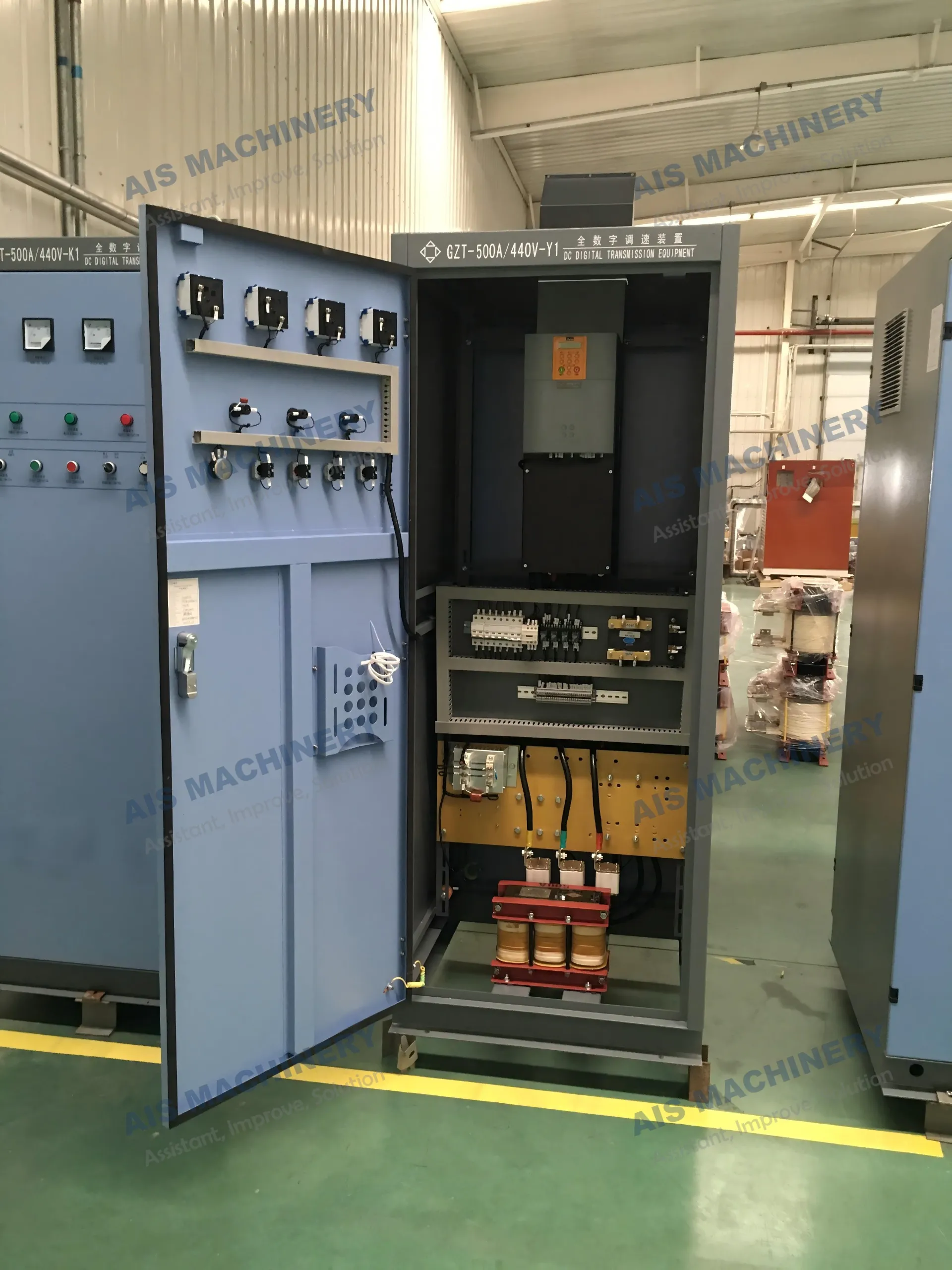

HF Welder Works with Other Welding Devices

For stable ERW welding, the HF welder must be properly matched with:

• Impeder system

• Squeeze rolls

• Forming rolls

• Cooling system

• Online bead removing equipment

A well-matched system ensures consistent weld quality.

Key Engineering Clarification

• 150 kW, 300 kW, and 500 kW cover most standard ERW tube mill applications worldwide.

• Higher power HF welders (such as 800 kW or above) are used for large diameter, thick wall, or special steel pipes, and are not required for most general-purpose tube mills.

• HF power selection must be based on:

  • 🔧Pipe diameter range

  • 🔧Wall thickness range

  • 🔧Material grade

  • 🔧Required welding speed

  • 🔧Future production plan

HF power is selected for process stability, not simply for maximum output.
