What Is an Automatic Shear and Welder?

The Automatic Shear and Welder is a key auxiliary machine used in ERW tube mill production lines to automatically cut and weld the tail of the running steel strip with the head of the next coil.
Its main purpose is to ensure continuous strip feeding into the tube mill without stopping the production line during coil change.

By eliminating manual strip joining and downtime, the automatic shear and welder significantly improves line efficiency, welding stability, and finished pipe consistency.

Position in ERW Tube Mill Line

In a standard ERW tube mill layout, the Automatic Shear and Welder is installed after the accumulator system and works closely with the uncoiling section.

🔍Typical process flow:

Uncoiler → Shear & Welder → Accumulator → Forming Section → HF Welder → Sizing → Cut-off

Upstream equipment:
- • Uncoiler
- • Strip end straightener (if equipped)
Downstream equipment:
- • Horizontal / Vertical Accumulator
- • Forming rolls and welding section

This positioning allows the accumulator to store strip material while the shear and welder performs strip joining, ensuring the tube mill continues running smoothly.

Main Functions & Working Principle

Automatically detects strip tail and head position
Precisely shears strip ends to ensure clean and straight edges
Aligns strip width and thickness accurately

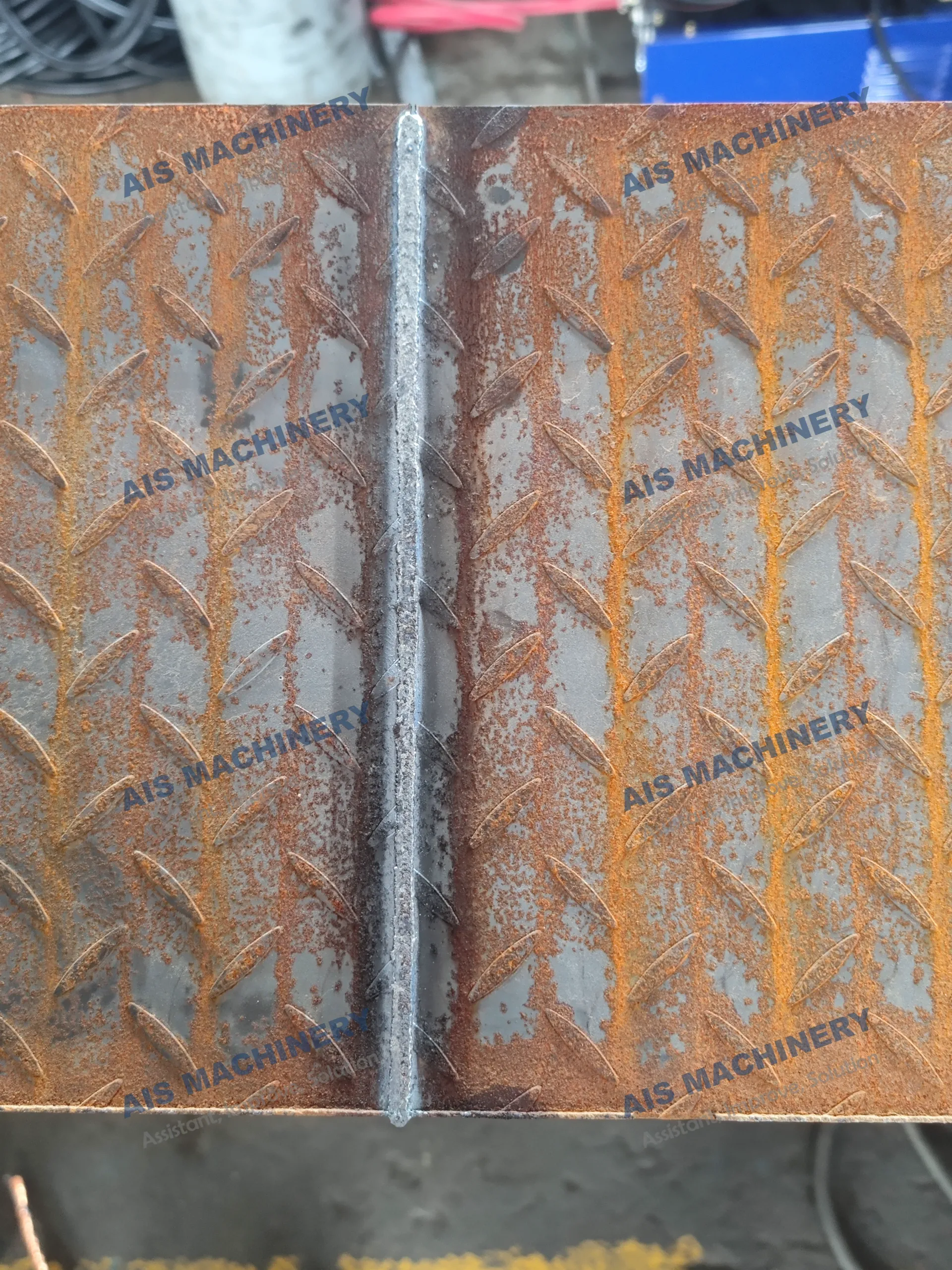

Performs automatic butt welding with stable welding quality
Delivers welded strip smoothly into the accumulator

The entire process is designed to be fast, repeatable, and operator-friendly, reducing human error and improving safety.

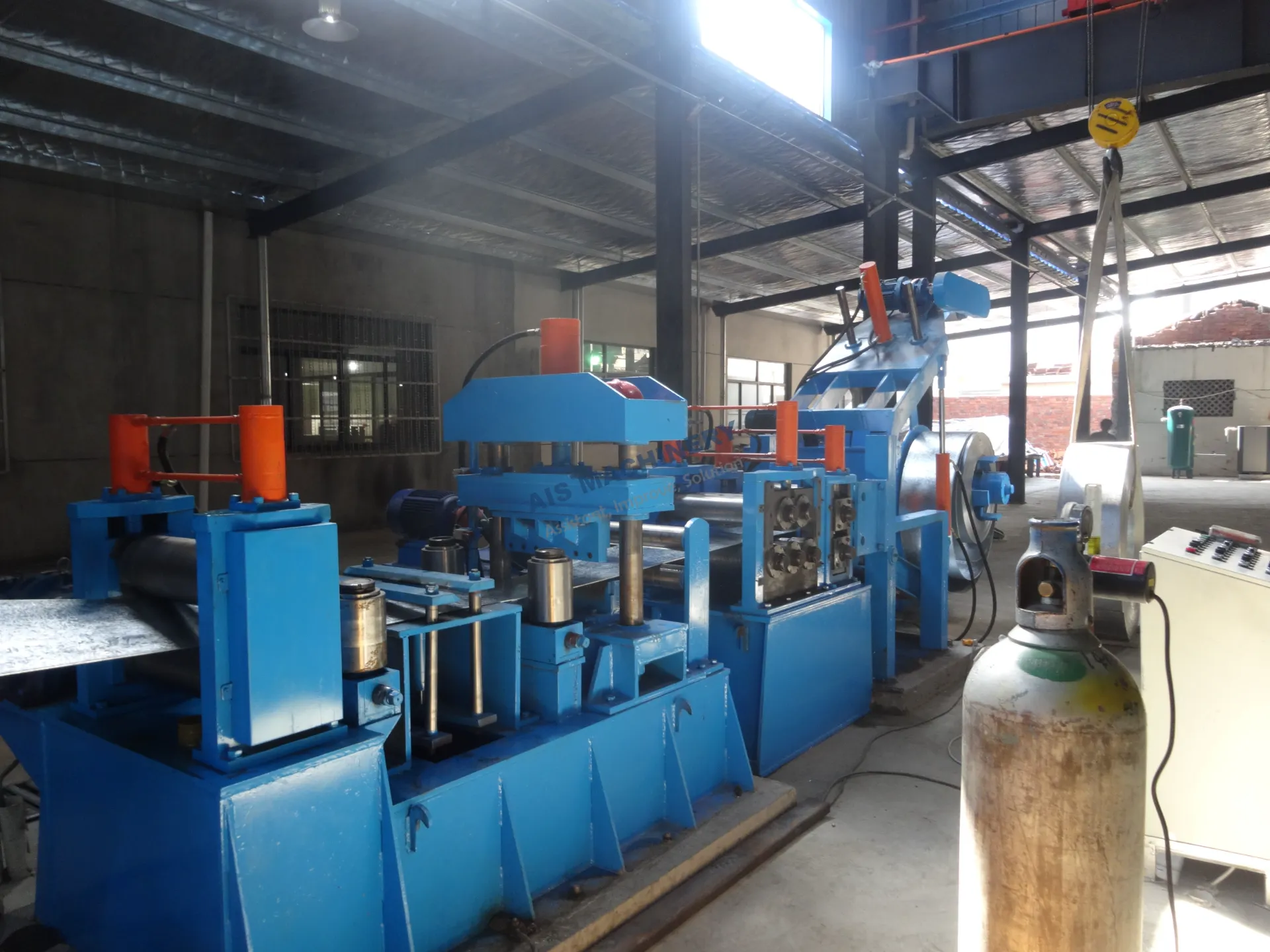

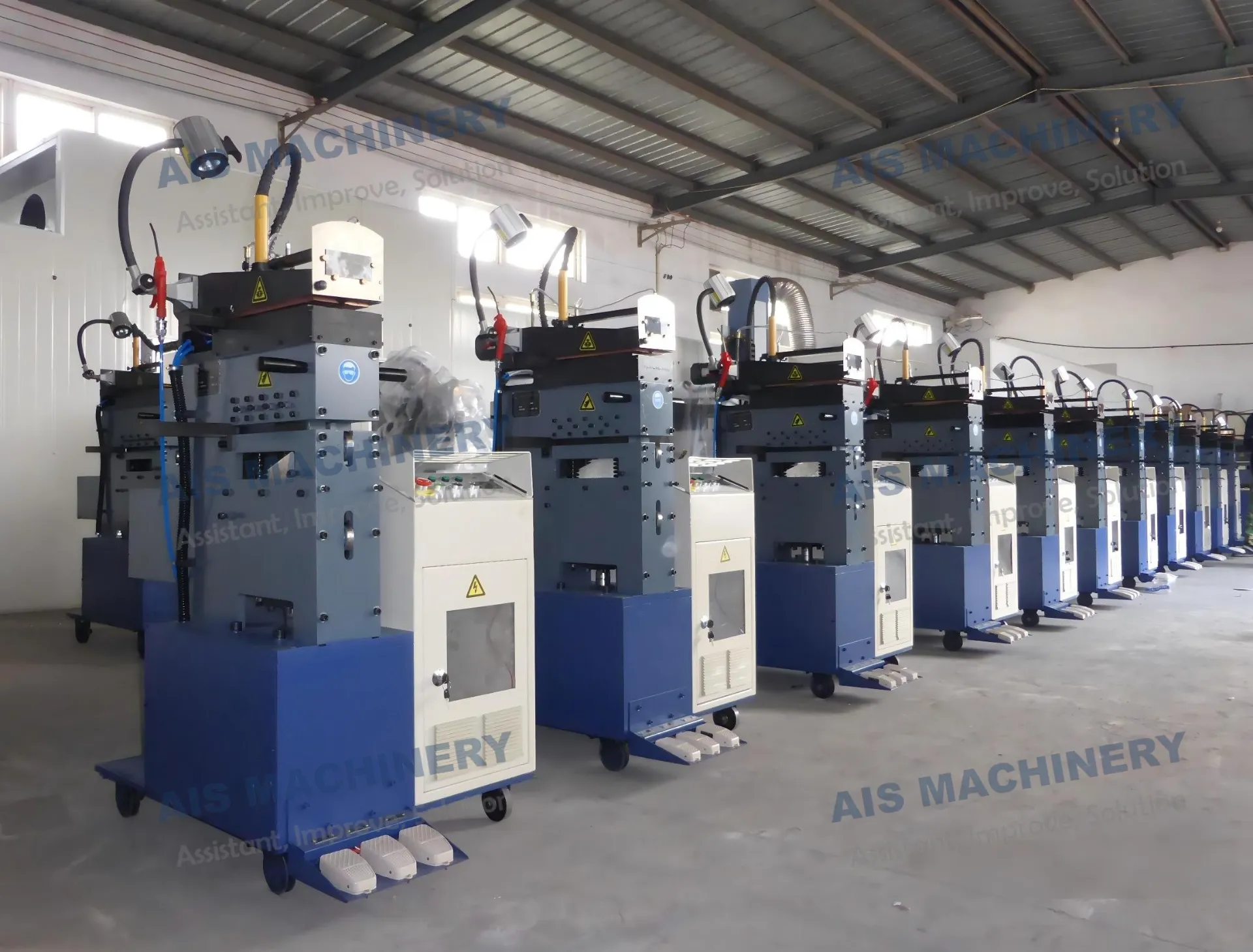

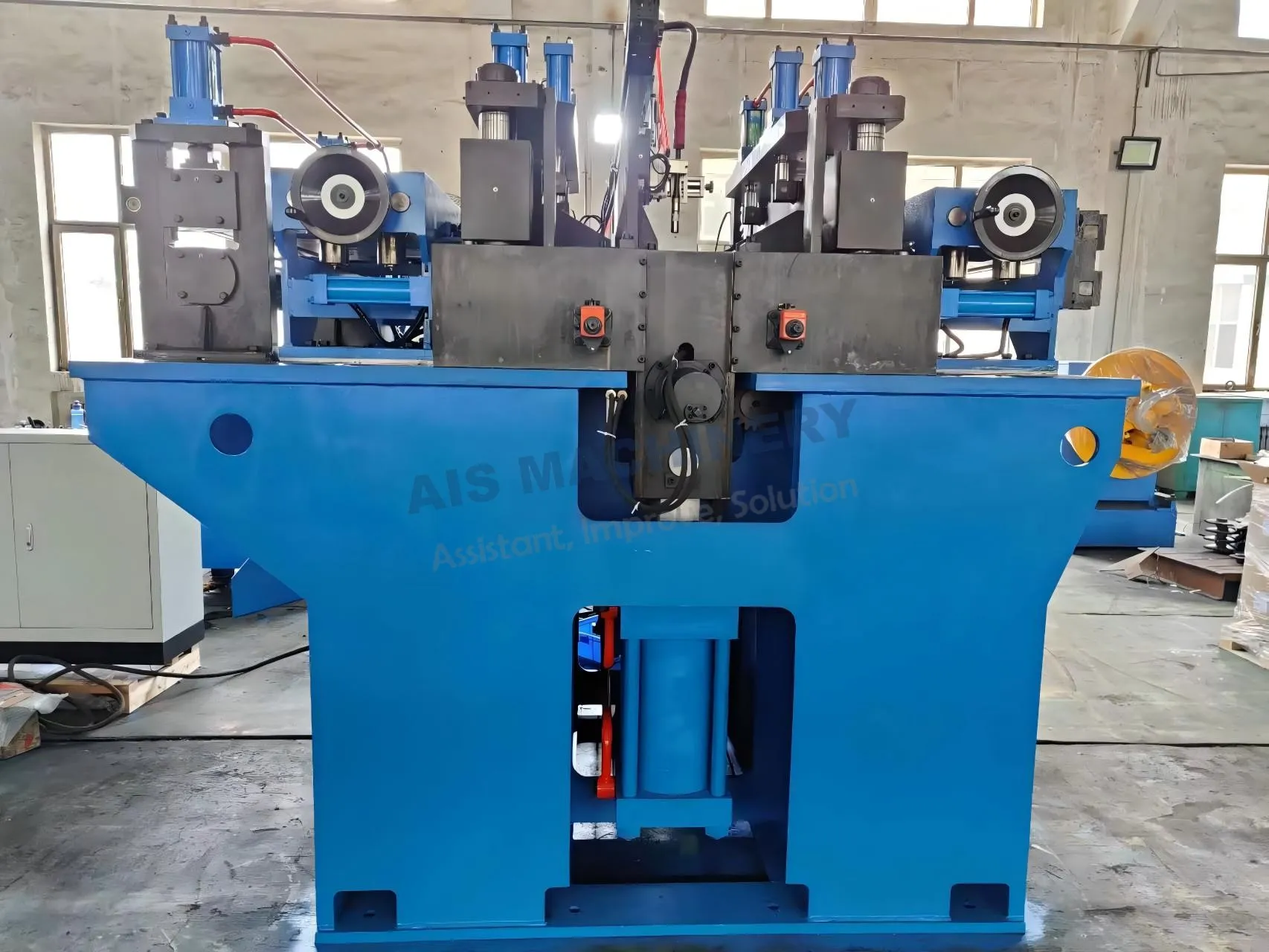

ERW Tube Mill Automatic Shear and Welder

Key Performance Advantages

✅Continuous Production:
Minimizes tube mill downtime during coil change
✅Stable Welding Quality:
Consistent weld seam improves strip feeding and downstream forming stability
✅High Automation Level:
PLC-controlled operation with minimal manual intervention
✅Wide Strip Compatibility:
Suitable for various steel grades used in ERW tube production
✅Improved Productivity:
Especially beneficial for high-speed and large-volume tube mills

Typical Technical Parameters

(Final configuration depends on tube mill size and strip specification)

Item	Specification Range
Strip Width	According to tube mill design
Strip Thickness	Common ERW strip range
Welding Type	Automatic butt welding
Control System	PLC + HMI
Operation Mode	Fully automatic / semi-automatic
Line Speed Matching	Compatible with ERW tube mill speed

Parameters are customized based on tube diameter range, strip material, and production capacity.

Application in ERW Tube Manufacturing

The Automatic Shear and Welder is widely used in:

Carbon steel ERW pipe lines
Structural tube mills
Furniture and precision tube production
High-speed continuous pipe manufacturing lines

It is an essential solution for manufacturers aiming to achieve higher efficiency, lower labor cost, and stable long-term operation.

Why Choose an Automatic Shear and Welder?

For modern ERW tube mills, manual strip welding can no longer meet the demands of speed, safety, and consistency.
An automatic shear and welder helps tube manufacturers:

✔ Reduce production interruption
✔ Improve overall line utilization
✔ Enhance product quality consistency
✔ Support long-term automated operation

Looking for a Shear & Welder Solution for Your Tube Mill?

Our Automatic Shear and Welder can be custom-designed to match your ERW tube mill layout, strip size, and production speed.

📩 Contact us to get technical details, layout integration advice, and a suitable configuration proposal for your tube production line.
