How to Improve Tube Cutting Quality with a Circular Saw Blade Sharpener

Jan . 14, 2026 00:00

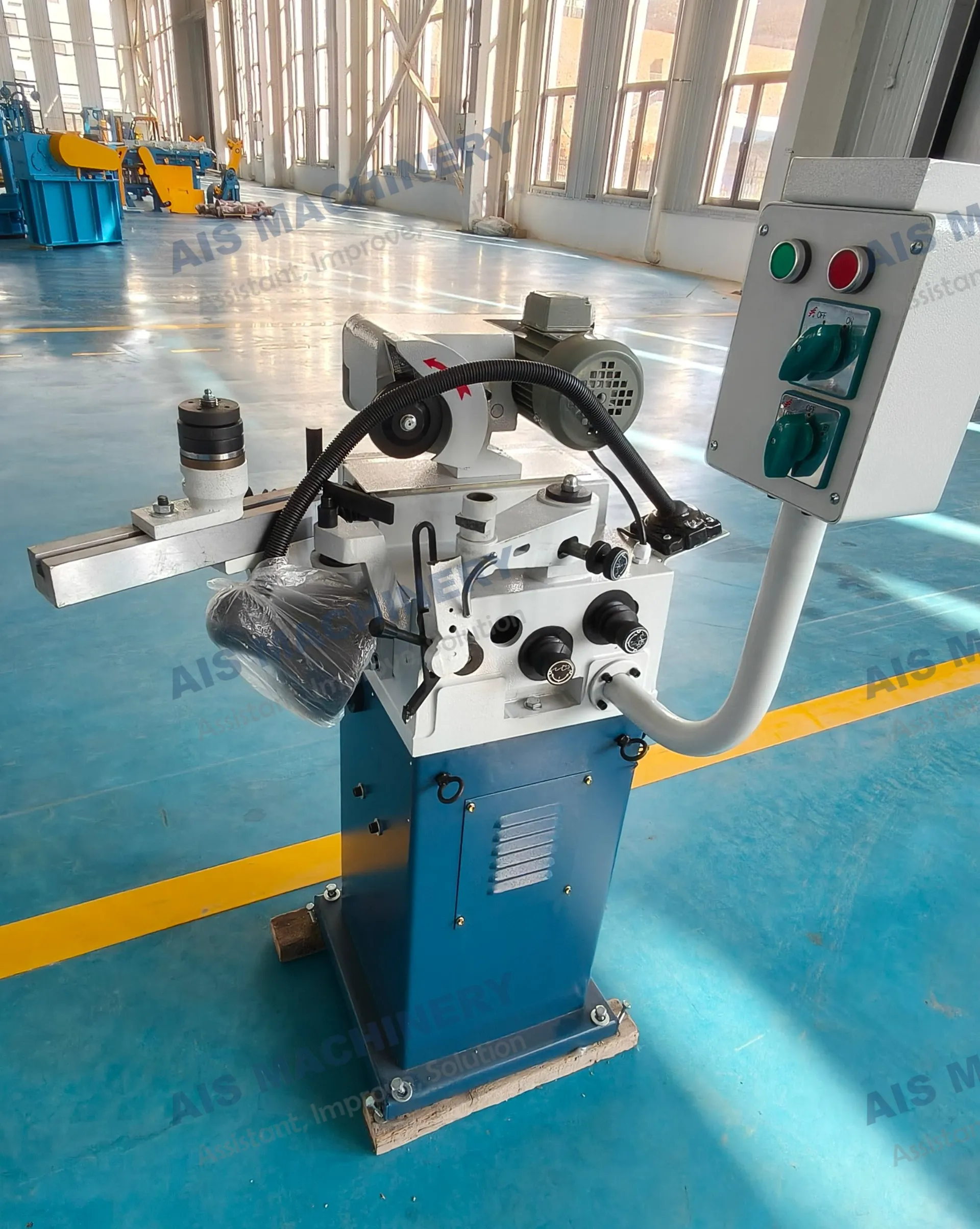

An Automatic Circular Saw Blade Sharpener is a precision grinding machine designed to restore and maintain the cutting performance of circular saw blades used in steel tube and pipe production. In ERW tube mills, circular saw blades are critical consumables, widely used for flying cut-off, cold cutting, and length cutting of welded pipes. A stable, accurate blade sharpening solution directly affects cutting quality, tube end finish, production efficiency, and operating cost.

This automatic sharpener provides consistent tooth geometry, controlled grinding accuracy, and repeatable results, making it ideal for manufacturers operating ERW tube mills at medium to high production speeds.

Main Applications

The Automatic Circular Saw Blade Sharpener is mainly used for:

🔹Re-sharpening HSS circular saw blades
🔹Re-sharpening TCT (Tungsten Carbide Tipped) saw blades
🔹Restoring blade tooth shape after long production cycles
🔹Extending saw blade service life and reducing replacement cost

Application in ERW Tube Mill

In an ERW Tube Mill line, this machine is closely related to the following sections and equipment:

1. Flying Cut-Off / Cold Saw System

📌Circular saw blades are installed on:

Flying cold saw
Stationary cold cutting machine

📌The sharpener is used offline to maintain these blades, ensuring:

Clean and burr-free pipe ends
Stable cutting length accuracy
Reduced cutting vibration and noise

2. Finishing & Packaging Section

Well-sharpened blades improve cutting consistency, which directly benefits:

Automatic length control
Bundling and packaging accuracy
Overall finished tube appearance

3. Related Equipment

The sharpener works together with:

✅Circular cold saw machines
✅Flying cut-off units
✅Automatic tube length measuring systems
✅Bundling machines

Key Features & Advantages

Fully Automatic Grinding Cycle: Reduces manual intervention and operator dependency
High Grinding Accuracy: Maintains consistent tooth angle and tooth height
Wide Blade Compatibility: Suitable for different diameters and tooth profiles
Stable Grinding Quality: Ensures repeatable sharpening results for batch production
Cost Saving: Extends blade life and reduces blade consumption
Easy Operation: User-friendly control system for quick setup

Typical Technical Parameters

(Parameters may vary depending on blade type and customer requirements)

Item	Specification
Applicable Blade Diameter	200 – 600 mm (optional up to 800 mm)
Blade Thickness	1.5 – 6 mm
Tooth Type	HSS / TCT
Tooth Pitch	Adjustable
Grinding Accuracy	≤ ±0.01 mm
Grinding Wheel Speed	Adjustable
Control System	PLC / CNC optional
Operation Mode	Fully automatic

Why Blade Sharpening Matters in ERW Production

In ERW tube mills, cutting quality is often underestimated. Poorly sharpened blades may cause:

Burrs on tube ends
Deformation of thin-wall tubes
Increased scrap rate
Higher cutting noise and vibration

A professional Automatic Circular Saw Blade Sharpener helps maintain cutting stability and ensures consistent tube quality throughout long production runs.

FAQ – Common Customer Questions

Q1: Where is this sharpener used in an ERW tube mill?
A: It is used offline to sharpen circular saw blades installed on flying cut-off and cold saw machines in the finishing section.

Q2: What types of blades can be sharpened?
A: The machine is suitable for HSS and TCT circular saw blades commonly used for steel tube cutting.

Q3: Does blade sharpening really affect tube quality?
A: Yes. Properly sharpened blades reduce burrs, improve tube end finish, and help maintain accurate cutting length.

Q4: Is the sharpening process automatic?
A: Yes. The machine operates with an automatic grinding cycle to ensure consistent tooth geometry and stable results.

Q5: Can it be customized for different blade sizes?
A: Yes. Blade diameter, tooth profile, and control configuration can be customized according to customer requirements.
