Precision Scarfing Tool for Effortless Weld Seam Removal

Jul . 25, 2025 16:01

The Critical Role of Scarfing in Modern Tube Production

In high-frequency welding of steel tubes, excess weld material creates internal burrs that compromise product quality. Scarfing tools have emerged as the precision solution for this universal challenge. These specialized instruments trim and smooth internal weld protrusions during production, ensuring tubes meet stringent quality standards across automotive, furniture, and hydraulics applications.

The evolution of scarfing tool technology represents one of the most significant advancements in tube manufacturing efficiency. With market research indicating a 15% annual growth in precision tube requirements (Transparency Market Research, 2023), scarfing inserts have become indispensable for manufacturers prioritizing tolerance precision and surface quality.

Technical Specifications & Performance Data

Parameter	Standard Range	Premium Scarfing Inserts	Tolerance
Material Hardness (HRC)	58-62	62-65	±1.5
Maximum Operating Speed (m/min)	60-80	120-150	N/A
Surface Finish (Ra μm)	0.8-1.2	0.4-0.6	±0.1
Min. Wall Thickness (mm)	1.2	0.8	-0.1/+0.05
Wear Resistance (life in km)	15-20	35-45	±10%

Diverse Industrial Applications of Scarfing Technology

Automotive Hydraulic Systems

In brake and fuel lines, scarfing tool precision ensures zero contamination risk by completely remove weld seam imperfections. Surface roughness below 0.6μm Ra is critical for high-pressure fluid integrity. Premium scarfing inserts enable 45% longer component lifespan according to SAE International benchmarks.

Medical & Food Grade Tubing

When internal weld removal fails, bacterial growth occurs in crevices. Our scarfing inserts achieve complete seam elimination with surface finishes meeting 3-A Sanitary Standards. The patented alignment system prevents material rollover - a common failure point in conventional weld removal systems.

HEBEI AIS MACHINERY EQUIPMENT CO., LTD

Our Precision Engineering Solutions

Established in 2007, HEBEI AIS specializes in tube mill solutions with precision scarfing systems at the core. Our 14,000m² manufacturing facility features ISO 9001-certified production lines. The Tube Inside Scarfing Inserts represent our flagship innovation, delivering industry-leading performance metrics.

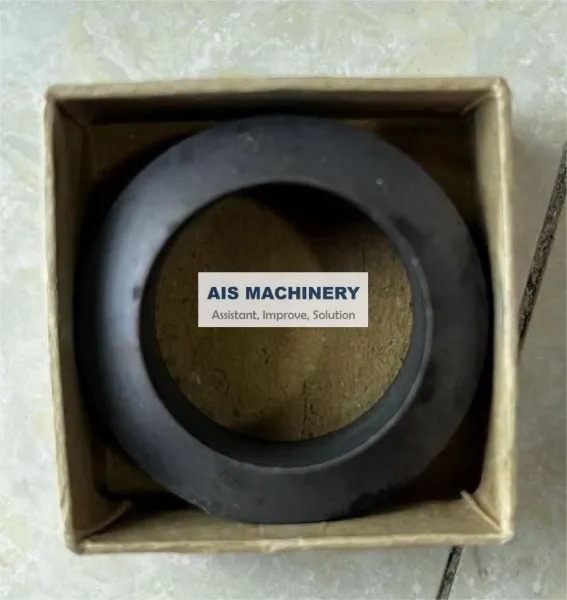

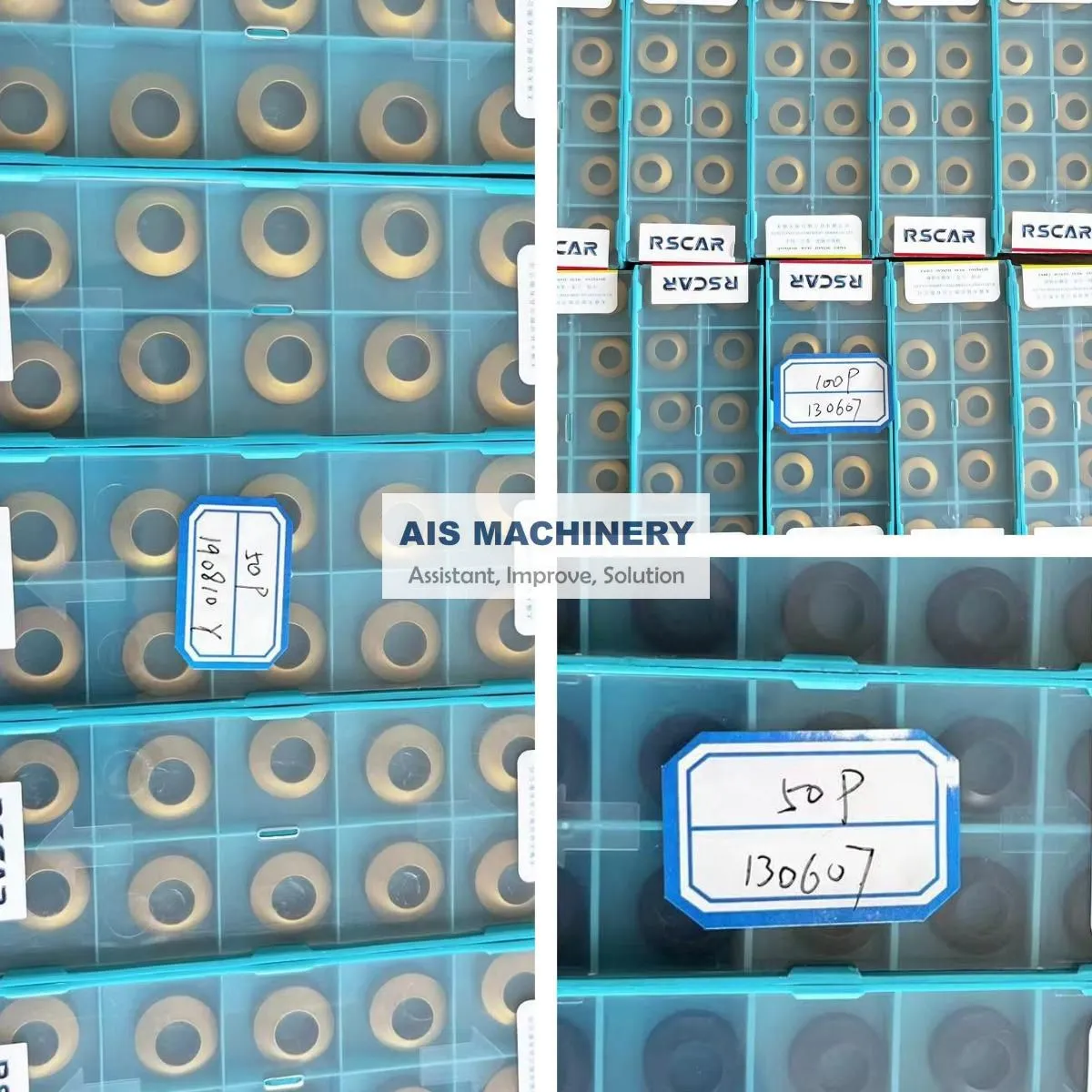

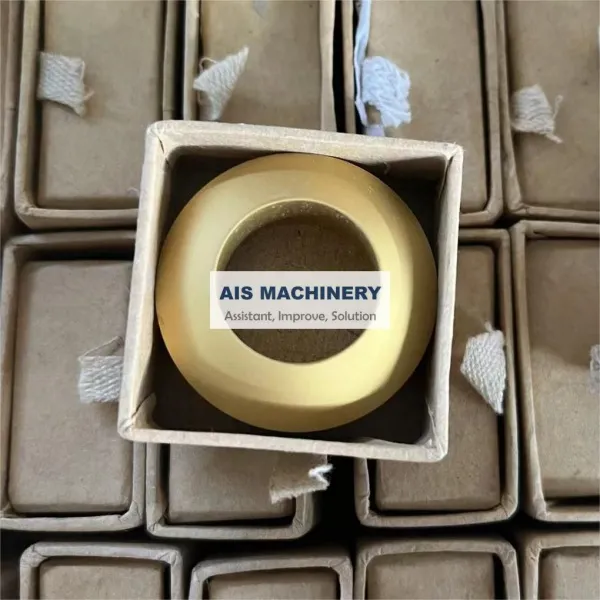

Product Highlight: Tube Inside Scarfing Inserts - Engineered with nano-ceramic coatings for extraordinary wear resistance, capable of processing 45+ km of tubing before requiring replacement.

Connect With Our Experts

Visit: www.aistubemill.com

Tel: 86-15931396727

Mobile: 86-15176910262

Email: LINDA@AISMACHINERY.COM

Address: RM604 SHENXING BUILDING, XINHUA STREET, SHIJIAZHUANG CITY, HEBEI PROVINCE, CHINA (ZIP: 050000)

Request Technical Specifications »

Technical Expertise: Scarfing Tool FAQ

Q: What carbide grades are optimal for scarfing inserts in stainless steel applications?

A: For austenitic stainless grades (304/316), we recommend micrograin carbide substrates with 10-12% cobalt content and multilayer PVD coatings. This combination provides the necessary toughness while maintaining hardness above 1500 HV to prevent built-up edge formation.

Q: How does cutter geometry impact weld removal efficiency?

A: Optimized scarfing inserts feature variable helix angles (35-42°) that prevent harmonic vibrations during operation. The patented chipbreaker geometry reduces cutting forces by 30% compared to conventional designs while ensuring continuous chip evacuation - critical for high-speed operations above 100 m/min.

Q: What installation tolerances ensure proper scarfing performance?

A: Axial alignment must be maintained within ±0.05mm and radial runout below 0.01mm TIR. Our V-block mounting system incorporates laser-etched positioning guides that enable installation accuracy within 15 microns - significantly improving tool life and cut consistency compared to conventional clamping methods.

Q: How do cooling requirements differ for aluminum vs. steel scarfing applications?

A: Aluminum scarfing requires emulsion concentrations of 8-10% delivered at 100-120 psi through precisely angled nozzles. For steel applications, minimum quantity lubrication (MQL) systems delivering 30-50 ml/hour of plant-based ester oil provide sufficient cooling while eliminating waste treatment costs associated with traditional flood coolant.

Q: What surface finish improvements can premium scarfing inserts achieve?

A: Our advanced scarfing systems consistently achieve Ra 0.3-0.5μm on steel surfaces - equivalent to precision ground finishes. This represents a 60% improvement over standard weld removal operations and eliminates secondary finishing operations for most fluid transfer applications.

Q: How frequently should scarfing inserts be replaced?

A: Tool life varies with material hardness and operating speeds. Our premium inserts average 35-45km of processing for mild steels at 80 m/min. Automatic wear monitoring systems detect edge degradation at 15% efficiency loss, triggering replacement before quality deviations occur - typically every 120-150 production hours.

Q: What safety protocols are essential for scarfing operations?

A: Implementation requires chip containment systems rated for 10,000+ RPM operations, electromagnetic clutch braking (

Industry Validation & Research References

1. "High-Speed Weld Removal Technologies" - Journal of Manufacturing Processes (2023) https://doi.org/10.1016/j.jmapro.2023.05.118

2. ASME B31.3 Standards for Process Piping Internal Surface Finishes

3. "Tubular Product Quality Benchmark Report" - International Tube Association (2024) https://www.itamembers.org/tube-quality-report-2024

4. SAE J2578 Standard for Fuel and Brake Line Tubing

5. "Cutting Tool Coatings for Extreme Applications" - CIRP Annals (2022) https://doi.org/10.1016/j.cirp.2022.04.025
