What is an Impeder and Ferrite Rods in ERW Tube Mill?

Apr . 24, 2026 08:54

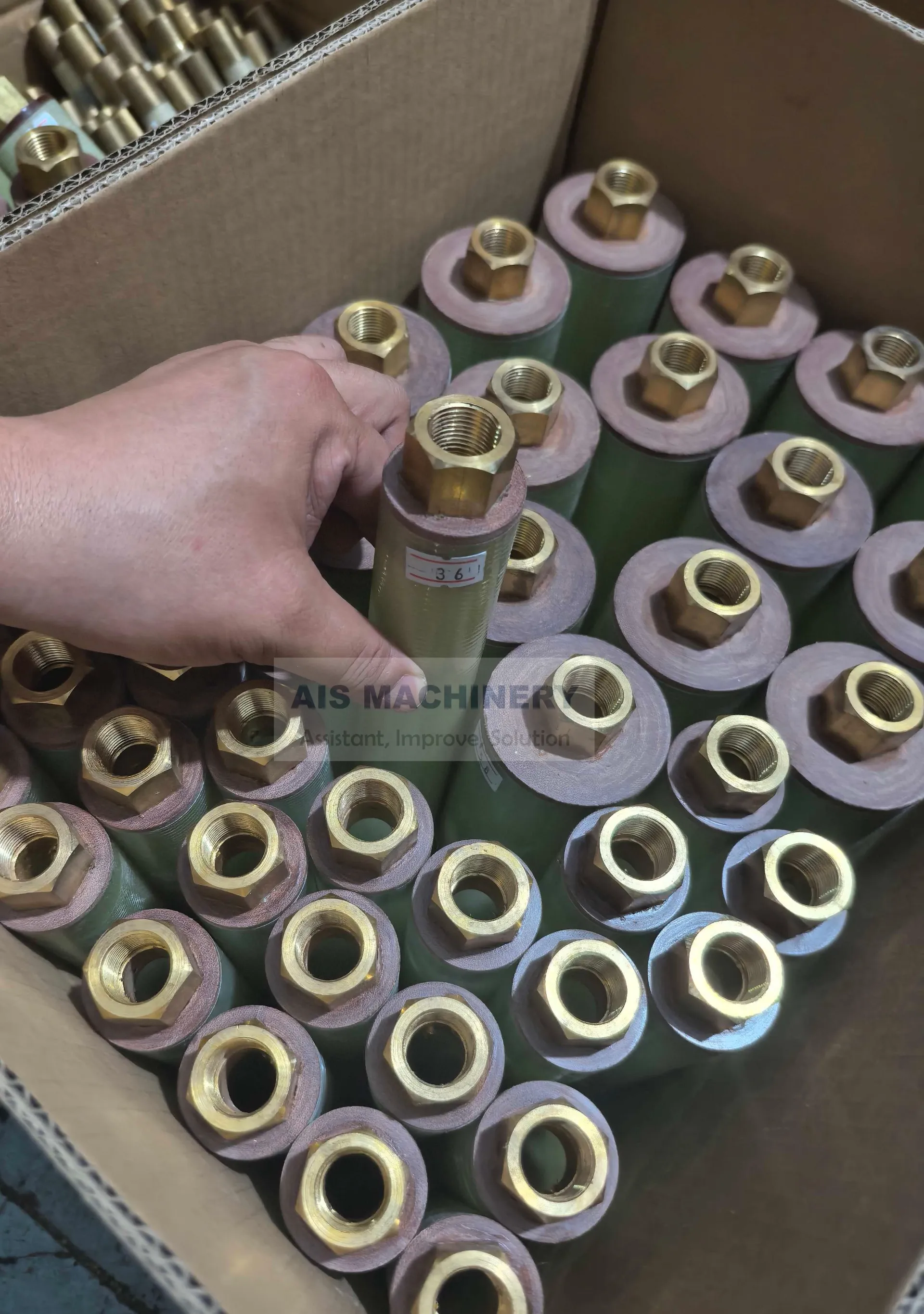

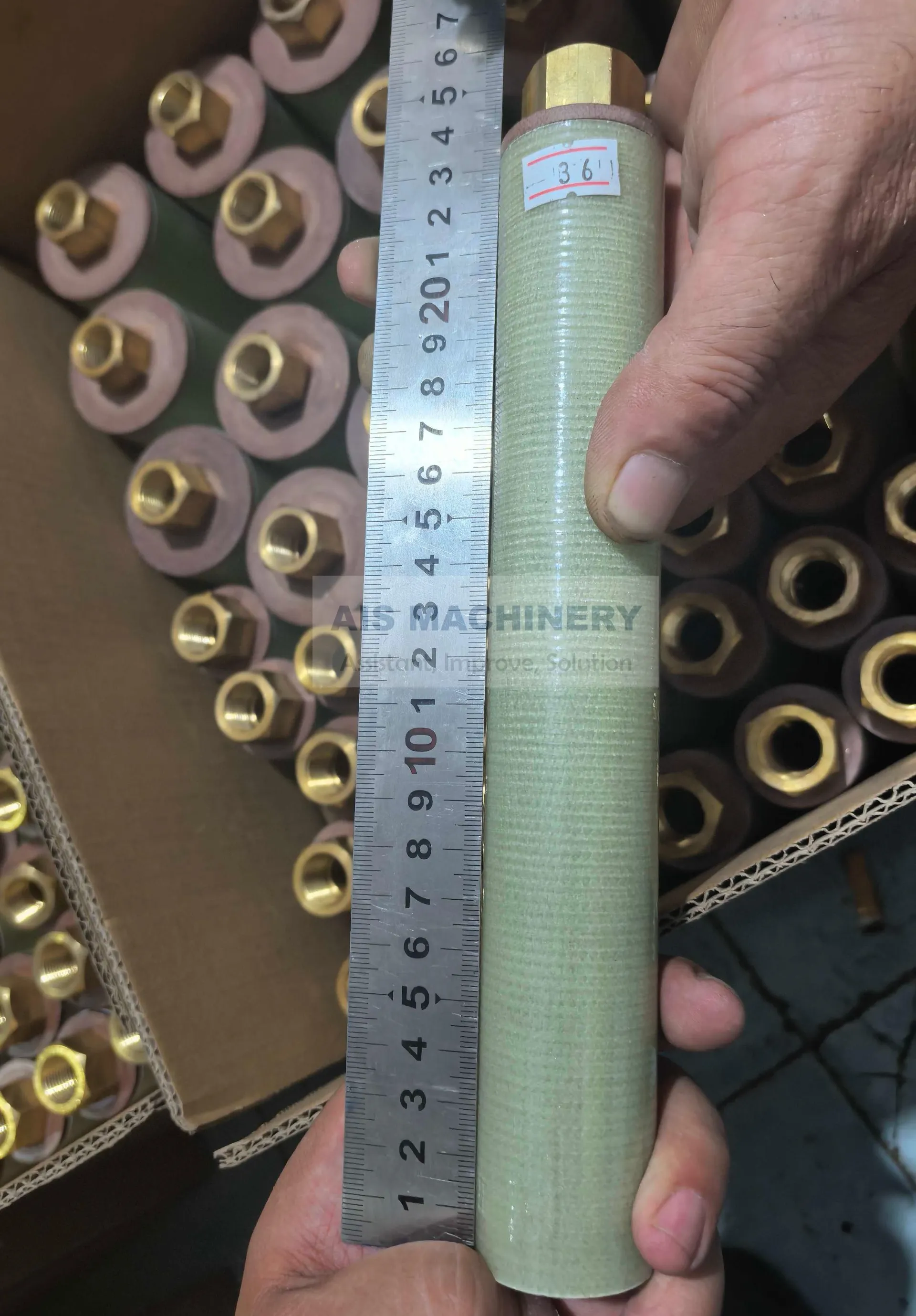

1. What is an Impeder?

In an ERW tube mill (Electric Resistance Welding Tube Mill), an impeder is a key component used during the high-frequency welding process.

Its main job is simple:

👉 Improve welding efficiency and weld quality

It is installed inside the steel pipe, right at the welding zone.

How it works (easy explanation)

During high-frequency welding:

Current tends to flow randomly inside the tube
This causes energy loss and weak welding

The impeder:

Forces the current to concentrate on the weld seam
Reduces energy waste
Increases heating efficiency

✅ Result:

Stronger weld seam
Lower power consumption
More stable production

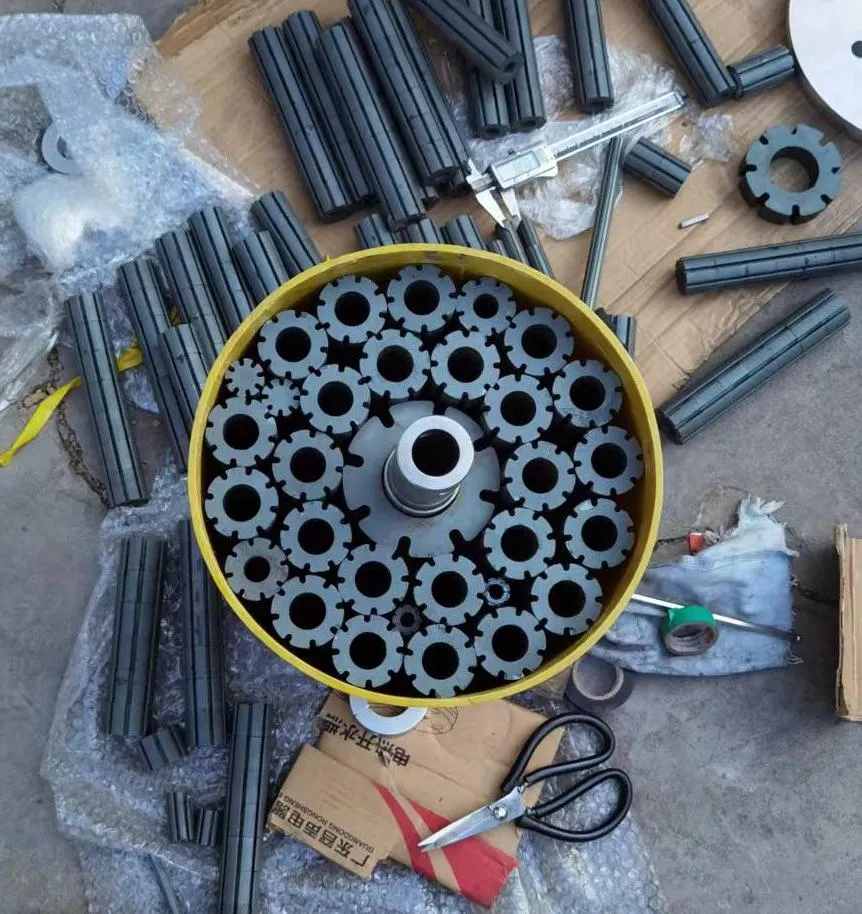

2. What are Ferrite Rods?

Ferrite rods are the core material inside the impeder.

You can think of it like this:

⚡Impeder = container / structure

⚡Ferrite rods = the “working core”

Function of ferrite rods

Ferrite rods are made of special magnetic material. They:

Increase magnetic permeability
Guide high-frequency current
Reduce current dispersion
Improve impedance effect

Without ferrite rods, the impeder cannot work effectively.

3. Relationship Between Impeder and Ferrite Rods

Very straightforward:

🔥Ferrite rods are the heart of the impeder

Item	Role
Impeder	Complete assembly (housing + cooling + structure)
Ferrite Rods	Core functional material inside

💡 In short:

No ferrite rods → no real impedance effect
Better ferrite rods → better welding quality

4. Role in ERW Tube Mill Production Line

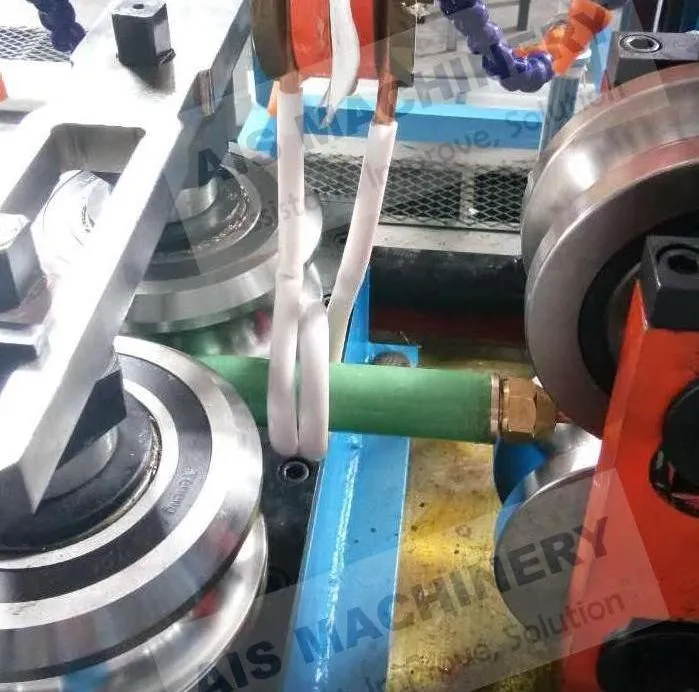

In a typical ERW tube mill line, the impeder is used at:

⚠️Welding section (after forming, before squeezing rolls)

Process position:

Forming → HF Welding + Impeder → Sizing → Cutting

What it improves:

Weld seam strength
Heating efficiency
Production speed
Energy saving

5. How to Choose the Right Impeder?

Choosing the right impeder is very important. A wrong selection can lead to:

❌ Poor weld quality
❌ Overheating
❌ Frequent damage
❌ High cost

Key factors to consider:

1. Tube size (OD & wall thickness)

Larger pipes → larger impeder required
Thicker wall → stronger impedance needed

2. Frequency of welding machine

High frequency requires high-quality ferrite rods
Matching is critical

3. Cooling method

Water-cooled impeder is most common
Ensure stable cooling to avoid ferrite damage

4. Production speed

High-speed lines need higher performance impeder

5. Ferrite quality

High permeability = better performance
Good thermal resistance = longer life

6.Common Impeder Problems & Quick Solutions

In daily production, impeder issues are quite common and can directly affect welding quality and efficiency.

Overheating or burning → Usually caused by poor cooling or incorrect size
👉 Solution: Check water flow and ensure proper impeder matching
Short service life → Often due to low-quality ferrite rods
👉 Solution: Use high-permeability, heat-resistant ferrite materials
Unstable welding seam → Current not properly concentrated
👉 Solution: Confirm correct impeder position and suitable ferrite configuration
Frequent damage or cracking → Excessive load or wrong application
👉 Solution: Re-evaluate tube size, wall thickness, and welding parameters

🔍Tip: In most cases, impeder problems are not just about the product itself — they are related to selection, cooling, and working conditions.

7. Final Tips for Buyers

If you want stable production:

✔ Choose the correct size
✔ Use high-quality ferrite rods
✔ Ensure proper cooling system
✔ Work with a professional supplier
