Zinc Spray System

The Zinc Spray System is a thermal spraying device that melts zinc wire or powder and sprays it onto metal surfaces using compressed gas. It is primarily used to coat weld seams and metal surfaces with a dense zinc layer to prevent corrosion and rust, especially on steel pipes and tubes.

Product Details

Contact Now

Product Details

Product Description

The Zinc Spray System is a thermal spraying device that melts zinc wire or powder and sprays it onto metal surfaces using compressed gas. It is primarily used to coat weld seams and metal surfaces with a dense zinc layer to prevent corrosion and rust, especially on steel pipes and tubes.

Features and Benefits of Zinc Spraying on Rectangular/Square Tube Weld Seams

Features:

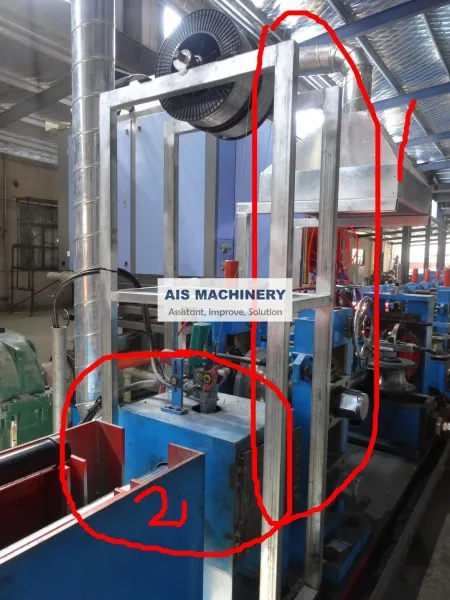

Designed specifically for automatic zinc spraying on square and rectangular tube weld seams
Uses arc spray technology suitable for continuous production lines
Automatically locates the weld seam for precise coating
Adjustable coating thickness to meet various protection requirements

Benefits:

Improved Corrosion Resistance at Welds: The zinc layer protects the seam from rust, greatly extending service life.
Reduced Post-Processing Costs: Automated zinc spraying replaces manual touch-up, increasing efficiency.
Uniform Appearance: Consistent zinc coating improves the visual and quality uniformity of weld seams.
Meets Export Standards: Zinc-coated welds comply with international anti-corrosion standards for steel structures.

Technical Specifications of Zinc Spray Machine (Reference)

Item	Specification
Spraying Method	Arc Spray (Twin-Wire Arc Spray)

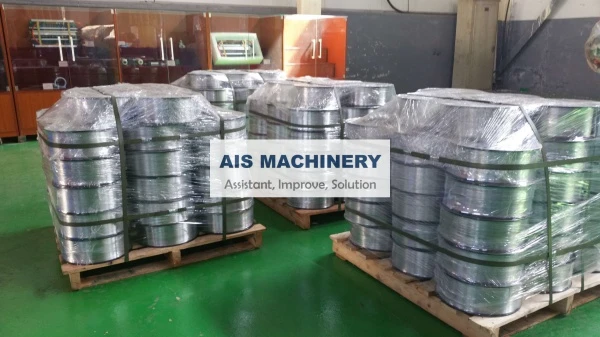

Zinc Material	Zinc wire (pure zinc or Zn-Al alloy)
Wire Diameter	1.6mm / 2.0mm
Power Supply	3-phase 380V / 50Hz
Coating Thickness Range	30–120μm (adjustable)
Spraying Speed	0.5 – 3 m/min (depends on thickness)
Air Supply Requirement	0.6–0.8 MPa dry compressed air
Control System	PLC automatic control, laser positioning optional
Tube Size Compatibility	20x20 mm to 300x300 mm (customizable)
Total Power Consumption	5–10kW (depending on model)
Number of Spray Guns	Single or double gun options
Cooling Method	Air-cooled / Water-cooled (for heavy-duty use)

Enter Section Equipments
1. Coil car and Storage
2.Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler
3.Peeler and hold down roll arm
4.Flattening Machine
5.Automatic and Semi Auto Shearer & Butt Welder
6.Vertical Cage Accumulator & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

Read More About impeder rod

Spare Parts and Consumble Parts

1. Rollers, Moulds, Dies, D2,D3 material to choose
2. Ferrite, Impeder, Fiberglass tube
3. HSS saw blades, TCT Saw blades, Friction saw blades
4. OD burr remove inserts, ID burr remover inserts
5. HF welder Induction Coil and other HF welder spare parts
6. Copper tube for induction Coil, PTFE pipe for Induction Coil
7. Mosfet, Boards
8. Steel pipe Strapping machine

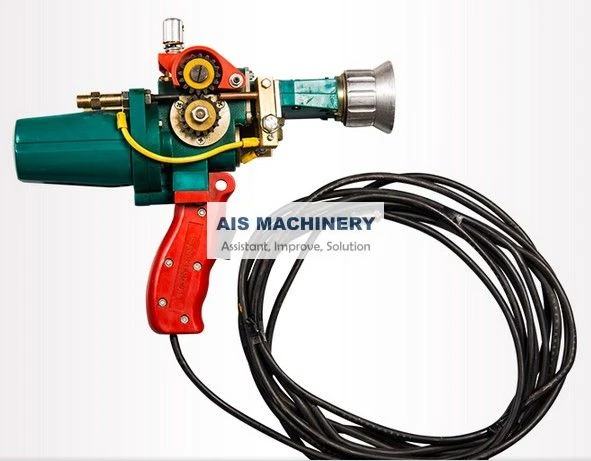

9. Zinc Spray Machine, Zinc wire, Zinc spray gun

Read More About impeder rod

After-sales service

1.Machine test running videos will supply to customer before shipment.
2.Online techenical support WHOLE LIFT FREE.
3.Professional engineers team to install the machine, train your employee well.
4.One year warranty and life-long technical support.
5 .24 hours for engineer response.
6.Your business relationship with us will be confidential to any third party.
7. We welcome customers to visit our factory anytime.

Read More About impeder rod

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

Zinc Spray System FAQs

What is a Zinc Spray System?

A Zinc Spray System is a thermal spraying machine that melts zinc (typically in wire or powder form) and sprays it onto metal surfaces using compressed air. It is mainly used for anti-corrosion protection, especially on weld seams of steel pipes and structural components.

How does arc zinc spraying work?

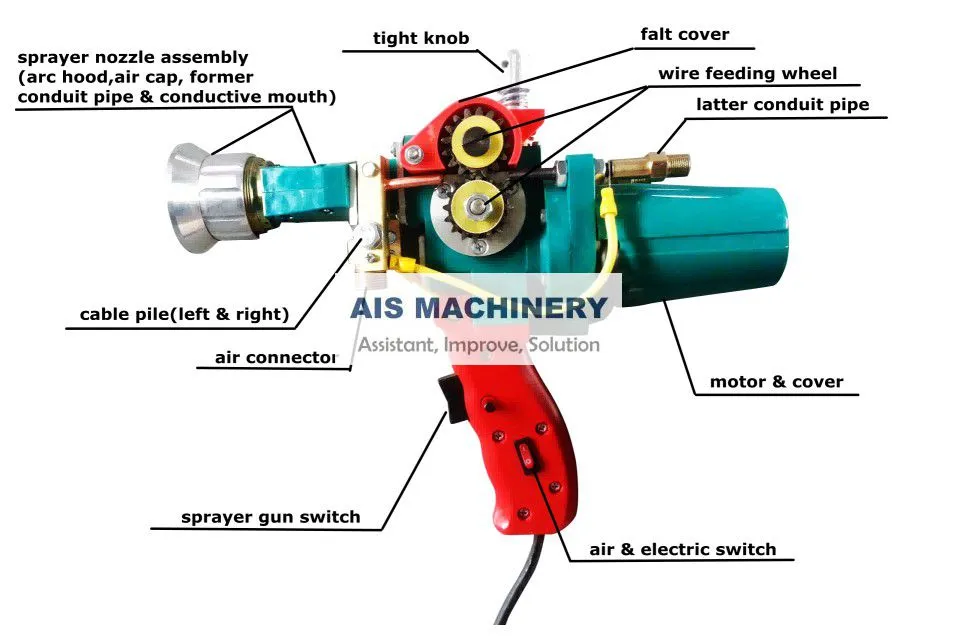

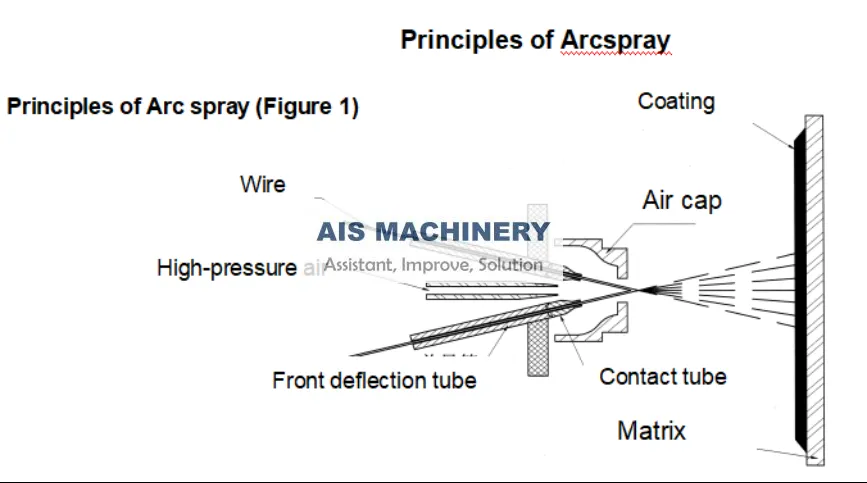

Arc zinc spraying uses two zinc wires fed through a spray gun where an electric arc melts the wire tips. Compressed air then atomizes and propels the molten zinc onto the target surface to form a protective coating.

What materials can be sprayed?

Primarily pure zinc or zinc-aluminum alloy wires. Some systems may also support aluminum or other corrosion-resistant metals.

What surface preparation is needed before spraying?

Typically, abrasive blasting (e.g., SA 2.5 standard) is required to remove rust, scale, and oil, ensuring good adhesion of the zinc coating.

How thick is the typical zinc coating?

Common zinc coating thickness ranges from 30 to 120 μm, depending on the corrosion protection requirement and application.
