Induction coil

The Induction Coil is a critical component in a High Frequency (HF) Welding Machine, primarily used for pipe and tube welding. It generates a high-frequency electromagnetic field that induces eddy currents in the pipe's edges, causing them to heat up and fuse under pressure—without direct contact.

Product Details

Contact Now

Product Details

Video

Product Description

✅ 1. Introduction

✅ 2. Product Details

Product Name: Induction Coil / Welding Coil
Application: Seam welding of steel, stainless steel, aluminum, and copper tubes or profiles
Frequency Range: 100 kHz – 800 kHz (typically)
Cooling Type: Water-cooled (inner copper tube or spiral structure)
Compatibility: Solid-state and vacuum tube HF welders

✅ 3. Main Components

Induction Loop / Copper Coil – Forms the electromagnetic field
Cooling Tube – Circulates water to prevent overheating
Support Housing – Provides insulation and structural integrity
Connection Terminals – Interface with the HF generator
Ferrite Cores (optional) – Improve magnetic field focus and efficiency

✅ 4. Comparison of Induction Coil Types for HF Welding

Coil Type	Structural Features	Application Scenarios	Advantages	Disadvantages

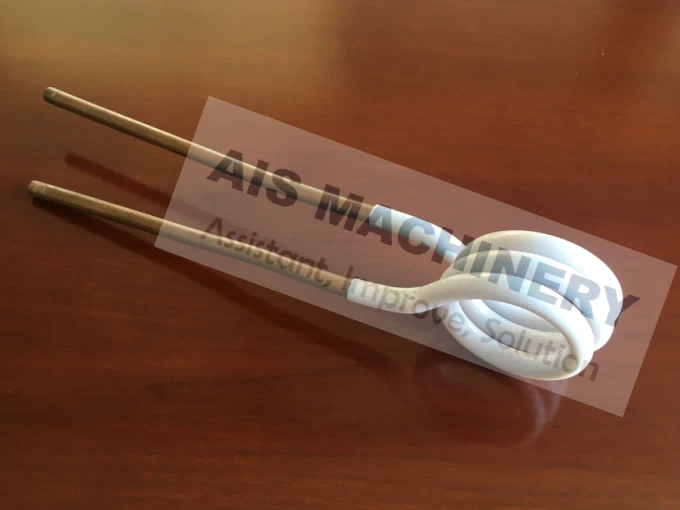

Spiral Coil	Multiple turns of round or oval copper tube	Small to medium pipe diameters	Uniform heating, widely applicable	Less efficient for large-diameter pipes
U-Shaped Coil	U-shape copper tube, open side faces weld seam	Medium-diameter pipes, focused heating	Focused seam heating, fast welding	Limited heating area, needs precise alignment

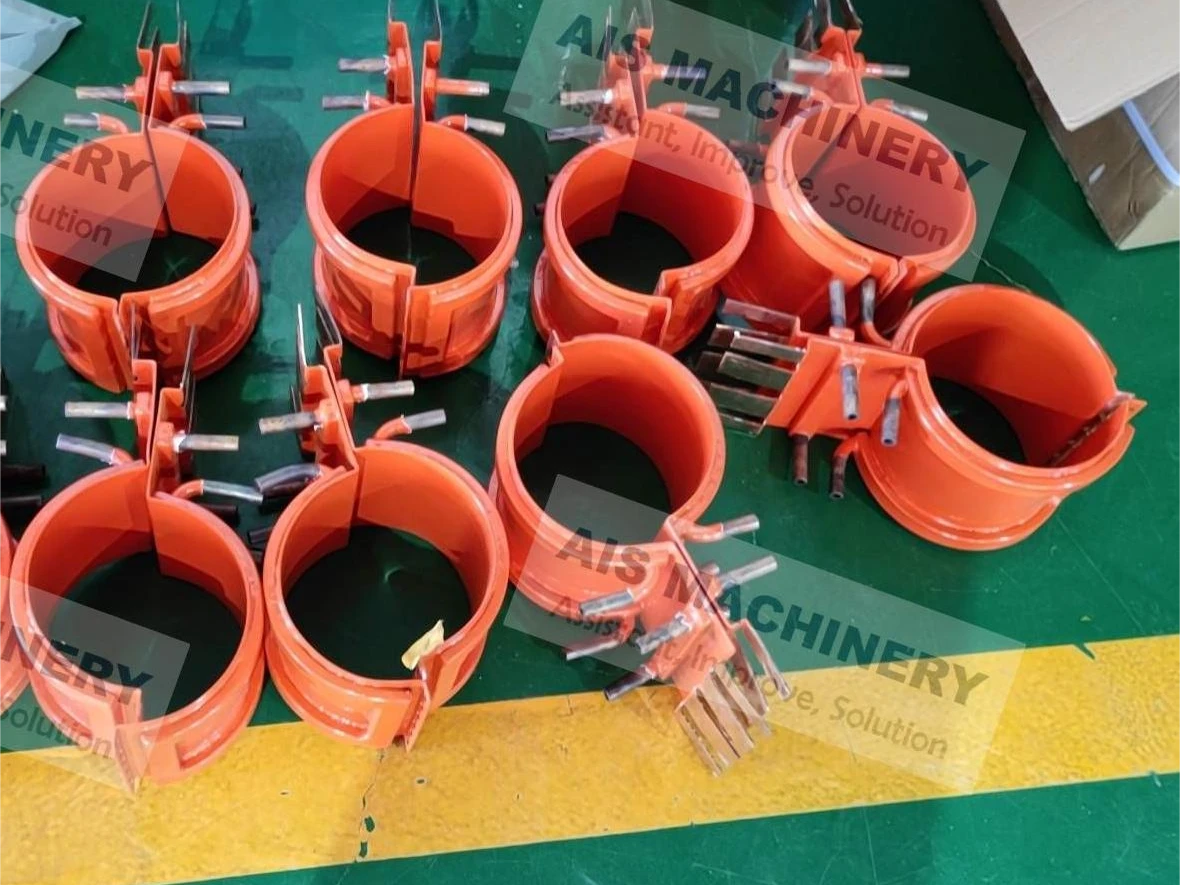

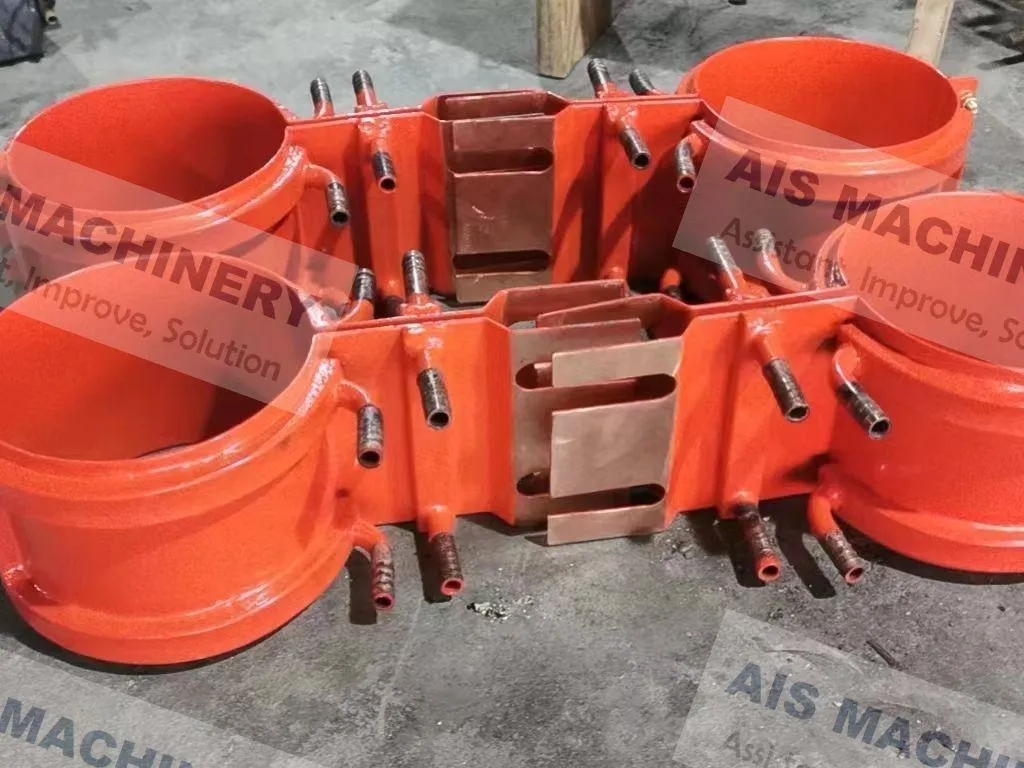

Saddle-Type Coil	Shaped like a saddle to fit the pipe contour	Large-diameter or shaped tubes	Wide heating area, suitable for irregular shapes	Complex design, higher cost
Ferrite Core Coil	With ferrite cores to enhance magnetic focusing	High-efficiency HF welding	Increases heating efficiency, reduces energy loss	Ferrite is fragile, requires careful handling
Adjustable Coil	Adjustable structure to fit various pipe sizes	Multi-size production lines	Highly flexible and versatile	Complex structure, requires experienced handling

📌 Selection Tips

Small pipes (<50 mm): Spiral coil is recommended for its simplicity and cost-effectiveness.
Medium pipes (50–150 mm): U-shaped coils offer efficient, focused heating.
Large or irregular pipes (>150 mm): Saddle coils cover a wider area and handle complex profiles.
High-efficiency requirements: Ferrite core coils help reduce energy loss and improve heat focus.
Versatile production lines: Adjustable coils are ideal for lines requiring flexibility in pipe diameters.

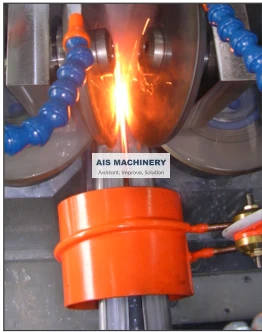

✅ 5. Working Principle

The HF generator sends current to the induction coil.
A strong high-frequency magnetic field is created around the coil.
As the pipe passes through the coil, eddy currents are induced at the edge surfaces.
These currents generate localized heat at the pipe’s seam (skin effect + proximity effect).
When the pipe edges reach the fusion point, squeeze rollers press them together to form a solid weld without filler material.

✅ 6. Technical Parameters (Typical Values)

Parameter	Value Range
Frequency Range	100 – 800 kHz
Input Power Capacity	50 – 600 kW (depends on system)
Coil Inner Diameter	20 mm – 300 mm (customizable)
Coil Type	Spiral, U-shape, Saddle, or Custom Form
Cooling Method	Water Cooling (2–5 L/min)
Max Operating Temperature	~200–300°C (with active cooling)
Coil Material	High-purity copper with insulation

✅ 7. Summary

The induction coil is a key part of HF welding, enabling non-contact, high-speed seam welding for pipe production.
Coil shape and size are customizable to match pipe diameter and welding specifications.
High durability, excellent thermal conductivity, and magnetic field efficiency are critical for stable, continuous production.
Proper cooling and maintenance significantly extend coil life and welding consistency.

Enter Section Equipments
1. Coil car and Storage
2.Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler
3.Peeler and hold down roll arm
4.Flattening Machine
5.Automatic and Semi Auto Shearer & Butt Welder
6.Vertical Cage Accumulator & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

Read More About impeder rod

Spare Parts and Consumble Parts

1. Rollers, Moulds, Dies, D2,D3 material to choose
2. Ferrite, Impeder, Fiberglass tube
3. HSS saw blades, TCT Saw blades, Friction saw blades
4. OD burr remove inserts, ID burr remover inserts
5. HF welder Induction Coil and other HF welder spare parts
6. Copper tube for induction Coil, PTFE pipe for Induction Coil
7. Mosfet, Boards
8. Steel pipe Strapping machine
9. Zinc Spray Machine, Zinc wire, Zinc spray gun

Read More About impeder rod

After-sales service

1.Machine test running videos will supply to customer before shipment.
2.Online techenical support WHOLE LIFT FREE.
3.Professional engineers team to install the machine, train your employee well.
4.One year warranty and life-long technical support.
5 .24 hours for engineer response.
6.Your business relationship with us will be confidential to any third party.
7. We welcome customers to visit our factory anytime.

Read More About impeder rod

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

Induction coil FAQs

What is an induction coil in a welding machine?

It’s a copper conductor shaped into a loop or saddle that generates a high-frequency electromagnetic field to heat the edges of metal pipes for seam welding.

What materials are induction coils made of?

High-conductivity copper (often hollow for water cooling), sometimes enhanced with ceramic insulation or ferrite cores.

Are coils standard or custom-made?

They are typically custom-made based on pipe diameter, welding frequency, and power level.

How does the coil heat the pipe?

The coil induces eddy currents in the pipe surface using high-frequency AC. The resistance of the pipe material converts this into localized heat (due to the skin and proximity effects).

What’s the ideal distance between the coil and the pipe?

Usually 1–3 mm. Too close can cause arcing; too far reduces efficiency.
