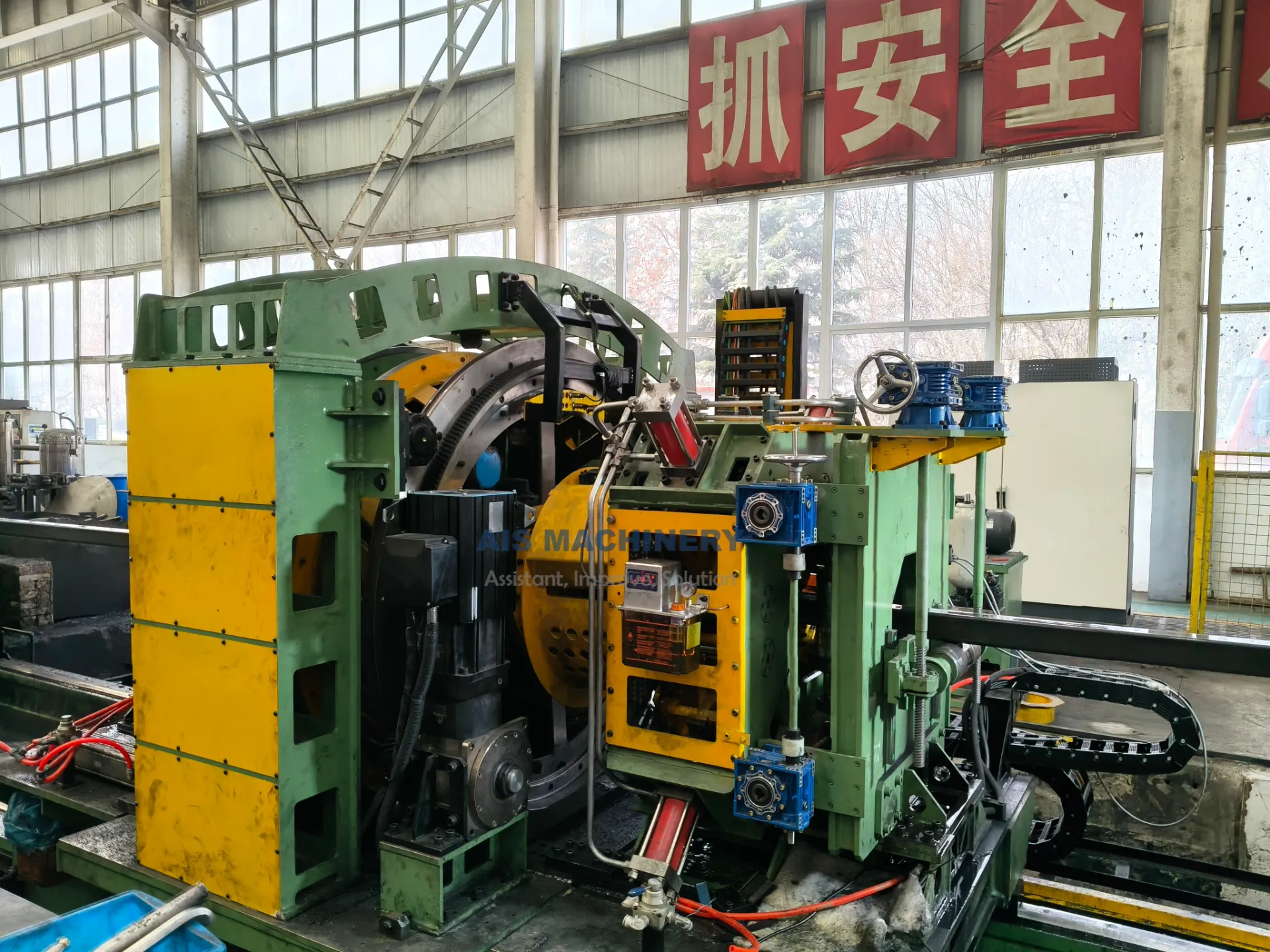

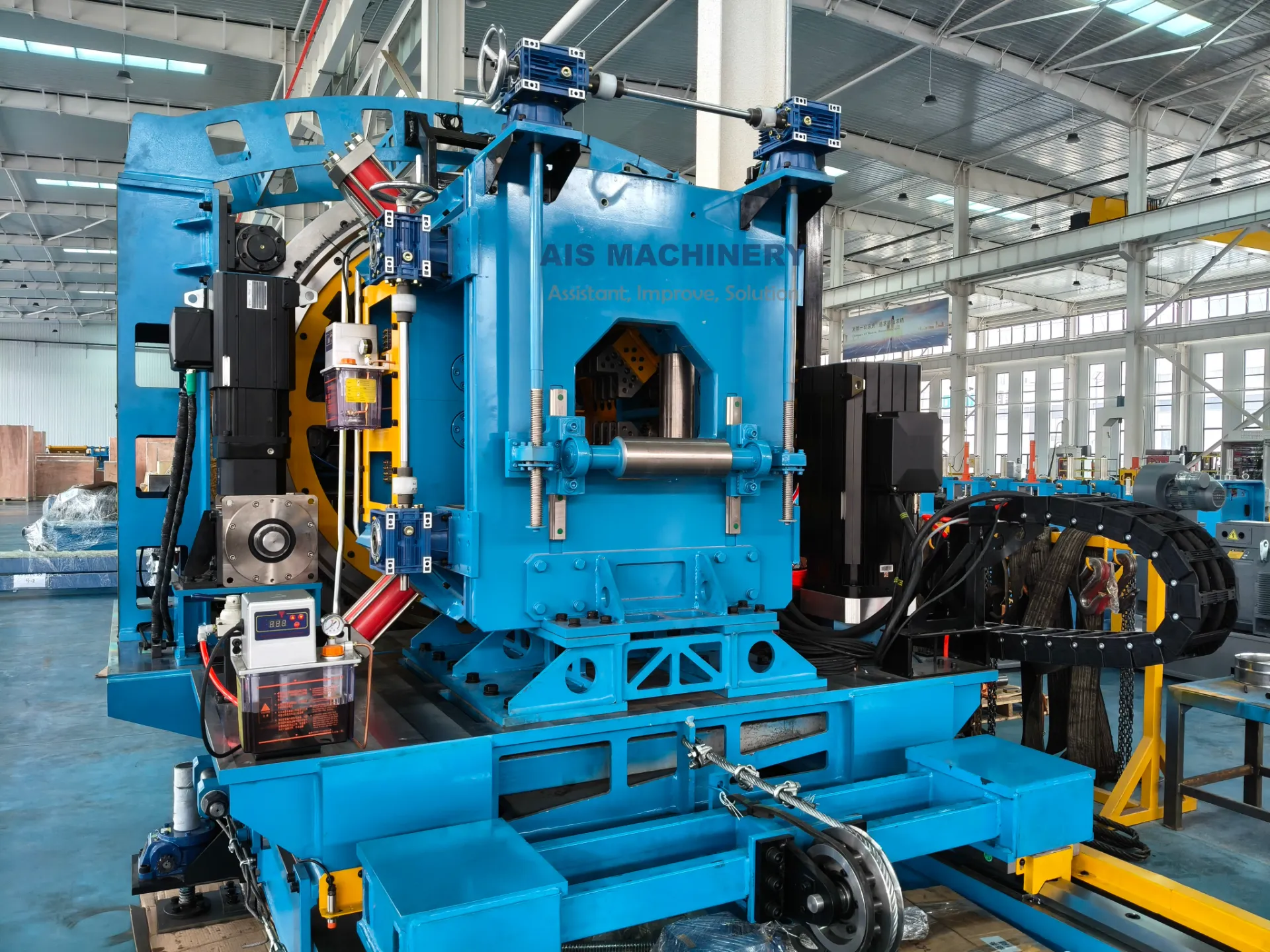

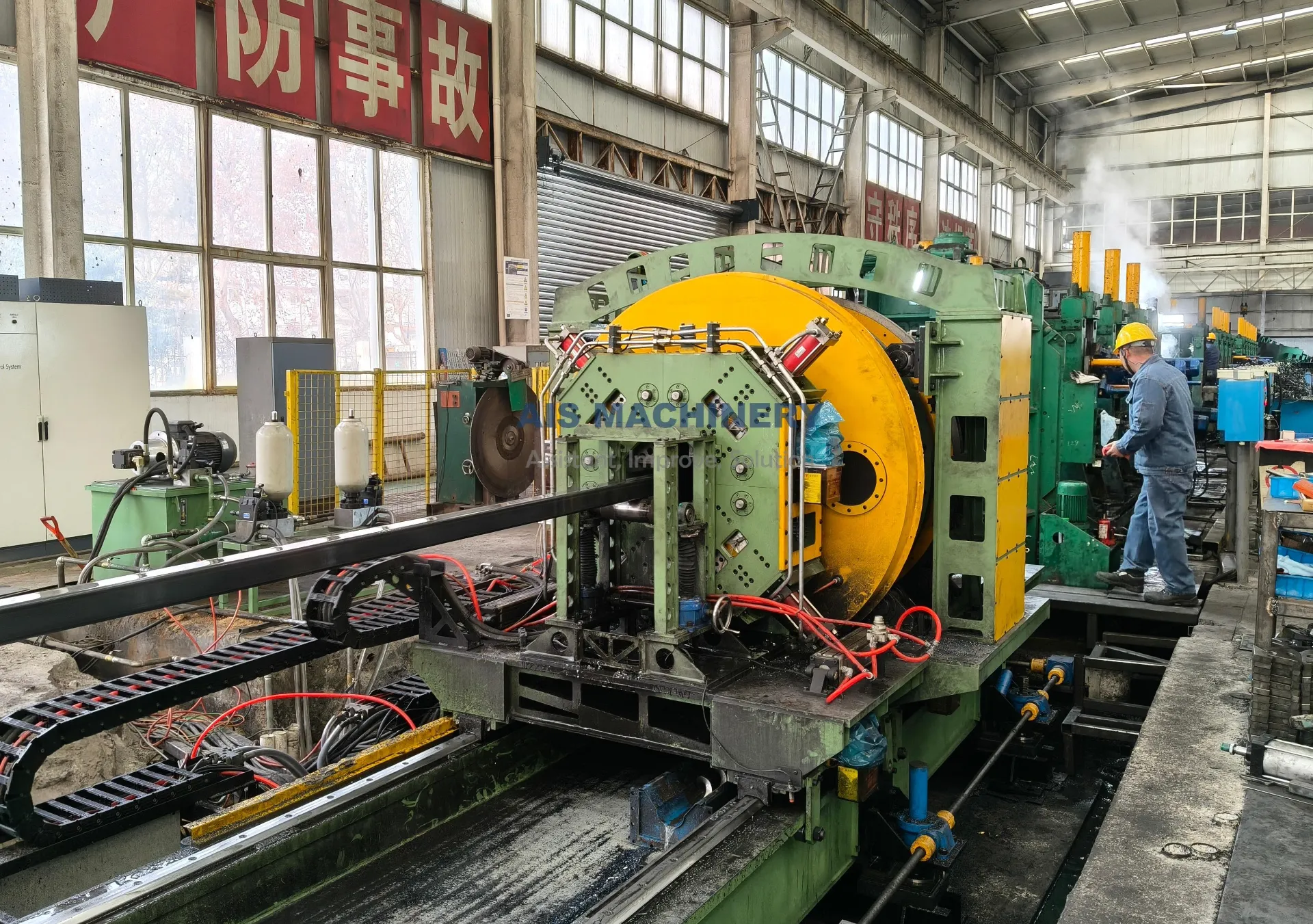

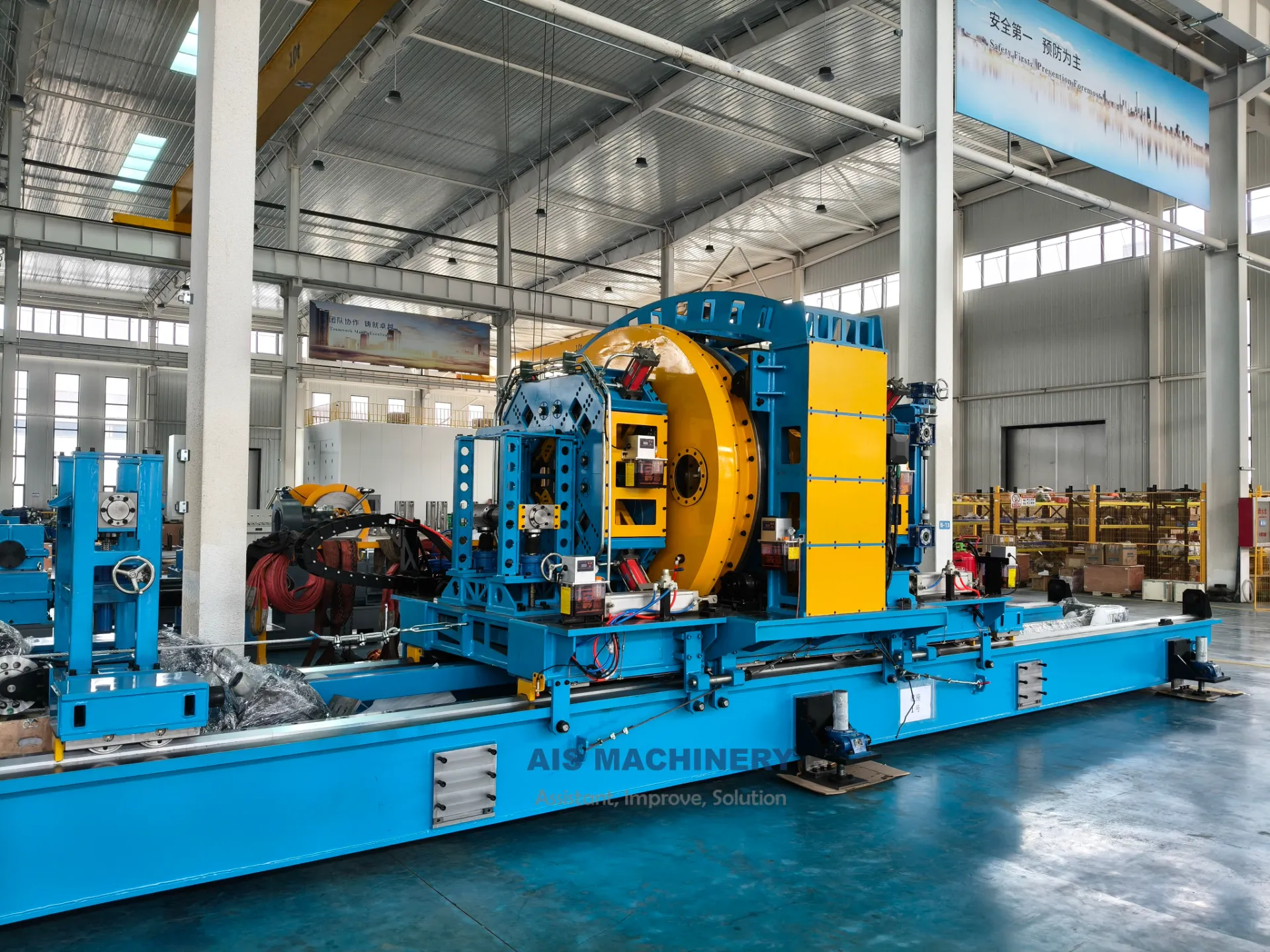

A Milling Saw Machine is an important cutting system used in modern ERW tube mill production lines.

It is mainly designed for large-diameter steel pipe cutting, providing accurate fixed-length cutting while the pipe continues moving on the production line.

With high cutting efficiency, stable operation, and clean cutting results, milling saw machines are widely used in large steel pipe manufacturing where continuous production and precision are required.

What Is a Milling Saw Machine?

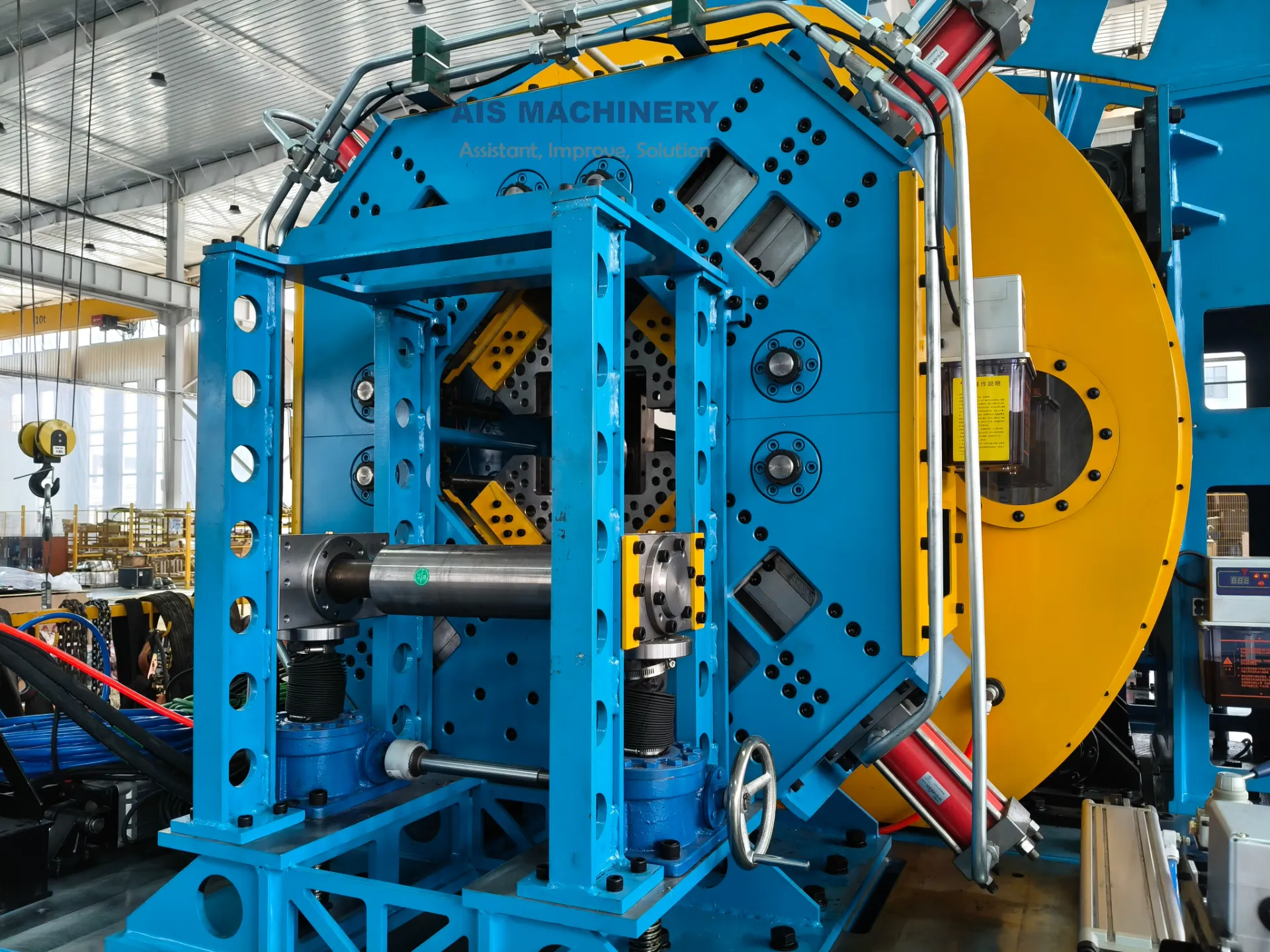

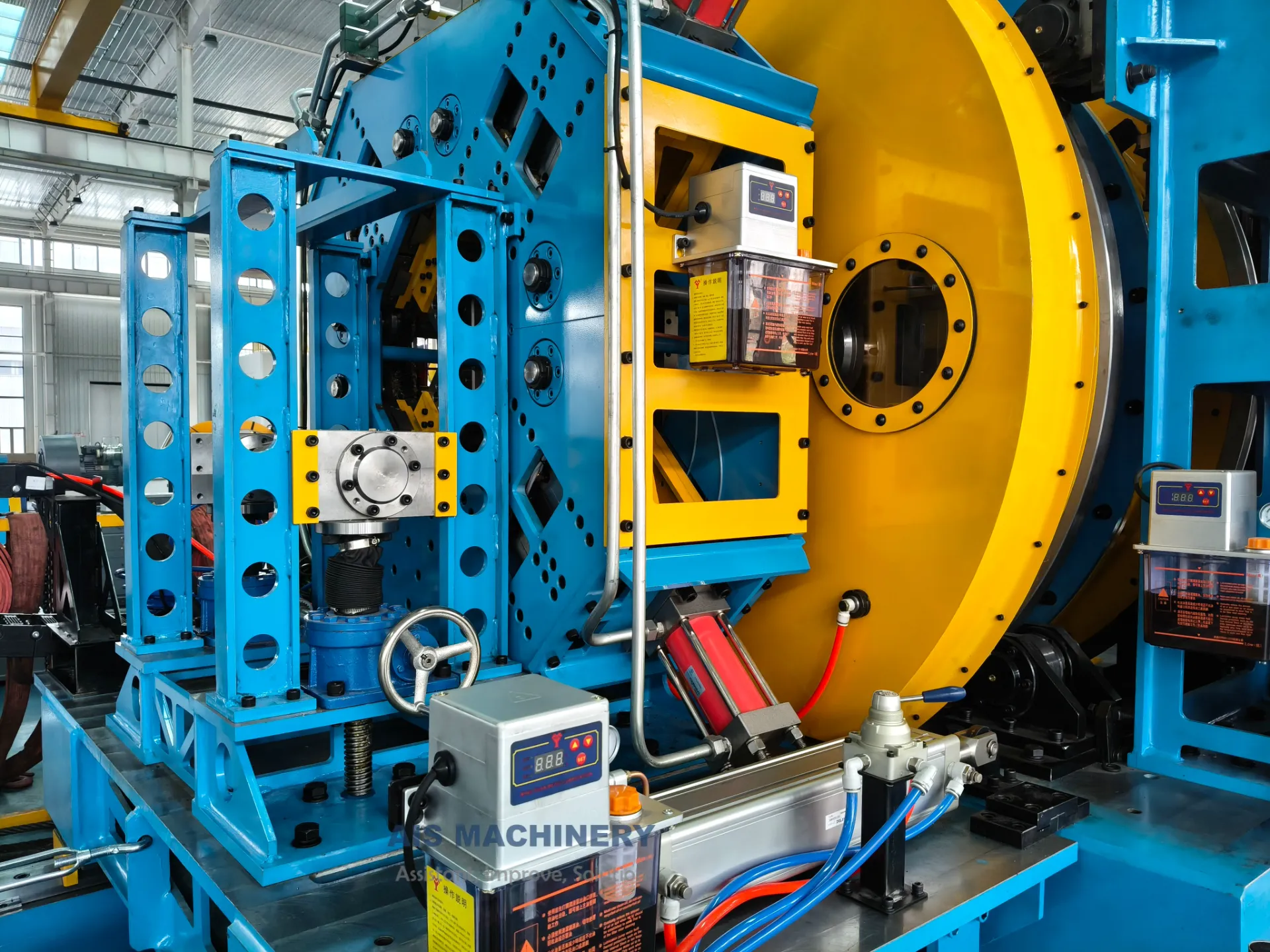

A milling saw is a flying cutting machine installed at the finishing section of a tube mill line.

This ensures:

• Continuous non-stop production
• High cutting precision
• Smooth pipe ends
• Reduced material waste
• Stable automated operation

It is especially suitable for large pipe production lines with high-speed continuous operation requirements.

Main Functions of a Milling Saw Machine

A milling saw performs several important production tasks:

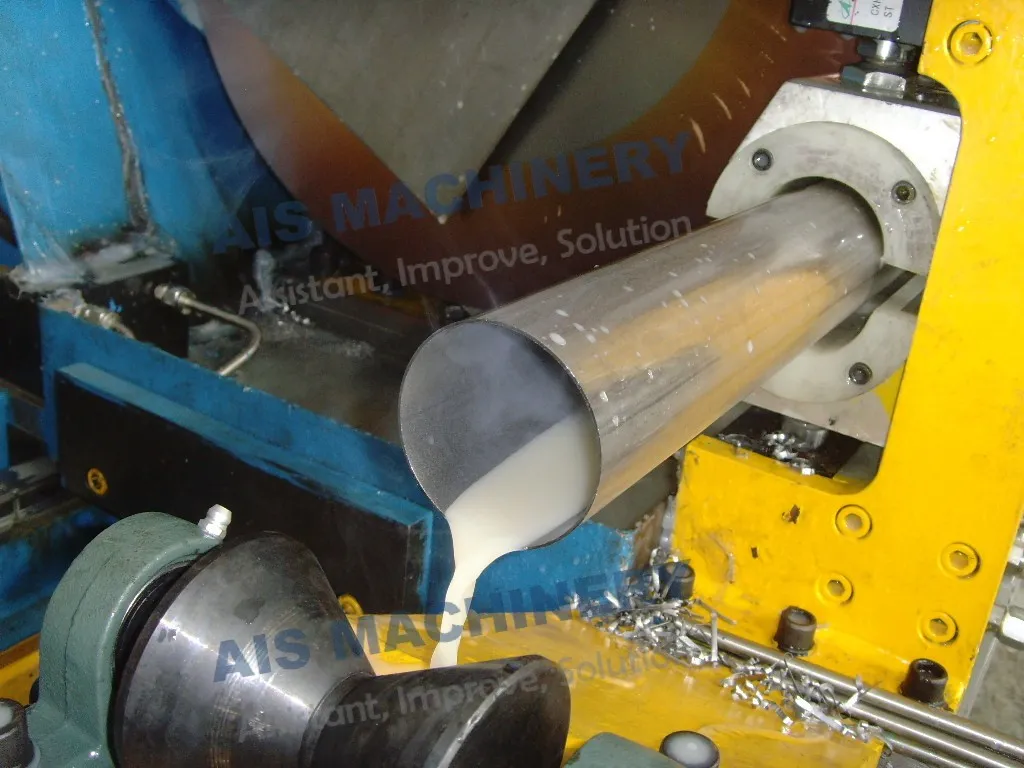

Continuous Pipe Cutting✂️

Cuts moving pipes without interrupting production flow.

Fixed-Length Cutting📏

Automatically cuts pipes to preset lengths with excellent repeatability.

High-Speed Synchronization🚀

Tracks line speed automatically for flying cutting accuracy.

Smooth Cutting Surface🛠️

Provides cleaner cut ends and reduces burr formation.

Fully Automatic Operation🖥️

Integrated PLC control enables stable automated production.

Main Components of a Milling Saw Machine

A standard milling saw system usually includes:

• High-speed spindle unit
• TCT circular saw blade
• Flying servo carriage
• Pipe tracking system
• Length measuring encoder
• PLC control cabinet
• Hydraulic system
• Automatic cooling system
• Lubrication system
• Safety enclosure

All components work together to ensure precise and stable cutting performance.

Technical Parameters

📌Specifications can be customized according to production requirements.

Advantages of Milling Saw Machines

High Production Efficiency

Continuous flying cutting improves overall line output.

Accurate Length Control

Maintains excellent cutting consistency.

Stable Cutting Quality

Produces smooth and reliable pipe ends.

Reduced Waste

Improves material utilization and lowers production cost.

Smart Automation

Easy integration with modern ERW tube mill systems.

How to Choose the Right Milling Saw

Before selecting a milling saw, customers should confirm:

•Tube Diameter Range
Required pipe size capacity

•Wall Thickness

Material thickness for cutting load calculation

•Production Speed

Maximum tube mill running speed

•Cutting Length Requirement

Required finished pipe lengths

•Material Type

• Carbon steel
• High-strength steel
• Alloy steel

Choosing the correct configuration ensures reliable long-term operation.

FAQ About Milling Saw Machine

1️⃣What blade does a milling saw use?

A milling saw usually uses a TCT (Tungsten Carbide Tipped) circular saw blade.

It provides high wear resistance, stable cutting performance, and long service life for continuous steel pipe cutting.

2️⃣Does production stop during cutting?

No.The machine performs flying synchronous cutting, allowing continuous production without stopping the pipe movement.

3️⃣What pipe sizes can a milling saw cut?

Most milling saw systems are designed for large-diameter pipes, typically from Φ168 mm and above, depending on line configuration.

4️⃣Is the cutting length accurate?

Yes.Servo synchronization ensures cutting accuracy typically within ±1.0 mm.

5️⃣Is maintenance difficult?

Routine maintenance is simple and includes:

• Blade inspection
• Cooling system cleaning
• Lubrication checks
• Servo system inspection

Proper maintenance ensures long-term stable performance.

Why Choose AIS Machinery Milling Saw?

AIS Machinery provides reliable milling saw solutions designed for large ERW tube production lines.

Our systems offer:

• High-speed precision cutting
• Stable servo synchronization
• Durable machine structure
• Easy operation
• Custom engineering solutions
• Professional technical support

We help manufacturers improve cutting quality, production efficiency, and operational reliability.
