How to Choose the Right External Burr Scraper Blade

May . 07, 2026 10:20

What Is an External Burr Scraper Blade? 🔧

During ERW tube production, the HF welder creates a weld seam on the steel strip. At the same time, extra weld material appears on the outside surface of the tube — this is called the external burr.

The external burr scraper blade is used to remove this burr immediately after welding, making the tube surface smooth and clean.

It is an important tool in:
✅ ERW tube mill
✅ Steel pipe production line
✅ Stainless steel tube manufacturing
✅ API pipe production

A good burr scraper blade can improve:

Weld seam quality
Tube appearance
Production stability
Final product value

Different Styles and Models of External Burr Scraper Blades 🛠️

1️⃣External burr scraper blades come in many different:

Sizes
Shapes
Thicknesses
Angles
Holder matching styles

2️⃣Different tube mills and pipe sizes require different blade models. Manufacturers usually choose the blade according to:

Tube diameter
Wall thickness
Material type
Welding condition

Among all types, the most common classifications are:

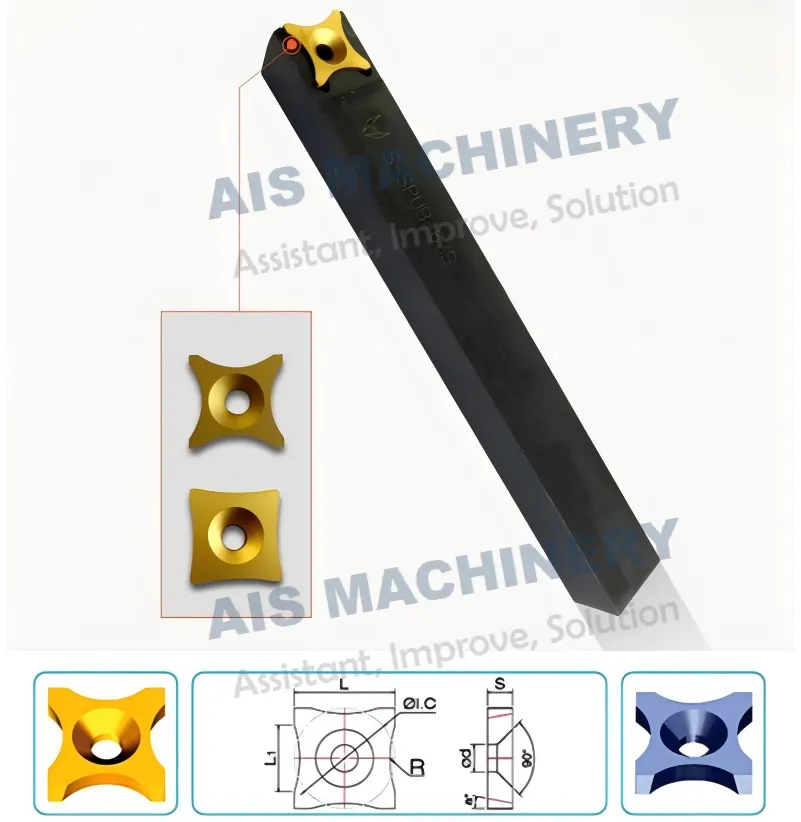

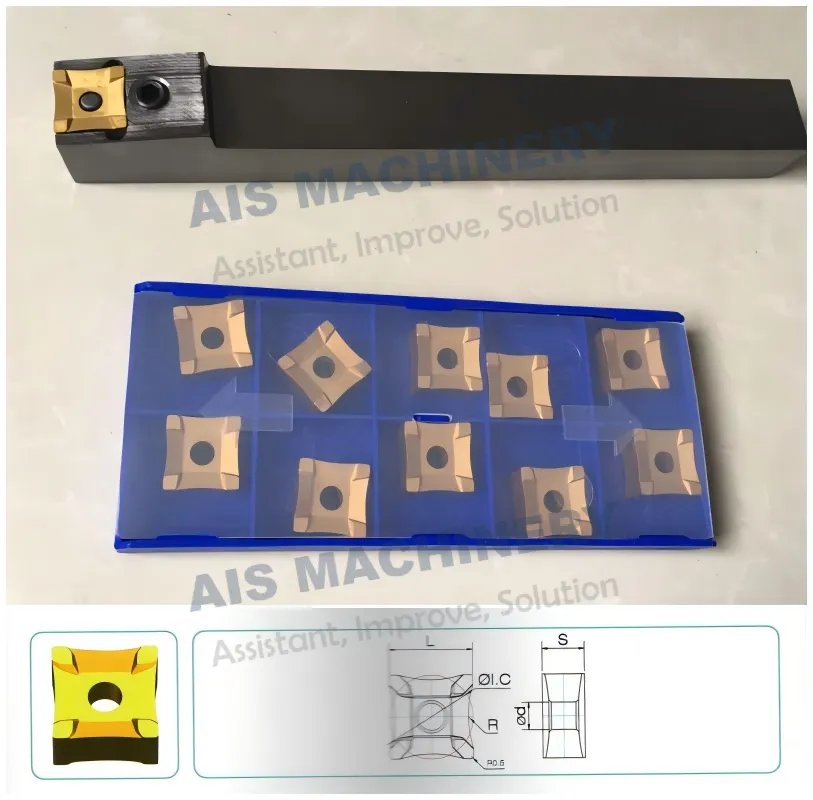

1. Four-Sided External Burr Scraper Blade ◼️

This is one of the most widely used types in standard ERW tube mills.

Features

4 usable cutting edges
Can rotate after one side wears out
Easy to replace
Economical and practical

Advantages

✅ Lower production cost
✅ Longer service life than single-edge blades
✅ Easy maintenance
✅ Stable burr removal performance

Suitable For

Carbon steel tubes
Furniture pipes
Water pipes
Construction pipes
Medium-speed production lines

Many factories prefer four-sided blades because they are cost-effective and easy to manage.

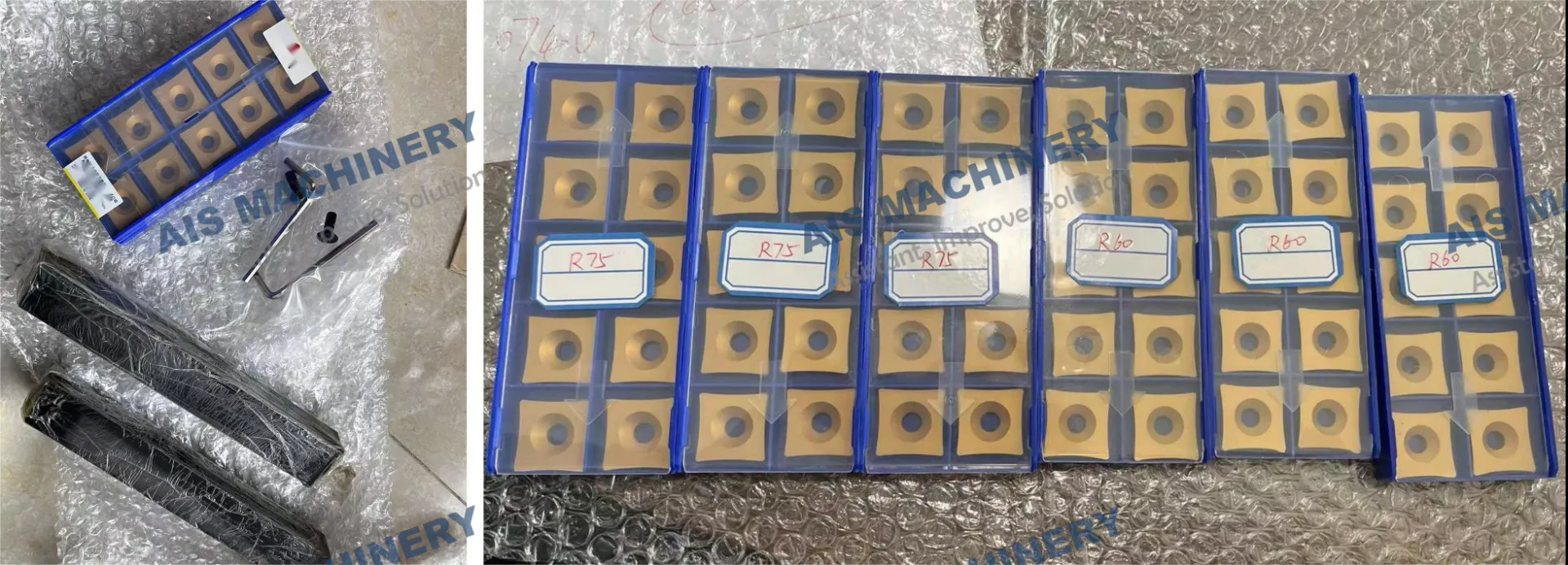

carbide inserts CNC steel pipe burr blade

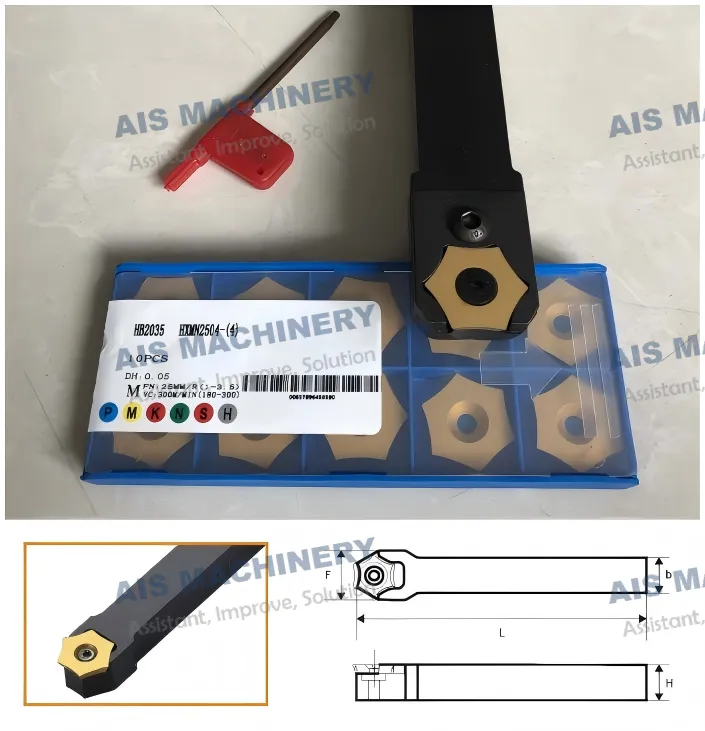

2. Six-Sided External Burr Scraper Blade ⬡

The six-sided type has more cutting edges and longer working time.

Features

6 usable cutting surfaces
Better wear resistance
More stable during high-speed production

Advantages

✅ Longer continuous operation
✅ Less blade replacement
✅ Higher production efficiency
✅ Better for automatic tube mills

Suitable For

High-speed ERW tube mills
API pipe production
Precision steel tube manufacturing
Large-capacity factories

Six-sided scraper blades are becoming more popular in modern automatic production lines because they reduce downtime significantly.

How Does the External Burr Scraper Blade Work? ⚙️

The working principle is simple and easy to understand.

After the steel strip is welded:
1️⃣ The weld seam forms an external burr
2️⃣ The scraper blade touches the hot burr
3️⃣ The blade cuts away the excess metal
4️⃣ The tube surface becomes smooth

The removed burr is then collected automatically.

The blade angle and position are very important. Proper adjustment helps:
✅ Improve weld appearance
✅ Reduce scratches
✅ Extend blade life
✅ Improve tube quality

What Equipment Works Together with the Scraper Blade? 🔩

The scraper blade normally works together with:

HF Welder
External Burr Removing Machine
Scarfing Tool Holder
Cooling System
Online Inspection System

All these components work together to ensure stable weld seam quality.

Common Materials of Scraper Blades 🔧

Most external burr scraper blades are made from:

Tungsten carbide
Alloy tool steel
Wear-resistant carbide materials

Tungsten carbide is especially popular because it offers:
✅ High hardness
✅ Excellent wear resistance
✅ Heat resistance
✅ Long service life

Why Is Good Burr Removal Important? 🚀

Good external burr removal can:

Improve tube appearance
Reduce polishing work
Improve galvanizing and coating quality
Increase customer satisfaction
Improve final pipe value

In modern ERW tube production, burr scraping quality directly affects the competitiveness of the final product.

📌 For more accurate model selection, customers are recommended to provide drawings or sample dimensions. Customized external burr scraper blades are also available according to different tube mill requirements and production conditions.
