What is an HF Welder?

An HF (High Frequency) Welder is the core equipment in an ERW tube mill.
Its main function is to heat the edges of the steel strip using high-frequency current and then forge them together to form a strong, continuous weld.

In simple terms:
👉 It “melts + presses” the strip edges to make a pipe.

This process is fast, clean, and ideal for producing high-quality welded steel tubes.

How Does an HF Welder Work?

The working principle is based on high-frequency electromagnetic induction:

Steel strip is formed into a round tube
High-frequency current flows through the strip edges
The edges heat up rapidly due to resistance
Squeeze rollers press the edges together
A solid weld seam is formed instantly

✔ No filler material needed
✔ High efficiency and stable quality

Main Types of HF Welders

There are several types of HF welders used in the market today. The most common ones include:

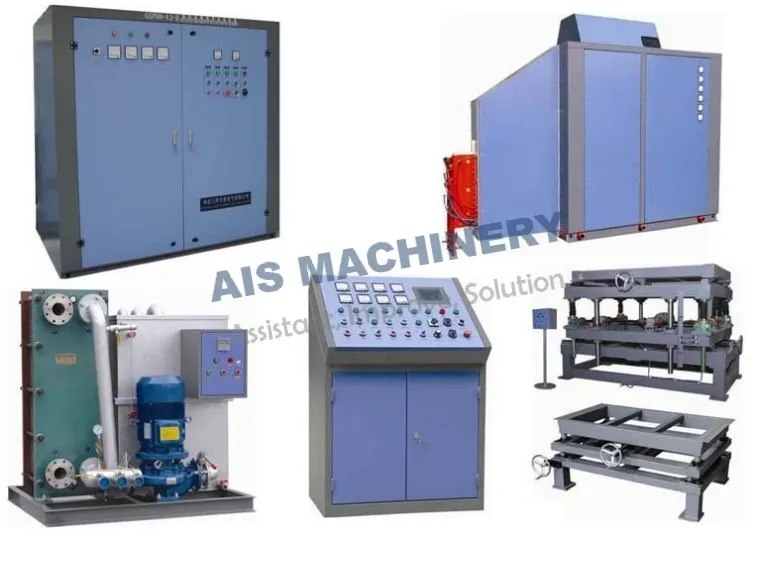

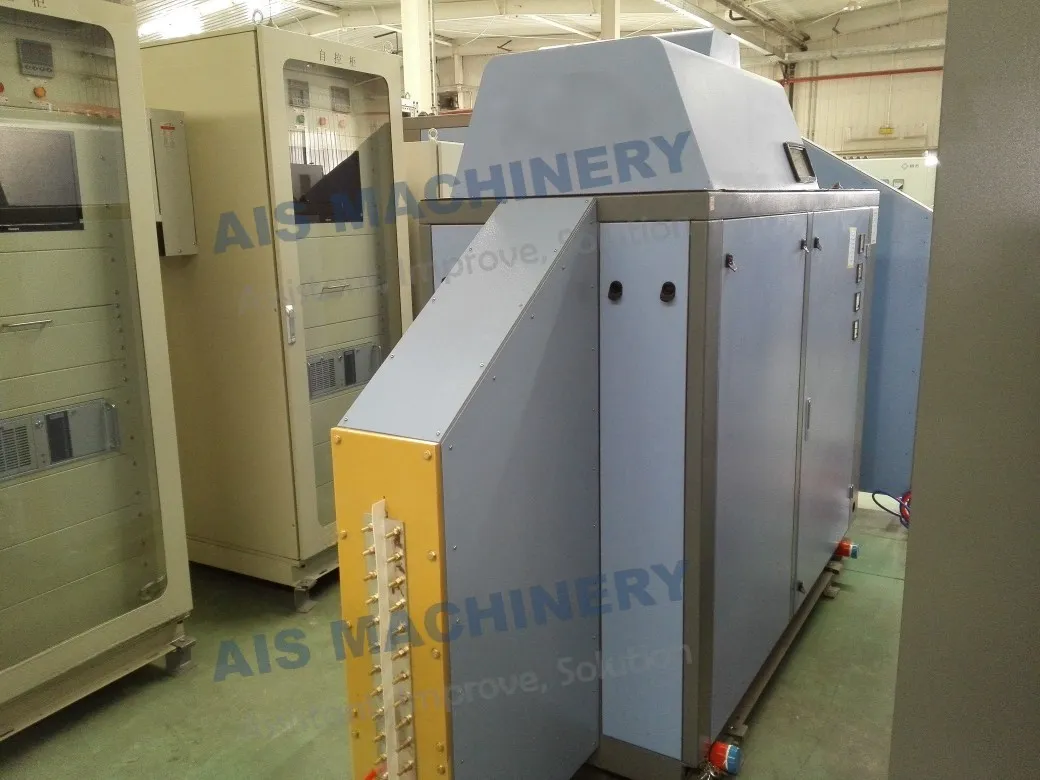

1. Solid State HF Welder

Features:

Uses IGBT or MOSFET technology
High electrical efficiency
Stable output
Lower maintenance

Advantages:

✅Energy saving

✅Long service life

✅Easy to operate

Best for:
Most modern ERW tube mills (recommended choice)

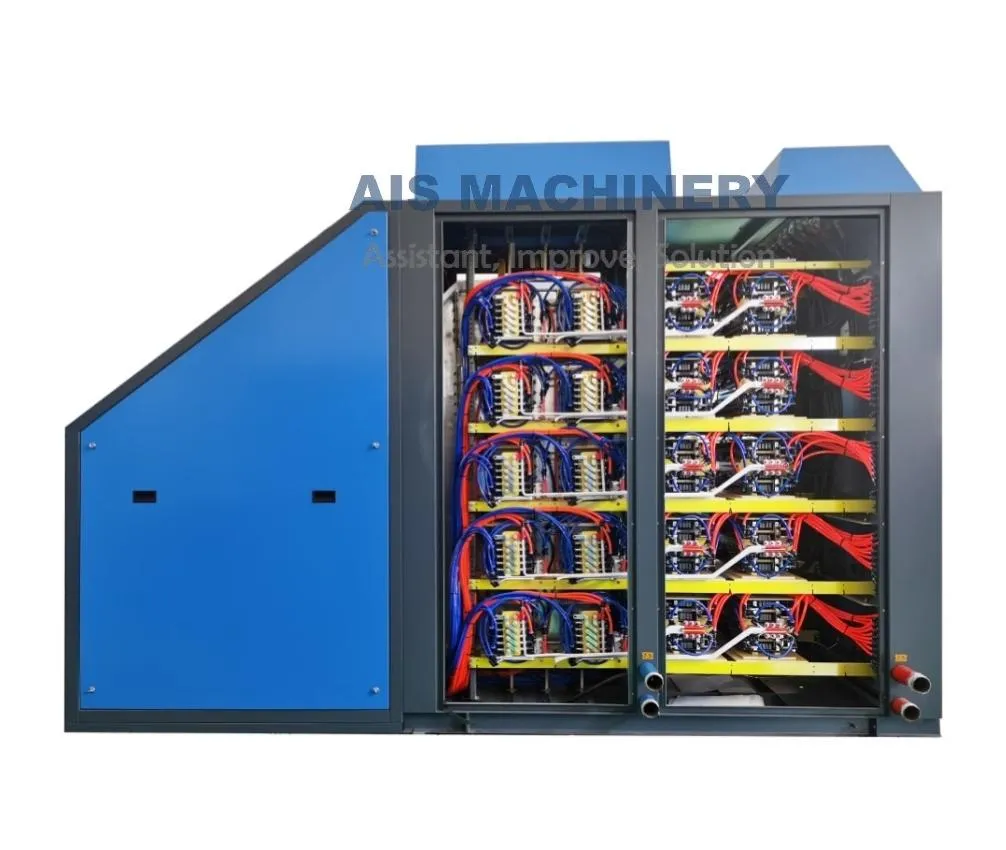

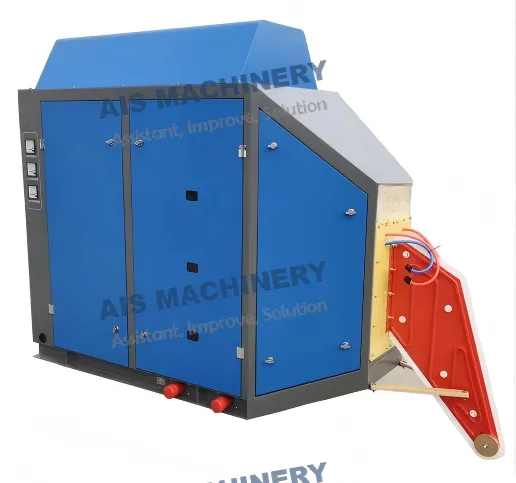

2. SiC HF Welder

Features:

Uses Silicon Carbide devices
Higher switching frequency
Better heat resistance

Advantages:

✅ Higher efficiency than traditional solid state

✅Smaller size

✅Faster response

Best for:
High-speed production lines or premium tube manufacturing

3. Vacuum Tube HF Welder

Features:

Traditional technology
Uses vacuum tubes

Advantages:

✅Mature and widely used in old systems

Disadvantages:
✘ High power consumption
✘ Large size
✘ More maintenance

Best for:
Older production lines or low-budget projects

HF Welder Comparison Table

Type	Efficiency	Maintenance	Cost	Technology Level	Recommendation
Solid State	High	Low	Medium	Modern	⭐⭐⭐⭐⭐
SiC	Very High	Low	Higher	Advanced	⭐⭐⭐⭐⭐
Vacuum Tube	Low	High	Lower	Traditional	⭐⭐

How to Choose the Right HF Welder?

Choosing the right HF welder depends on several key factors:

1. Tube Size & Thickness⚙️

Larger diameter and thicker wall → require higher power
Always match welder power with production capacity

2. Production Speed⚡

High-speed lines → choose SiC HF welder
Normal speed → Solid state HF welder is enough

3. Budget💰

Limited budget → Solid state is the best balance
High-end demand → SiC for long-term savings

4. Maintenance Capability🚀

If you want low maintenance → avoid vacuum tube type

Where is HF Welder Used in the Tube Mill?

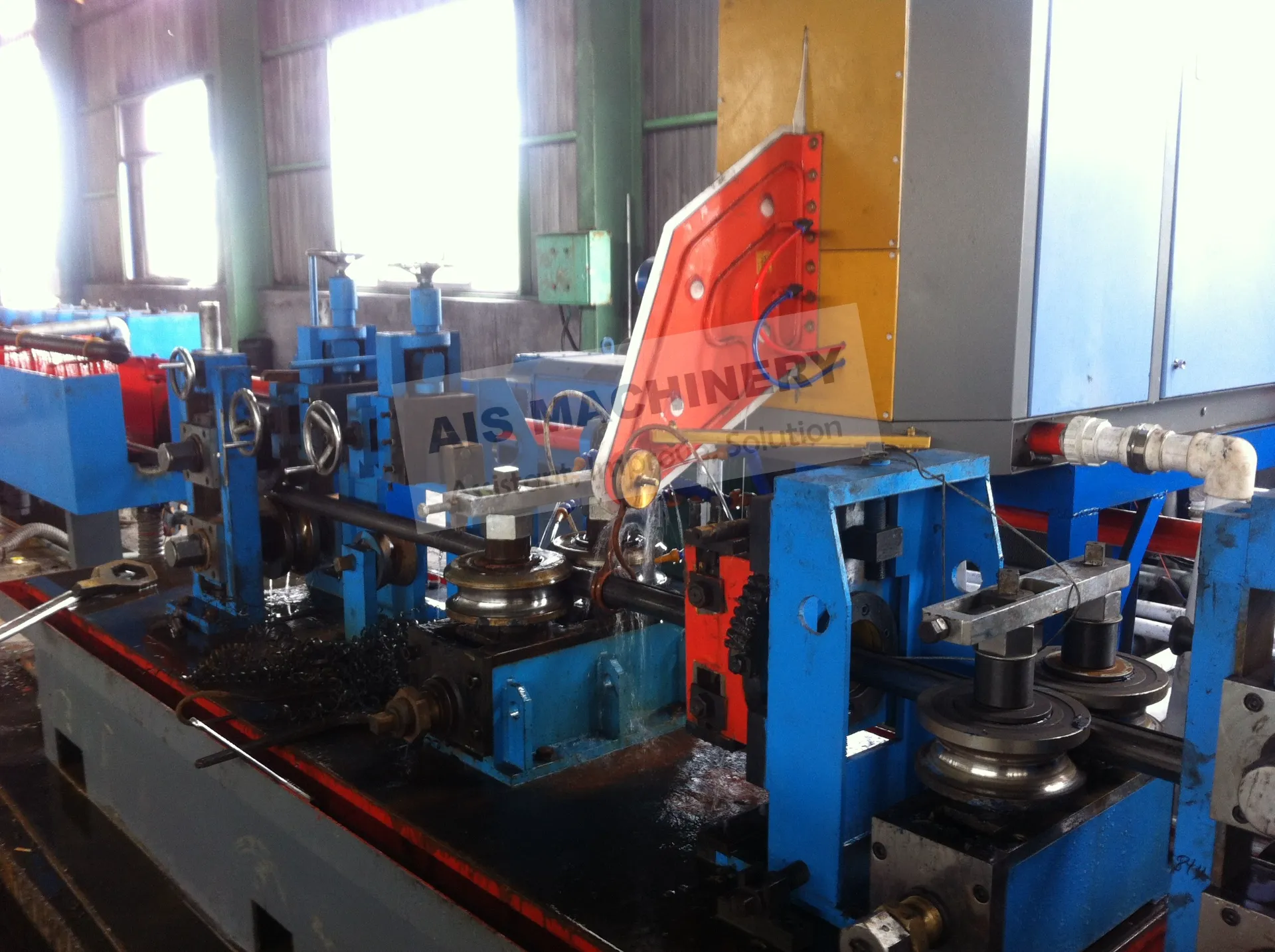

In a typical ERW tube mill line, the HF welder is installed:

👉 After forming section
👉 Before sizing section

It is the key process that determines weld quality.

Why HF Welder Matters

A good HF welder directly affects:

✔ Weld strength
✔ Production stability
✔ Energy consumption
✔ Final tube quality

Choosing the right system can significantly improve your production efficiency and reduce costs.
