Chain Type Conveyor for Heavy Loads—Boost Output Faster?

Oct . 01, 2025 16:10

Chain conveyors in tube mills: what matters (and what savvy buyers skip)

If you’re speccing a chain type conveyor for a pipe welding line, you already know the quiet truth: uptime beats everything. The “Conveyor and run out table” from AISTubemill is built exactly for that—moving hot, heavy pipe calmly from the welder to inspection, cutting, and packing. I’ve walked a few lines where a modest conveyor upgrade cut bottlenecks more than any fancy PLC tweak. Funny how that works.

Industry trends (no buzzwords, just useful stuff)

Heavy-duty focus: thicker chains, wider slats/rollers, and beefier frames for OD up to large-diameter pipes.
Predictive maintenance: encoders + current sensors feeding PLC/MES; alerts before chain stretch gets ugly.
Energy and noise: VFDs, low-friction rollers, and noise targets around ≤78 dB(A) in real-world use (varies).
Safety by design: guarding, two-channel e-stops, and risk assessment aligned with ISO/CE requirements.

What it is and where it works

This unit is an auxiliary workhorse in ERW/SAW pipe welding lines: it transports green pipe, buffers WIP, and discharges finished tubes. You’ll see it in carbon steel tube mills, oil & gas pipe, scaffold lines, structural hollow section, and sometimes stainless—with tweaks. Many customers say the chain type conveyor feels “invisible” when it’s right. That’s the point.

Quick spec snapshot (real factories, not lab benches)

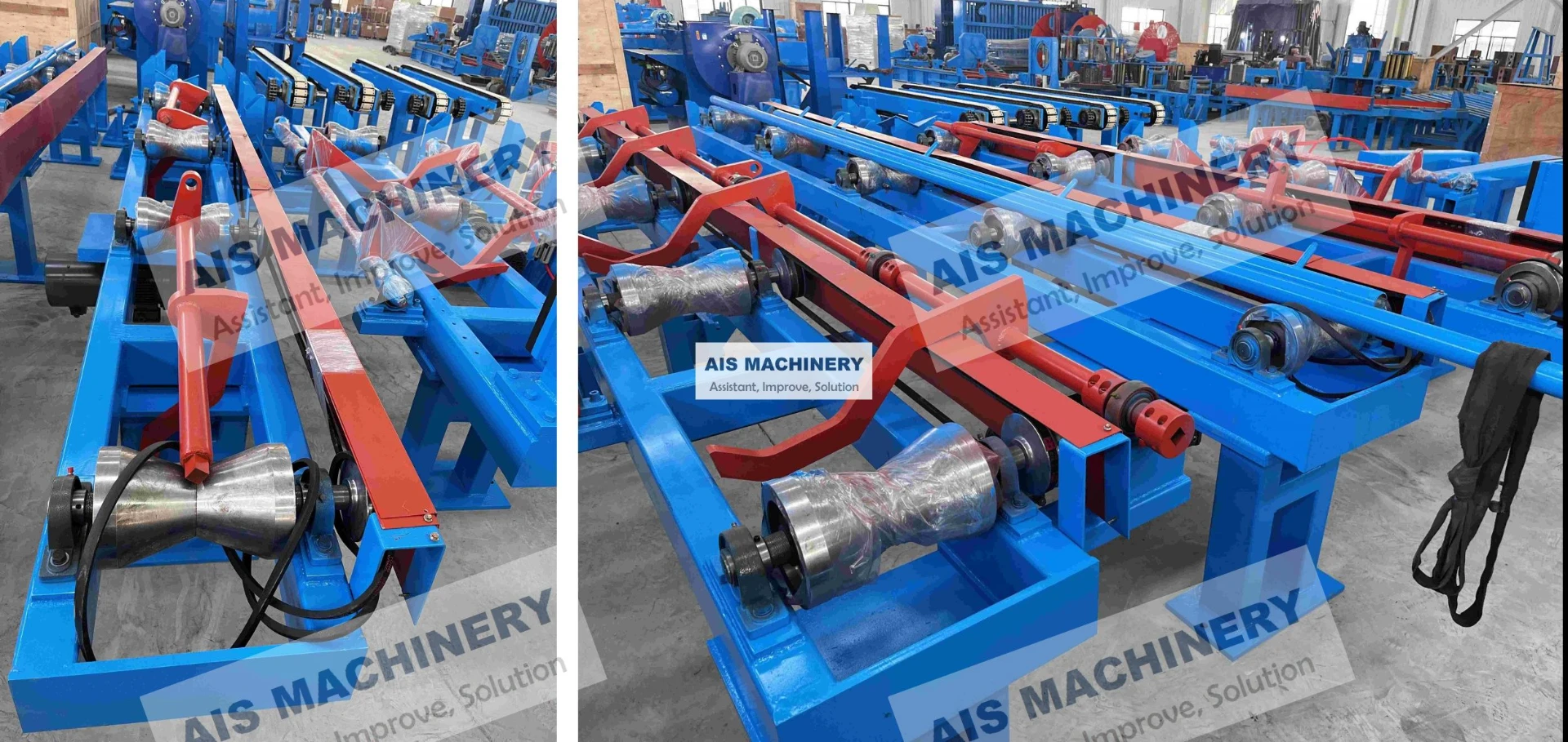

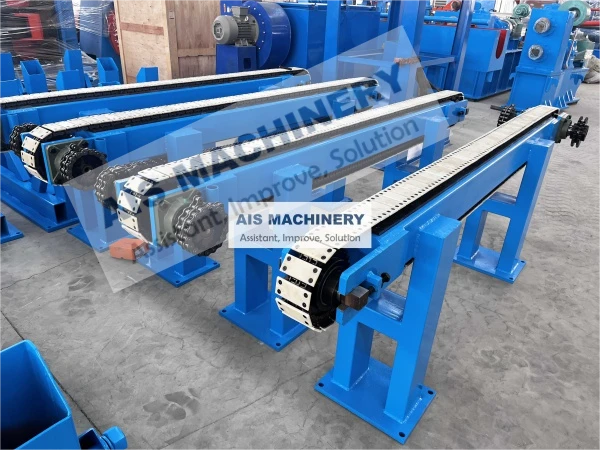

Product	Conveyor and Run-Out Table (heavy-duty chain type conveyor + roller accumulation)
Typical length	≈ 6–24 m (modules), custom on request
Load rating	≈ 800–2,500 kg/m (real-world use may vary)
Speed	0–24 m/min via VFD, PLC controlled
Chain/rollers	ISO 606-type chains; rollers Ø76–159 mm, sealed bearings
Frame materials	Q235/Q345 steel, welded; shot-blast + powder coat
Noise	≤ 78 dB(A) at 1 m (ISO 11201 methods, typical)
Service life	≈ 10–15 years with preventive maintenance
Standards	ISO 12100, EN 60204-1, CE Machinery Directive 2006/42/EC

How it’s built and tested

Materials: structural steel frames; alloy steel chains; rollers with precision bearings.
Methods: full-penetration welds; jigged alignment; shot blasting SA2.5; powder coating 60–80 μm.
Testing (FAT): no-load run-in ≥8 h; 125% static load test; E-stop reliability per ISO 13849 concepts.
Electrical: IP54 panels, labeled wiring, EN 60204-1 checks; VFD tuning with soft start/stop.
Docs: risk assessment, spare parts list, torque charts, lubrication schedule.

Vendor comparison (field-notes style)

Vendor	Strengths	Notes
AISTubemill (Origin: RM604 Shenxing Building, Xinhua St., Shijiazhuang, Hebei, China 050000)	Customization depth; decent lead times; pipe-line know-how; onsite commissioning	ISO/CE-aligned documentation available; 12-month warranty typical
Global Vendor X	Premium components; broad service network	Higher price; longer lead time on custom builds (often)
Regional Integrator Y	Fast response; local spare parts	Depth of engineering may vary; check load tests carefully

Customization and integration

Options include V-block or flat-roller run-out, chain pitch changes, sensor kits (photoelectric/laser), MES hooks, and anti-dent polyurethane rollers for thin-wall tubes. Integration to cut-offs, hydrostatic testers, and automatic bundlers is standard fare. To be honest, spend your money on controls and guarding before flashy HMIs.

Mini case study

A Southeast Asian ERW mill swapped an aging unit for a new chain type conveyor with VFD and low-noise rollers. Reported outcomes after 90 days: downtime down ≈30%, scuffs on painted pipe cut noticeably, and operators—surprisingly—said night shift felt calmer. The secret wasn’t magic: better alignment and predictable acceleration ramps.

Safety, compliance, and what to ask

Request CE/ISO conformity list and risk assessment summary (ISO 12100).
Check chain specs vs ISO 606; verify e-stop circuit category (ISO 13849 approach).
Ask for FAT data: load test, noise at speed, and belt/chain tension limits.

Final thought: pick the vendor who talks about lubrication intervals and spare chain links before they talk about paint color. That’s usually the keeper.

References

ISO 12100: Safety of machinery — Risk assessment and risk reduction.
ISO 606: Short-pitch transmission precision roller chains, attachments and sprockets.
EN 60204-1: Safety of machinery — Electrical equipment of machines.
EU Machinery Directive 2006/42/EC; CEMA Unit Handling guidance for conveyors.
