CU Profile Roll Forming Machine Manufacturer & Production Line Solution

May . 14, 2026 00:00

In modern metal processing, efficiency and precision are critical. The CU Profile Roll Forming Machine is designed to produce high-quality C and U steel profiles continuously and automatically, helping manufacturers improve productivity while maintaining stable product accuracy.

It is widely used in industries such as steel structure construction, solar mounting systems, cable tray production, ceiling support systems, and industrial framing.

For companies looking for fast, accurate, and cost-effective profile production, this machine is an ideal solution.

⚙️ What Does a CU Profile Roll Forming Machine Do?

This machine converts flat steel coil into finished C-shaped or U-shaped metal profiles through a continuous cold bending process.

Unlike traditional bending methods, roll forming shapes the material gradually through multiple roller stations. This ensures:

✅ Smooth profile surface
✅ Accurate dimensions
✅ Stable production quality
✅ High-speed continuous operation
✅ Lower material waste

The entire process is automated, which greatly reduces labor intensity and improves production efficiency.

🔄 How Does It Work?

The production process is simple but highly precise.

1. Coil Feeding

The steel coil is loaded onto the hydraulic decoiler, which unwinds the strip smoothly.

2. Strip Leveling

The leveling unit removes internal stress and improves flatness before forming.

3. Hole Punching (Optional)

If required, a hydraulic punching device creates mounting holes or slots according to profile design.

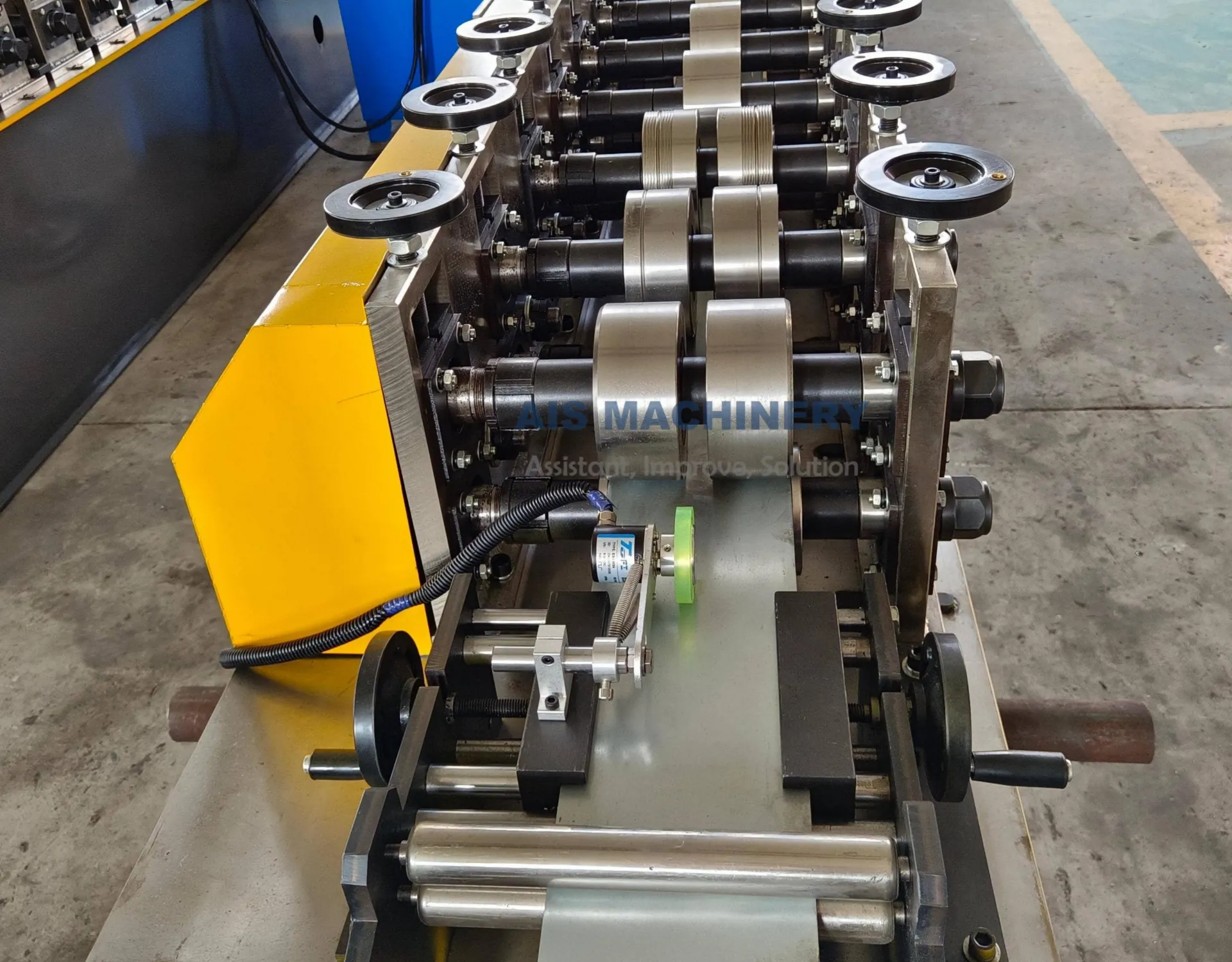

4. Roll Forming

The strip passes through several forming stations, where rollers gradually shape it into the final CU profile.

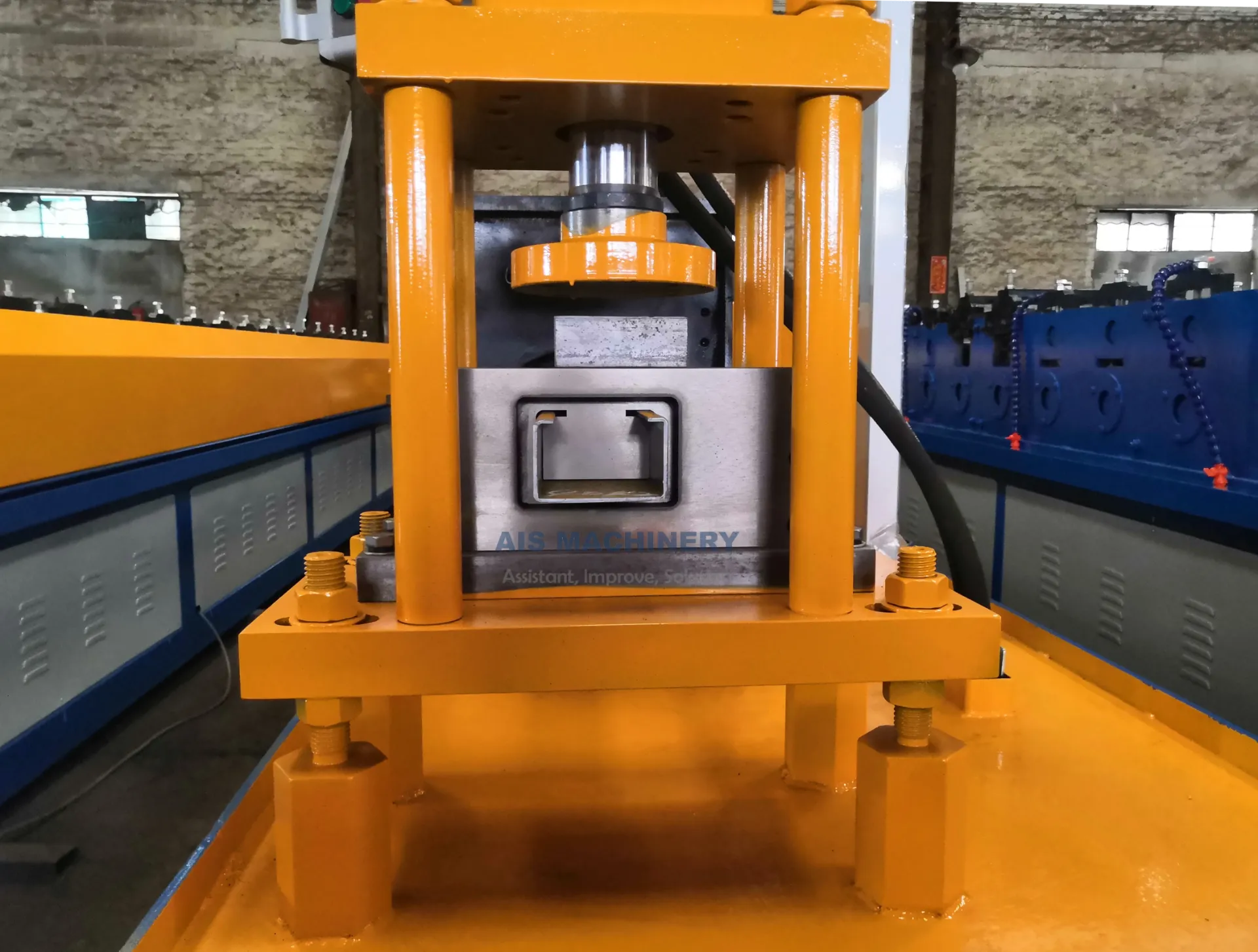

5. Automatic Cutting

The hydraulic cutting system cuts profiles to the preset length with high accuracy.

6. Product Discharge

Finished products are transferred to the receiving table for collection and packaging.

This continuous process ensures smooth operation and consistent profile quality.

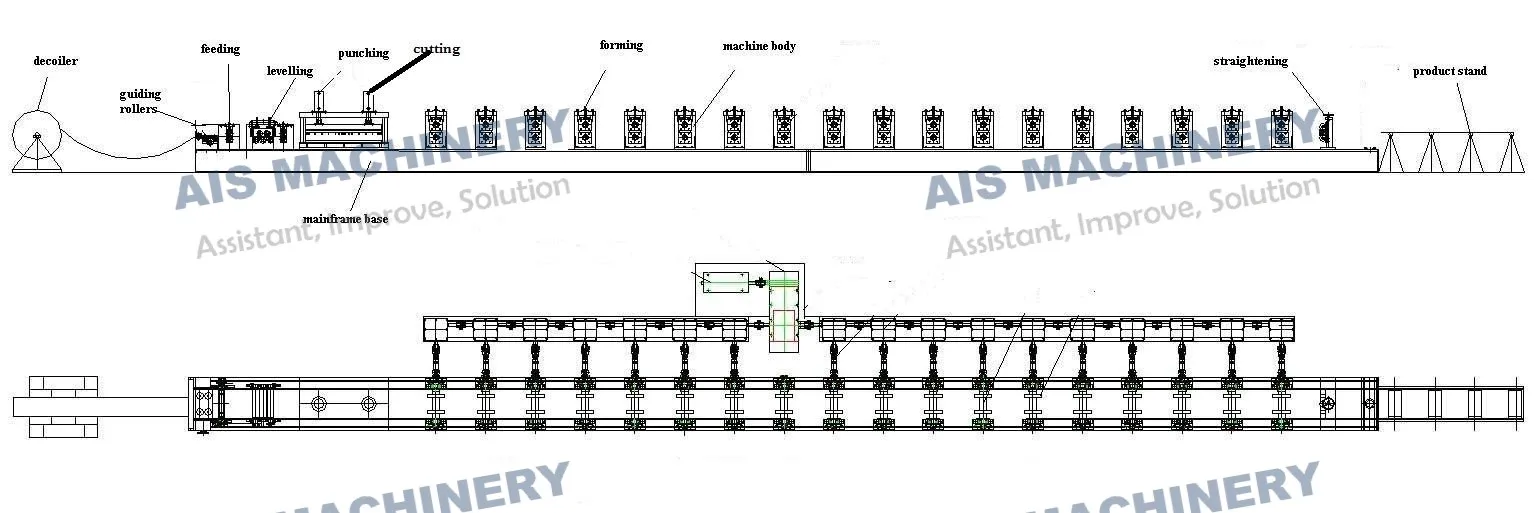

Production process

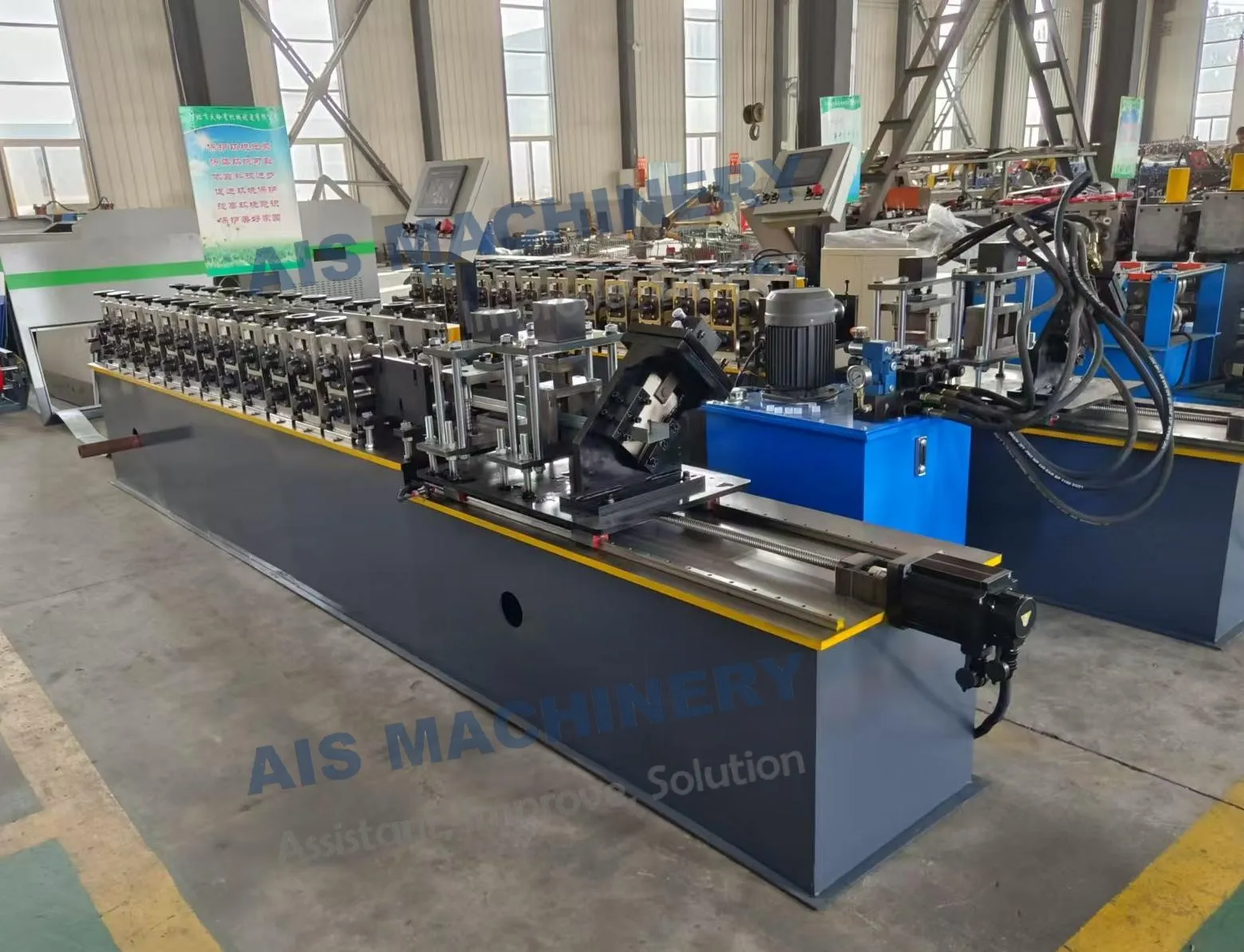

🏗️ Main Equipment Included

A standard CU profile production line usually contains:

🔹 Hydraulic decoiler
🔹 Feeding and leveling device
🔹 Hydraulic punching unit
🔹 Roll forming machine
🔹 Servo length measuring system
🔹 Hydraulic cutting system

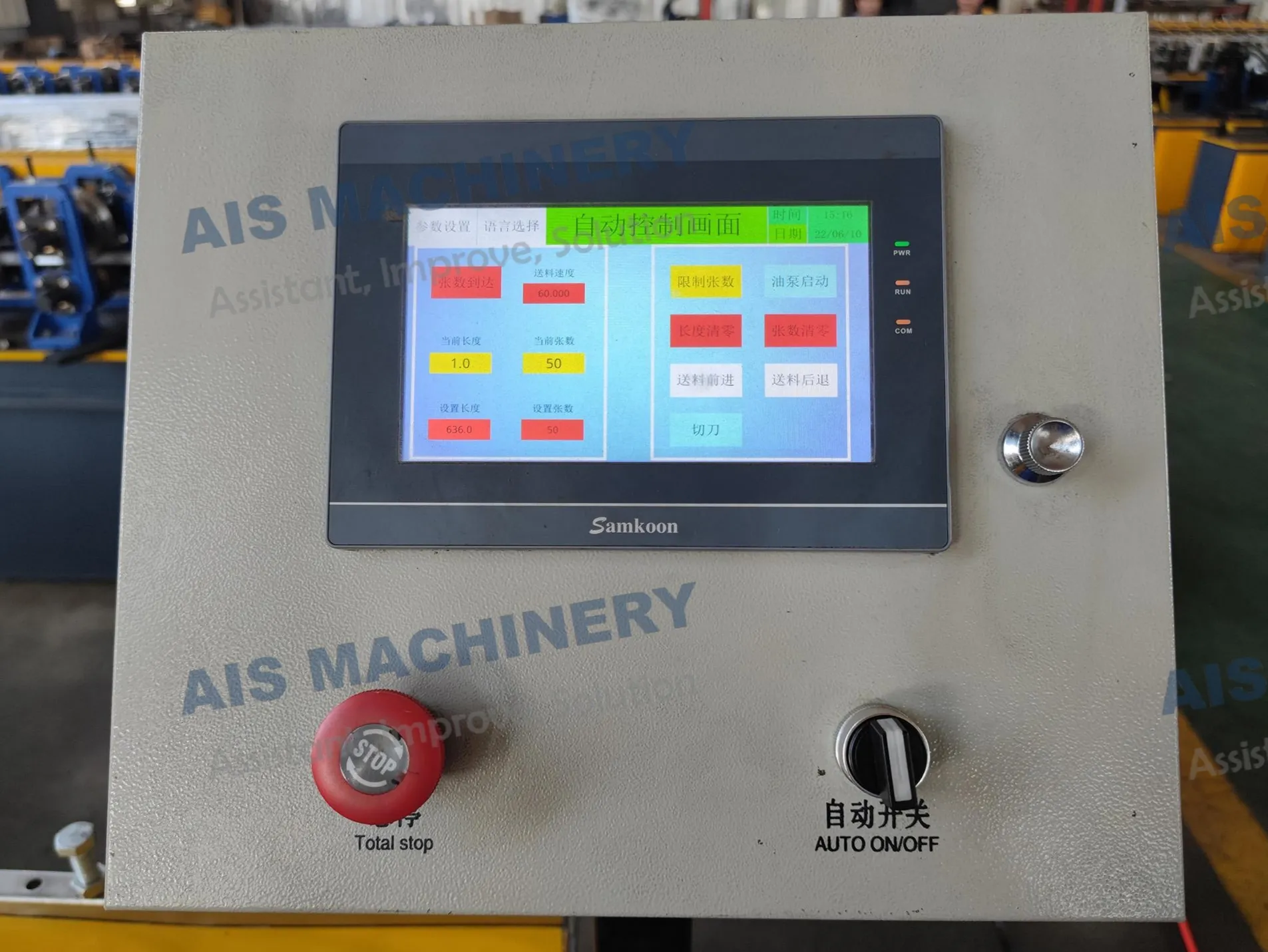

🔹 PLC control cabinet with touchscreen
🔹 Finished product receiving table

Each part works together to ensure efficient and stable production.

📊 Typical Technical Parameters

Specifications can be customized, but common configurations include:

Parameter	Specification
Material Thickness	0.5–2.0 mm
Material Type	GI / CR / HR / Stainless Steel
Forming Speed	10–25 m/min
Forming Stations	12–20 Sets
Cutting Accuracy	±1.0 mm
Main Motor Power	11–30 kW
Control System	PLC Automatic Control
Cutting Type	Hydraulic Servo Tracking

Customization is available according to profile drawing and production requirements.

🌍 Where Are CU Profiles Used?

Finished CU profiles are widely applied in:

🏢 Steel structure buildings
☀️ Solar support systems
🔌 Cable management systems
🏗️ Wall and ceiling framing
📦 Storage rack structures
🚪 Reinforcement frames

Because of their high strength and easy installation, CU profiles are essential in many industrial and construction projects.

⭐ Why Choose This Machine?

Manufacturers prefer CU profile roll forming machines because they offer:

✔️ High-speed production
✔️ Stable profile consistency
✔️ Easy operation
✔️ Low maintenance cost
✔️ Flexible profile customization
✔️ Reduced manual labor

For growing factories, this means better efficiency and stronger market competitiveness.

📈 A Smart Investment for Modern Profile Manufacturing

As market demand for precision steel profiles continues to grow, automated roll forming equipment has become an important investment.

A high-quality CU Profile Roll Forming Machine helps businesses increase output, reduce production costs, and maintain reliable product quality over the long term.

If your production requires efficient and accurate CU profile manufacturing, this machine offers a professional and dependable solution.
