Angle Profile Roll Forming Machine – High-Precision Roll Forming Solution

Sep . 23, 2025 00:00

Introduction

The Angle Profile Roll Forming Machine is a specialized equipment designed for the continuous production of high-quality steel angle profiles from metal coils. With advanced roll forming technology, the machine ensures precise shaping, smooth surface finish, and consistent dimensions, making it widely used in construction, steel structures, shelving systems, and industrial frameworks.

Key Features & Performance

• High Precision Forming: Multi-station roll forming design guarantees accurate angles and consistent quality.
• Strong Adaptability: Capable of processing galvanized steel, stainless steel, and other coated sheets.
• Automation Control: Equipped with PLC system, touch screen operation, and automatic cutting for efficient production.
• Energy Efficiency: Low power consumption with optimized transmission design.
• Durability: Heavy-duty frame and wear-resistant rollers extend machine lifespan.

Technical Advantages

Feature	Angle Profile Roll Forming Machine	Traditional Bending Machine
Accuracy	±0.5mm tolerance	Higher deviation
Speed	10–25 m/min	Slower forming speed
Automation	Full automatic with PLC	Mostly manual/semi-auto
Consistency	Continuous production, uniform profiles	Uneven results, depends on operator
Maintenance	Low maintenance cost	Frequent adjustments required

Applications

Construction Industry: Roof trusses, building frameworks, and support systems.
Shelving & Storage: Warehouse racks, industrial shelves, and storage systems.
Infrastructure: Bridges, railways, and utility support structures.
General Fabrication: Machinery parts, reinforcement angles, and customized profiles.

Why Choose Angle Profile Roll Forming Machine?

Compared with traditional bending or punching methods, this machine offers:

Higher productivity with continuous coil-to-profile forming.
Better product quality with clean edges and precise shapes.
Cost efficiency by reducing labor and material waste.
Flexibility to produce various sizes and thicknesses upon request.

Working Process of Angle Profile Roll Forming Machine

📌Decoiling (Coil Feeding)
- Steel coils (galvanized, stainless, or mild steel) are placed on the decoiler.
- The coil is smoothly fed into the machine without damage or deformation.
📌Leveling & Guiding
- The strip passes through a leveling unit to remove coil stress and ensure flatness.
- Guiding devices align the material for precise forming.
📌Roll Forming

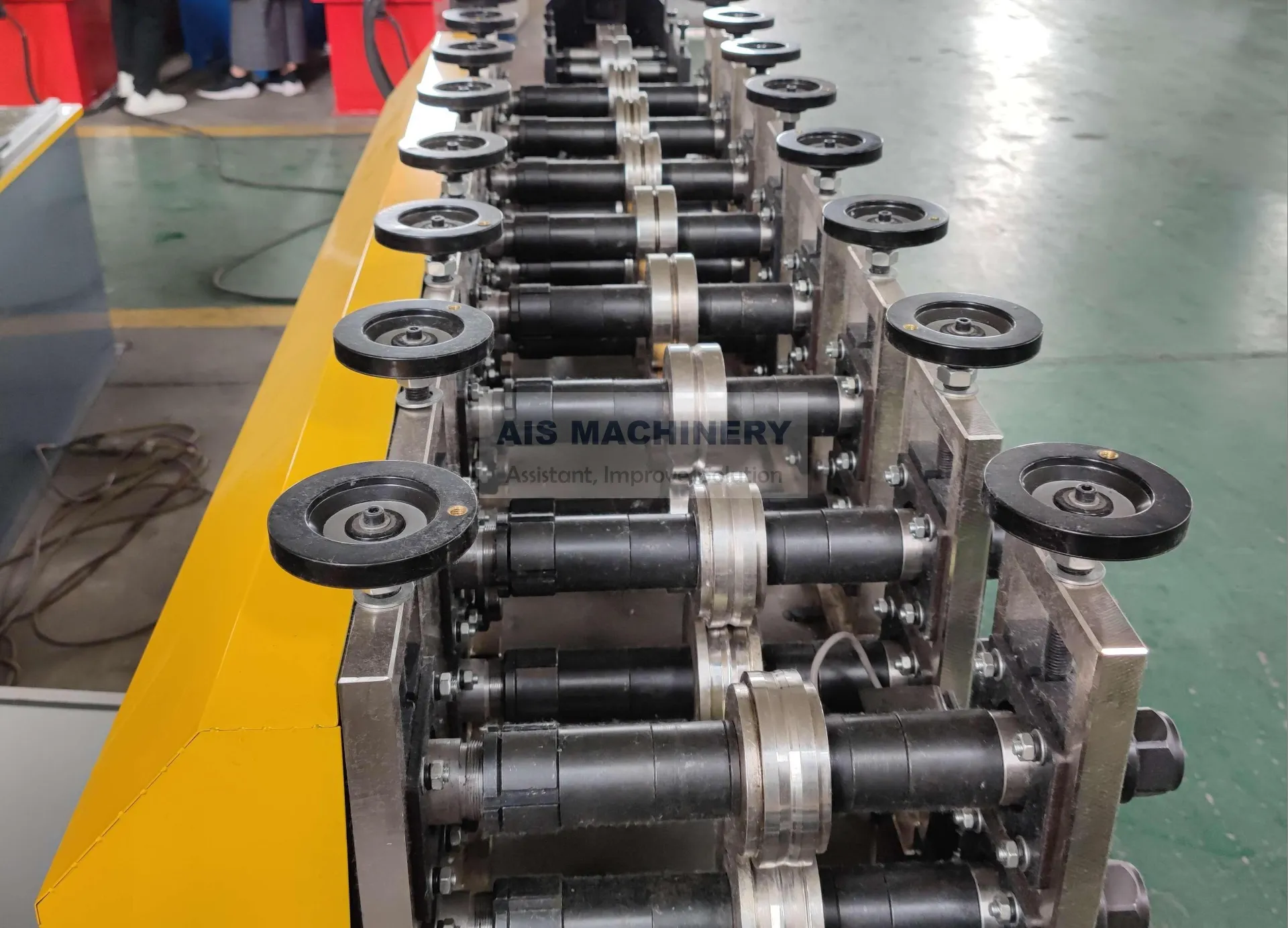

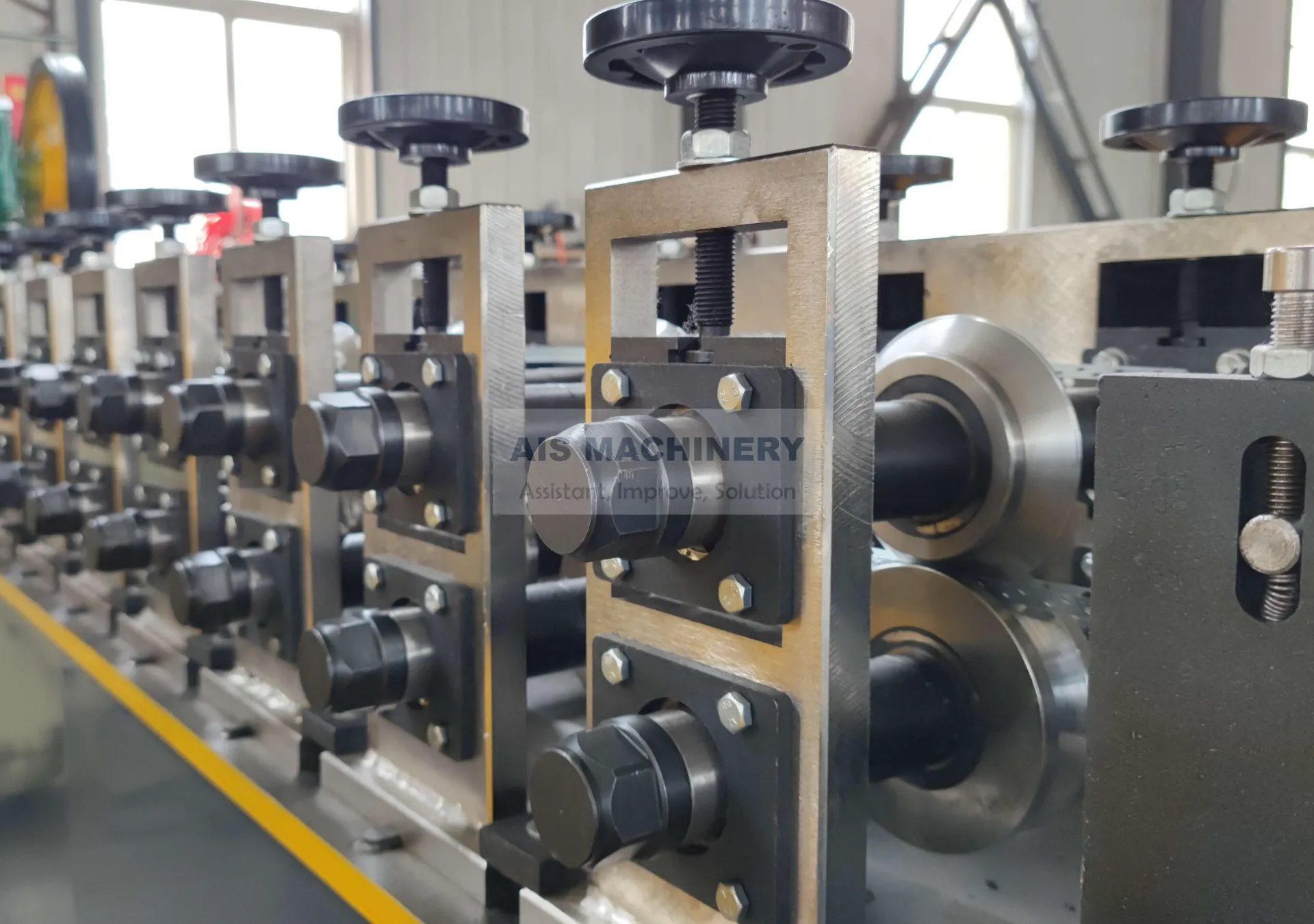

- The material enters multiple forming stations equipped with high-precision rollers.
- Each station gradually bends the strip into the desired angle profile.
- The continuous forming process ensures accuracy and consistency.
📌Cutting (Hydraulic or Servo Cutting)
- Once the required length is reached, the cutting system (hydraulic or servo) cuts the profile without stopping the line.
- The cut edges are clean, burr-free, and accurate.
📌Output & Collection
- Finished angle profiles are discharged to the output table.
- Workers can bundle and pack the products for delivery.

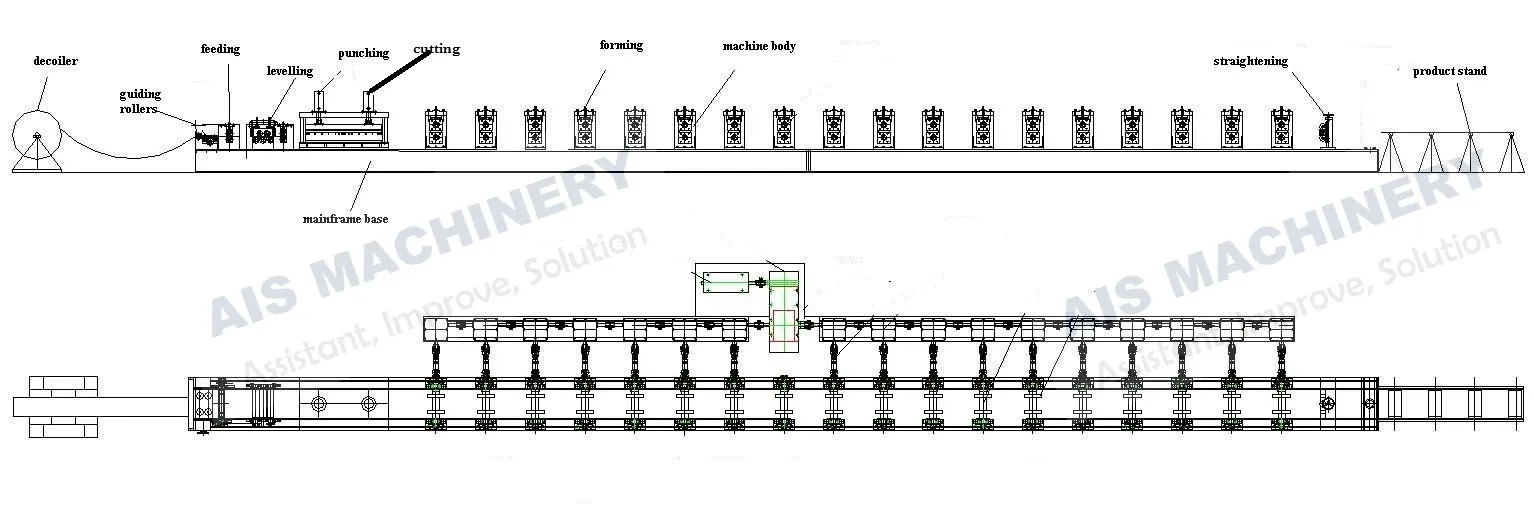

Workflow Diagram

Coil Loading → Leveling → Roll Forming → Cutting → Finished Products
