A slitting line is a coil processing line used to cut wide steel coils into multiple narrow strips with precise widths. These strips are then recoiled and supplied to downstream equipment, most commonly ERW tube mills, for pipe and tube production.

In simple terms, the slitting line prepares the right strip width, edge quality, and coil condition required for stable forming and high-quality welding.

Role of Slitting Line in ERW Tube Mill

In an ERW tube mill production flow, the slitting line is located before the tube mill line.

Typical process sequence: Steel Coil → Slitting Line → Strip Coils → Uncoiler → Forming → HF Welding → Sizing → Cutting

A well-configured slitting line directly affects:

Forming stability
Welding quality
Final tube dimension accuracy

Main Equipment of a Slitting Line

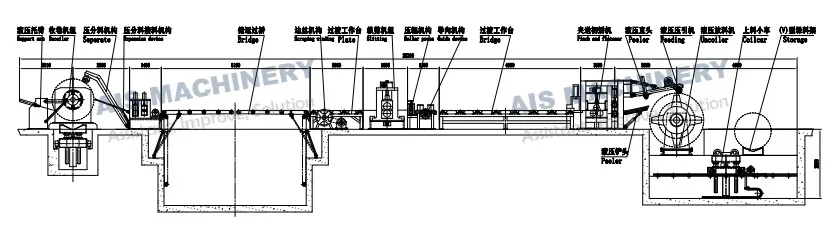

A standard steel slitting line usually consists of the following units:

✔️Coil Car & Uncoiler – Loads and unwinds the master coil
✔️Pinch Roll & Leveler – Feeds and flattens the strip

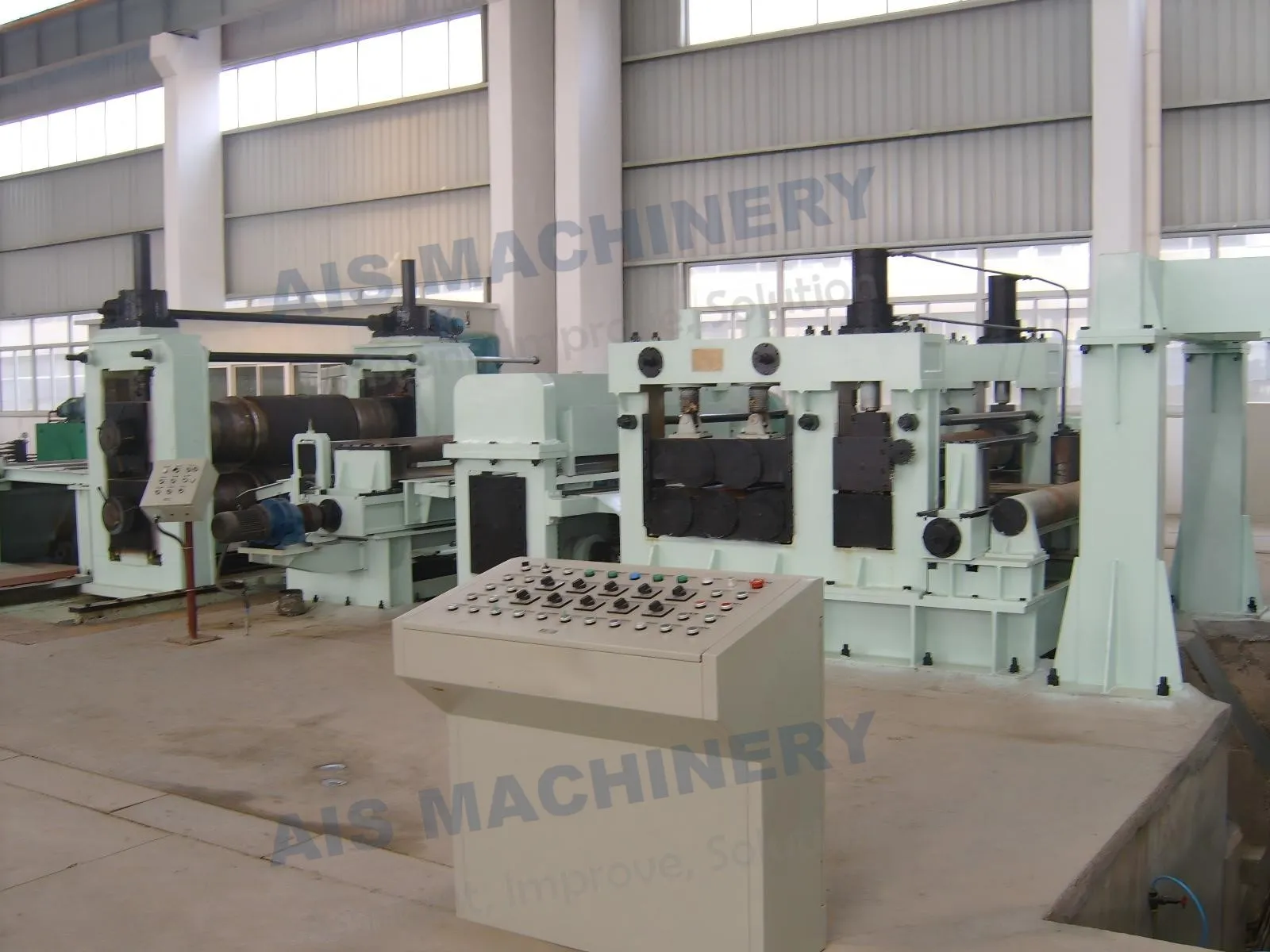

✔️Slitting Machine (Slitter Head) – Cuts the coil into multiple strips
✔️Scrap Winder – Collects edge scrap
✔️Separator & Tension Unit – Separates strips and controls tension
✔️Recoiler – Recoils finished narrow strips
✔️Hydraulic & Electrical Control System – Ensures stable and synchronized operation

The configuration can be customized based on material thickness, coil width, and production speed.

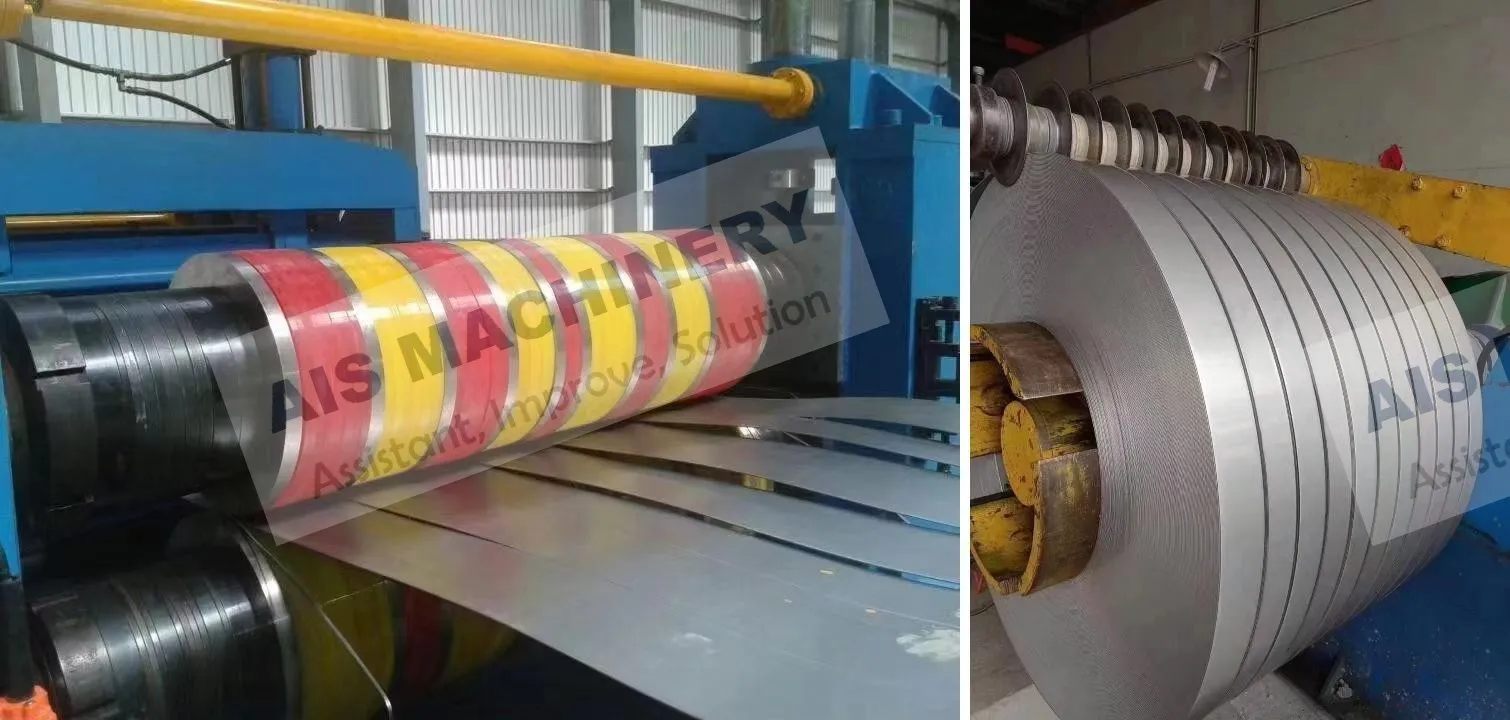

Precision Cutting

Typical Technical Parameters (Reference)

Item	Typical Range
Raw Material	Carbon steel, GI, HR / CR steel
Coil Thickness	0.3 – 6.0 mm
Coil Width	600 – 1600 mm
Slitting Width Accuracy	±0.05 – ±0.1 mm
Number of Strips	5 – 30 strips (depending on width)
Line Speed	Up to 120–200 m/min
Max Coil Weight	15 – 30 tons

⭐Parameters may vary depending on project requirements.

Why Slitting Quality Matters for Tube Production

High-quality slitting ensures:

Smooth strip edges for stable forming
Consistent strip width for accurate tube diameter
Reduced weld defects caused by edge deviation
Higher production efficiency of ERW tube mill

For manufacturers producing precision tubes or high-speed lines, slitting accuracy is critical.

Applications

Steel slitting lines are widely used in:

ERW tube and pipe manufacturing plants
Steel service centers
Automotive and construction material processing
Furniture and scaffold tube production

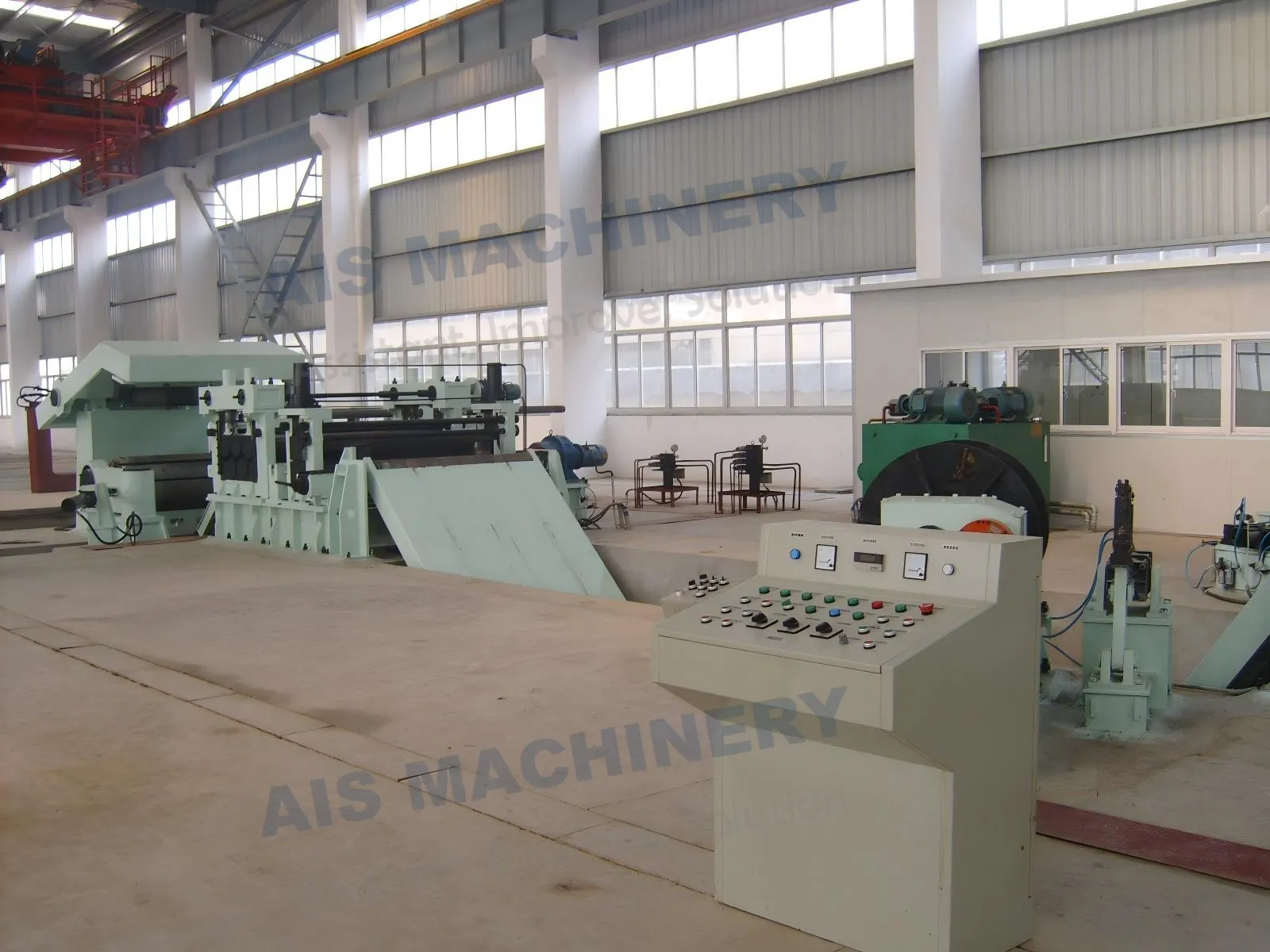

Our Advantages in Slitting Line Solutions

Engineered for Your Tube Production👩‍🔧

Our slitting lines are not off-the-shelf machines. Our experienced engineers design custom slitting solutions based on your ERW tube mill size, strip width range, material grade, and production speed. This ensures better strip consistency and smoother downstream tube forming.

Reliable Machine Quality⚙️

We focus on robust mechanical structure, precision knife shafts, and stable tension control, ensuring long service life and consistent slitting accuracy even in high-speed operation.

Optimized for ERW Tube Mills📏

Our slitting lines are engineered to match ERW tube mill requirements, helping to improve edge quality, forming stability, and welding performance, while reducing setup time and material waste.

Professional Technical Support📈

From project evaluation to installation and commissioning, our technical team provides full-process support, helping customers achieve fast startup and stable long-term production.

👉 Contact us to get a technical proposal or quotation tailored to your tube production requirements.
