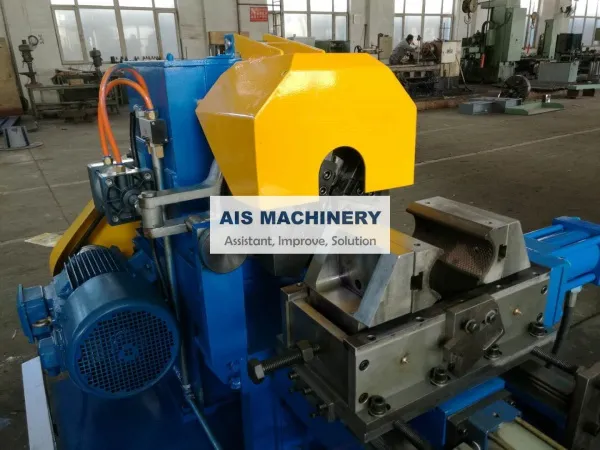

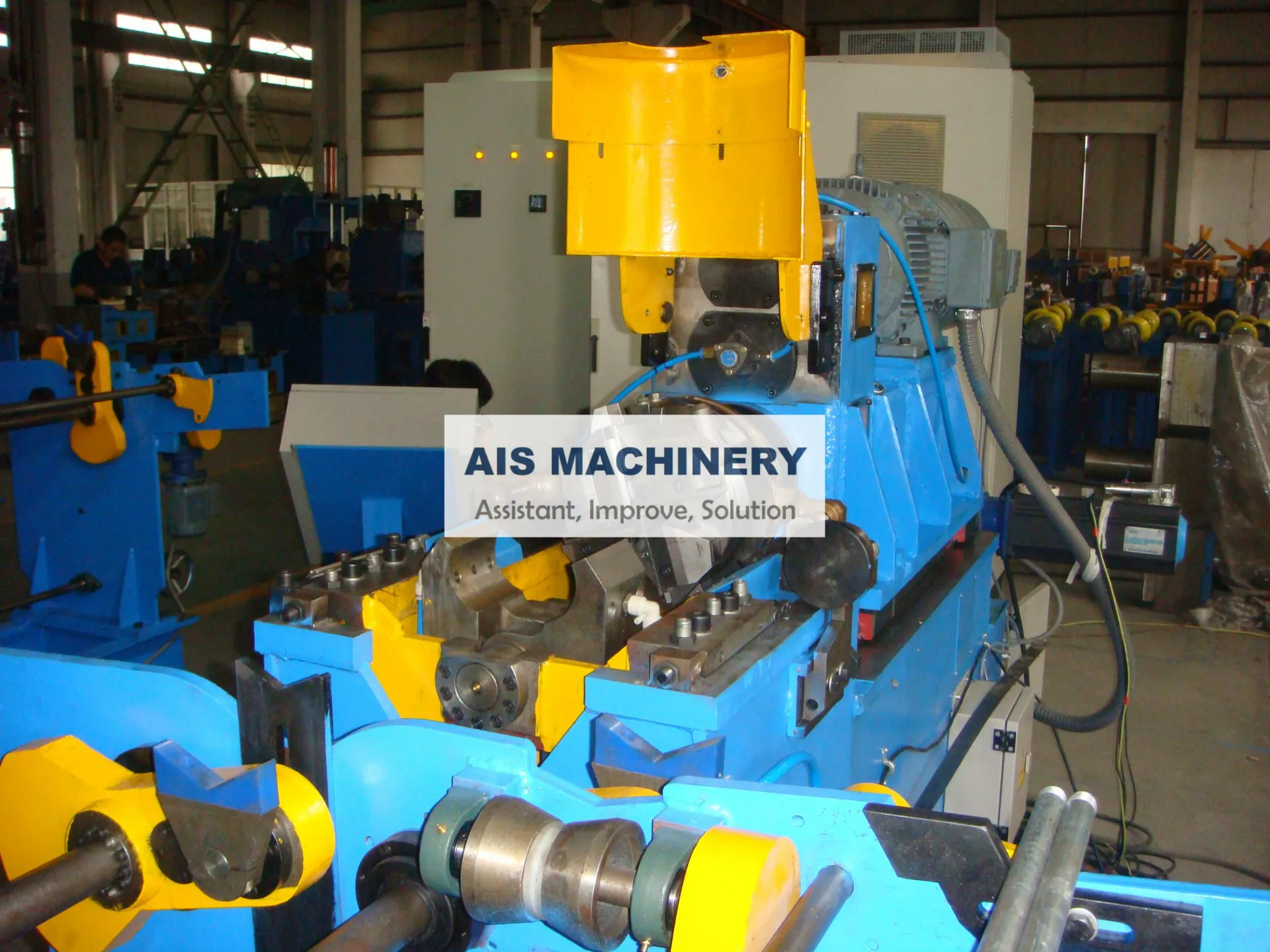

pipe threading machine

The Pipe Threading Machine is a specialized machine used to cut internal or external threads on the ends of metal pipes. It is widely used in industries such as pipeline manufacturing, oil & gas, construction, and firefighting systems. It supports various thread types including NPT, BSPT, API, and straight threads.

Product Details

Contact Now

Product Details

Video



Product Description



✅ 1. Product Overview

The Pipe Threading Machine is a specialized machine used to cut internal or external threads on the ends of metal pipes. It is widely used in industries such as pipeline manufacturing, oil & gas, construction, and firefighting systems. It supports various thread types including NPT, BSPT, API, and straight threads.


✅ 2. Product Details

  • Product Name: Pipe Threading Machine

  • Functions: External thread, internal thread, tapered (NPT/BSPT/API) or straight thread processing

  • Materials Supported: Round pipes, black pipes, galvanized pipes, seamless steel, stainless steel

  • Standards Supported: API, DIN, BS, GB, etc.

  • Control Type: Manual / Semi-automatic / CNC


✅ 3. Main Components

  1. Machine Bed – Provides structural stability

  2. Chuck – 3-jaw or 4-jaw type to clamp and hold pipes

  3. Spindle Unit – Rotates either the pipe or the cutting tool

  4. Tool Post – Holds threading tools or roller heads

  5. Feeding System – Manual or automatic advancement of the cutting tool

  6. Cooling System – Keeps cutting area cool, extends tool life

  7. Control Panel – Controls rotation, feed speed, and threading parameters

  • pipe threading machine
  • pipe threading machine



  • how to thread black iron pipe
  • how to thread pipe

4. Technical Specifications

Item Specification
Pipe Diameter Range 1/2"–6" (optional up to 8"+ on request)
Max Thread Length 300–600 mm
Spindle Speed 20–300 rpm (stepless or stepped adjustment)
Motor Power 3–11 kW (varies by model)
Thread Types Supported NPT, BSPT, API, BSPP, G, RC, etc.
Control System Manual / Semi-automatic / CNC
Thread Accuracy Pitch tolerance ≤ ±0.05 mm
Cooling System Circulating or mist cooling

5. Working Principle

  1. The pipe is clamped by the chuck and rotated (or the tool rotates);

  2. The tool feeds along the pipe axis via feed mechanism;

  3. The cutting tool creates threads according to set parameters;

  4. After threading, the tool retracts automatically or manually;

  5. Cooling system minimizes thermal deformation and extends tool life.


✅ 6. Application Scenarios

  • Oil & Gas: API casing and drill pipe threading

  • 🚰 Water Supply & Drainage: Galvanized and black steel pipe threading

  • 🔥 Fire Protection Systems: Firefighting pipe threading

  • 🏗️ Construction: Electrical conduit and HVAC pipe threading

  • ⚙️ Hardware Workshops: Custom batch thread cutting


✅ 7. User Feedback Summary

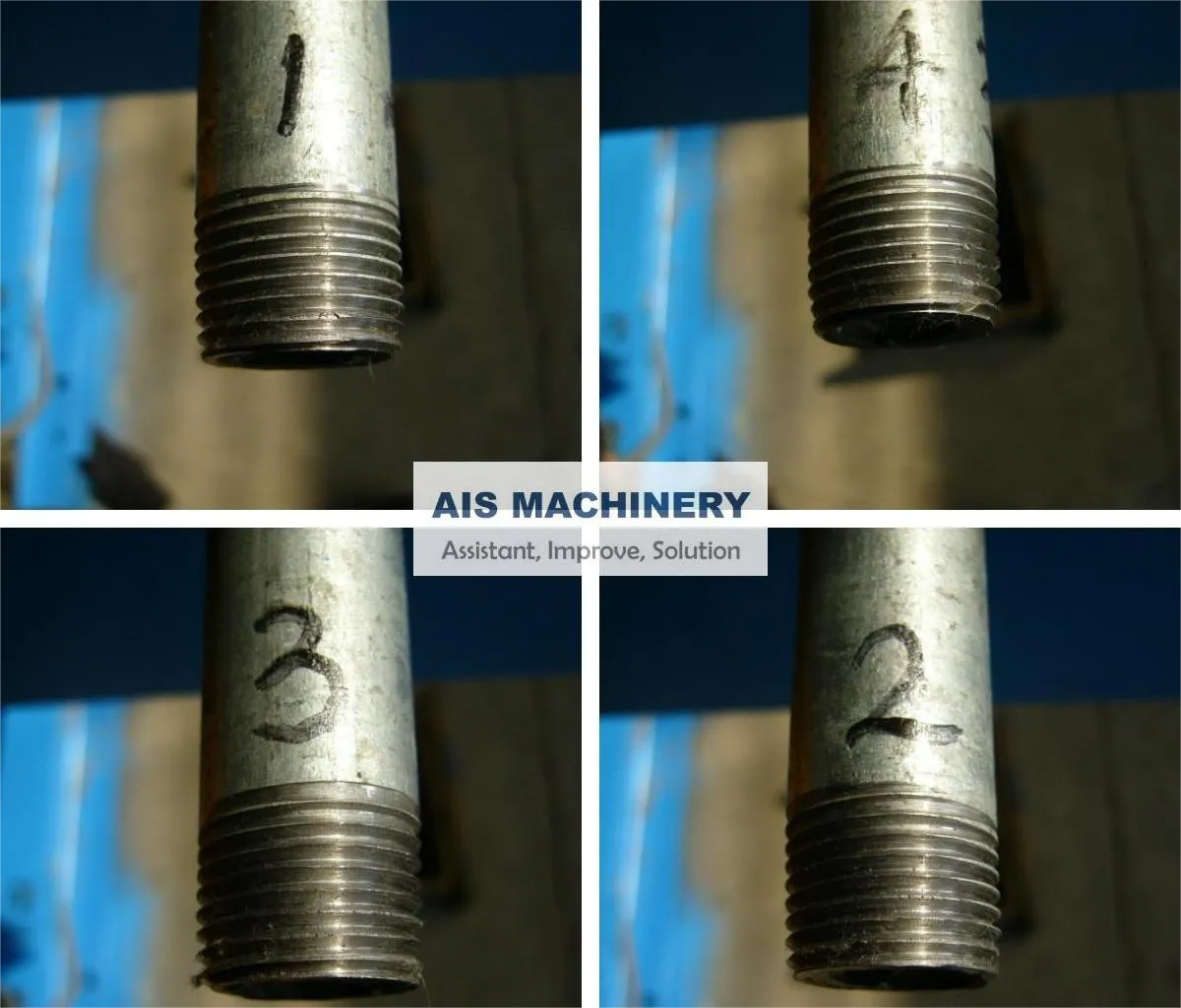

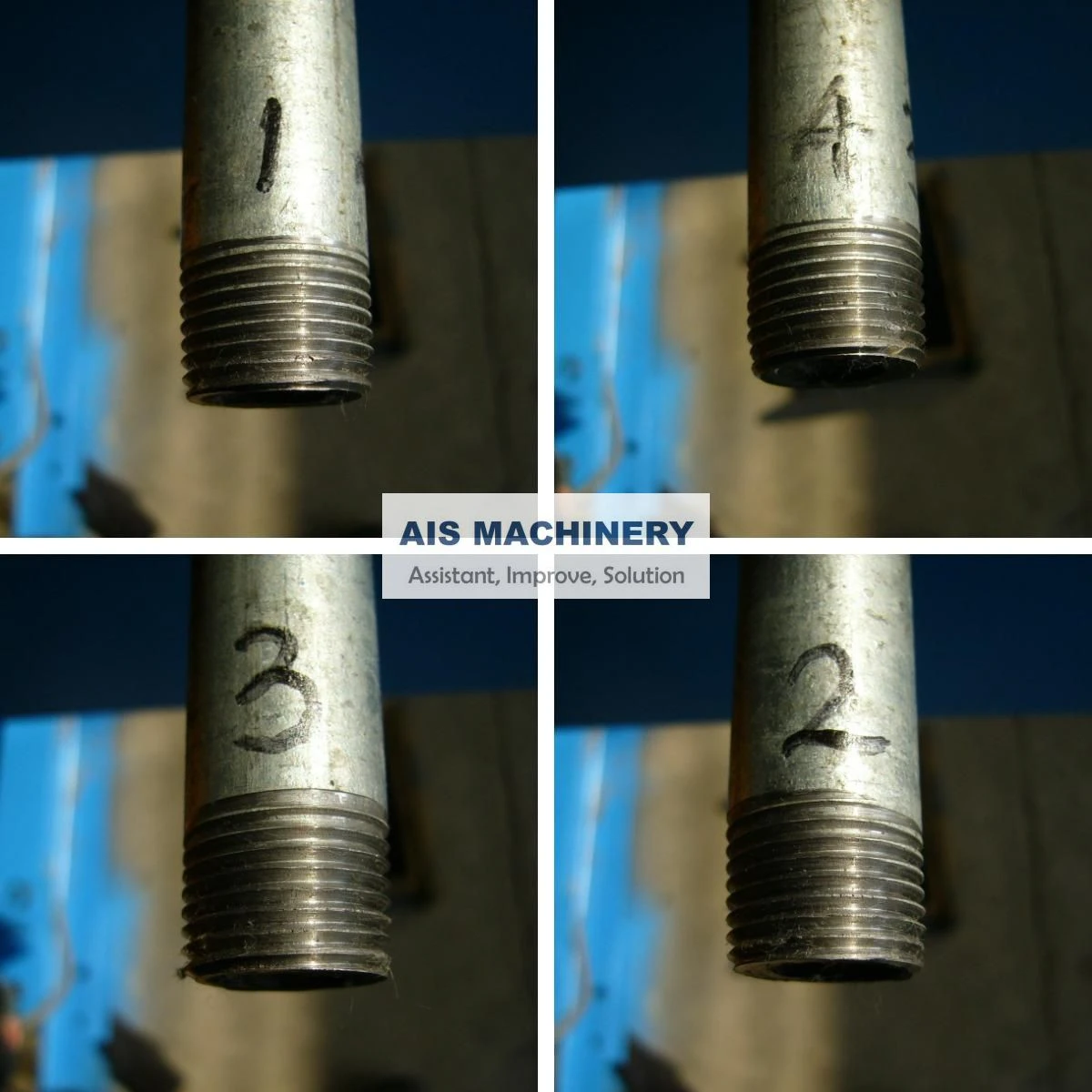

  • High Precision: Threads are smooth and meet international standards

  • 🔄 Easy to Operate: Especially CNC versions with user-friendly interface

  • 🧰 Low Maintenance: Modular design for quick part replacement

  • ⏱️ Efficient: Short processing cycles, ideal for batch work

  • 💰 Cost-Effective: Local machines offer good performance-to-price ratio

  • ⚠️ User Tip: Change tools regularly during heavy-duty operation to maintain quality



  1. Enter Section Equipments
  2.
  3. 1. Coil car and Storage
  4. 2.Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler
  5. 3.Peeler and hold down roll arm
  6. 4.Flattening Machine
  7. 5.Automatic and Semi Auto Shearer & Butt Welder
  8. 6.Vertical Cage Accumulator​ & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

Read More About impeder rod

Read More About ferrite impeder rods

Finishing Section

  1.
  2. 1. Eddy current machine
  3. 2. Seam annealing machine
  4. 3. Straightener machine
  5. 4. Chamfer and end facer machine
  6. 5. Hydro Tester machine
  7. 6. Threading machine
  8. 7. Painting and oil machine
  9. 8. Automatic bundle and package machine

Read More About ferrite impeder rods

Read More About impeder rod

Spare Parts and Consumble Parts

  1.
  2. 1. Rollers, Moulds, Dies, D2,D3 material to choose
  3. 2. Ferrite, Impeder, Fiberglass tube
  4. 3. HSS saw blades, TCT Saw blades, Friction saw blades
  5. 4. OD burr remove inserts, ID burr remover inserts
  6. 5. HF welder Induction Coil and other HF welder spare parts
  7. 6. Copper tube for induction Coil, PTFE pipe for Induction Coil
  8. 7. Mosfet, Boards
  9. 8. Steel pipe Strapping machine
  10. 9. Zinc Spray Machine, Zinc wire, Zinc spray gun

Read More About impeder rod

Read More About fiberglass tube

Certificate


Read More About erw tube mill china

Our Service

  1. Why Choose Us?
  2. 1.Leading Technology, Reliable Quality, Excellent Service! Optimized Design, High quality material select!  Heat treatment process guarantee!

  3. 2.Spiral bevel gear, drum gear coupling and carburization. Gear teeth quenching. Driven system stable, efficient and wearable with lower noise.

  4. 3.High precision wear resisting and Long life of toolings. All the machine Lathes, Key Grooves are positioned and Milled by CNC.

  5. 4.Quality department make sure the material of the raw materials quality, and ensure the machine running perfect.

Read More About impeder rod

After-sales service

  1. 1.Machine test running videos will supply to customer before shipment.
  2. 2.Online techenical support WHOLE LIFT FREE.
  3. 3.Professional engineers team to install the machine,  train your employee well.
  4. 4.One year warranty and life-long technical support.
  5. 5 .24 hours for engineer response.
  6. 6.Your business relationship with us will be confidential to any third party.
  7. 7.  We welcome customers to visit our factory anytime.

Read More About impeder rod

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

pipe threading machine FAQs

What types of pipes can be threaded?

Black steel pipes, galvanized pipes, stainless steel pipes, seamless pipes, and conduit pipes.

What thread standards does it support?

NPT, BSPT, BSPP, API, ISO, DIN, G, and other international or custom thread profiles.

What is the threading range of the machine?

Most machines support 1/2" to 6" pipes, with optional upgrades for up to 8" or more.

How accurate is the threading?

CNC machines typically achieve pitch error within ±0.05 mm.

Can it thread both ends of a pipe?

Yes, though usually one end is threaded at a time. Some setups allow back-to-back operations.
