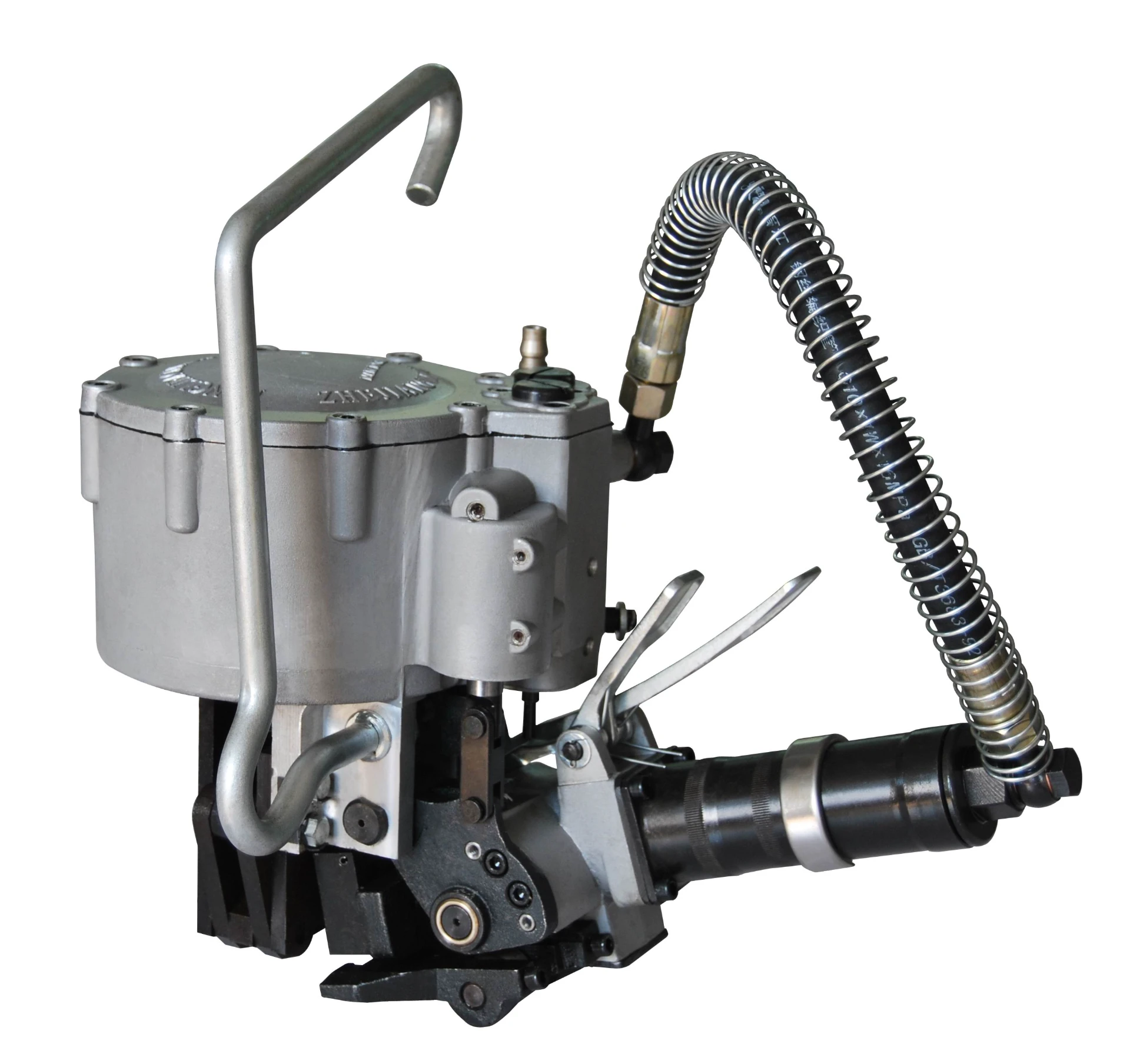

Pneumatic Strapping Machine



  • The pneumatic steel pipe strapping machine is a purpose-built automation solution designed for bundling metal pipes efficiently and securely. It operates using compressed air as the driving force, enabling fast tensioning, sealing, and cutting of strapping materials. This equipment is ideal for final packaging sections on steel pipe production lines, offering safety, consistency, and high productivity.

Product Details

Contact Now

Product Details

Video



Product Description


The pneumatic steel pipe strapping machine is a purpose-built automation solution designed for bundling metal pipes efficiently and securely. It operates using compressed air as the driving force, enabling fast tensioning, sealing, and cutting of strapping materials. This equipment is ideal for final packaging sections on steel pipe production lines, offering safety, consistency, and high productivity.

Read More automatic pipe strapping machine

Working Principle

Driven by compressed air, the strapping machine performs a series of precise mechanical actions. The typical process includes:

  1. Positioning & Looping: The strapping band is manually or automatically looped around the pipe bundle.

  2. Tensioning: A pneumatic tensioner pulls the band tight to the desired force.

  3. Sealing: A locking mechanism secures the band using metal clips or fusion methods.

  4. Cutting: The excess strap is trimmed by a pneumatic cutter.

  5. Resetting: The system resets for the next strapping cycle.

The entire cycle is swift and operator-friendly, often integrated with pedal controls or a PLC interface for streamlined operations.

Read More About strapping machine

Key Technical Specifications (Customizable)

ItemSpecification Range
Applicable Pipe DiameterΦ20mm – Φ508mm (custom sizes available)
Strapping MaterialSteel strap / PET strap / PP strap
Strap Width13mm / 16mm / 19mm / 25mm
Tension Range50N – 6500N (manually or automatically adjusted)
Strapping Speed1.5 – 3 seconds per cycle
Operating Air Pressure0.5 – 0.8 MPa (dry, clean air recommended)
Control OptionsManual buttons / Foot pedal / PLC integration
Optional ModulesAuto-feed, positioning arms, lifting assist, weight control, etc.

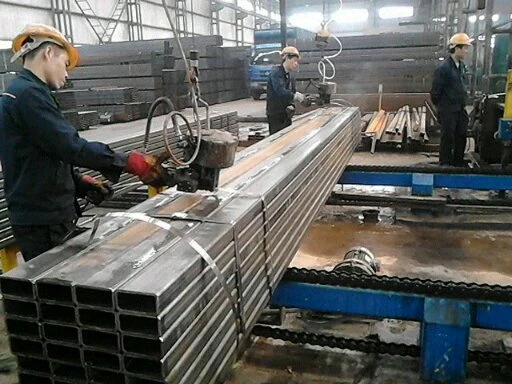

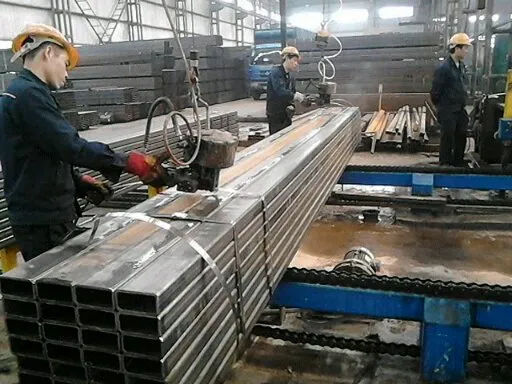

steel pipe strapping machine


Applications

  • Steel pipe production (ERW, spiral, cold drawn, etc.)

  • Cold-formed steel packaging

  • Metal profiles and structural section bundling

  • Heavy-duty packaging for transport and storage

  • Industrial logistics and yard handling

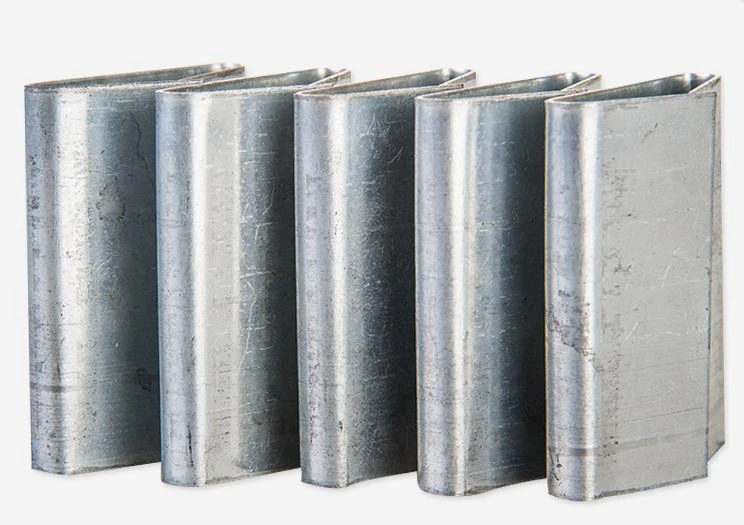

Read More About strapping clip

Advantages

✅ Easy to Operate: Single-operator capable, saves labor
✅ Fast Bundling: Only 2–3 seconds per strap
✅ Flexible Adaptability: Works with various pipe sizes and strap widths
✅ Precise Tension Control: Adjustable to prevent surface damage
✅ Low Maintenance: Modular design allows quick part replacement
✅ Automation Ready: Easily integrates with packing lines or vision systems



  1. Operation Notes

    • Ensure compressed air supply meets pressure and cleanliness requirements

    • Use strap and seals of compatible size and material for best results

    • Regularly inspect and lubricate tensioning wheels and cutting parts

    • Keep the strap path clean and clear of foreign materials

    • Drain air compressor moisture to prevent cylinder malfunction

    •

Purchasing Recommendations

  • Choose model based on your pipe diameters and strap width

  • For high-speed production, opt for dual-channel or auto-positioning models

  • For large/heavy bundles, consider lifting assist arms for efficiency

  • For mass production, equip with auto strap dispensers and fault-prevention logic



Certificate


Read More About erw tube mill china

Our Service

  1. Why Choose Us?

  2. 1.Leading Technology, Reliable Quality, Excellent Service! Optimized Design, High quality material select!  Heat treatment process guarantee!

  3. 2.Spiral bevel gear, drum gear coupling and carburization. Gear teeth quenching. Driven system stable, efficient and wearable with lower noise.

  4. 3.High precision wear resisting and Long life of toolings. All the machine Lathes, Key Grooves are positioned and Milled by CNC.

  5. 4.Quality department make sure the material of the raw materials quality, and ensure the machine running perfect.

Read More About impeder rod

Read More About impeder rod

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

Strapping Machine FAQs

Strap is loose or slips after sealing

Check tension settings, replace worn wheels or seals

Strap not cut cleanly or with burrs

Replace or sharpen the cutter blade, adjust cutting force

Delayed or failed operation

Check air supply, inspect solenoid valve or cylinder

Strap misaligned or slipping

Realign guide wheels, check strap friction compatibility

Frequent strap breakage

Review strap quality or material compatibility
