Quick-Change System for Forming & Sizing Section

In high-efficiency ERW tube production, especially for square and rectangular tubes with frequent size changes, the traditional method of manually replacing rolls and shafts is time-consuming and labor-intensive. To address this, a quick-change system is applied to the forming and sizing sections, enabling rapid replacement of roll stands, shafts, and transmission systems. This greatly enhances flexibility, productivity, and accuracy.

Product Details

Contact Now

Product Details

Video

Product Description

2. Structure and Technical Scheme

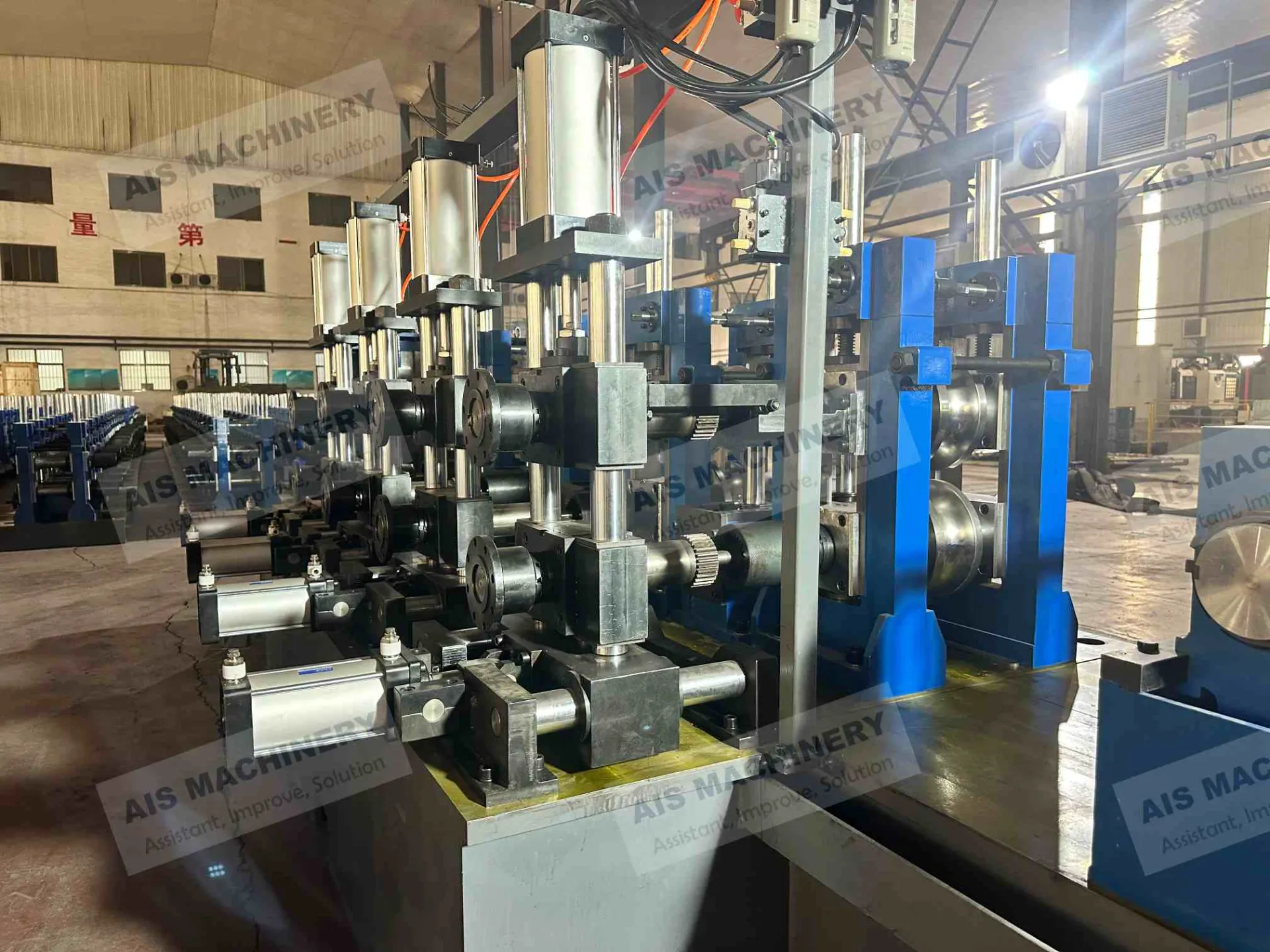

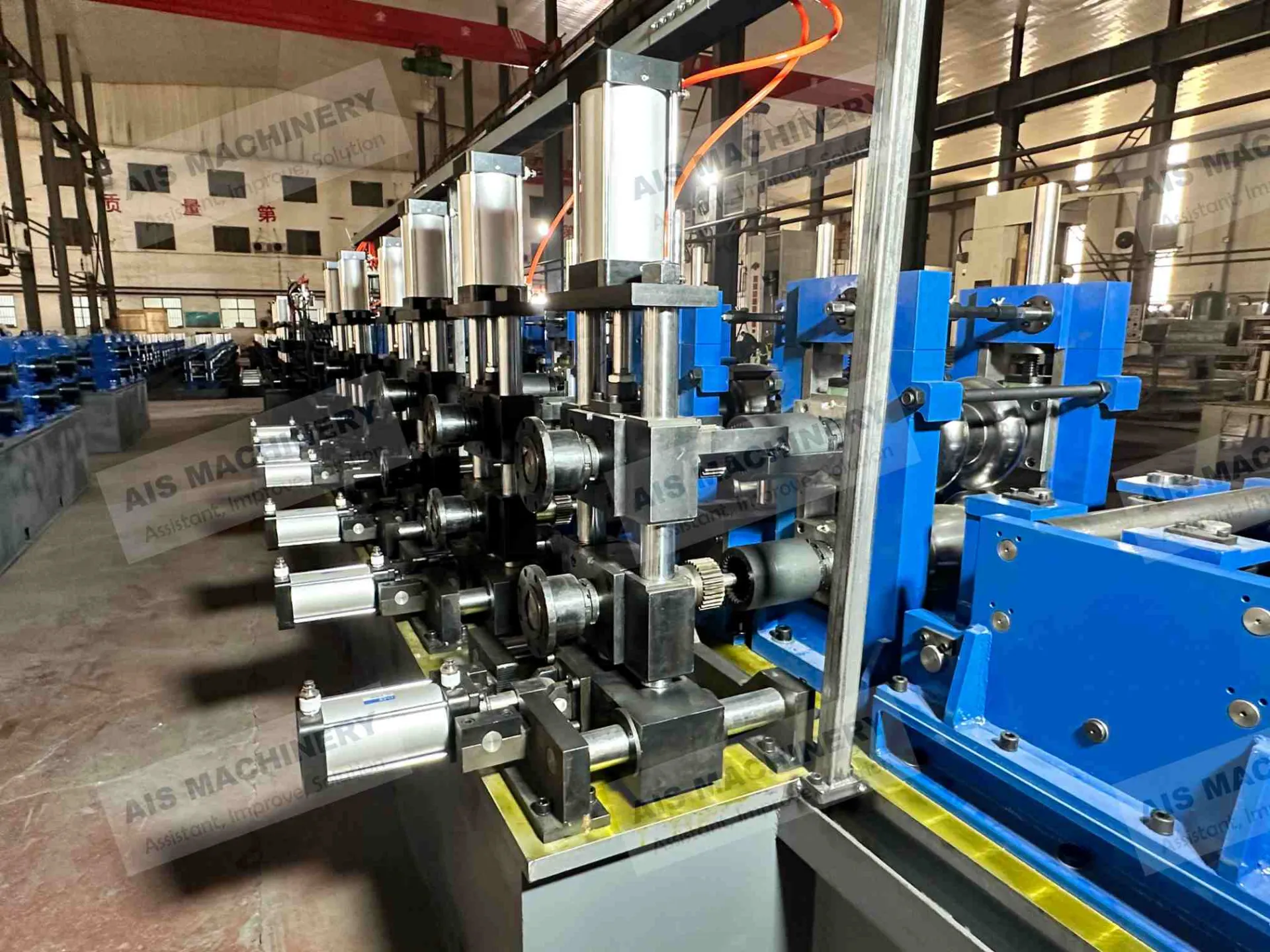

1) Cassette-Type Base:
Roll stands in the forming and sizing sections are mounted on a unified steel base, which can be moved along rails for offline changeover or maintenance.

2) Offline Pre-assembled Modules:

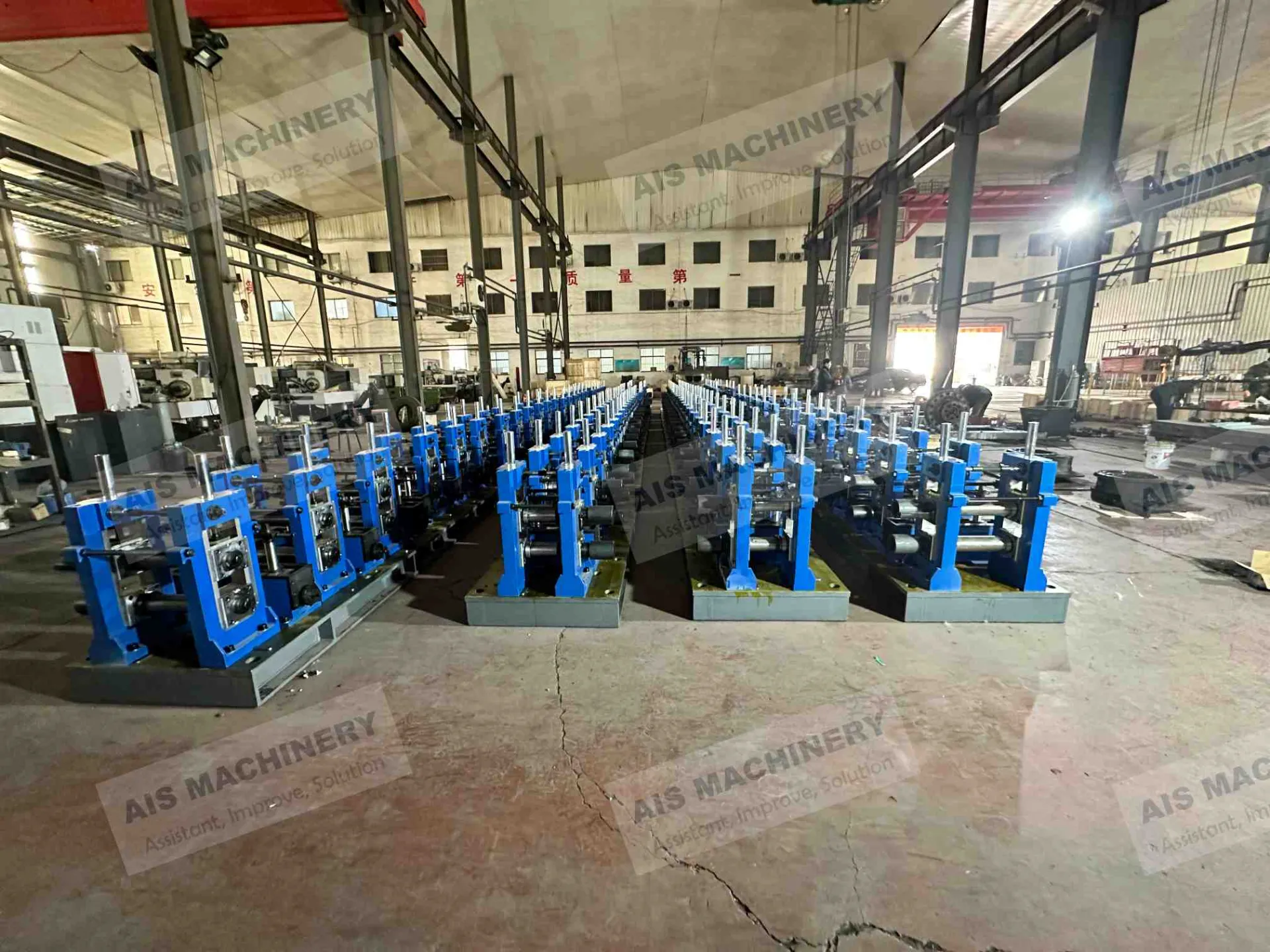

A complete set of roll stands, rolls, and shaft systems is prepared offline in advance. During changeover, the entire cassette is brought onto the line, significantly reducing preparation and downtime.

3) Pneumatically Released Couplings:

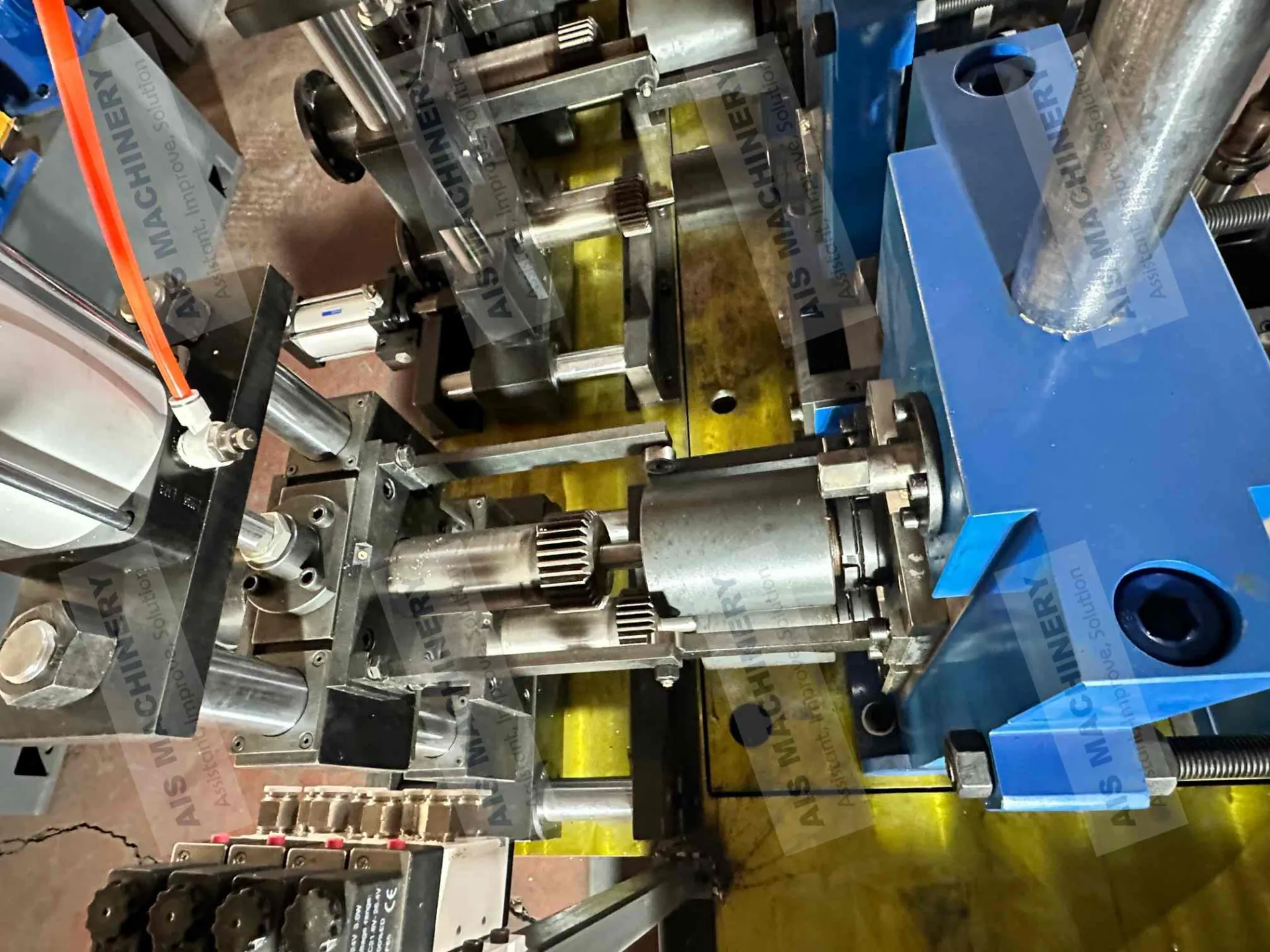

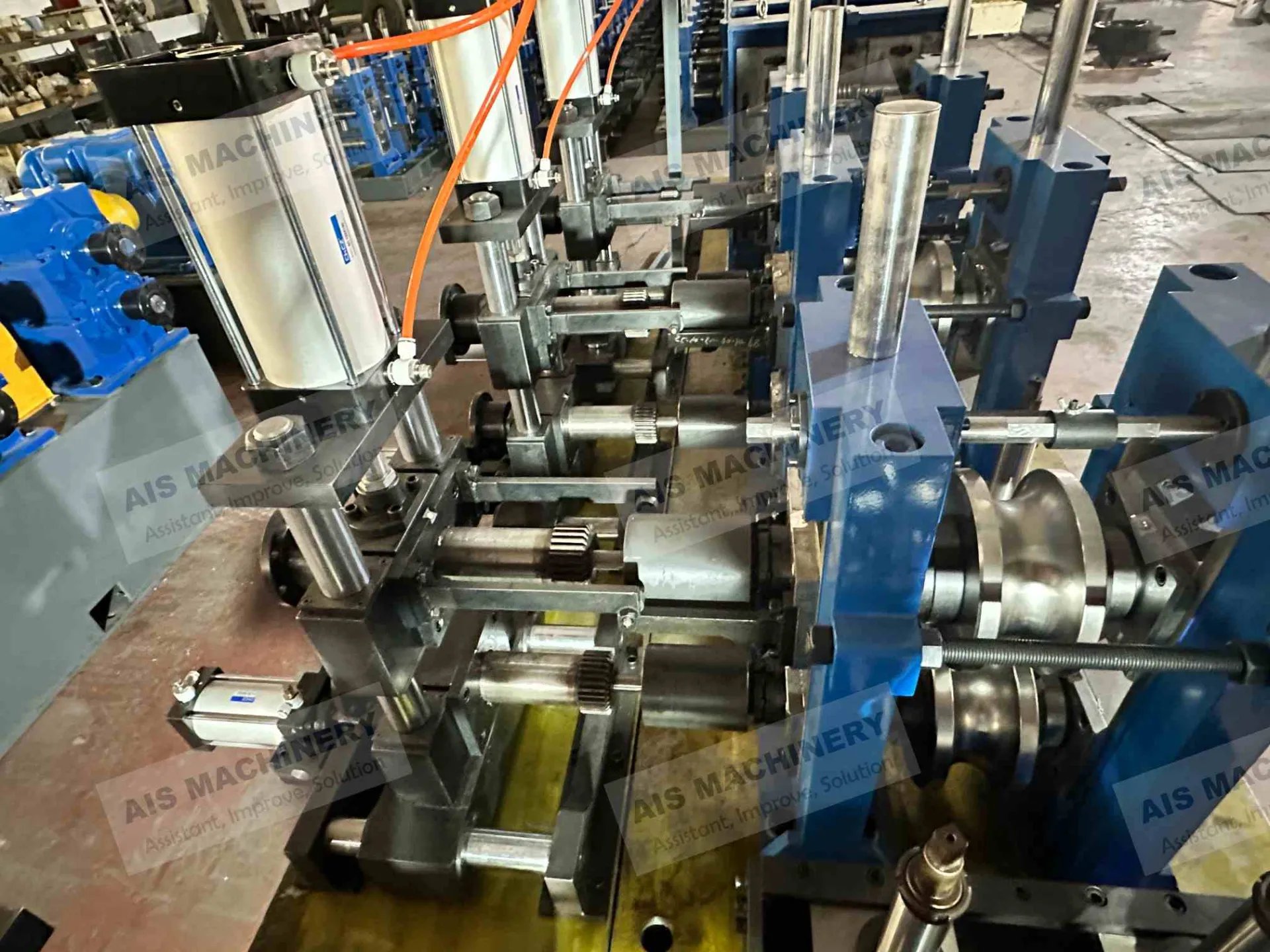

Transmission shafts and roll stands are connected via pneumatic couplings, which can be engaged/disengaged in seconds without manual intervention. Common types include quick-insert spline shafts, pneumatic expanding sleeves, and self-aligning locking couplings.

4) Positioning & Locking System:
Each roll stand is equipped with mechanical limiters or hydraulic positioning pins for precise placement. Optional auto-locking mechanisms further reduce setup time.

3. Technical Advantages

Feature	Description
Changeover Time	Reduced from 3–5 hours to 20–45 minutes
Offline Pre-adjustment	Enables pre-set roll gaps and shaft positions
High Positioning Accuracy	Fixed base and locating pins ensure alignment
Less Manual Labor	Simplified procedures reduce operator fatigue
Suitable for Multi-size Production	Ideal for frequent switching between square, rectangular, and round tubes
Expandable	Can be integrated with automation, PLC, and smart systems

4. Application Scope

High-end structural tube production (HSS, construction, bridges)
Automotive tube lines (bumpers, chassis)
Export-oriented tube mills with frequent order changes
Furniture tubing and customized rectangular profiles

5. FAQ – Frequently Asked Questions

Q1: Does each pre-assembled cassette include shafts?
A: Yes. Each quick-change module includes its own shaft system (main shaft, driven shaft, couplings) to avoid disassembling the mainline. Coupling is achieved via pneumatic quick connectors.

Q2: Are pneumatic couplings reliable and easy to maintain?
A: Yes. These couplings are made of high-strength alloy steel with sealed dustproof designs. Pneumatic components use standardized parts with low failure rates.

Q3: Can the system be integrated with PLC or HMI?
A: Advanced systems support PLC/HMI integration for changeover alerts, position feedback, and pneumatic control.

Q4: Is it suitable for both round and square tube production?
A: Absolutely. It's recommended to have separate cassettes for each section type (square, round) to maximize speed and accuracy.

6. Comparison: Quick-Change vs. Traditional Setup

Criteria	Quick-Change System	Traditional Setup
Changeover Time	20–45 minutes	3–5 hours
Method	Cassette module + pneumatic couplings	Manual disassembly of each roll and shaft
Tuning Workload	Minimal (pre-set offline)	High (manual readjustment each time)
Labor Intensity	Low	High
Accuracy & Consistency	High (auto positioning)	Low (manual alignment)
Use Case	Multi-size, frequent change	Single size, infrequent change
Initial Cost	Higher	Lower
Long-Term ROI	High (better efficiency and OEE)	Low (lower uptime and productivity)
First-piece Quality	High (pre-adjusted)	Variable (manual tuning errors)
Expandability	Strong (smart systems ready)	Limited (requires heavy upgrade)

Conclusion:

The quick-change system is highly recommended for production lines requiring frequent specification changes and high efficiency. It reduces downtime, improves operator safety, and ensures high product quality. For single-size or budget-constrained lines, the traditional setup remains viable but less efficient long-term.
