Choosing the Right C Purlin Forming Machine

If you're in steel structure fabrication, pre-engineered buildings, or construction material supply, investing in a C purlin forming machine can significantly upgrade your production efficiency. These machines are designed to produce C-shaped steel purlins used as secondary structural members in roofing, wall framing, and steel building systems.

This guide breaks down how a C purlin machine works, what features to look for, pricing, and how to evaluate C purlin machine manufacturers. Whether you're expanding capacity or starting in roll forming, this is your go-to reference.

What Is a C Purlin Forming Machine?

A C purlin forming machine is a type of roll forming equipment designed to continuously form galvanized or cold-rolled steel coils into C-shaped steel purlins. These purlins are commonly used in structural frameworks of warehouses, workshops, commercial buildings, and industrial sheds.

Modern lines can produce various C purlin sizes by adjusting the tooling—sometimes automatically, sometimes manually—depending on the machine design.

How It Works

Here’s a simplified breakdown of the machine process:

Decoiler – Holds and unwinds the raw coil (usually 1.5mm–3.0mm thick).

Leveling Section – Flattens the coil and removes internal stress.

Punching Station – Punches holes (optional) for bolting, based on customer specs.

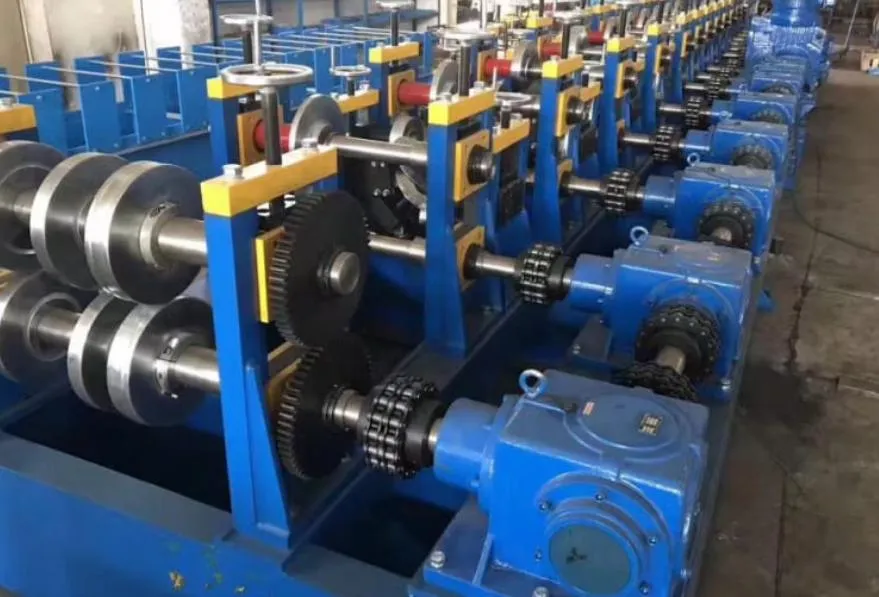

Roll Forming Section – Forms the strip into a C-profile through sequential roller dies.

Cutting Unit – Hydraulic or flying saw cuts to length based on PLC settings.

Output Table – Collects the finished C purlins.

Some advanced models offer fully automatic width and height adjustments to switch between sizes in under 10 minutes.

Key Features to Look For

When selecting a C purlin machine, pay attention to the following:

Profile Size Range

Most machines cover 80–300mm web height and 40–80mm flange size. Confirm the range matches your needs.

Thickness Capacity

Standard range is 1.5mm to 3.0mm. Heavy-duty models can handle 4.0mm+.

Manual vs. Automatic Size Change

Manual adjustment is cheaper but slower.

Automatic adjustment is faster and ideal for high-mix, low-volume production.

Punching System

Hydraulic punching for holes, slots, or notches can be inline or offline. Optional but valuable if your products require it.

Control System

A touchscreen PLC (Siemens, Delta, or Mitsubishi) allows recipe saving, automatic cutting, and real-time monitoring.

Machine Frame

Sturdy H-beam welded frame with gear or chain drive ensures machine stability and long service life.

C Purlin Roll Forming Machine Price

The C purlin roll forming machine price varies depending on automation level, thickness range, and punching capabilities.

Here’s a general breakdown:

Note: Shipping, installation, and taxes are usually additional.

C Purlin Machine Manufacturers: How to Choose

With manufacturers across China, India, Turkey, and Europe offering a wide range of C purlin forming machines, it’s important to assess not just the machine—but the company behind it.

Evaluation Checklist:

Experience & References
Look for a manufacturer with proven installs for similar C purlin profiles or steel thicknesses.

Customization Capability
Can they tailor the machine to your specs—like punching design, flange height, or automation level?

Quality of Key Components
Prefer brands that use Siemens PLCs, SKF bearings, and hardened forming rollers.

After-Sales Service
Do they offer remote assistance, spare parts support, and operator training?

Warranty & Lead Time
Standard warranties range from 12 to 24 months. Lead times usually fall between 30 and 90 days.

Applications of C Purlins

C purlins are widely used in:

Steel building secondary framing (roof/wall)

Solar panel mounting systems

Warehouse and workshop construction

Prefab buildings

Agricultural structures

Having your own C purlin forming machine lets you offer custom lengths and punching patterns, which adds value for your customers and gives you better control over timelines and cost.

A C purlin machine is a valuable investment for any steel structure manufacturer, construction materials supplier, or contractor looking to produce high-strength, cost-effective structural components in-house. Whether you choose a manual or fully automatic system, the key is to match machine specs to your production needs—and work with trusted C purlin machine manufacturers who can deliver both equipment and long-term support.

C Purlin Forming Machine FAQs

1. What sizes can a standard C purlin machine produce?

Most machines cover 80–300mm web width and flange sizes of 40–80mm, adjustable as needed.

2. What’s the standard material used in C purlin production?

Cold-rolled steel, galvanized steel, and black steel in 1.5–3.0mm thickness are most common.

3. How long does size change take on an automatic machine?

Fully automatic size-changing systems can adjust in under 5 minutes with no manual tooling change.

4. Can the machine punch holes?

Yes. Most machines include optional hydraulic punching systems for bolt holes, notches, or slots.

5. How long does shipping take from a manufacturer?

Lead time typically ranges from 30 to 90 days, depending on order complexity and production load.
