Direct Forming Line for Square and Rectangle Pipe: A Complete Guide

Mar . 18, 2026 00:00

What Is a Direct Forming Line for Square and Rectangle Pipe?

A Direct Forming Line for Square and Rectangle Pipe (also called Direct Forming to Square technology) is an advanced type of tube mill that produces square and rectangular pipes directly from steel strip, without first forming a round pipe.

In traditional production, steel strip is formed into a round tube and then reshaped into square or rectangular sections. However, with direct forming technology, the strip is gradually formed into the final shape in one continuous process.

👉 In simple terms:
No round pipe → directly square/rectangle → higher efficiency

Key Applications of Direct Forming Technology

Direct forming lines are widely used in industries that require high precision and strong structural performance:

🏗️ Construction (steel structures, frames, columns)
🚗 Automotive industry (chassis components)
🛢️ Oil & gas pipelines (structural pipes)
🚜 Agricultural machinery
🏢 Furniture and decoration tubes
⚙️ Mechanical engineering

This technology is especially suitable for medium to large size square/rectangular pipes and thicker wall thickness production.

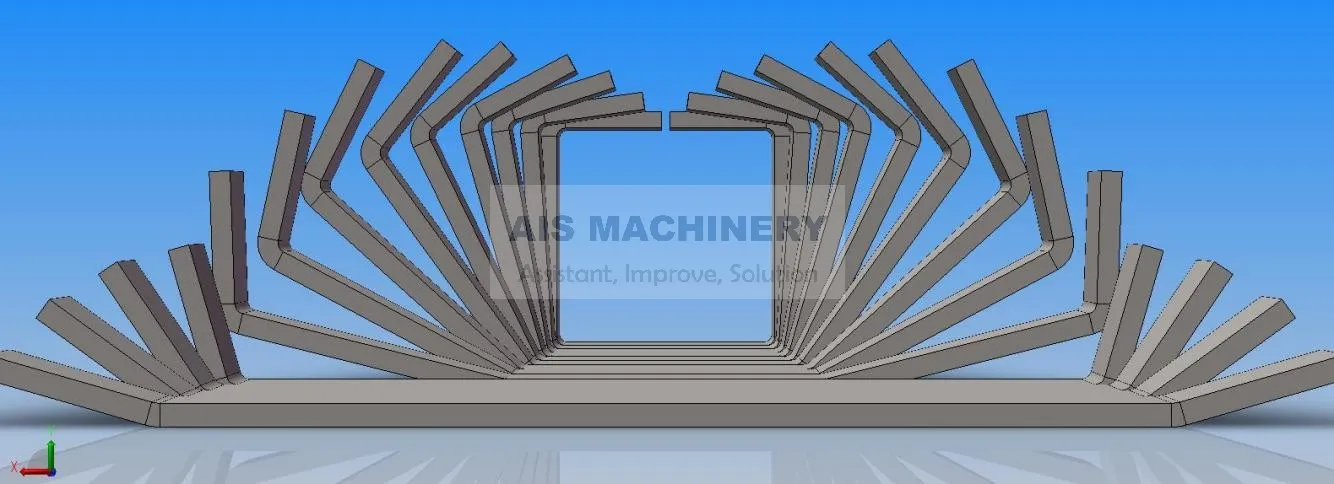

Direct square and rectangle pipe making machine tech

Direct Forming vs Traditional Tube Mill

Understanding the difference is crucial when choosing the right production line.

1. Forming Process

Traditional Tube Mill
Steel strip → Round pipe → Square/Rectangle pipe
Direct Forming Line
Steel strip → Directly square/rectangle pipe

✅ Direct forming eliminates the round pipe stage.

2. Roll Design & Adjustment

Traditional mills require two sets of rolls (round + sizing)

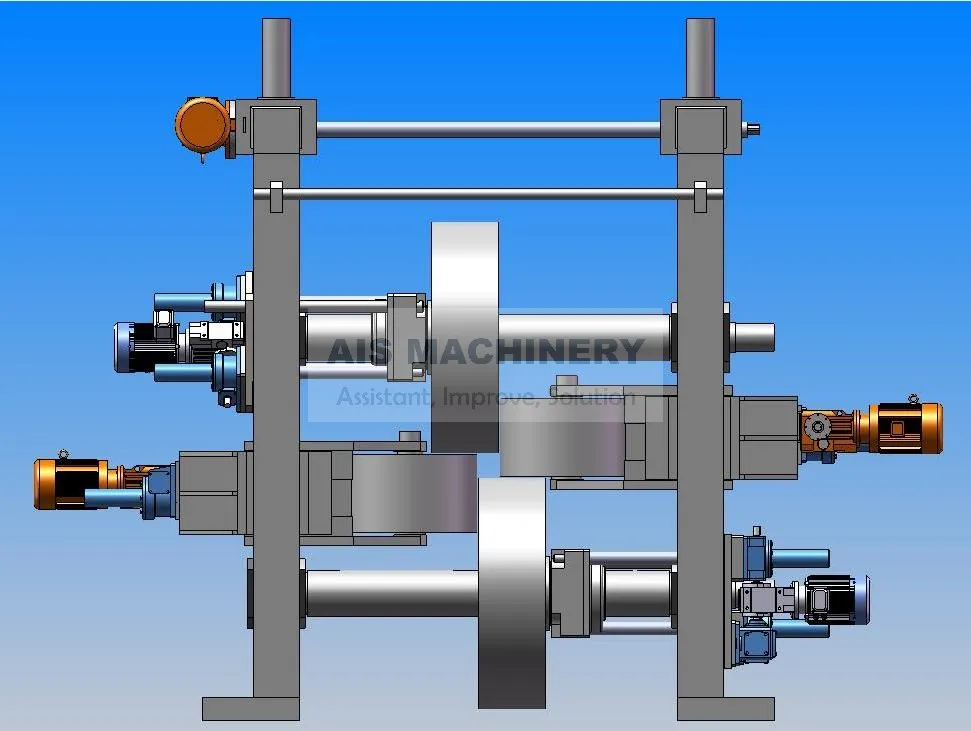

Direct forming uses special forming rolls designed for square shaping

✅ Faster roll change and easier adjustment

3. Production Flexibility

Traditional: better for wide size range
Direct forming: ideal for specific size ranges with high efficiency

4. Material Efficiency

Direct forming reduces:
- Edge stress
- Deformation
- Material waste

✅ Better steel utilization and lower cost

5. Final Product Quality

More uniform corner radius
Better dimensional accuracy
Improved mechanical performance

Process Flow of Direct Forming Line

Here is a typical production process of a direct forming line:

Coil Loading→ Uncoiler→ Leveling→ Strip Guiding→ Direct Forming Section→ High Frequency Welding→Deburring (Internal & External)→ Cooling→Sizing & Straightening→ Flying Saw Cutting→ Run-out Table & Collection

Why Choose Direct Forming Line?

Here are the main advantages that attract global buyers:

🚀 Higher production efficiency
💰 Lower production cost
🔧 Reduced roll consumption
📐 Better shape consistency
⚡ Faster size changeover
🧱 Stronger corner structure

🚀 Call to Action

Looking for a reliable Direct Forming Tube Mill Supplier?

Custom machine solutions
Technical consultation
Competitive quotation

📩 Let’s help you upgrade your pipe production line!
