Uncoiler with Peeler and Hold Down Roll: What It Is and Why It Matters in an ERW Tube Mill

Mar . 17, 2026 13:52

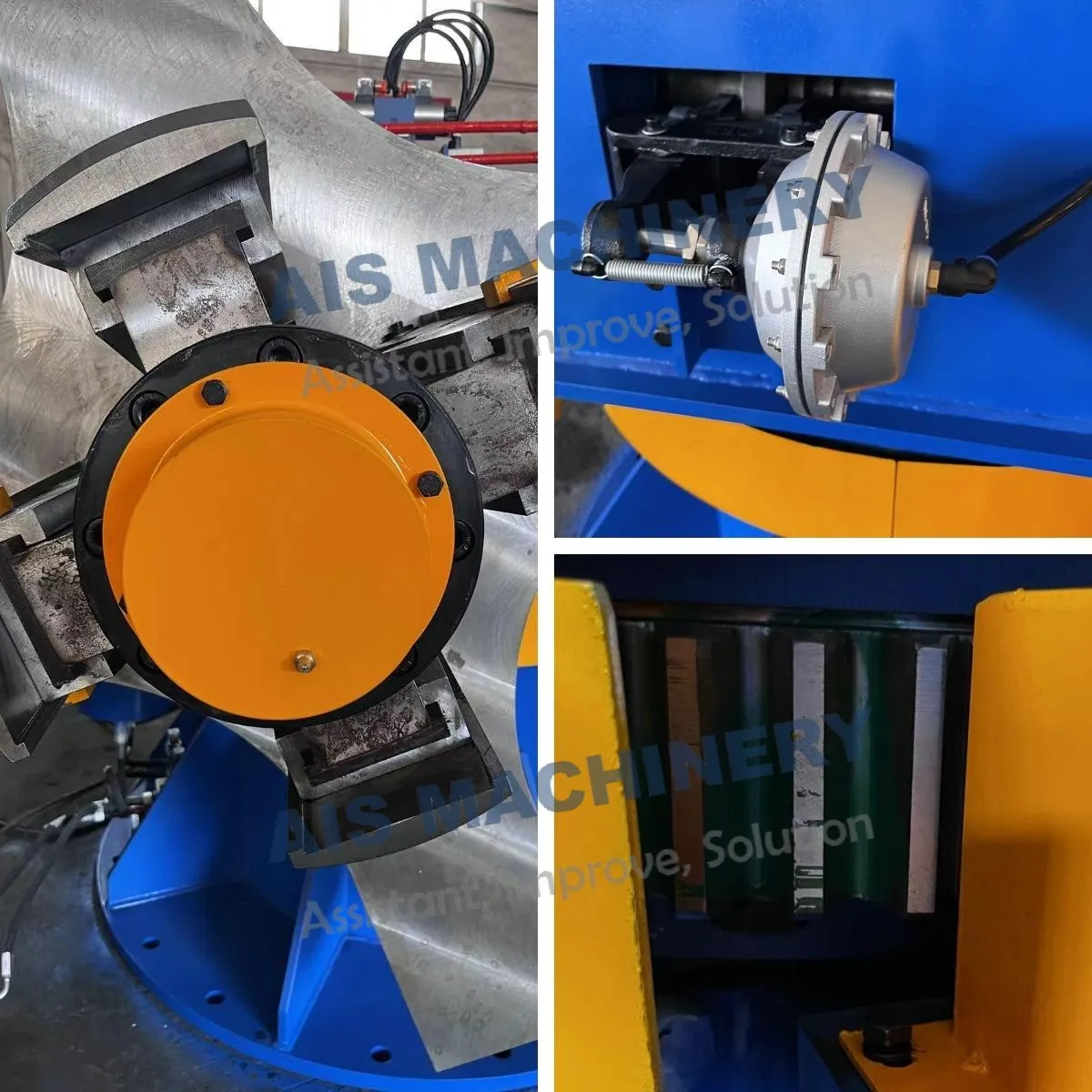

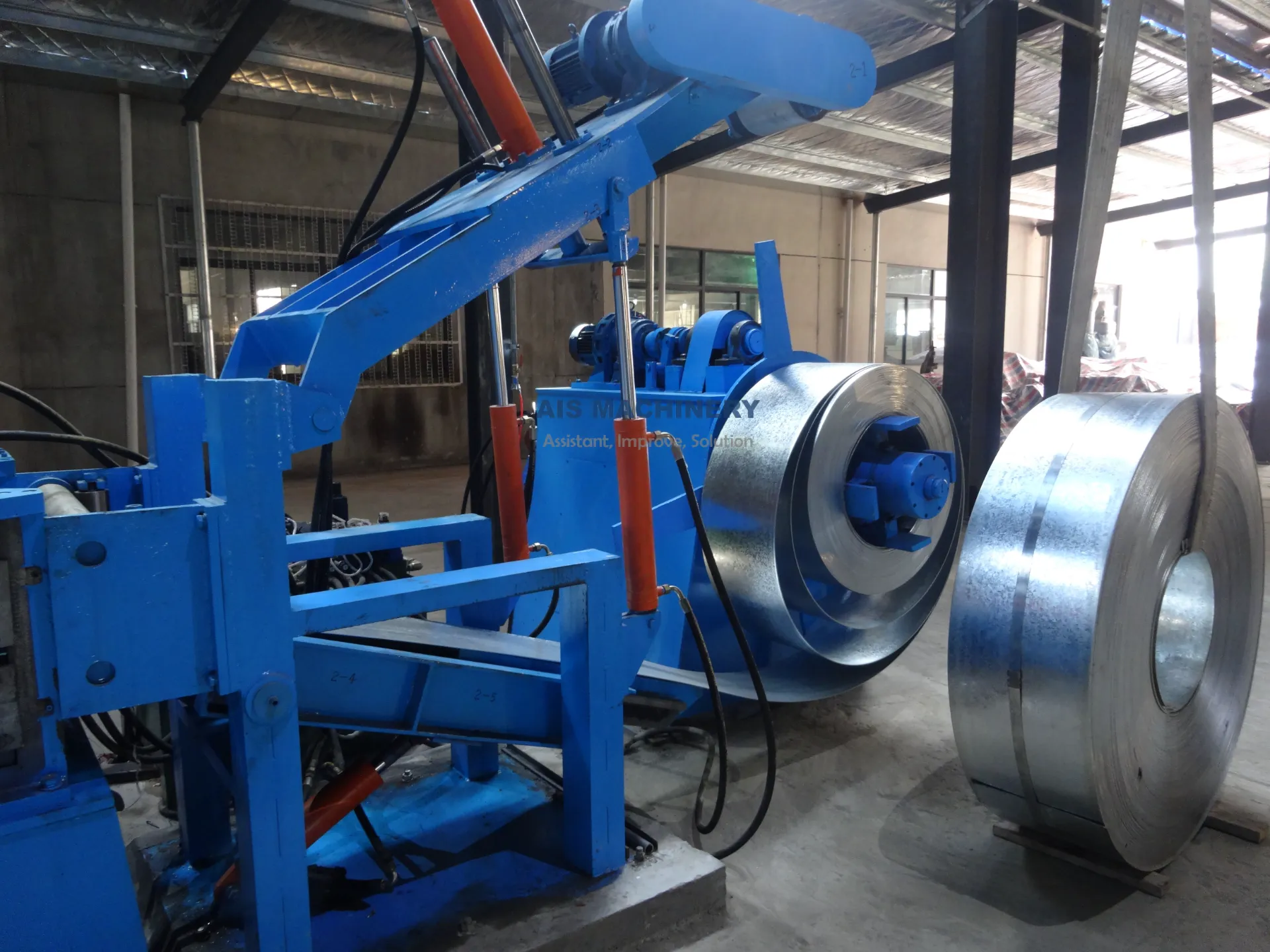

What Is an Uncoiler with Peeler and Hold Down Roll?

An uncoiler with peeler and hold down roll is an advanced decoiling system used at the entry section of an ERW tube mill line. Compared with a standard uncoiler, it is equipped with two additional key components:

⭐Peeler
⭐Hold down roll

These components work together to ensure that the steel coil is opened smoothly, safely, and in a controlled manner.

In simple terms, this type of uncoiler not only unwinds the coil—but also controls the strip head and prevents sudden expansion, which is very common with tightly wound steel coils.

Key Functions and Working Principle

When a steel coil is loaded onto the uncoiler, especially hot rolled or high-strength material, the strip head tends to spring open due to internal stress.

Here’s how the system works:

1. Peeler Function⚙️

The peeler helps to:

Open the head of the steel coil automatically
Guide the strip into the feeding system
Reduce manual operation and improve safety

2. Hold Down Roll Function🛠️

The hold down roll is used to:

Press the coil head to prevent sudden rebound
Keep the strip stable during feeding
Ensure smooth entry into the leveling or forming section

Together, they significantly improve feeding stability and operator safety.

Applications: Where Is It Used?

An uncoiler with peeler and hold down roll is widely used in:

• ERW tube mills
• Slitting lines
• Cut-to-length lines
• Heavy-duty coil processing lines

It is especially suitable for:

Thick materials
High-strength steel
Large coil weight applications

When Do You Need This Type of Uncoiler?

Not every production line requires this configuration. You should consider using it when:

✅ 1. Thick Steel Coils

Thicker materials (e.g. >3.0 mm) have stronger internal stress and are harder to open.

✅ 2. High-Strength Materials

Materials like:

Hot rolled steel
High yield strength steel (e.g. YS355)

These tend to spring back aggressively when uncoiled.

✅ 3. Large Coil Weight

Heavy coils increase the risk of:

Uncontrolled strip release
Equipment damage
Operator injury

✅ 4. High-Speed Production Lines

Stable feeding becomes critical to maintain:

الإنتاج efficiency
Product quality

Role in an ERW Tube Mill

In an ERW (Electric Resistance Welded) tube mill, this type of uncoiler plays a critical role at the very beginning of the process.

Main Contributions:

🔹 1. Stable Strip Feeding

Ensures the strip enters:

Leveling machine
Forming section

without deviation or vibration.

🔹 2. Improved Welding Quality

Stable feeding = consistent strip alignment → better welding seam quality.

🔹 3. Reduced Downtime

Prevents:

Coil head issues
Feeding interruptions

🔹 4. Enhanced Safety

Minimizes risks caused by:

Coil rebound
Manual handling

Advantages Over Standard Uncoilers

Feature	Standard Uncoiler	With Peeler & Hold Down Roll
Coil head control	Manual / limited	Automatic & controlled
Safety	Lower	Much higher
Feeding stability	Medium	High
Suitable material	Thin / normal	Thick / high-strength
Automation level	Basic	Advanced

Looking for the Right Uncoiler Solution?

Choosing the correct uncoiler configuration depends on your:

Coil thickness
Material grade
Coil weight
Line speed

Feel free to contact us for a customized solution tailored to your tube mill line.
