How Inner Scarfing Enhances ERW Pipe Performance

Jan . 28, 2026 00:00

The Pipe Inner Scarfing Remove Device is a key unit in ERW tube mills, designed to remove the internal weld bead after high-frequency welding. By eliminating excess weld metal inside the pipe, it ensures a smooth inner surface, improved weld seam quality, and better overall pipe performance.

This device is essential for manufacturers producing high-quality structural, fluid, and line pipes.

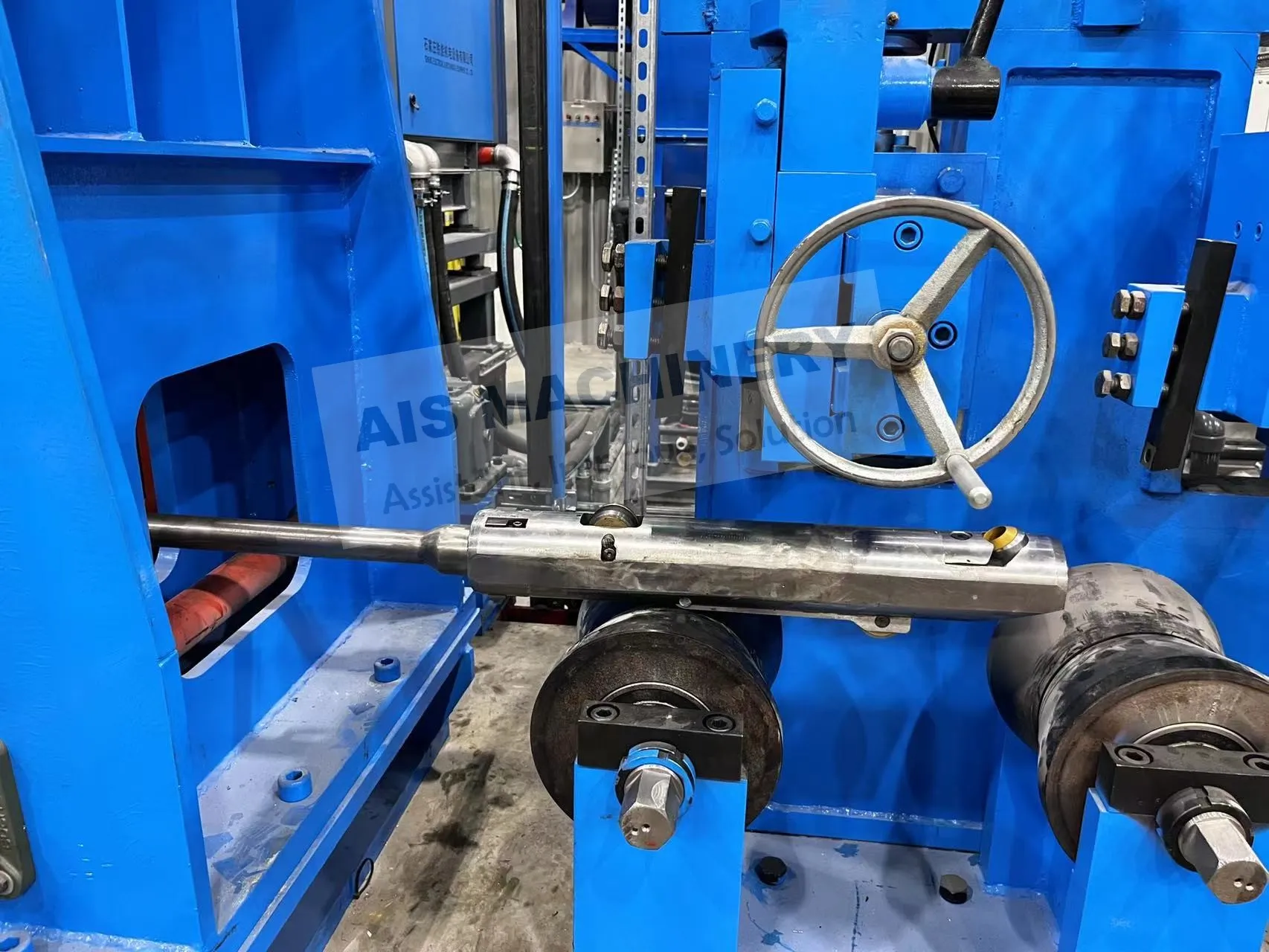

Remove weld seam from round tube

What Is a Pipe Inner Scarfing Remove Device?

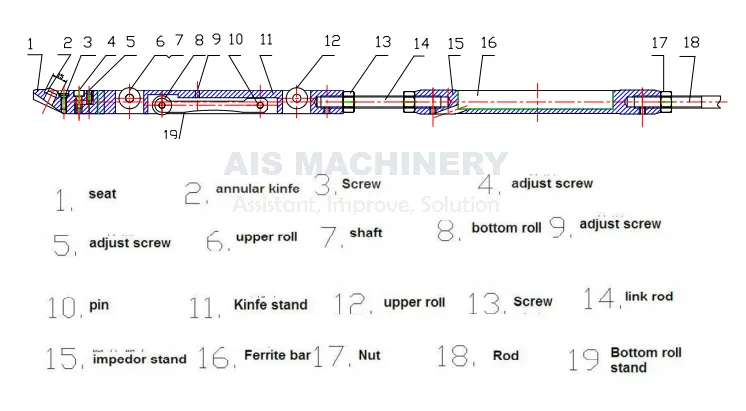

The pipe inner scarfing remove device removes the internal weld bead (inner burr) formed during HF welding. A precision cutting tool mounted on a scarfing rod cuts the inner bead while the pipe is still hot, leaving a smooth and uniform internal weld seam.

✅ Result: Better inner surface finish and higher pipe quality.

Main Functions & Benefits 🚀

Removes internal weld bead after HF welding
Improves inner surface smoothness
Reduces flow resistance for fluid pipes
Enhances pipe mechanical performance
Improves suitability for coating, galvanizing, and threading
Helps meet international standards (API, ASTM, EN)

Typical Technical Parameters (Reference)

Item	Typical Specification
Applicable pipe OD	Ø20 – Ø219 mm (customized)
Wall thickness	0.8 – 8.0 mm
Scarfing rod length	According to mill layout
Scarfing tool material	Carbide / high-speed alloy

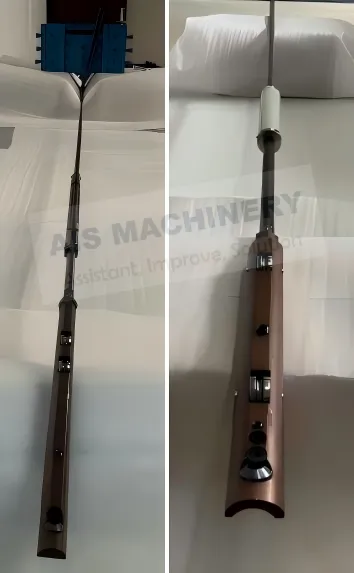

Operation mode	Mechanical or servo-assisted
Installation position	After HF welder

🛠️Note: Actual parameters can be customized based on tube mill size and production requirements.

Inner vs Outer Scarfing 🔍

• Inner Scarfing

Removes weld bead inside the pipe
Improves inner surface quality
Critical for fluid, gas, and precision pipes
Higher technical requirement

• Outer Scarfing

Removes weld bead on pipe outer surface
Improves pipe appearance
Prepares pipe for sizing and coating
Focuses on OD tolerance and surface finish

👉 For high-quality ERW pipe production, both inner and outer scarfing systems are recommended.

Position in ERW Tube Mill Line 🏭

Typical installation position:

HF Welder → Inner & Outer Scarfing Unit → Cooling → Sizing Mill

This ensures burr removal while the weld seam is still hot for best cutting performance.

FAQ ✨

1. What is a pipe inner scarfing remove device?

A pipe inner scarfing remove device is used in ERW tube mills to remove the internal weld bead formed after high-frequency welding, ensuring a smooth inner weld seam.

2. Why is inner scarfing important in ERW pipe production?

Inner scarfing improves internal surface quality, reduces flow resistance, and enhances pipe performance for fluid, gas, and precision applications.

3. What is the difference between inner and outer scarfing?

Inner scarfing removes weld bead inside the pipe, while outer scarfing removes weld bead on the outside surface. Both are important for high-quality ERW pipe production.

4. Where is the inner scarfing device installed in the tube mill?

It is typically installed right after the HF welder and before the cooling and sizing sections.

Conclusion💬

Need pricing or technical specifications for your tube mill?
Request a quote now and receive a tailored solution for your pipe size range and production requirements.

📩 Contact our engineers for technical consultation
