Field Notes on a Saw Grinding Machine for HSS Blades

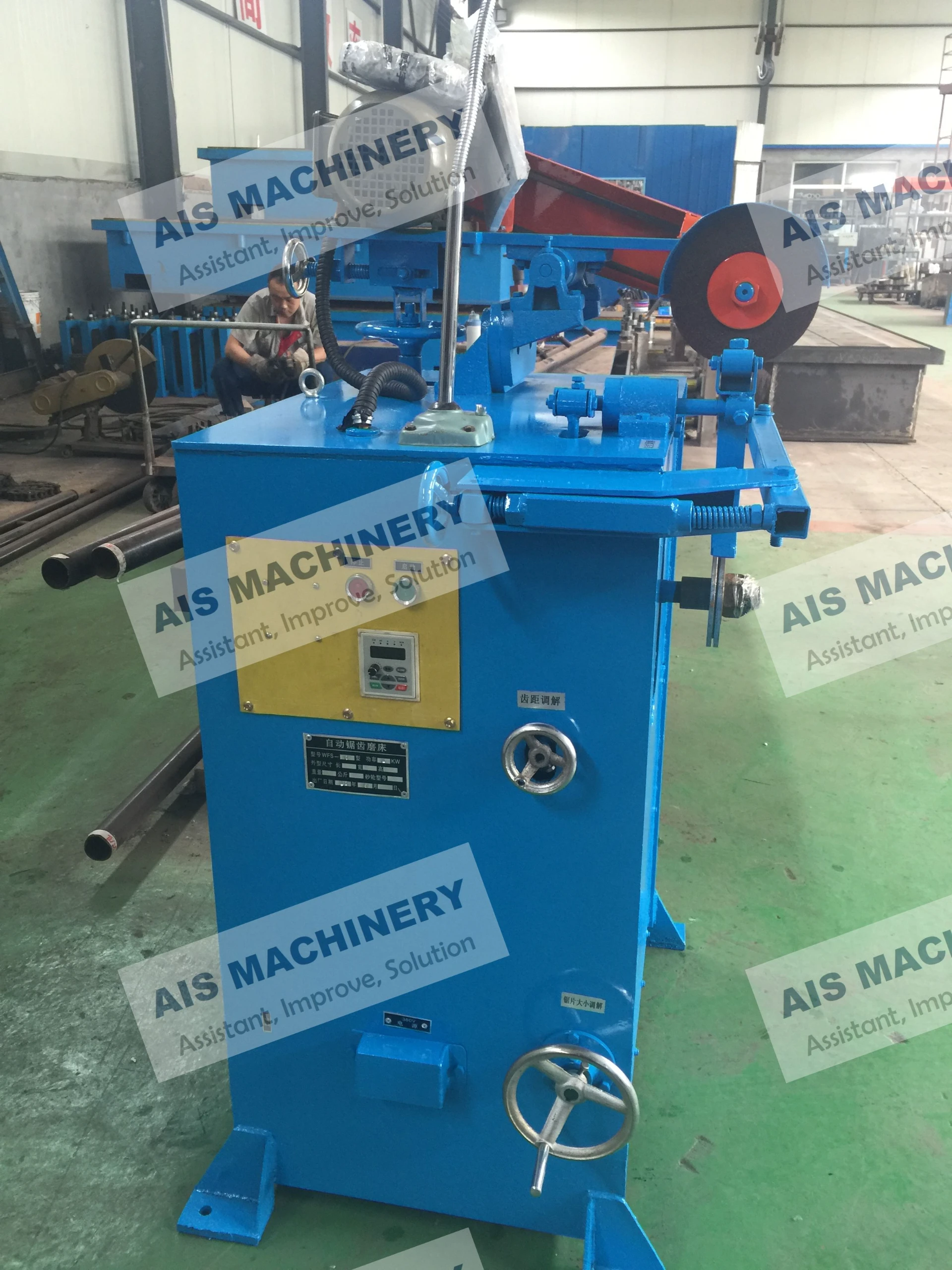

I’ve spent a decent chunk of my career walking pipe mills and tool rooms. One constant: if your saw line is sloppy, your shift is long. AIS Machinery’s HSS Saw Blade Sharpener surprised me—quietly efficient, a bit understated. To be honest, that’s what you want. It’s a toolroom workhorse, not a showroom diva.

What’s driving adoption right now

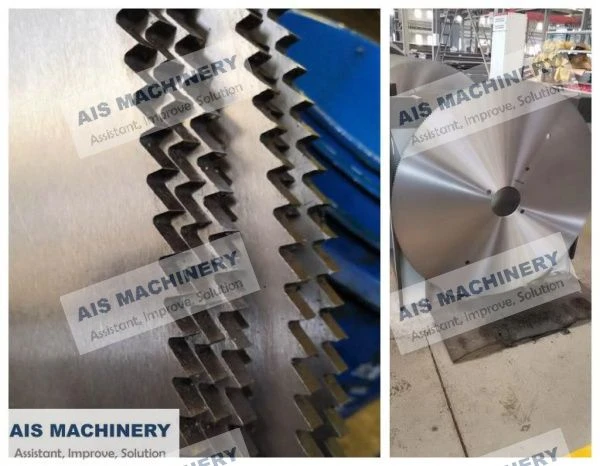

In pipe production, HSS blades are still the go-to for clean cuts and lower burrs. The trend I’m seeing: plants re-sharpen in-house to control cost and lead times, with CBN wheels and tighter runout specs. Automation is creeping in, but the sweet spot is semi-automatic, high-repeatability grinders like this Saw Grinding Machine.

Core specs (real-world, not brochure fluff)

Blade diameter range	Ø 180–650 mm ≈ (larger on request)
Blade thickness	0.8–5.0 mm (common HSS pipe saws)
Tooth forms	A, B, BW, C, and custom pitch/land
Spindle speed	≈ 2,500–4,500 rpm (CBN/AlOx compatible)
Motor power	1.5–3.0 kW, 3-phase
Grinding angles	Face/Top/Side 0–30°, fine-adjust
Coolant	Flood emulsion; optional oil mist
Accuracy	Tooth angle ±0.5°; runout after grind ≤0.02 mm (typ.)

Process flow and checks

Incoming inspection: blade ID, prior wear, micro-chipping under 20–40× scope.
Setup: precision arbor clamping; select wheel (CBN for hard HSS, AlOx for general).
Rough pass: stabilize geometry, restore primary face and clearance.
Finish pass: light depth of cut; coolant on to keep edge tempered.
Deburr and clean: compressed air + rinse; final tooth count verification.
QA: measure face runout (ISO 6103 guidance), tooth angle, surface finish Ra ≈ 0.4–0.8 μm.

Where it fits

Pipe and tube mills, automotive exhaust lines, furniture tubing, small-OD stainless lines, and service centers. Many customers say the Saw Grinding Machine is “set-and-forget” once the angle presets are dialed in.

Advantages I noticed

Consistent geometry across the full blade—less chatter on thin-wall tube.
Good coolant management; edges stay bright, no burnt teeth.
Operator-friendly dials and stops; easy to train.
Safety interlocks in line with ISO 16089 and ANSI B7.1 practices.

Vendor comparison (quick take)

Vendor	Edge Quality	Support	Notes
AIS Machinery (Origin: RM604 Shenxing Bldg, Xinhua St, Shijiazhuang, Hebei, CN 050000)	Stable; Ra ≈ 0.6 μm	Solid remote + spare parts stock	Best value for pipe lines
Vendor A	Excellent but premium pricing	Global field team	Good for 24/7 shops
Vendor B	Adequate	Email-only	Budget entry

Customization & compliance

Options include extended arbor sets, auto indexing, CBN wheel packages, oil-mist retrofit, and angle presets for your tooth library. CE-ready; quality system aligned with ISO 9001. Safety practices follow ISO 16089; abrasive use in line with ANSI B7.1 and ISO 6103.

Case data from the floor

A North China pipe producer (carbon steel, 25–63 mm) switched to AIS and ran a simple trial: two blades, same alloy, alternating regrinds.

Cut length before change: from 1,800 m to ≈ 2,450 m per grind (+36%).
Face runout after grind: ≤ 0.018 mm average (10-sample set).
Tooth angle deviation: ±0.4° (logged via gauge blocks).
Operator note: “Less burr on thin-wall 1.2 mm; noise down a notch.”

Bottom line: blade service life extended and cut consistency improved—exactly what the Saw Grinding Machine should deliver.

Testing standards and references

Runout and balance per ISO 6103 guidance; machine safety in line with ISO 16089; abrasive wheel use per ANSI B7.1; quality management per ISO 9001. Real-world use may vary, obviously, with operator skill and coolant discipline.

Citations

ISO 16089:2015 — Machine tools — Safety — Stationary grinding machines.
ANSI B7.1:2017 — Safety Requirements for the Use, Care and Protection of Abrasive Wheels.
ISO 6103:2014 — Bonded abrasive products — Permissible unbalance and runout.
ISO 9001:2015 — Quality management systems — Requirements.
