Horizontal vs Vertical vs Cage vs Disc Accumulator for ERW Tube Mills

Nov . 26, 2025 00:00

📘 Introduction

In an ERW tube mill, the accumulator ensures continuous strip feeding during coil changes, keeping the mill running without stoppage. The most common types are Horizontal Spiral, Vertical Spiral, Cage (Loop Cage), and Disc Accumulators. Each design fits different production speeds, strip sizes, and factory layouts.

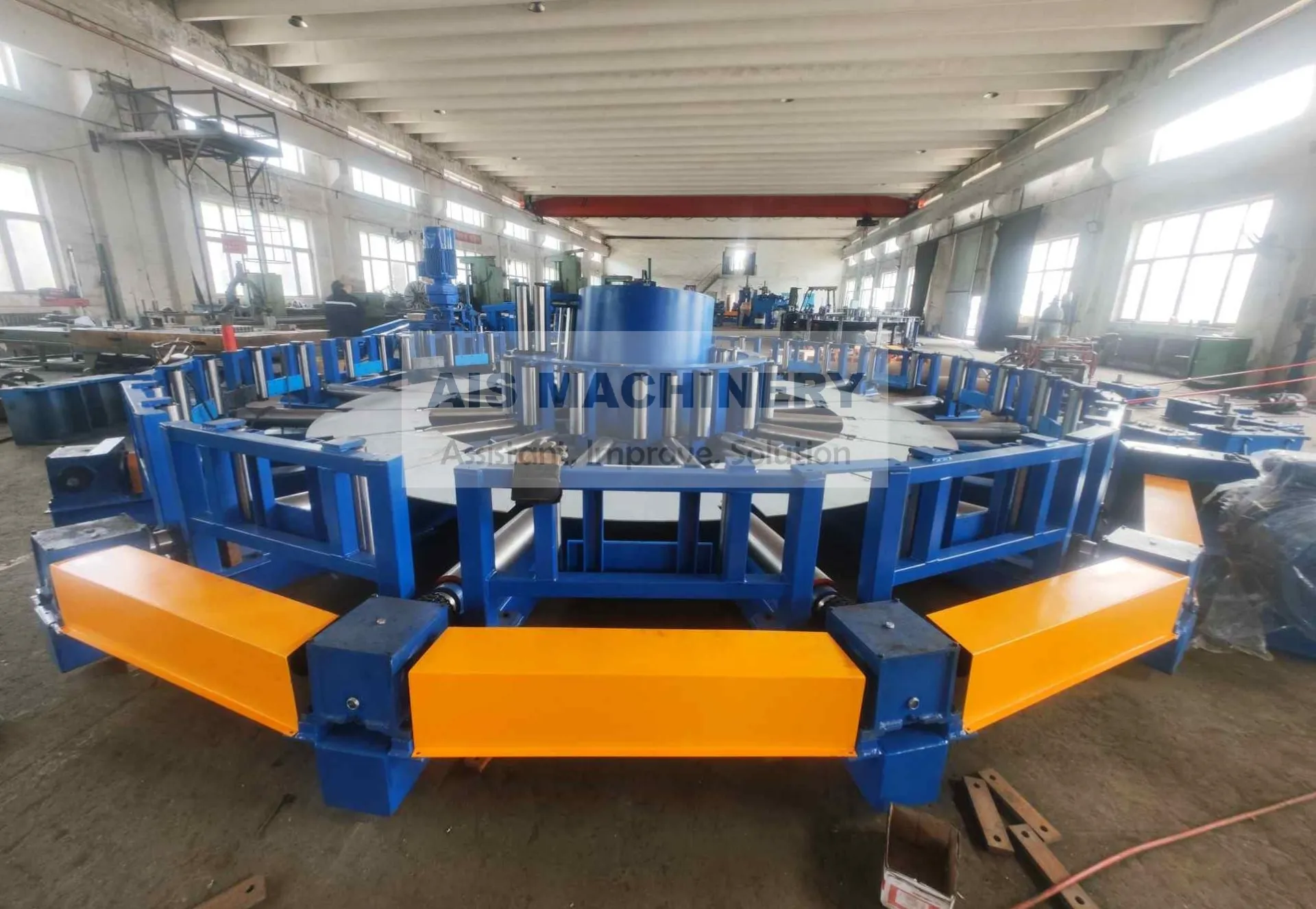

1. Horizontal Spiral Accumulator

Structure: Strip forms a horizontal spiral on a circular track; a movable trolley adjusts coil diameter.
Storage Capacity: 150–400 m
Line Speed: 120–180 m/min
Best For: Medium-speed ERW lines, structural and mechanical tubing

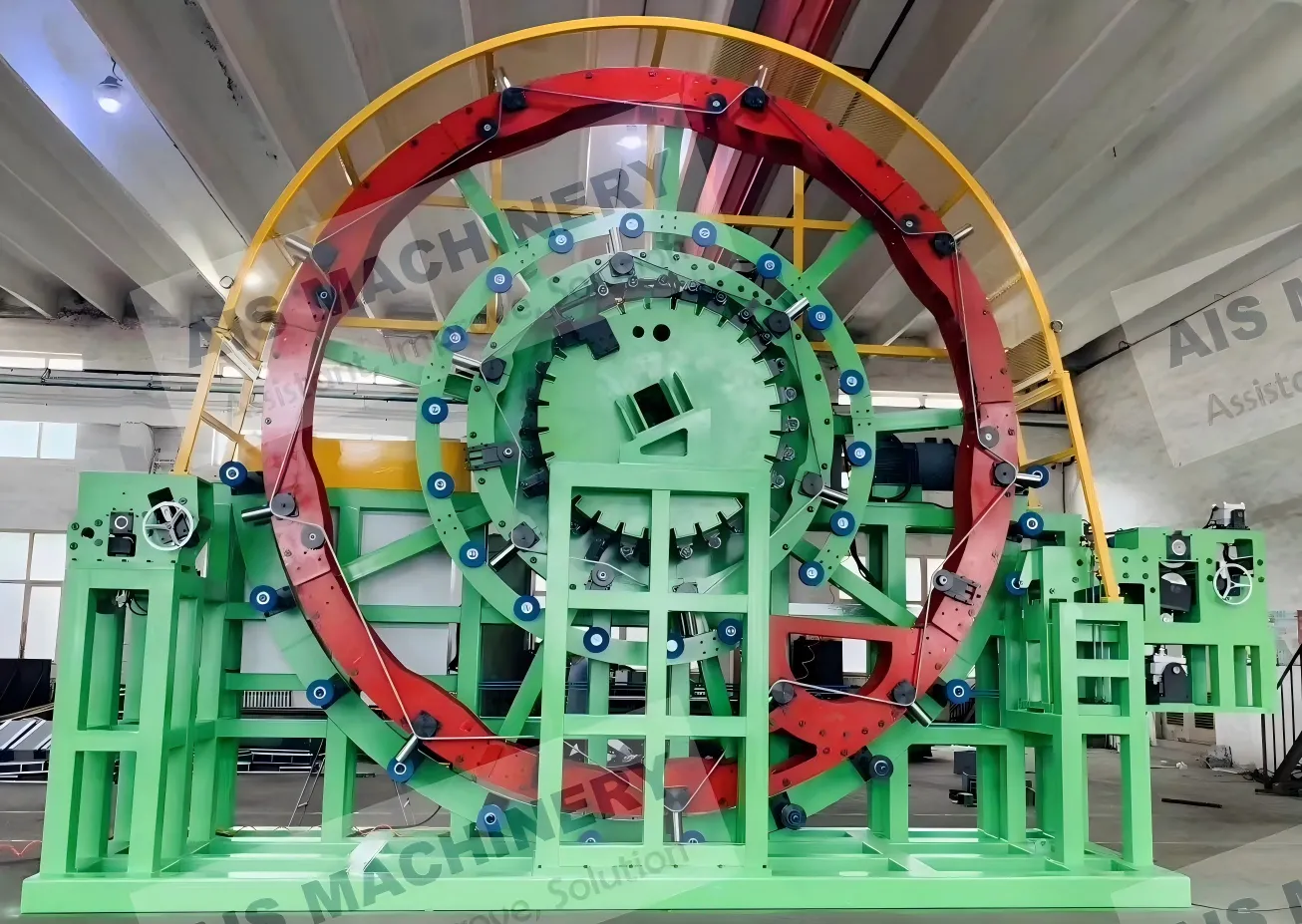

2. Vertical Spiral Accumulator

Structure: Strip forms vertical spiral layers; height is utilized to increase storage capacity.
Storage Capacity: 300–600 m
Line Speed: 150–250 m/min
Best For: Medium-to-high-speed lines, wide strip, medium-to-large tubes

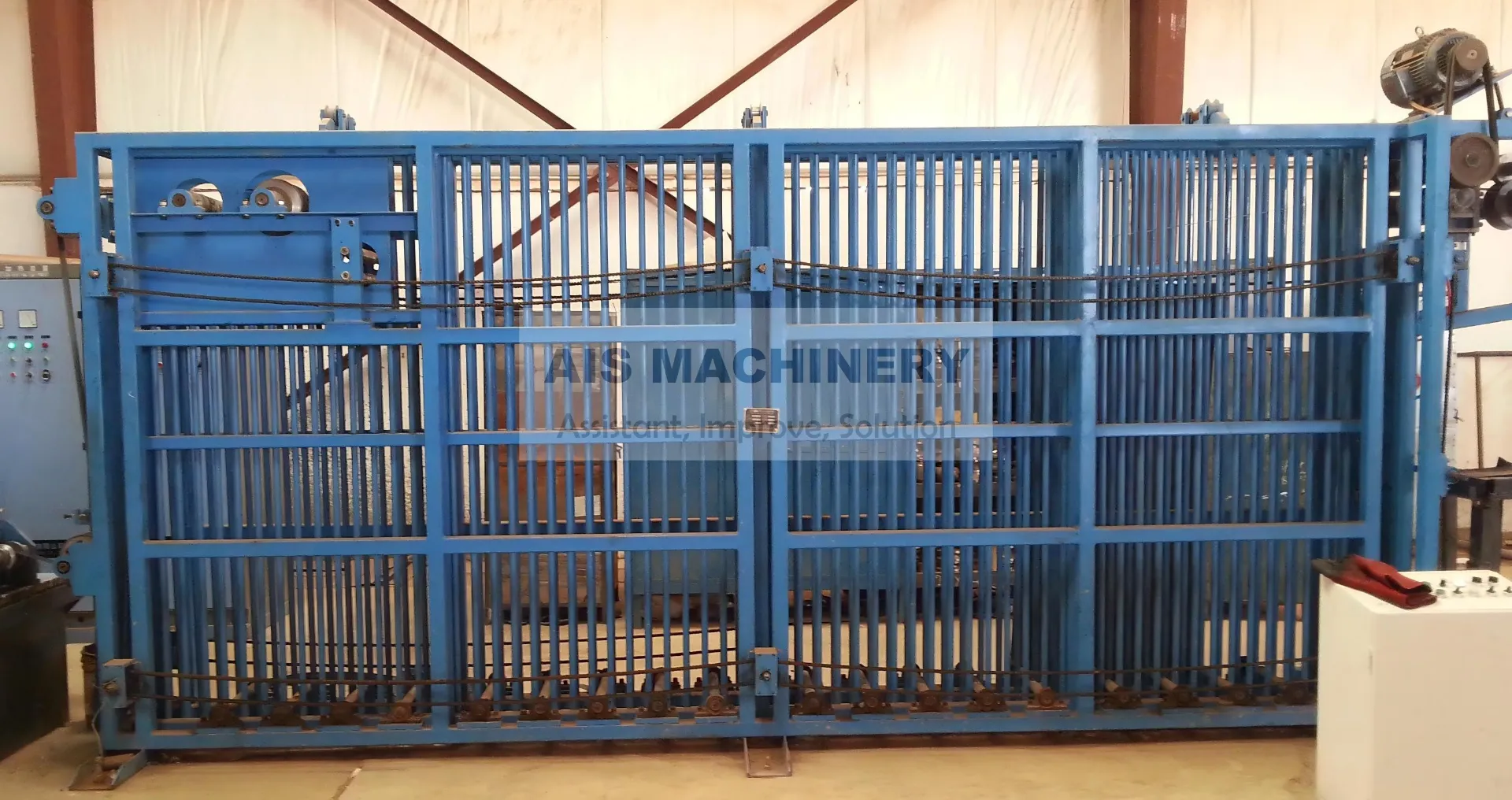

3. Cage Loop Accumulator

Structure: Strip passes through rotating cages to create large vertical loops with precise tension control.
Storage Capacity: 300–700+ m
Line Speed: 180–300+ m/min
Best For: High-speed lines, API pipe, automotive tube, continuous production

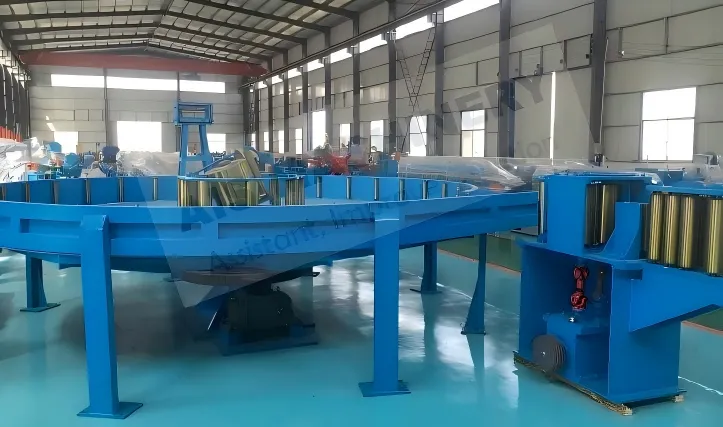

4. Disc Type Spiral Accumulator

Structure: Strip is wound into a flat spiral on a rotating disc for compact storage.
Storage Capacity: 80–250 m
Line Speed: 80–150 m/min
Best For: Small OD, thin-wall tubes, compact workshops

Detailed Performance Comparison

1. Strip Handling & Tension Control

Type	Tension Control	Suitable Material	Characteristics
Disc	★★☆☆☆	Thin, low-strength steel	Simple structure; short strip path; sensitive to tension fluctuations
Horizontal Spiral	★★★☆☆	Carbon steel	Stable tension control; good for medium-speed lines
Vertical Spiral	★★★★☆	Wide, medium-thick strip	Vertical path reduces lateral fluctuations; larger storage
Cage Loop	★★★★★	High-strength, wide strip	Independent tension zones; highest precision

2. Line Speed Capability

Disc: 80–150 m/min
Horizontal Spiral: 120–180 m/min
Vertical Spiral: 150–250 m/min
Cage Loop: 180–300+ m/min

Conclusion: For welding speeds >250 m/min, Cage Loop is the only reliable choice.

3. Storage Capacity & Buffer Efficiency

Type	Storage Density	Max Capacity	Application
Disc	★★★☆☆	80–250 m	Small tubes / small lines
Horizontal Spiral	★★★☆☆	150–400 m	Medium output lines
Vertical Spiral	★★★★☆	300–600 m	High-speed, frequent coil change
Cage Loop	★★★★★	300–700+ m	Continuous high-speed production

4. Floor Space & Height Requirements

Type	Floor Area	Height	Foundation Requirement
Disc	Minimal	Low	Simple
Horizontal Spiral	Medium (larger diameter)	Low	Simple
Vertical Spiral	Small	High	Medium
Cage Loop	Medium	High	High (steel frame required)

Key Notes:

Low building height → Horizontal / Disc
Limited floor space → Vertical / Cage

5. Engineering Reliability

⚙️Disc: Simple, limited application
⚙️Horizontal Spiral: Stable, low maintenance
⚙️Vertical Spiral: More complex, better performance
⚙️Cage Loop: Maximum continuous stability, suitable for 24/7 operation

Professional Selection Guide

➡️Step 1: Define Target Welding Speed

≤150 m/min → Disc / Horizontal
150–250 m/min → Vertical Spiral
≥250 m/min → Cage Loop

➡️Step 2: Evaluate Strip Specifications

Thin strip ≤1.2 mm → Disc / Horizontal
Wide strip >500 mm or thick >3 mm → Vertical / Cage
High-strength steel → Cage Loop

➡️Step 3: Consider Pipe Size

Small OD ≤60 mm → Disc
Small-medium OD ≤89 mm → Horizontal Spiral
Medium-large OD ≤168 mm → Vertical Spiral
Large or API OD ≥219 mm → Cage Loop

➡️Step 4: Analyze Workshop Layout

Low building → Horizontal / Disc
Narrow building → Vertical / Cage
No pit foundation → Disc / Horizontal

➡️Step 5: Balance Budget vs Performance

Economical → Disc Type
High cost-performance → Horizontal Spiral
High-speed stability → Vertical Spiral
Continuous high-end production → Cage Loop
