Friction Saw for ERW Tube Mill – High-Speed Online Pipe Cutting Solution

Mar . 03, 2026 00:00

In a modern pipe production line, the Friction Saw (Flying Saw) is a key piece of equipment used for continuous, high-speed pipe cutting. It is widely applied in ERW tube mill lines to cut steel pipes to fixed lengths while the tube is still moving.

If you are looking for a cost-effective, reliable, and high-speed cutting solution, the Friction Saw is a proven and practical choice.

What Is a Friction Saw?

A Friction Saw is a hot cutting system that uses a high-speed rotating blade to generate friction heat between the blade and the steel pipe.

Instead of traditional tooth cutting like a cold saw, it relies on friction heat to soften the material locally and complete the cut quickly.

✔ Ideal for carbon steel pipes
✔ Suitable for high-speed production
✔ Designed for medium and light wall thickness

Position of Friction Saw in ERW Tube Mill

In a typical ERW tube mill production line, the Friction Saw is installed after sizing and straightening, before the run-out table:

Forming → Welding → Cooling → Sizing → Straightening → ➜ Friction Saw → Run-out Table

This position allows the pipe to be cut to fixed length without stopping the continuous production process.

Main Applications

Friction Saw machines are widely used for:

Construction structural pipes
Scaffolding tubes
Furniture pipes
Water and gas pipes
Mild carbon steel tubes

They are especially suitable for:

High-speed ERW production lines
Large-volume standard-length cutting
Applications where cutting efficiency is more important than perfect edge finish

Typical Technical Parameters (Reference)

Item	Specification Range
Tube Diameter	Φ20 – Φ165 mm
Wall Thickness	0.8 – 6.0 mm
Line Speed	60 – 120 m/min
Saw Blade Diameter	800 – 1500 mm
Main Motor Power	75 – 160 kW
Length Tolerance	±3 – 5 mm

All parameters can be customized according to your production requirements.

Advantages of Friction Saw ✅

1️⃣ High Cutting Speed

Supports high line speed without reducing overall production capacity.

2️⃣ Lower Investment Cost

Compared with cold saw systems, the initial investment is significantly lower.

3️⃣ Simple Structure

Mechanical structure is straightforward and easy to maintain.

4️⃣ Strong Adaptability

Suitable for a wide range of carbon steel pipe sizes.

5️⃣ Mature & Reliable Technology

Extensively used in global ERW tube production lines with stable performance.

Limitations (Honest Overview) ⚠️

To provide a clear and professional introduction:

Burr may appear on the pipe end
Cutting surface may show slight oxidation
Accuracy is lower than cold saw systems

For high-precision or automotive-grade pipes, a cold saw is usually recommended. However, for structural and construction pipes, Friction Saw offers excellent cost-performance value.

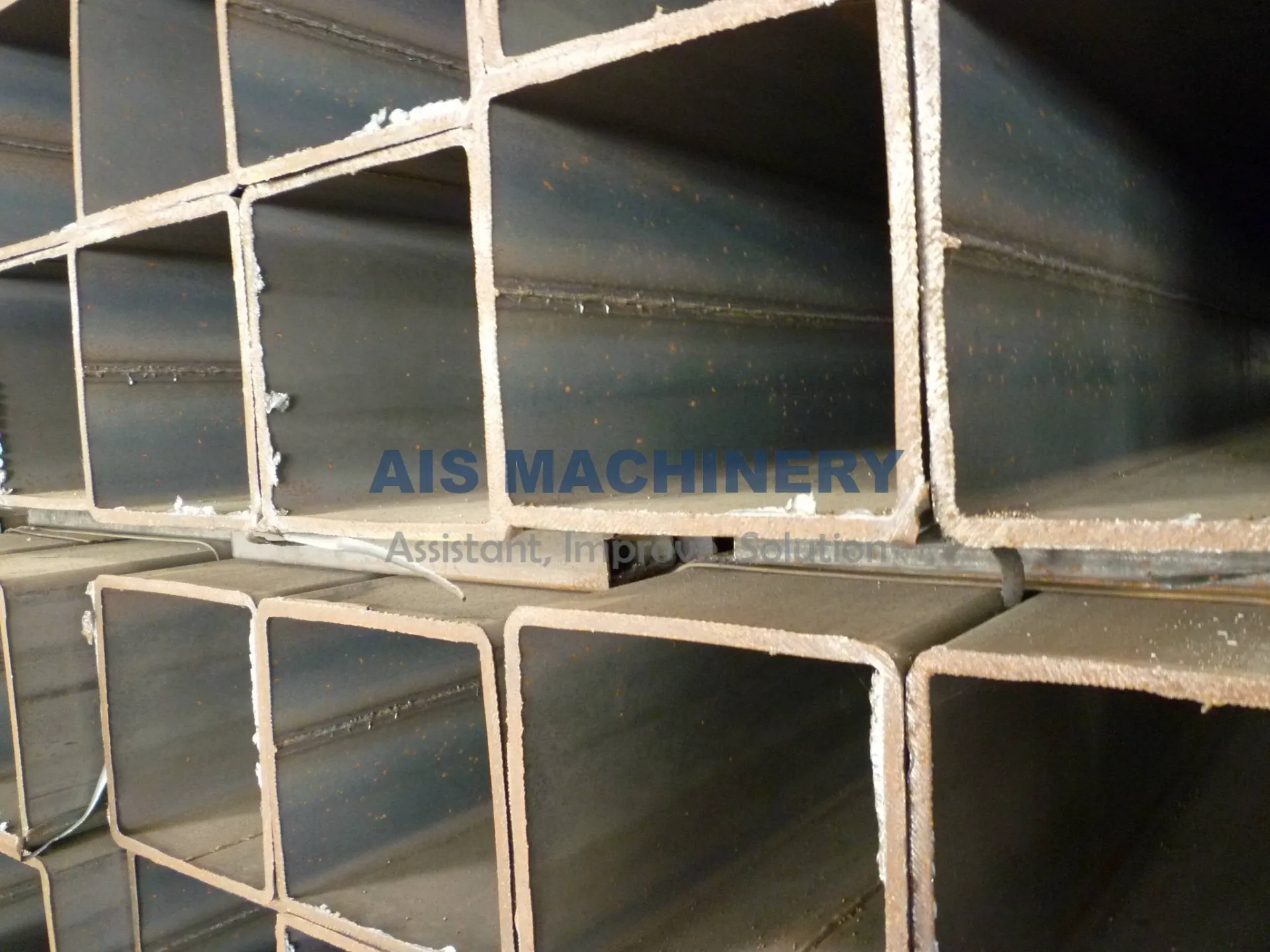

Friction Saw has burrs

Why Choose Our Friction Saw? 🚀

We provide customized flying friction saw solutions designed to match your ERW tube mill perfectly:

Heavy-duty sliding carriage design
High-strength spindle system
Stable servo length control
Easy integration with complete mill line
Exported to multiple countries with proven stability

If your goal is:

✔ Stable high-speed production
✔ Controlled equipment investment
✔ Easy operation and maintenance

Our Friction Saw is an ideal solution.

FAQ – Friction Saw for ERW Tube Mill

Q1: What material can a friction saw cut?

It is mainly designed for carbon steel pipes and mild steel tubes. Stainless steel can be cut, but it depends on wall thickness and production speed.

Q2: What is the difference between a friction saw and a cold saw?

A friction saw uses heat generated by high-speed friction to cut, while a cold saw uses teeth to mechanically cut the material. Cold saw offers better surface finish and higher precision but costs more.

Q3: Does the friction saw affect production speed?

No. It is designed for continuous online cutting and can match high-speed ERW tube mill lines.

Q4: How accurate is the cutting length?

Typical tolerance is ±3–5 mm, depending on line speed and control system.

Q5: Is additional processing required after cutting?

For most structural applications, no extra processing is required. However, if smooth pipe ends are needed, deburring or end-facing can be added.
